Prima PRLD371 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRLD371

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRLD371 and is the answer not in the manual?

Questions and answers

Related Manuals for Prima PRLD371

Summary of Contents for Prima PRLD371

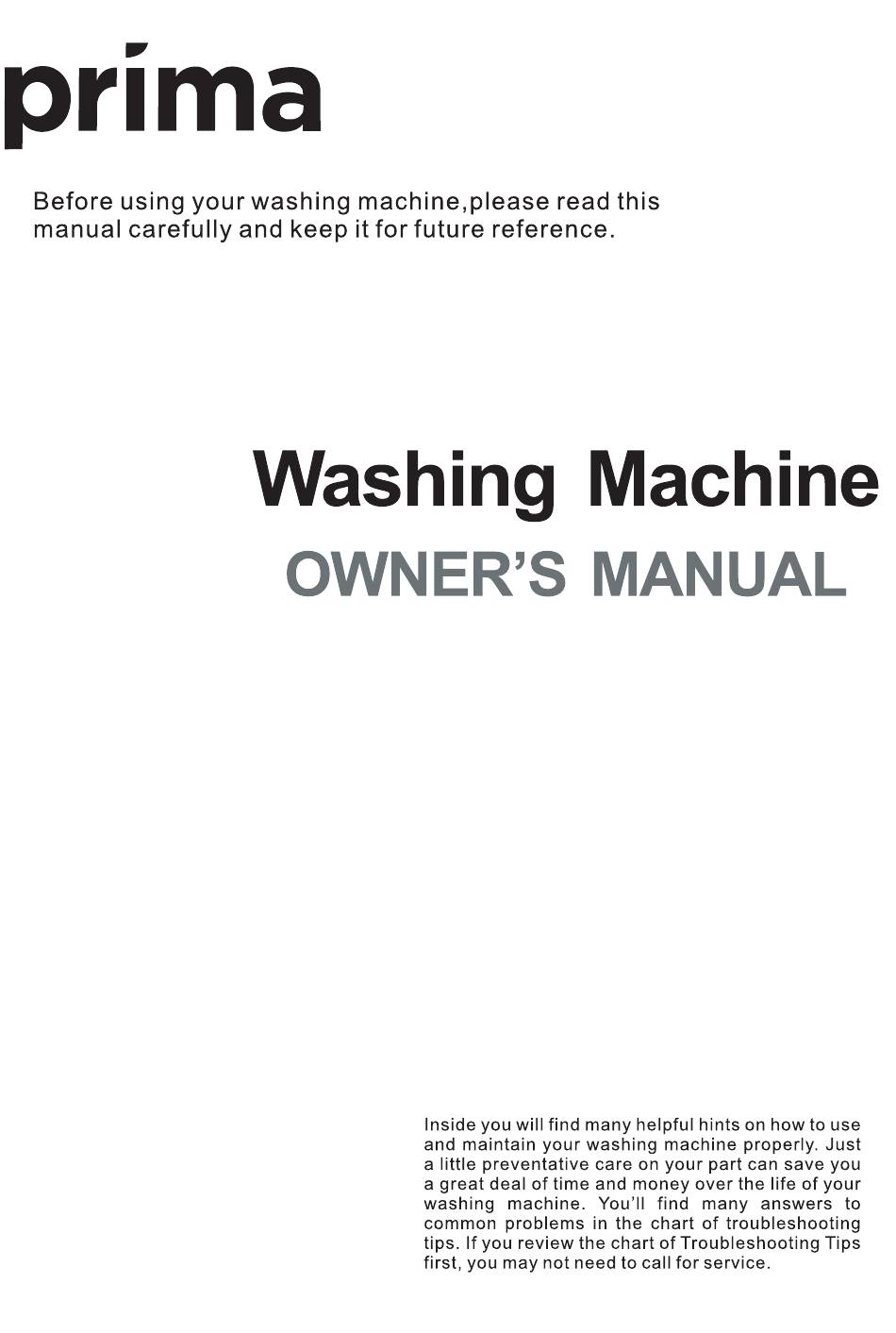

  • Page 1 PRLD371...

  • Page 2: Table Of Contents

    CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS CLEANING AND MAINTENANCE TROUBLE SHOOTING DISPOSAL AND RECYCLING BUILT-IN INSTALLATION Read all instructions and explanations before use.Follow the instructions carefully. Keep the operation instructions handy for later use. if the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

  • Page 4: Electric Shock Hazard

    WARNING: Electric Shock Hazard • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.

  • Page 5: Electrical Connection

    SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa. Electrical Connection • Make sure the supply cable is not trapped by the machine, or it can get damaged. •...
  • Page 6 -Accumulated water shall be drained out of the machine. • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle. Model Washing Capacity 7.0 kg PRLD371...

  • Page 7: Specifications

    SPECIFICATIONS Model PRLD371 Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 7.0kg Dimension 595mm 825mm 495mm 915mm 135mm 555mm 545mm 975mm Weight 60kg Rated Power 1950W...

  • Page 8: Product Overview

    PRODUCT OVERVIEW Door Drain hose Power supply cord Detergent dispenser Control panel NOTE The product picture is for illustration only, please refer to real product as reference. Accessories Acoustic sponge 4 x Cover 1 x Supply hose 1 x Owner’s (optional) caps cold water...

  • Page 9: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.

  • Page 10: Before Washing

    1. Before Washing 1. Plug in 2. Open tap 3. Load earth terminal 4. Close door 5. Add detergent Main wash Softener Prewash NOTE Detergent need to be added in compartment I if the pre-wash function is selected.
  • Page 11 2. Washing 1. Power on 2. Select programme 4. Press Start/Pause to start 3. Select function or remain the program default settings 3. After Washing Buzzer beep and “End” on display.

  • Page 12: Product Installation

    PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not include) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •...

  • Page 13: Unpacking The Machine

    Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together.

  • Page 14: Levelling The Machine

    PRODUCT INSTALLATION Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.

  • Page 15: Acoustic Sponge

    There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Water trough Acoustic Sponge NOTE • Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

  • Page 16: Operation Instructions

    OPERATION INSTRUCTIONS Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser CAUTION • Detergent only need to be added in compartment I ”after selecting pre-wash “ function. Programme Programme Quick 15' Baby Care Rapid 45' Wool 20 ℃ Delicate Jeans ECO 40-60...

  • Page 18: Detergent Recommendation

    OPERATION INSTRUCTIONS Detergent Recommendation Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent White laundry made Cotton,ECO 40-60 40 60 with bleaching agents from boil-proof and optical brighteners cotton or linen Colour detergent without Coloured laundry 20/30/ Cotton, ECO40-60,...

  • Page 19: Control Panel

    Control Panel On/Off Power on or off machine. Start/Pause Start or pause your program. Option Press buttons to change program parameters or select additional functions. Program Choose appropriate program according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages.
  • Page 20 OPERATION INSTRUCTIONS Display Display Wash Time Delay Time Speed Error Door Lock Extra Rinse Pre Wash Child Lock...
  • Page 21 Programmes Programme Load (kg) Default Time (h:min) Quick 15' 0:15 Rapid 45' 0:45 20℃ 1:01 Jeans 1:35 ECO 40-60 3:28 Steam Wash 1:48 Rinse & Spin 0:20 Spin Only 0:12 Baby Care 2:01 Wool 1:07 Delicate 0:50 1:20 Synthetic 3:18 Sport 0:47 Cotton...
  • Page 22 Programmes Cycle Cold 0:15 0.030 Cold 70%/800 Quick 15' 20℃ 65%/1000 1:01 0.177 65%/1000 1:48 0.540 Steam Wash 65%/1000 1:20 0.696 53%/1400 Cotton 3:39 1.392 53.9%/1350 3:28 0.675 57.0 ECO 40-60 53.9%/1350 2:42 0.375 41.0 32.0 53.9%/1350 2:42 0.188 • The above data is for reference only, and the data may change due to different actual use conditions.
  • Page 23 Programmes 1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 24 OPERATION INSTRUCTIONS Programmes are available according to the laundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Rapid 45' Washing few and not very dirty clothes quickly. Wash synthetic articles, for example: shirts, coats, blending. While Synthetic washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 25 OPERATION INSTRUCTIONS Option Default Default spin Additional Cycle speed (rpm) Temp.(℃) functions Wash Cycles 1400 Cold Quick 15' Delay Extra Rapid 45' Delay, Rinse, Extra Delay, 20 ℃ 1000 Rinse, Extra Delay, Jeans Wash, Rinse, Delay, ECO 40-60 1400 Extra Steam Wash Delay, 1000...
  • Page 26 Delay Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 h.) 3.Press [Start/Pause] to commence the delay operation Delay On/Off Choose the Programme Setting time Start Cancel the Delay function: Press the [Delay] button until the display be 0h.It should be pressed before starting the programme.
  • Page 27 OPERATION INSTRUCTIONS Child Lock To avoid mis operation by children. Temp. Speed Press [Temp.] and [Speed] On/Off Start/Pause 3 sec. till buzzer beep. CAUTION • Press the two button 3 sec. also to be released the function. • The “Child Lock” will lock all buttons except [On/Off]. •...

  • Page 28: Product Fiche

    Product Fiche a , c Supplier's name or trade mark( ) ( ): a , c Supplier's address( ) ( ): PRLD371 Model identifier( ): General product parameters: Parameter Value Parameter Value Height Width a , c Dimensions in cm( ) ( )

  • Page 29: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non- abrasive neutral detergents when necessary.
  • Page 30 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 3. Unscrew the water supply 4.
  • Page 31 CLEANING AND MAINTENANCE Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. 3.
  • Page 32 Cleaning the Drain Pump Filter WARNING • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. •...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start and restart.

  • Page 34: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 35: Customer Service

    Customer Service Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements In case of questions, please contact our local customer service center. WARNING Risk of electric shock •...

  • Page 36: Built-In Installation

    BUILT-IN INSTALLATION Appendix Hinges Fixed position Self-tapping screws Counter magnet Spacer paper (ST4*12) (M5*12) (ST4.8*15) Tool Screw driver Automatic driver Ruler Pencil Install Steps 600mm 580mm 825mm 152.5mm Overview Preparation and assembly of the door The door is open from left to right The door is open from right to left...
  • Page 37 1: Make the mark on the door Position Paper 2: Fixed position paper on the door. Position Paper Position Paper Left Open Right Open 3: Drill hole on the door 35mm...
  • Page 38 4: Installation the hinges and spacer 5:Installation the counter magnet Fix counter magnet on the cabinet cover Screw counter magnet on the cabinet cover 6: Installation the door WARNING • When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed in either of the two recesses on the back of the appliance.
