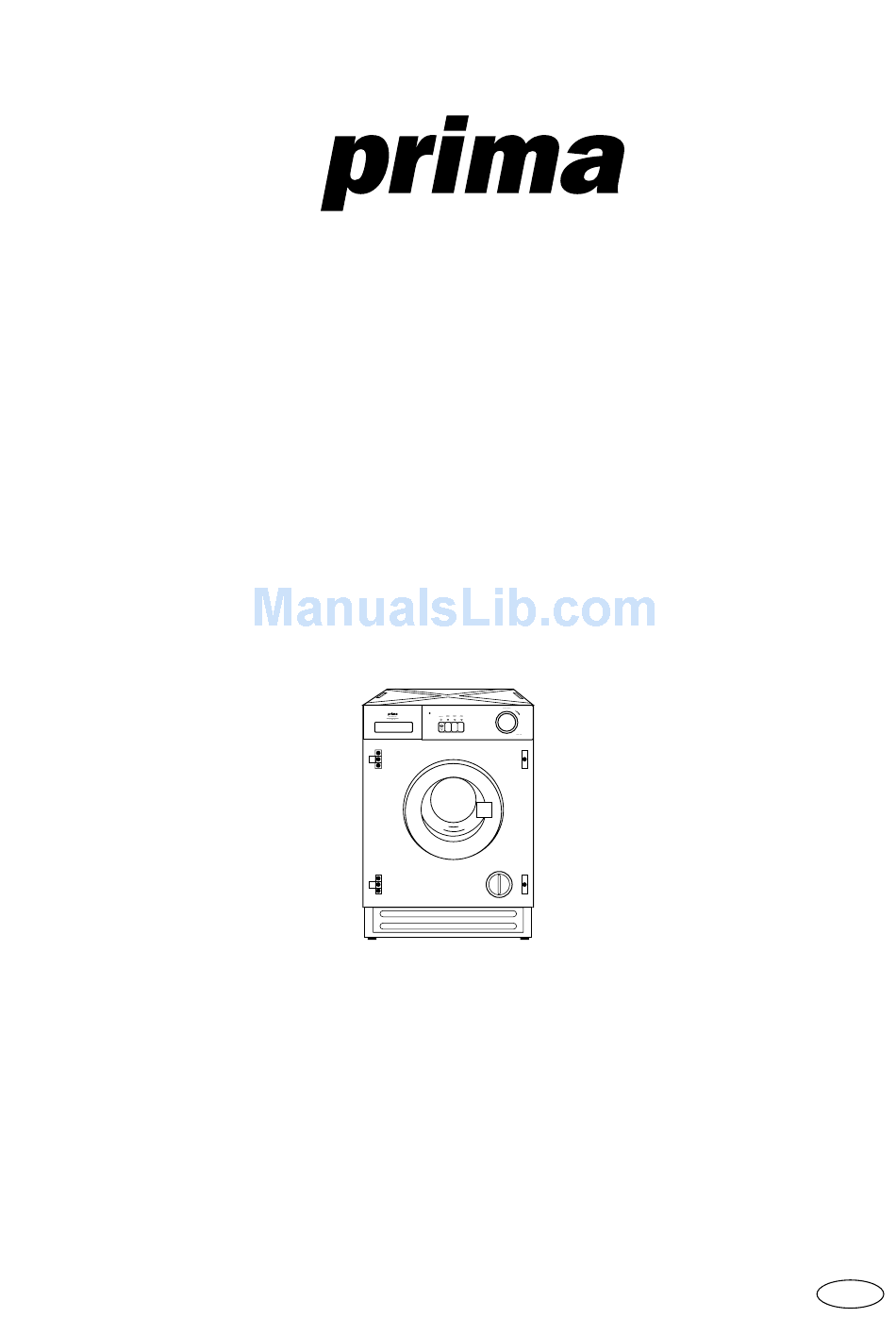

- Page 1 WASHING MACHINE LPR 710 INSTRUCTION BOOKLET 132992170...
-
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Detergent dispenser drawer The Control Panel Operating sequence Washing 4.5 kg of white cotton at 95°C Load the laundry Measure out the detergent Measure out the fabric softener Select the required option Select the required programme Start the machine... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C before draining, with the 95°C programme. This reduces thermal shock to fabrics, helping to prevent creasing. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 “Mains-on” light 4 ON/OFF button 5 “Option” buttons 6 Programme selector dial 7 Door opening handle 8 Filter 9 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener The programme chart is in the interior part of the drawer. -
Page 6: The Control Panel
The Control Panel 1 Programme guide 2 Mains-on light This light illuminates when the machine starts working and goes out when the ON/OFF button is released. 3 ON-OFF button By depressing this button the machine starts operating. When depressed again, the machine stops. The push button is provided with a child-proof safety lock. -
Page 7: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 8: Start The Machine
6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply tap is turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating. -
Page 9: Washing 2 Kg Of Mixed Fabrics At 50°C
WASHING 2 KG OF MIXED FABRICS AT 50°C Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. -
Page 10: At The End Of The Programme
7. At the end of the programme The machine stops automatically. If you have depressed the RINSE HOLD button, the machine will stop with the water left in the tub, to prevent the fabric from creasing. To drain the water and spin, release the same button. -
Page 11: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 12: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 13: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 14: Washing Programmes
Washing Programmes Programmes for cotton and linen Wash programme/ Degree of soil Washing symbol and type of laundry WHITES For heavy soiled cotton WITH items. PREWASH White cotton, for example normally soiled work garments, sheets, WHITES household linen, underwear, towels. Fast coloured cotton or FAST linen fabrics, shirts,... -
Page 15: Washing Programmes
Washing Programmes Programmes for synthetics, mixed fabrics, wool and delicates Wash programme/ Degree of soil Washing symbol and type of laundry Synthetic or mixed fabrics, underwear, coloured garments, SYNTHETICS non-shrink shirts, blouses. WORN Lightly soiled synthetic ONCE or mixed fabrics SHORT Separate spin for hand SPIN... -
Page 16: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 17: The Dangers Of Freezing
Unscrew and remove the filter. Clean carefully under a fast running tap. Warning When the appliance is in use and depending on the programme selected there can be hot water in the filter. Never remove the filter during a wash cycle, always wait until the appliance has finished the cycle, and is empty. -
Page 18: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 19: Something Not Working
Symptom The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum Service & Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Centre by telephoning: 0870 5 929929... -
Page 20: Guarantee Conditions
Guarantee Conditions Standard guarantee conditions We, EHP, undertake that if, within 12 months of the date of the purchase, this Prima appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used... -
Page 21: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 22: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the rear right bolt. Lay the machine gently on its back, making sure that the hoses are not squashed. -
Page 23: Water Inlet
Water inlet Connect the hose to a tap with a 3/4” thread. Do not use previously used hoses for water connection. Installation should comply with local water authority and building regulations’ requirements. The appliance must be connected to a cold water supply. -
Page 24: Levelling
If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not blocked. Use the plastic “U-Piece” supplied. The drain hose must not be kinked. Important Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes. -
Page 25: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate. -
Page 26: Building-In
Building-in This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in picture Preparation and assembly of the door The machine is originally pre-arranged for the assembly of a door opening from right to left. In this case it is sufficient to screw in the hinges (1) and the counter-magnet (6) provided with the appliance, at the right level (Fig. - Page 27 Recommendations regarding the construction and fitting of a base when the installation requires an integrated appliance to be raised Where the appliance has been raised by mounting onto a wooden base provided by the installer. The material used to construct the base should have a non slip surface, be water repellent and if possible be one solid piece.
