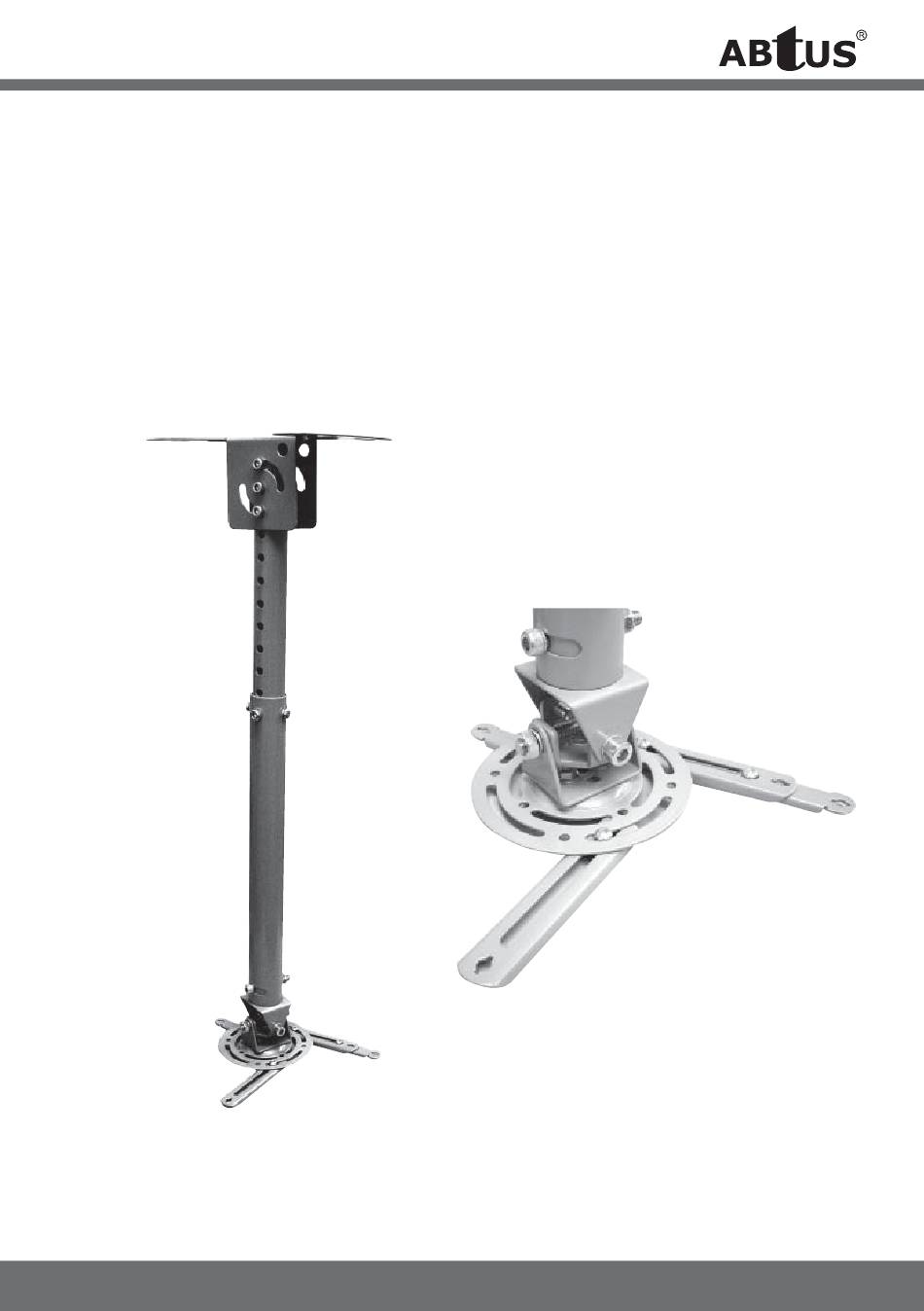

- Page 1 Projector Ceiling Mount ABtUS SIGAPORE PTE LTD www.abtussingapore.com Model: AV815 Patent Pending Revision 20140722 ABtUS SINGAPORE PTE LTD www.abtussingapore.com...
-
Page 2: Important Notes
User Operation Guide IMPORTANT NOTES ● Thank you for purchasing the Universal Projector Ceiling Mount. This bracket is suitable for about most of projectors up to a load fro 15kg (33 lbs) ● To ensure correct usage, please read this instruction manual thoroughly. Keep this manual for future reference. -
Page 3: Parts Specifications
PARTS SPECIFICATIONS *Specifi cations are subject to changes without notice. - Page 4 User Operation Guide Assembling without the correct use bolts and screws at designated points may result in injury and damage to properties or the unit collapsing from its installed position. Should a malfuction occur disconnect the power from the main socket and surround the area with ropes to prevent others from getting near it.
- Page 5 WARNING Keep the room well ventilated to prevent room temperature rising and possibilities resulting in fi re. Do not install in location where room temperature and humidity are excessively high to prevent fi re. To prevent fi re, avoid contact with water Do not apply unnecessary stress or load on the installed unit.
-
Page 6: Package Contents
PACKAGE CONTENTS 1. Each package should contain the parts listed and shown below Ceiling Mounting plate..1 pc Upper Rod..1 pc Short Extension Bracket 1 Lower Rod..1 pc 50mm ........1 pc Universal Head Assembly..1 pc Square nut..4 pcs Truss Head Screw M2.6x15/ M3x15/M3x20 .... - Page 7 INSTALLATION GUIDE 1. Assembly procedure-Installation of Suspension Rod 1.1 Install upper rod Install the upper rod using M8x55 Socket Cap Screw and M8 Self-Locking Nylon Nut, Celing Mounting Plate 1.2 Install low rod First align two holes on the lower rod at the suitable holes on the upper rod, tighten them with M8x55 Socket Cap Screw and M8 Self-Locking Nylon Nut.
- Page 8 INSTALLATION GUIDE 2. Parts Assembly - Installation of Universal Base Lift the Projector with both middle fi nger Lift the Projector with both middle fi nger along the depth od the Projector to along the depth of the Projector to search for the Cental of gravity (CG).
- Page 9 INSTALLATION GUIDE Assemble the selected Extension Use the Tress head screws provided in the package to tighten the Extension Bracket with the following items: Bottom Spacer, Spacer (if needed) & Brackets to the Projector. Square Nut. Lift up the Projector to check the CG of the assembled Projector and tighten all the screws once confi...
- Page 10 INSTALLATION GUIDE 3. Installation of Universal Ceiling Mounting Kit Install the Universal Ceiling Mounting Install the Universal Base Plate with the Kit to the ceiling. Fix Suspension Rod projector (B) using M8x55 Socket Cap by M10 expansion bolt (not included) Screw and M8 Self-locking Nylon Nut, on the ceiling.
-
Page 11: Specification
SPECIFICATION : 2.9kg (2.7 lbs) Gross Weight : 420 x 200 x 120 mm | 16.5” x 8” x 5” inch Gross Dimension Lexextendable Length : (7900) mm Ø 38mm & Ø 42mm with Optional Rod : 15kg (33 lbs) Load Capacity ** For details and updated Command and Program Software, please visit and download from www.abtussingapore.com *Specifi... - Page 12 ABtUS SINGAPORE PTE LTD www.abtussingapore.com...
