  • Page 1 PIPELIFE FLOORTHERM Hub8...

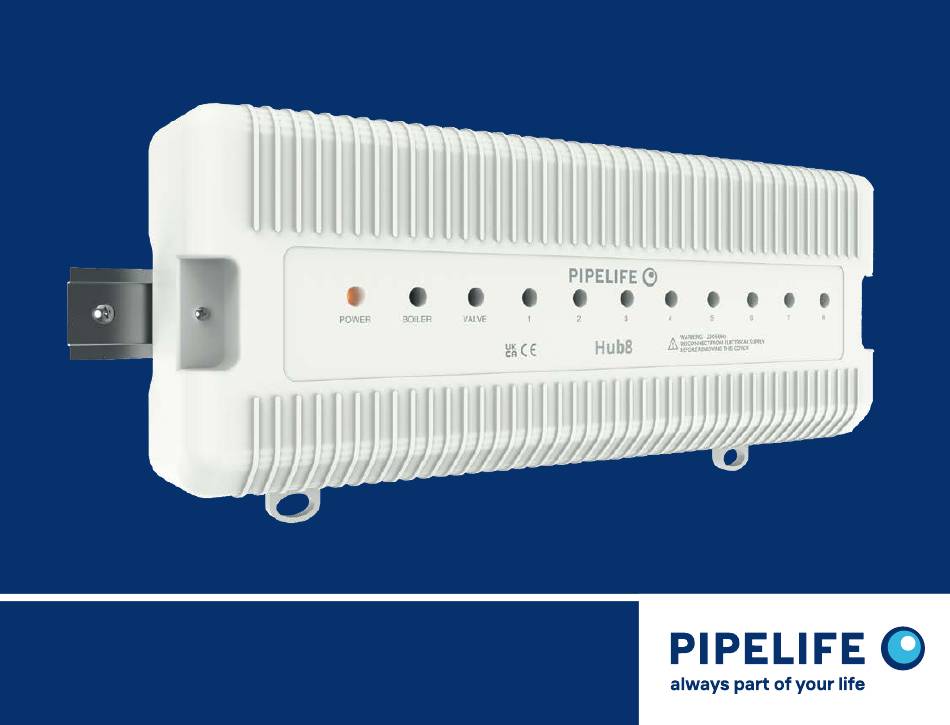

  • Page 2 Hub8 – Installation Manual Description The Hub8 is an 8 Zone wiring centre for use with Pipelife 230v thermostats. The Hub8 can be used to control any actuator or valve which requires a 230v AC signal to open. For mid position valves and those requiring a closing signal, a changeover relay is required.

  • Page 3: Installation

    Installation The Hub8 can be mounted directly to a wall using four screws or alternatively, the unit can be DIN rail mounted. When DIN Rail mounting, you first need to insert the two clips provided on the back of the Hub8, as shown in the image; •...
  • Page 4 UH8 Wiring Zones 1…8 (Inputs) Connections Zone inputs are clearly marked at the top Mains Supply of the circuit board; Power supply into the Hub8 which should be fused at 5 amps these L = Live supply to thermostat. connections are marked 1 = Timed switch live to thermostat, L = live or phase 230v AC 50/60Hz triggered by time clock 1 input.
  • Page 5 UFH Pump Ratings Used for an under-floor heating manifold pump. Number of Heating Zones Connections are clearly marked, Neon Indication L = Live E = Earth DIN Rail Mounting N = Neutral Supply 230v AC 50Hz 1 Phase When an under-floor heating zone sends a call for heat to the Relay Load Max 3 Amp Resistive Hub8, the live &...
  • Page 6 Hub8 – Manual Thermostats & Thermostat p4 Time Clock Thermostat p4 (4 Under-floor & 1 Radiator zone) TM4-TS 4 channel Timer UFM UNDER FLOOR MANIFOLD CH1 CH2 CH3 CH4 LIVE TIMER LIVE SWITH LIVE MAINS MAINS SUPPLY SUPPLY NEUTRAL MAINS TIME C EARTH 5A FUSE...
  • Page 7 3 Core Plus 4 Core Plus Earth Wiring Earth Wiring HEATING Radiators DS-SB STAT DS-SB STAT DS-SB STAT DS-SB STAT Manual Manual Manual Manual Manual Thermostat Thermostat Thermostat Thermostat Thermostat FOUR CORE AND 1.5mm Cable EARTH 1.5 CABLE ZONE 1 IME CLOCK ZONE 2 ZONE 3...
  • Page 8 NEUTRAL NEUTRAL EARTH EARTH END SWITCH AND END SWITCH AND BOILER ENABLE BOILER ENABLE Thermostat s Hub8 – Thermostat s (7 Under-floor & 1 Radiator zone) UFM UNDER FLOOR MANIFOLD LIVE THREE CORE AND THREE CORE AND EARTH 1.5 mm CABLE EARTH 1.5 CABLE SWITCH LIVE NEUTRAL...
  • Page 9 HEATING Radiators NEO STAT Thermostat s NEO STAT Thermostat s NEO STAT Thermostat s NEO STAT Thermostat s NEO STAT Thermostat s NEO STAT Thermostat s Thermostat s ZONE 3 ZONE 2 ZONE 4 ZONE 3 ZONE 5 ZONE 4 ZONE 6 ZONE 5 ZONE 7...
  • Page 10 Manual Thermostat Hub8 – 230V Thermostat Wiring THREE CORE AND THREE CORE AND EARTH 1.5 mm CABLE EARTH 1.5 CABLE LIVE MAINS MAINS SWITCH LIVE SUPPLY SUPPLY NEUTRAL 5A FUSE MAINS 5A FUSE MAINS TIME CLOCK ZONE 1 TIME CLOCK EARTH HEAT HEAT...
  • Page 11 EDGE TOUCH NEOSTAT Manual Manual Thermostat p1 Thermostat p1 Thermostat p1 Thermostat p1 Manual Thermostat Thermostat Thermostat A2 A1 ZONE 3 ZONE 2 ZONE 4 ZONE 3 ZONE 5 ZONE 4 ZONE 6 ZONE 5 ZONE 7 ZONE 6 ZONE 8 ZONE 7 ZONE 8 FH VALVE...

  • Page 12: System Configuration

    System Configuration PLEASE COMPLETE DURING INSTALLATION Hub8 Title: Zone Type Zone Title Under-Floor Radiator Zone 1 .................................................................... Zone 2 .................................................................... Zone 3 .................................................................... Zone 4 .................................................................... Zone 5 .................................................................... Zone 6 .................................................................... Zone 7 .................................................................... Zone 8 ....................................................................
  • Page 13 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 14 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 15 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

  • Page 16: Want More Information

    Want More Information? PIPELIFE International GmbH, Wienerbergerplatz 1, 1100 Wien T +43 1 602 2030 0, E info@pipelife.com, pipelife.com Rev.1.0...
