Summary of Contents for Pipelife Thermostat sw
- Page 1 PIPELIFE FLOORTHERM Thermostat sw...
-

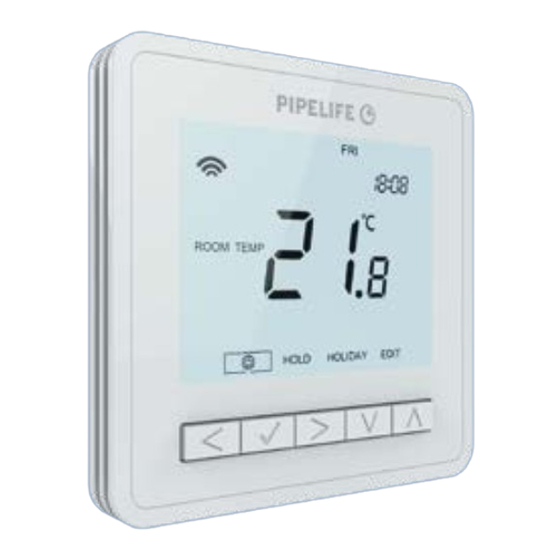

Page 2: Product Image
PIPELIFE FLOORTHERM Thermostat sw Model:... -
Page 3: Table Of Contents
Table Of Contents Product Image Locking the Thermostat sw Table of Contents Unlocking the Thermostat sw Installation Procedure Frost Protection/Standby Installing the batteries Holiday Programming Mode Select Optional Features Explained 27-28 Receiver Type Adjusting the Optional Settings Pairing with Hub8wireless... -
Page 4: Installation Procedure
Installation Procedure Mount the thermostat at eye level. Read the instructions fully so you get the best from our product. Don’t Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. This wireless thermostat is designed to be surface mounted. -
Page 6: Installing The Batteries
Installing the Batteries 4 x AAA batteries have been supplied with this thermostat. To access the battery holder, push and release the compartment door located on the bottom face of the unit. T he thermostat will inform you when the batteries need to be replaced by displaying the battery icon on screen. Do not use rechargeable batteries with this product! Always take care to insert batteries correctly according to the designation of polarity... - Page 7 Insert the batteries in the empty battery holder, ensuring that each battery is orientated for the correct polarity + / -. Push the battery holder back inside the thermostat until it is secured in its closed position.
-
Page 8: Mode Select
Mode Select Before pairing the thermostat to your receiver, set the correct mode for your installation. Three different modes are available; Mode 3 = Thermostat & HW Timer Mode 2 = Timer Mode 1 = Thermostat Check the compatibility table below for the receiver you are using. Switch Hub8wireless Mode 1... -
Page 9: Receiver Type
Receiver Type The thermostat will send a wireless signal to a receiver to switch on the heating or hot water. Select the receiver type you are using from the list shown here and follow the pairing instructions on the relevant page. Hub8wireless Switch Page 9... -
Page 10: Pairing With Hub8Wireless
Pairing with the Hub8wireless To control heating only, configure the thermostat in mode 1. To control heating & hot water, configure the thermostat in mode 3. (See page 7) On the thermostat: • Use the Left arrow key to highlight on the menu........... -
Page 11: Pairing With Switch
Pairing with the Switch To control heating only, configure the thermostat in mode 1. To control heating & hot water, configure the thermostat in mode 3. (See page 7) On the thermostat: Use the Left arrow key to highlight on the menu......... •... -
Page 12: Pairing With Router
Pairing with the Router • Connect the ‘Pipelife Floortherm Router’ to your broadband router using the ethernet cable provided. Connect the power supply also provided • with the ‘Pipelife Floortherm Router’. Download the Pipelife app and register your • account. Sign in to your account, select the ‘Add Router’... - Page 13 This thermostat is not capable of relaying signals from one thermostat to another (MESH). To create an extension of the wireless mesh network you will need to add a compatible booster/repeater to the system. ‘Thermostat sw’ can also communicate a via wired (MESH capable) ‘Thermostat s’.
-
Page 14: Lcd Display
LCD Display Mesh Symbol - Displayed when connected to the ‘Pipelife Floortherm Router’. Day Indicator - Displays the day of the week. Frost Symbol - Displayed when frost protection/standby mode is active. Flame Symbol - Displayed when the thermostat is calling for heat. -
Page 16: Mode 1 & 3 - Thermostat
& Modes 1 & 3 – Thermostat/ Thermostat with Hot Water... -
Page 17: Power On/Off
Power On/Off To turn off the thermostat display; Use the Left arrow key to highlight on the menu........• Press and hold for 3 seconds................ • The display will show , temperature display & heating output is now turned OFF. •... -
Page 18: Setting The Clock
Setting the clock To set the clock, follow these steps. Use the Left / Right arrow keys to highlight on the menu....• Press and hold to turn off the display..........• • Use the right arrow key to select CLOCK ..........•... -
Page 19: Comfort Levels Explained
Comfort Levels Explained This thermostat offers the following program mode options; Weekday/Weekend (Mon-Fri/Sat-Sun) • 7 Day (Each day programmed differently) • 24 Hour (All days the same) • Non-Programmable (Simple up/down temperature control, no timing) • Follow the optional settings instructions to first set your prefered program mode. When thermostats are paired to a ‘Router’, the program mode is set within the App. - Page 20 Comfort Levels Continued..Press to confirm................... • WAKE will now flash and the current time and temperature setting will be • shown. Press to alter WAKE settings................• Use the Up / Down keys to set the hours..........• Press to confirm....................
-
Page 21: Temperature Control
Temperature Control (Heating & Cooling) The Up / Down keys allow you to adjust the set temperature ....• • When you press either key, you will see the word SET and the desired temperature value. Use the Up / Down keys to adjust the SET value..•... -
Page 22: Temperature Hold
Temperature Hold (Mode 01 Thermostat only) The temperature hold function allows you to manually override the current operating program and set a different temperature for a desired period. Use the Left / Right keys to scroll to HOLD .......... • to confirm ................ - Page 23 Temperature Hold (Mode 03 Thermostat and Hot Water) The temperature hold function allows you to manually override the current operating program and set a different temperature for a desired period. • Use the Left / Right keys to scroll to HOLD ........Press to confirm ................
-
Page 24: Hot Water Boost
Hot Water Boost (Mode 03 Thermostat and Hot Water) To boost the hot water output on, follow these steps. Use the Left / Right keys to scroll to HOLD ......... • Press to confirm ................. • The word “Heating” is highlighted, use the Left / Right keys to select •... -
Page 25: Locking The Thermostat Sw
Locking the Thermostat sw This thermostat has a touch key lock facility. To activate the lock follow these steps. • Use the Left / Right keys to scroll to HOLD & press for 10 seconds... The display will show 00:00 and you will need to enter a four digit pin number. -
Page 26: Frost Protection/Standby
In Frost Mode, remove the set temperature and set “--”. This means the thermostat won’t call for heat while the frost icon is displayed. Disable Frost/Standby Press once to disable frost protection, the frost symbol will disappear..• PIPELIFE FLOORTHERM... -
Page 27: Holiday Programming
Note: The holiday period will start immediately, and will return to the normal program at the time & date you have configured. Use the Left / Right keys to scroll to HOLIDAY and press ....• CANCEL is now highlighted, Press to cancel ........• Thermostat sw... -
Page 28: Optional Features Explained
Feature 07 – Floor Temp Limit: This function is available when feature 06 is set to 03. You can set a floor limiting temperature between 20-45°C (28°C is the default setting). Note: Thermostat sw MUST NOT be used to control electric under-floor heating. PIPELIFE FLOORTHERM... - Page 29 If the receiver fails to receive a signal from the thermostat within a 40 minute period, it will activate the output for 12 minutes every hour. The receiver will continue to do this until it receives a signal from the thermostat. Thermostat sw...
-
Page 30: Adjusting The Optional Settings
Use the Up/Down keys to select the feature you would like to adjust..• Use the Left / Right keys to adjust the setting within the feature..• Press to confirm settings and exit the setup menu ....... PIPELIFE FLOORTHERM... -
Page 31: Optional Settings Feature Table
& Hub8wireless Menu Pairing to the Router Used to add zone to the Entry Point Pipelife Floortherm Router 00.5 = 0.5˚C, 01 = 1.0°C (Default), Switching Differential 02 = 2.0°C 03 = 3.0°C Frost Protection Temperature 05° - 17°C (12°C = Default) “--” = Disabled. -
Page 32: Heating And Cooling Changeover
The the flame Icon will flash 3 times before switching over to the snowflake symbol (Cool Mode)............Once the symbol changes over release the Up/Down keys. • Repeat the same steps above for the reverse action. Flashing Icon PIPELIFE FLOORTHERM... -
Page 33: Re-Calibrating The Thermostat
E0 = The internal sensor has developed a fault. E2 = The remote probe has not been connected. The remote probe has not been wired correctly. The remote probe is faulty. Thermostat sw... -
Page 34: Factory Reset
Factory Reset To factory reset your ‘Thermostat sw’; Use the Left arrow key to highlight on the menu ........... • Press and hold for 3 seconds ................• SETUP is now highlighted, press and hold for 10 seconds (Until all icons •... -
Page 35: Remote Sensor Probe Wiring
Remote Sensor Probe Wiring Thermostat sw... -
Page 36: Mode 2 - Time Clock
Mode 2 - Time Clock PIPELIFE FLOORTHERM... -
Page 37: Lcd Display
Timer Status – Displays the current state of the timed output. Hold Left - Displayed when a timer hold is active, the remaining time will be shown. Time/Day/Month/Year - Displays when setting the Clock/Calendar or a Holiday Period. Thermostat sw... -
Page 38: Setting The Switching Times
ON time, repeating the steps above for all levels..• --:-- For any levels you dont want to use, change the time to To confirm all changes use the Right arrow key to select DONE • and press ..................... PIPELIFE FLOORTHERM... -
Page 39: Timer Override
......Hold Left and the remaining time will now be displayed. HOLD LEFT Indicator Hold Time Remaining • To cancel the override, press the Down arrow key once......• CANCEL is now highlighted, press to cancel the override....... Thermostat sw... -
Page 40: Optional Features Explained
Optional Features Explained Feature 01 – Pairing To The Router: This function is used to pair the time clock to the Pipelife Floortherm Router. Feature 02 – Program Mode: The time clock offers three programming modes. Weekday/ Weekend - 4 Switching times for Monday - Friday. -
Page 41: Optional Settings Feature Table
Commences countdown from 99 – 00 seconds. & Hub8wireless Menu Pairing to the Router Used to add zone to the Entry Point Pipelife Floortherm Router Program Mode 01 = Weekday/Weekend (Default) 02 = 7 Day Programming 03 = 24 Hour Mode Thermostat sw... - Page 42 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................PIPELIFE FLOORTHERM...
- Page 43 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................Thermostat sw...
- Page 44 PIPELIFE International GmbH, Wienerbergerplatz 1, 1100 Wien T +43 1 602 2030 0, E info@pipelife.com, pipelife.com Rev.1.0...
