Sungrow WiNet-S Manual

Also See for WiNet-S:

Table of Contents

Installation Environment

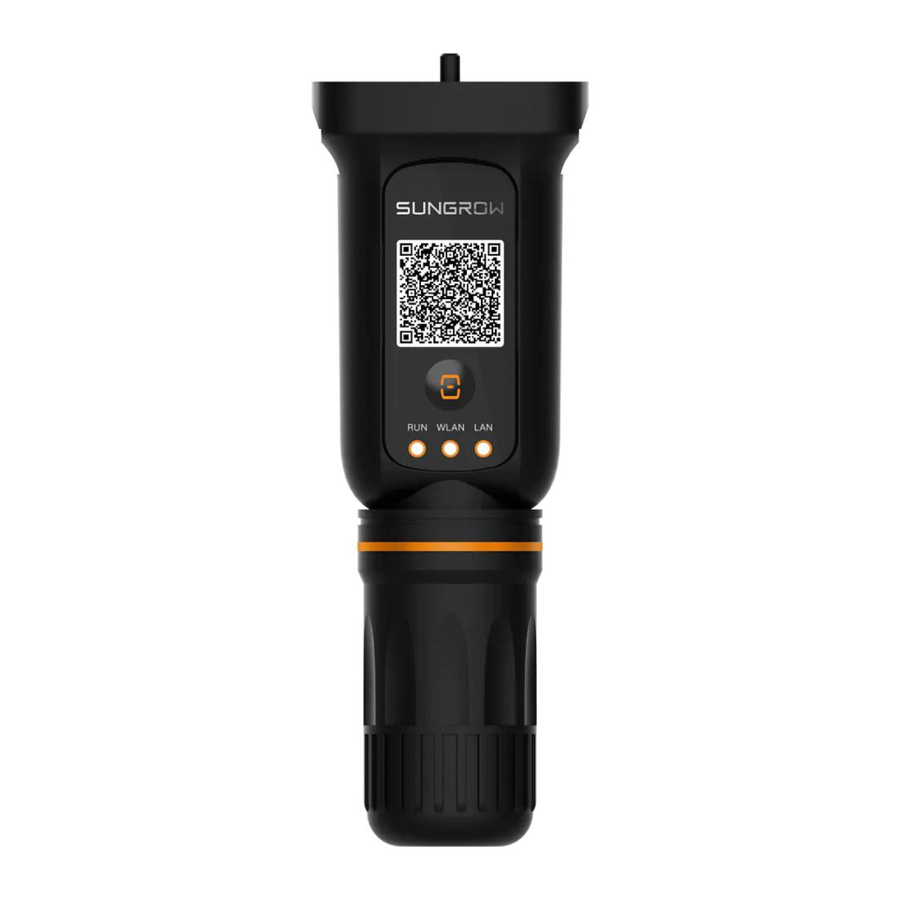

Indicators and Multi-function Button Overview

Indicator Description

Indicator	Status	Description
RUN	Off	Not connected to external power supply
	Blinking green	Normal operation
	Steady red	Module failure
WLAN	Off	No data communication
	On	WLAN connected but no data communication
	Slow blink	Data communication
	Fast blink	EasyConnect mode (factory default}
LAN	Off	No data communication
	Steady green	Ethernet connected but no data communication.
	Steady green, blinking red	Data communication

Multi-function Button Description

Operation	Description
Press once	Turn on/off EasyConnect mode
Press 3 times	Turn on WLAN hotspot. By default it requires no password to access within 30 minutes. It only turns on WLAN hotspot and does not turns. it off.
Press and hold for 5s	Restore factory default

Connecting to iSoIarCIoud over LAN
Connect the module to the home router with a network cable. Check if the home router is assigned a static IP. If so, configure the static IP through the built-in Web. For instructions on how to configure, refer to the built-in Web.
Connecting to iSoIarCIoud over WLAN
- Configure EasyConnect far the module through iSoIarCIoud App.
- Configure network for the module through the built-in Web.
Network configuration
- Configure network through iSoIarCIoud App. Both general network configuration and EasyConnect configuration can be achieved over WLAN. For detailed instructions, refer to the chapter "Creating Plant" in the iSoIarCIaud App user Manual. The iSoIarCIoud App user Manual can be viewed by scanning the QR code in the chapter "2 Installation".
- To configure network through the built-in Web, do the following:
  1. Connect your PC to the WLAN hotspot named "SG-moduIe serial number".
  2. Enter 11.11.11.1 in the address bar of the browser. Enter username "admin" and default password "pw8888" to log in the built-in Web.
  3. Click "System > Port Parameter > WLAN." Find the home router network in the list of available WLAN reworks nearby.
  4. Click the home router network and enter the password to connect to it.
  5. When the icon in the lower left corner lights up, network configuration is successful.

Nameplate

Parameter	Description
DC-Input	⎓: Direct current
Enclosure	Dustproof and waterproof rating IP66; The product is completely dustproof and can. withstand waves of water and pressurized jets, causing no harm.
Temperature	Operating temperature range
	Do not dispose of the communication module together with household waste
	CE mark of conformity
	Refer to the corresponding instructions

Wireless Transmit Power

Mode TRP

802.11b ≤ 20dBm

802.11n HT20 ≤ 14dBm
Wireless Operating Frequency

Parameter Vaule

Operating frequency 2412 MHz ~ 2472 MHz

If the module fails to be connected to the iSoIarCIoud, troubleshoot as follows:

No.	Fault	Corrective Measure
1	WLAN indicator is off	Check, through the iSolarCloud App or the auilt-in Web, if the module is connected to the home router.
2	WLAN indicator blinks fast	Check, through the iSolarCloud App, if the module is connected to the home router,
3	WLAN indicator is on for more than Imin	Check and ensure that the home router can access the network normally. Check the whitelist/blacklist settings of the home router, Add the iSolarCloud network to the whitelist or remove it from the blacklist when necessary. iSolarCloud website: api.isolarcloud.com, api.isolarcloud.com.hk, api.isolarcloud.eu Check the hame router settings and ensure that the port 19999 is not blocked, If the fault still persists, contact SUNGROW,
4	LAN indicator is off	Check and ensure that the network cable is securely connected to the module and the home router. Replace the network cable and repeat the previous step.
5	LAN indicator is on for more than 1min	Method 1: Check if the home router is assigned a static IP. If so, configure the static IP through. the built-in Web. Replace the network cable and repeat the previous step. Method 2: Refer to the corrective measure to No. 3.
