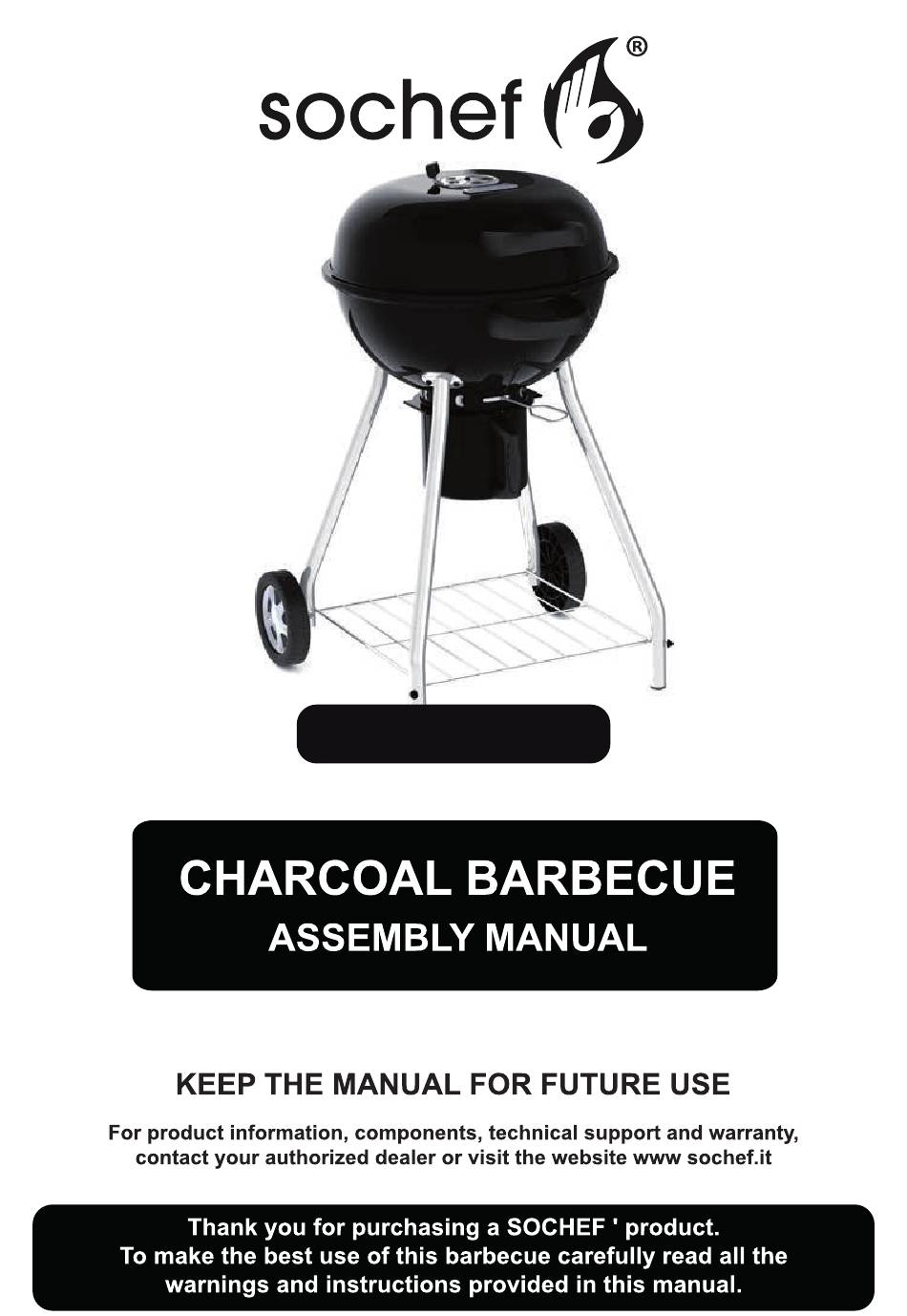

- Page 1 Pupo - G2004021 0...
- Page 2 ESPLOSO COMPONENTS please check that all the components in the following list are present before starting the barbecue assembly operations. Art. No. Quantity Description Art.No. Quantity Description Barbecue Lid Ash Container Handle Label (pre- assembled) Short Legs Handle Combustion Chamber Feet Long Legs Lid Handle Caps for Long Legs...
- Page 3 HARDWARE 1/4-20x1/2" Screw 10-24 Nut 10-24x3/8" Screw quantity: 16 Quantity 1 quantity: 2 1/4-20 Lock Nut Hinge Pin 10-24 Self-Locking Nut Quantity 22 Quantity: 2 1/4 Flat Washer 8mm Flat Washer Thermal Washer Quantity 16 Quantity 8 Quantità 6 Leg Washer Lock Rod Crown Nut Quantità...
- Page 4 ASSEMBLY To assemble the product, you will need: - an adjustable wrench - a screwdriver Assemble the barbecue on a plane and stable surface STEP 1. Insert the pre-assembled pins on the spacer of the ash box through the holes in the c ompartment and rotate as shown in .
- Page 5 ASSEMBLY STEP 3. Carefully lay the Barbecue as shown keep attention not to ruin the porcelain. Spread the legs of the barbecue and place the shelf by inserting the ends of itself into the appropriate holes on the legs. STEP 4. At this stage you can Assemble the second short leg, following the directions given in STEP 2.
- Page 6 ASSEMBLY STEP 5. Attach the bottom shelf to the long legs using the at washer and crown nut 1/4" Flat Washer Crown Nut STEP 6. Assemble the spacer at the end of the lower shelf rod coming out from 1/4" Flat Washer the the short legs.
- Page 7 ASSEMBLY STEP 7. Place the barbecue on the previously assembled legs taking care to tighten the pins rmly before continuing the assembly process. Assemble the thermal washers to the combustion chamber handle. Insert the handle tips inside the combustion chamber and tighten securely using the at washer (1/4 "), lock washer and nut (1/4-20) .
- Page 8 ASSEMBLY Assemble the handle to the lid following the step 7. Handle Thermal Washer: 2 Block Nut Block Washer Flat Washer: 2 STEP 10. Assemble the left upper hinge to the cover, tighten with 2 screws (1/4-20x1/2"), 2 at washers (1/4") and 2 nuts (1/4-20). Repeat the same procedure for the hinge right upper hinge.
- Page 9 ASSEMBLY STEP 11. 10-24 Nut Secure the air regulator to the cover with the 10-24x3/8" Screw: 1 screw (10-24x3/8") and nut. Do not overtighten the screws as the air regulator must move freely. Air Regulator STEP 12. Fastener Place the lid over the combustion chamber by aligning the hinges.
- Page 10 ASSEMBLY STEP 13. Assemble the thermal washers to the pins of the ash container handle, as shown in the picture. Insert the handle to the the holes on the ash container and screw using the at washers (1/4") and locking nuts (1/4-20). Handele Ash Container Thermal Washer: 2...
- Page 11 WARNING SAFETY which has no odor. 3.Way of lighting charcoal. NEVER LIGHT THE INSTRUCTIONS CARBON in homes,vehicles or tents. 11. Use the barbecue only in Method 1 - Charcoal and outdoor spaces; never use the liquid/gel: 1. Before using the barbecue barbecue inside confined spaces or carefully observe the a) Evenly distribute the...
-
Page 12: Care And Maintenance
3. Use the Sochef® cover and/or replacement. safer, the to protect the barbecue when SOCHEF(R) product range has a it is not in use. - Page 13 Via Martiri di Nassiriya 84016 Pagani (SA) Italia...
