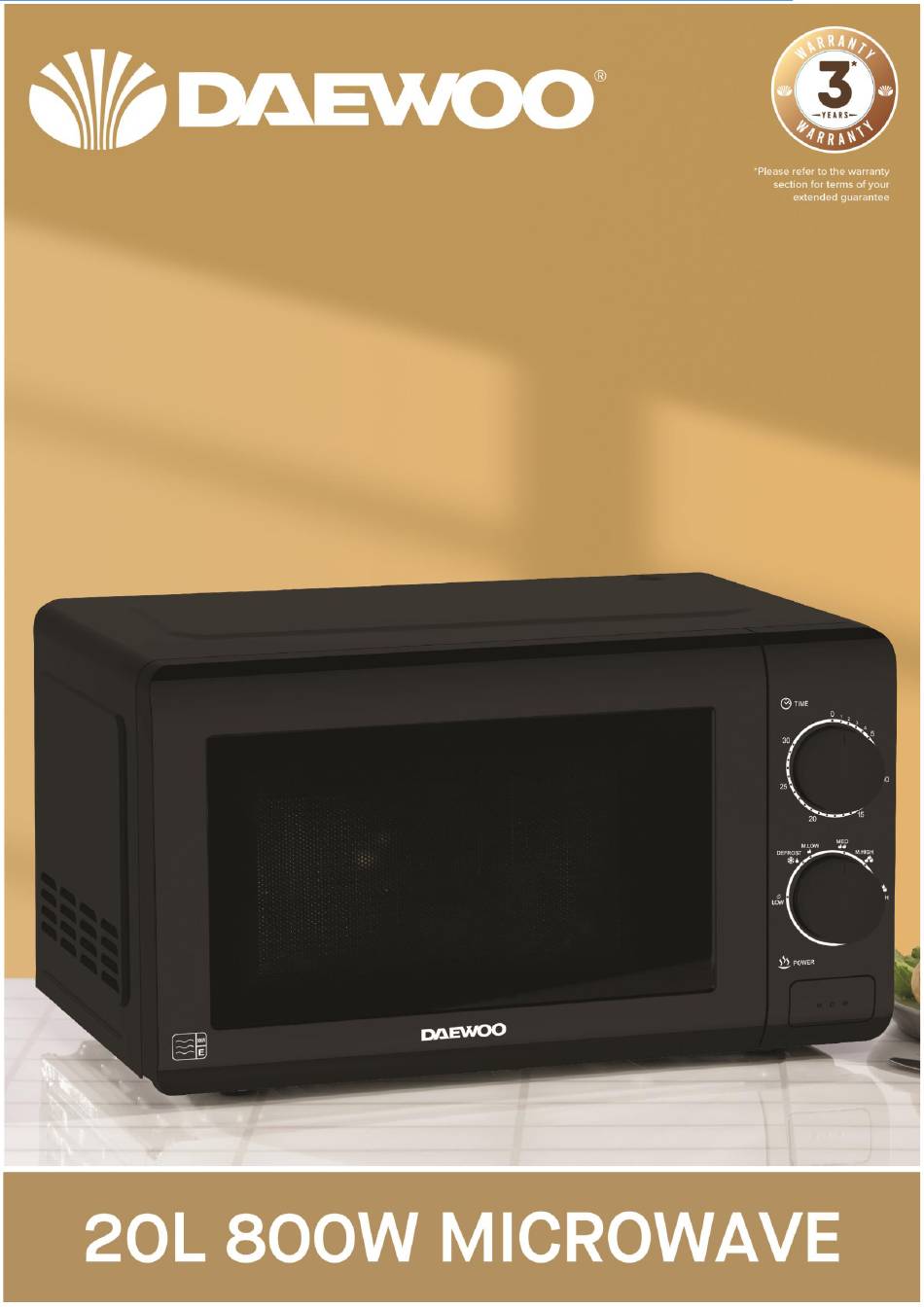

20L 800W Microwave Oven
Model No. SDA2812
User Manual
*Please refer to the warranty section for terms of your extended guarantee.
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDA2812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daewoo SDA2812

  • Page 1 20L 800W Microwave Oven Model No. SDA2812 User Manual *Please refer to the warranty section for terms of your extended guarantee. IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 20L 800W Microwave Oven Model No. SDA2812 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 3 20L 800W Microwave Oven Model No. SDA2812 User Manual • Keep the appliance and its cord out of reach of children less than 8 years. • DO NOT touch hot surfaces. The outer surfaces are liable to get hot during use. Always use the handles and knobs.
  • Page 4 20L 800W Microwave Oven Model No. SDA2812 User Manual • DO NOT run the mains cable under carpets, rugs, etc. • Allow the unit to cool before storage. • Before cleaning, disconnect the appliance from the mains supply and allow to cool.
  • Page 5 20L 800W Microwave Oven Model No. SDA2812 User Manual temperature of the fat can’t be controlled. • After use wipe the waveguide cover with a damp cloth, followed by a dry cloth to remove any food splashes and grease. Built up grease may overheat and smoke or ignite.
  • Page 6 20L 800W Microwave Oven Model No. SDA2812 User Manual • This microwave oven is intended for the heating of food and beverages. The drying of clothes, heating of warming pads slippers, sponges and cloths may lead to risk of injury, ignition and fire.
  • Page 7 20L 800W Microwave Oven Model No. SDA2812 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
  • Page 8 20L 800W Microwave Oven Model No. SDA2812 User Manual Description of Parts 1. Door Viewing Mirror window 6. Waveguide Cover 2. Door catches 7. Function/Power Level 3. Turntable 8. Timer 4. Motor Spindle 9. Door Open Button 5. Turntable Support Ring The door must be fully closed in order for the Microwave to operate.
  • Page 9 20L 800W Microwave Oven Model No. SDA2812 User Manual Description of Parts – Control panel Function/Power Level Control (7) There are six power levels as below: Power Setting Power Output Suggested Use Keep Warm DEFROST Defrost Food M.LOW Drinks or Soup Slow Cooking M.HIGH...
  • Page 10 20L 800W Microwave Oven Model No. SDA2812 User Manual Using Your Microwave Oven 1. Place the Microwave Oven on a solid level, heat resistant surface, ensure that the ventilation outlets are not obstructed. 2. Before first use press the Door Open Button (9) and place the Turntable Support Ring (5) in the base of the oven as shown in the diagram above.
  • Page 11 20L 800W Microwave Oven Model No. SDA2812 User Manual Defrosting tips Microwaves penetrate approximately 4cm into most foods, to maximise defrosting effects, the following is advised: • For thick and chunky foods, turn the food regularly during operation in order to obtain uniform thawing.
  • Page 12 20L 800W Microwave Oven Model No. SDA2812 User Manual Method 1 - Distilled Vinegar 1. Add 1 cup of water and 1/2 cup of distilled vinegar to a microwave proof bowl or plastic container and place in the centre of the oven.
  • Page 13 20L 800W Microwave Oven Model No. SDA2812 User Manual Non-Rewireable Mains Plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead and should the fuse need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating). Never use a mains plug with the fuse cover missing.
  • Page 14 20L 800W Microwave Oven Model No. SDA2812 User Manual Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service.
  • Page 15: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
