Daewoo SDA2594 User Manual

Daewoo SDA2594 User Manual

20l 800w digital microwave with defrost setting

Advertisement

Quick Links

20L 800W Microwave Grey
Model No. SDA2594
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDA2594 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daewoo SDA2594

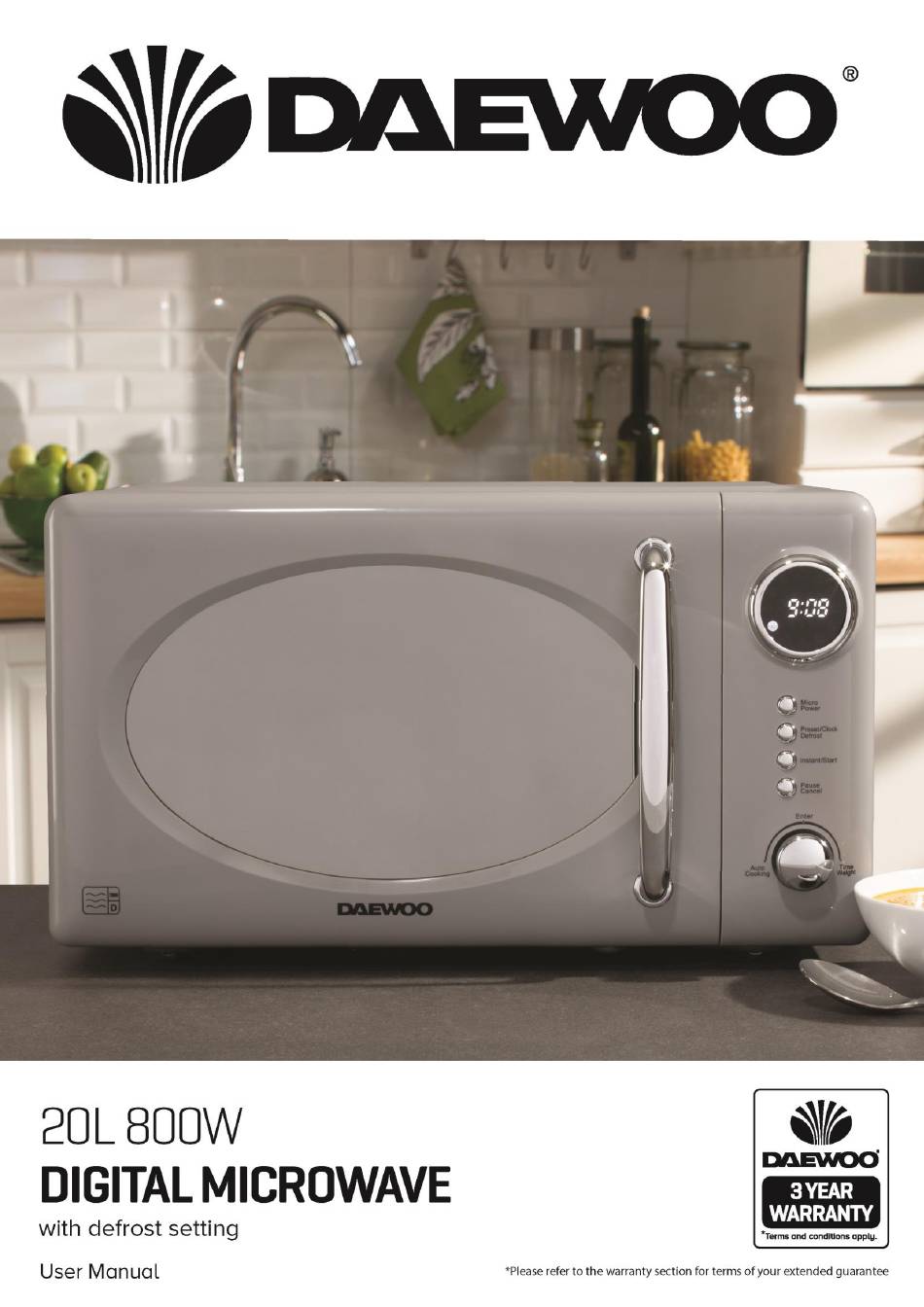

  • Page 1 20L 800W Microwave Grey Model No. SDA2594 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 20L 800W Microwave Grey Model No. SDA2594 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 3 20L 800W Microwave Grey Model No. SDA2594 User Manual • DO NOT touch hot surfaces. The outer surfaces are liable to get hot during use. Always use the handles and knobs. • DO NOT immerse the appliance or its cord in water or any other liquids.
  • Page 4 20L 800W Microwave Grey Model No. SDA2594 User Manual should not be used for industrial purposes. • DO NOT use any accessories or attachments with this appliance other than those supplied or recommended by supplier. • DO NOT use this appliance for anything other than its intended use.
  • Page 5 20L 800W Microwave Grey Model No. SDA2594 User Manual heated in sealed containers since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered sealed containers. • Liquids should be heated in a wide mouthed container and...
  • Page 6: Installation

    20L 800W Microwave Grey Model No. SDA2594 User Manual Installation • Select a level surface no less than 85cm (33 inches) from the floor, that provides enough space for the outlet vents. • A minimum clearance of 5cm (2 inches) is required between the oven and any adjacent wall, with a minimum clearance of 10cm (4 inches) between the rear of the microwave and the wall.
  • Page 7 20L 800W Microwave Grey Model No. SDA2594 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
  • Page 8 20L 800W Microwave Grey Model No. SDA2594 User Manual Description of Parts 1. Door Viewing Window 2. Glass Turntable 3. Waveguide Cover 4. Door catches 5. Motor Spindle 6. Turntable Support Ring 7. Control Panel The door must be fully closed in order for the Microwave to operate. The door operates a safety interlock mechanism which prevents the unit from operating whilst the door is open.
  • Page 9 20L 800W Microwave Grey Model No. SDA2594 User Manual Using Your Microwave Oven 1. Place the Microwave Oven on a solid level, heat resistant surface, ensure that the ventilation outlets are not obstructed. 2. Before first use pull the door open and place the Turntable Support Ring (6) on the base of the oven as shown in the diagram above.
  • Page 10 20L 800W Microwave Grey Model No. SDA2594 User Manual Setting the clock For example, to set the clock for 12:30: 1. After the microwave oven is plugged into the power supply the display will show “:”. 2. Hold the Preset/Clock/Defrost button for 3 seconds, the display will show 0:00.
  • Page 11 20L 800W Microwave Grey Model No. SDA2594 User Manual Defrosting Press the Preset/Clock/Defrost button, the LED display will show d.1, d.2 and d.3. Caution Defrost meat from 0.1kg to 2.0kg Defrost poultry from 0.2kg to 3.0kg Defrost Seafood from 0.1kg to 0.9kg It is important to turn food during defrosting to make sure it is defrosted thoroughly.
  • Page 12 20L 800W Microwave Grey Model No. SDA2594 User Manual Using the Auto Cooking 1. Turn the Auto Cooking/Time.Weight knob, the LED display will show A-01, A-02 and so on up to A-12. 2. After setting the Auto menu, pressing the Enter button allows you to set the weight.
  • Page 13 20L 800W Microwave Grey Model No. SDA2594 User Manual If the food is removed before the cooking time is complete, set the Timer (8) to zero to prevent the oven operating whilst empty. Utensils guideline It is recommended that only utensils and containers marked safe for microwave use should be used in this microwave oven.
  • Page 14 20L 800W Microwave Grey Model No. SDA2594 User Manual Cooking tips • Place thicker pieces towards outside of food container, the thinner pieces towards the centre and spread evenly. Do not overlap if possible. • Start cooking with a shorter time setting, evaluate it after the time finishes and extend the cooking time if needed.
  • Page 15 20L 800W Microwave Grey Model No. SDA2594 User Manual 4. Open the door, remove the bowl and glass turntable, then wipe the microwave with a clean, damp cloth. 5. Wipe the glass turntable before replacing. Method 3 - Bicarbonate of soda 1.
  • Page 16 20L 800W Microwave Grey Model No. SDA2594 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service.
  • Page 17: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
