Daewoo ACTUATE SDA2618 User Manual

26l 2400w 5-in-i air fryer microwave oven
Hide thumbs

Advertisement

Quick Links

Download this manual
26L Air Fryer Microwave
Model No. SDA2618
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACTUATE SDA2618 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo ACTUATE SDA2618

Summary of Contents for Daewoo ACTUATE SDA2618

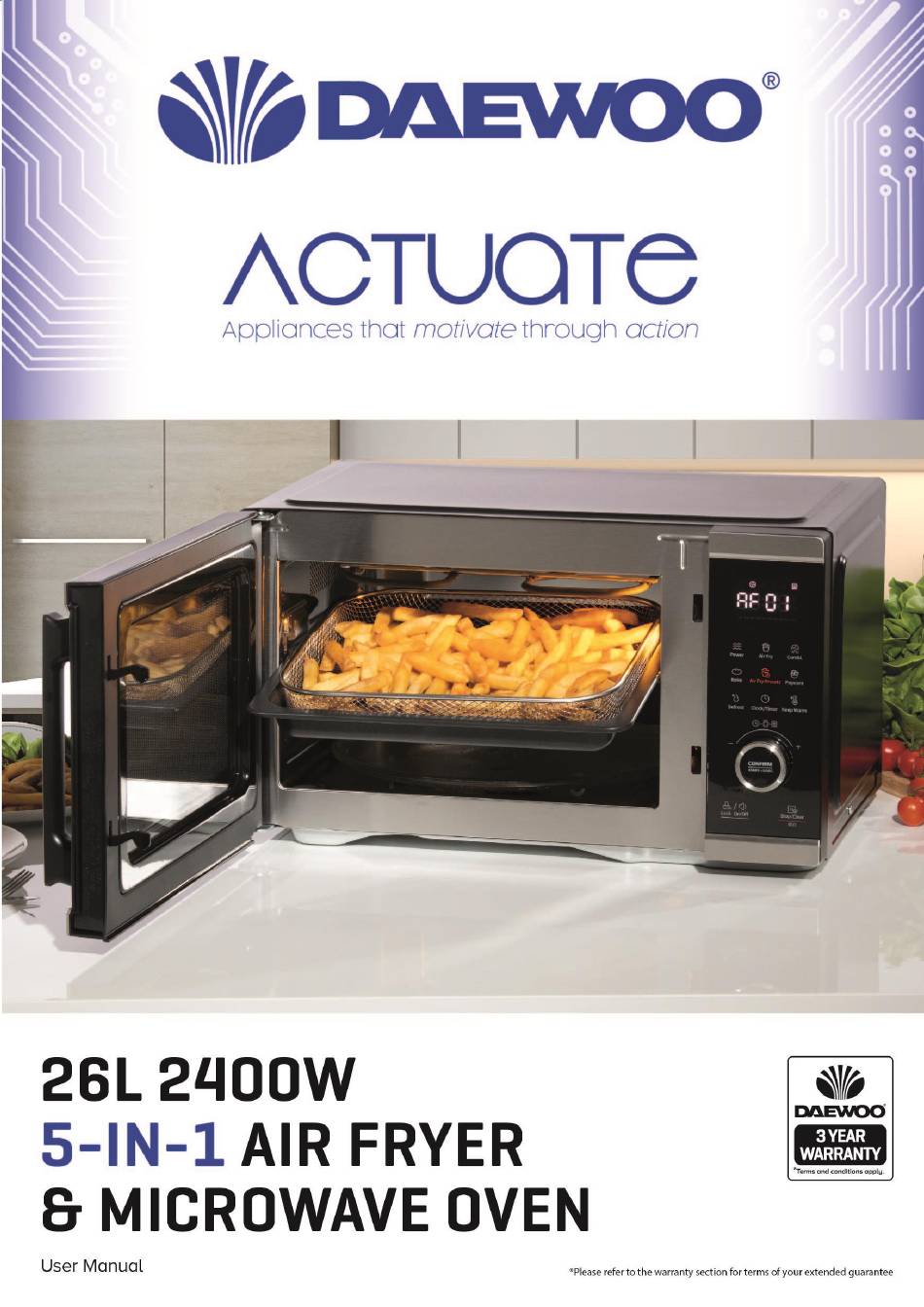

  • Page 1 26L Air Fryer Microwave Model No. SDA2618 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 26L Air Fryer Microwave Model No. SDA2618 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Additional Safety Information Explanation of Symbols Installation Description of Parts Description of LED Display Description of Control Panel Before the First Use of Your Air Fryer Microwave Turntable Installation Accessories Installation...

  • Page 3: Important Warning

    26L Air Fryer Microwave Model No. SDA2618 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 4 26L Air Fryer Microwave Model No. SDA2618 User Manual understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. • Keep the appliance and its cord out of reach of children less than 8 years.
  • Page 5 26L Air Fryer Microwave Model No. SDA2618 User Manual or come in contact with hot surfaces. • DO NOT run the mains cable under carpets, rugs, etc. • Allow the unit to cool before storage. • Before cleaning, disconnect the appliance from the mains supply and allow to cool.
  • Page 6 26L Air Fryer Microwave Model No. SDA2618 User Manual followed by a dry cloth to remove any food splashes and grease. Built up grease may overheat and smoke or ignite. • If materials inside the oven smoke or ignite, keep the door closed, turn oven off and disconnect the power supply in order to stifle any flames.

  • Page 7: This Appliance Must Be Earthed

    26L Air Fryer Microwave Model No. SDA2618 User Manual deposit removed. • Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  • Page 8 26L Air Fryer Microwave Model No. SDA2618 User Manual • The Waveguide Cover (3) should never be removed. • Metallic containers shall never be used during Microwave cooking. • Plastic containers shall never be used during Air Fry cooking. Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements.

  • Page 9: Installation

    26L Air Fryer Microwave Model No. SDA2618 User Manual Installation • Select a level surface no less than 85cm (33 inches) from the floor, that provides enough space for the outlet vents. • A minimum clearance of 5cm (2 inches) is required between the oven and any adjacent wall, with a minimum clearance of 10cm (4 inches) between the rear of the microwave and the wall.
  • Page 10 26L Air Fryer Microwave Model No. SDA2618 User Manual Description of Parts 1. Door Handle Always use the handle and avoid touching the Door Viewing Window as it may become very hot during the cooking process and can cause injury. 2.
  • Page 11 26L Air Fryer Microwave Model No. SDA2618 User Manual 6. Turntable Support Ring Make sure the Turntable Support Ring is assembled when place the Glass Turntable on it. 7. Motor Spindle It is used for rotating the Glass Turntable when cooking food. 8.
  • Page 12 26L Air Fryer Microwave Model No. SDA2618 User Manual Description of Parts – Control Panel (5) Power Press to select the power levels of Microwave. Air Fry Press to set an Air Fry cooking mode. Combi. Press to set Combination cooking time. Bake Press to set the Bake preset.
  • Page 13 26L Air Fryer Microwave Model No. SDA2618 User Manual Before the First Use of Your Air Fryer Microwave • Remove all packing materials and discard responsibly. • Ensure all parts are present see Description of Parts above. • Check that there is no damage to the mains cable or product. •...
  • Page 14 26L Air Fryer Microwave Model No. SDA2618 User Manual Using the Auto Menu This function has nine pre-set cooking programs. You do not need to set either cooking times or power levels. The following table shows details of the pre-set programs: 1.
  • Page 15 26L Air Fryer Microwave Model No. SDA2618 User Manual The result of auto cooking depends on factors such as the shape and size of food. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. For Auto Menu A02 Potato, parameters on display are not weight but number of servings.
  • Page 16 26L Air Fryer Microwave Model No. SDA2618 User Manual Instruction for Use Setting the Clock 1. In standby mode, press the Clock/Timer button once, “00:00” will show on the LED Display. 2. Rotate the Control Knob to set the hour between 00 and 23. 3.
  • Page 17 26L Air Fryer Microwave Model No. SDA2618 User Manual Microwave Cooking Place the food onto a suitable Level Power Display microwavable plate or container and place onto the Glass Turntable (8). 1. In standby mode, press the Power button, the display will show “P100”. 2.
  • Page 18 26L Air Fryer Microwave Model No. SDA2618 User Manual Air Fry Cooking The Air Fry cooking enables you to cook food in the same way as in a traditional oven. You can set the temperature in a range varying from 140⁰C to 230⁰C. The maximum cooking time is 95 minutes.
  • Page 19 26L Air Fryer Microwave Model No. SDA2618 User Manual Defrost Function The microwave oven can be set to defrost by weight or by time. Metallic containers shall never be used during Microwave cooking. Defrost by Weight 1. Press the Defrost button once, the display will show “dEF1”. 2.
  • Page 20 26L Air Fryer Microwave Model No. SDA2618 User Manual MULTI STAGE COOKING Your microwave oven can be programmed to cook food in 2 cooking sequences. For example, if you wish to set the following cooking program: 100% Microwave Power for 20mins, then Air Fry at 180°C for 10mins 1.
  • Page 21 26L Air Fryer Microwave Model No. SDA2618 User Manual Cooking Utensils Guidelines • Only use utensils that are suitable for use in the appliance. • Metallic containers shall never be used during Microwave cooking. • Plastic containers shall never be used during Air Fry cooking. •...

  • Page 22: Troubleshooting Guide

    26L Air Fryer Microwave Model No. SDA2618 User Manual Troubleshooting Guide Problem Possible Cause Oven will not start Plug not secure in power socket, or not switched on. Door is opened. Wrong operation is set. Arcing or Sparking Incorrect materials in microwave oven are used. The oven is operated when empty.
  • Page 23 26L Air Fryer Microwave Model No. SDA2618 User Manual Cleaning and Maintenance Remove the plug from the wall socket before cleaning. DO NOT immerse the appliance in water or any other liquids whilst cleaning. • Wipe the exterior with clean, soft damp cloth and dry thoroughly. •...
  • Page 24 26L Air Fryer Microwave Model No. SDA2618 User Manual Method 3 - Bicarbonate of soda 1. Add 1 cup of water and 2 tbsp bicarbonate soda to a microwave proof bowl or plastic container and place in the centre of the oven. 2.
  • Page 25 26L Air Fryer Microwave Model No. SDA2618 User Manual Non-Rewireable Mains Plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead and should the fuse need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating). Never use a mains plug with the fuse cover missing.

  • Page 26: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
