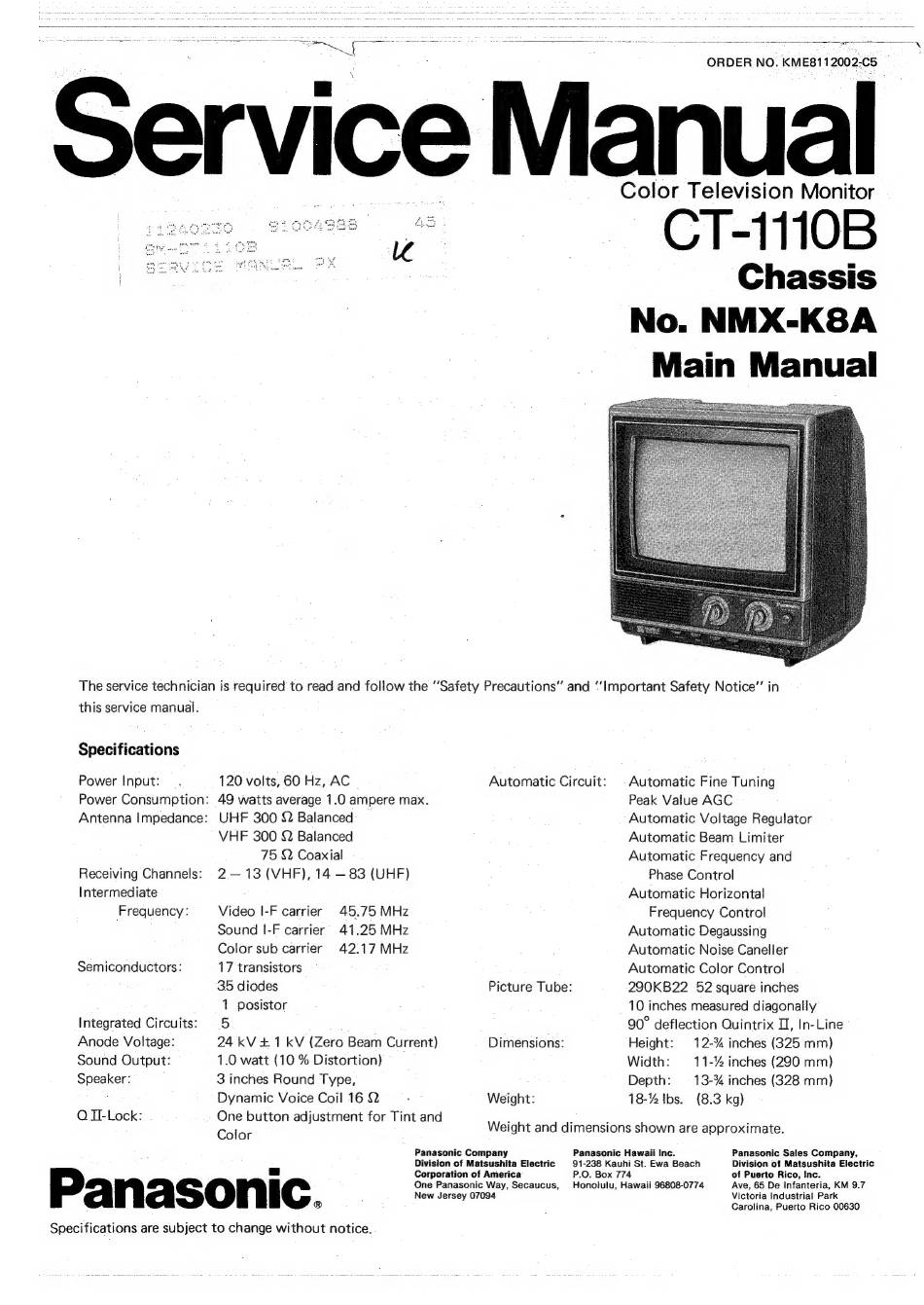

Panasonic CT-1110B Service Manual

ORDER NO. KME8112002-C5
Color Television Monitor
CT-1110B
Chassis
No. NMX-K8A
Main Manual
The service technician is required to read and follow the "Safety Precautions" and ''Important Safety Notice'' in
this service manual.
Specifications
Power Input:
Power Consumption:
Antenna Impedance:
Receiving Channels:
Intermediate
Frequency:
Semiconductors:
Integrated Circuits:
Anode Voltage:
Sound Output:
Speaker:
Q Tl-Lock:
Panasonic.
120 volts, 60 Hz, AC
49 watts average 1.0 ampere max.
UHF 300 2 Balanced
VHF 300 22 Balanced
75 Q Coaxial
2 — 13 (VHF), 14 — 83 (UHF)
Video |-F carrier 45.75 MHz
Sound I-F carrier' 41.25 MHz
Color sub carrier 42.17 MHz
17 transistors
35 diodes
1 posistor
5
24 kV +1kvV (Zero Beam Current)
1.0 watt (10 % Distortion)
3 inches Round Type,
Dynamic Voice Coil 16 2
One button adjustment for Tint and
Color
Automatic Circuit: | Automatic Fine Tuning
Peak Value AGC
Automatic Voltage Regulator
Automatic Beam Limiter
Automatic Frequency and
Phase Control
Automatic Horizontal
Frequency Control
Automatic Degaussing
Automatic Noise Caneller
Automatic Color Control
Picture Tube: 290KB22 52 square inches
10 inches measured diagonally'
90° deflection Quintrix I, In-Line
Dimensions: Height: 12-% inches (325 mm)
Width: —11-% inches (290 mm)
Depth: §13-% inches (328 mm}
Weight: 18-% Ibs. (8.3 kg)
Weight and dimensions shown are approximate.
Panasonic Company Panasonic Hawaii Inc. Panasonic Sales Company,
Division of Matsushita Electric 91-238 Kauhi St. Ewa Beach Division of Matsushita Electric
Corporation of America P.O. Box 774 of Puerto Rico, inc.
One Panasonic Way, Secaucus, Honolulu, Hawaii 96808-0774 Ave, 65 De infanteria, KM 9.7
New Jersey 07094 Victoria Industrial Park
Specifications are subject to change without notice.
Carolina, Puerto Rico 00630
