INSTALLATION INSTRUCTIONS
This device opens and closes the fresh air supply to a wood or pellet heating appliance being certified
with a fresh air intake kit. Its simple mechanism makes it possible to close the damper tightly when the
heating appliance is not in operation.
This manual is available for free download on the manufacturer's web site. It is a copyrighted document. Re-sale
is strictly prohibited. The manufacturer may update this manual from time to time and cannot be responsible for
problems, injuries, or damages arising out of the use of information contained in any manual obtained from
unauthorized sources.
Printed in Canada

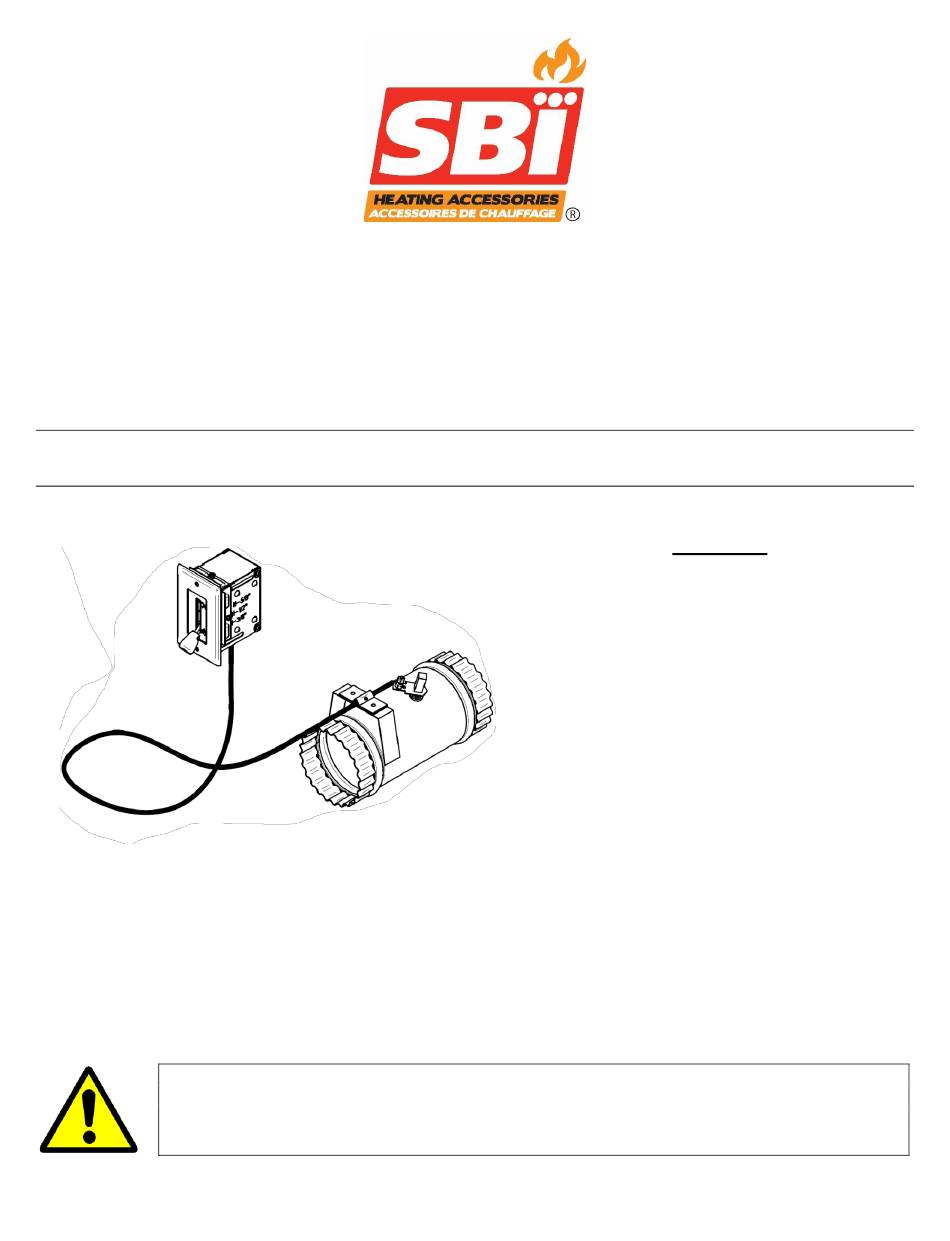

FRESH AIR INTAKE REGISTER
WITH AIRTIGHT DAMPER
AC01347
4"
AC01349
5"
CAUTION:
THE FRESH AIR INTAKE REGISTER WITH
AIRTIGHT DAMPER MUST NOT BE IN A
CLOSED
POSITION
HEATING APPLIANCE IS IN USE OR IN
WAITING MODE ON THERMOSTAT.
MEETS INSTALLATION REQUIREMENTS
FOR SOLID FUEL HEATING APPLIANCES
IN AIRTIGHT HOMES IN ACCORDANCE
WITH LOCAL STANDARDS.
WHEN
YOUR
46407A
09-01-2025
Advertisement
Table of Contents
Related Manuals for SBI AC01347
Summary of Contents for SBI AC01347
- Page 1 FRESH AIR INTAKE REGISTER WITH AIRTIGHT DAMPER AC01347 AC01349 4" 5" INSTALLATION INSTRUCTIONS CAUTION: THE FRESH AIR INTAKE REGISTER WITH AIRTIGHT DAMPER MUST NOT BE IN A CLOSED POSITION WHEN YOUR HEATING APPLIANCE IS IN USE OR IN WAITING MODE ON THERMOSTAT.
-
Page 2: Included In The Kit
Included in the Kit Airtight damper pipe with cable (A) and damper mechanism (B) Mechanism positioning Decorative wall plate frame Indicator plate (I) 1X (C) 1X (H) 1X Control knob P-Type cable tie (J) 1X (F) 1X... -
Page 3: Required Tools
#8-32 UNC x 7/16’’ flat head screw #10 x 3'’ flat head wood screw #2 (D) 5X (E) 2X #8 x 3/4'’ Quadrex metal screw #2 (G) 2X Required tools Power driver + Phillips bit Power driver + #2 Robertson bit 5/64’’... -
Page 4: Installation
Installation Ensure the proper functioning of the mechanism before installation. Step 1 Position the damper pipe (A) according to the previous recommendations and determine the location of the damper mechanism (B). The maximum cable length between the damper (A) and the damper mechanism (B) is 48'' (1219 mm). - Page 5 Step 2 Manually fold the mechanism positioning frame (C) and secure it to the damper mechanism housing (B) using 3 screws (D). Step 3 Measure the thickness of the finishing material (X). Adjust the depth of the positioning frame so it is aligned with the arrow marked on the side of the housing corresponding to the finishing material previously measured.
- Page 6 Step 4 Secure the mechanism housing to the vertical framing stud using 2 screws (E). CAUTION: THE POSITIONING FRAME MUST REST AGAINST THE FRONT FACE OF THE VERTICAL STUD TO WHICH THE BOX WILL BE ATTACHED.
- Page 7 Step 5 Attach the cable to the structure using the P-type cable tie (F) and screw (G). CAUTION: DO NOT BEND THE CABLE. THIS COULD IMPAIR THE PROPER FUNCTIONING OF THE DAMPPER. Step 6 Cut an opening in the wall partition according to the dimensions below to accommodate the front of the control box to clear the mounting holes.
- Page 8 Step 7 Attach the indicator plate (H) to the front of the damper mechanisme using 2 screws (D). Then, install the decorative wall plate (I) using the screws provided with the plate. Step 8 Install the control knob (J) onto the stem of the mechanism using the Allen screw provided with it.
-
Page 9: Operation
Operation There are 2 positions available, “Opened or Closed”. Opened : Closed : ____________________________________________________________________________ Stove Builder International inc. 250, rue de Copenhague Saint-Augustin-de-Desmaures (Québec) Canada G3A 2H3 1-877-356-6663 https://www.sbi-international.com tech@sbi-international.com...
