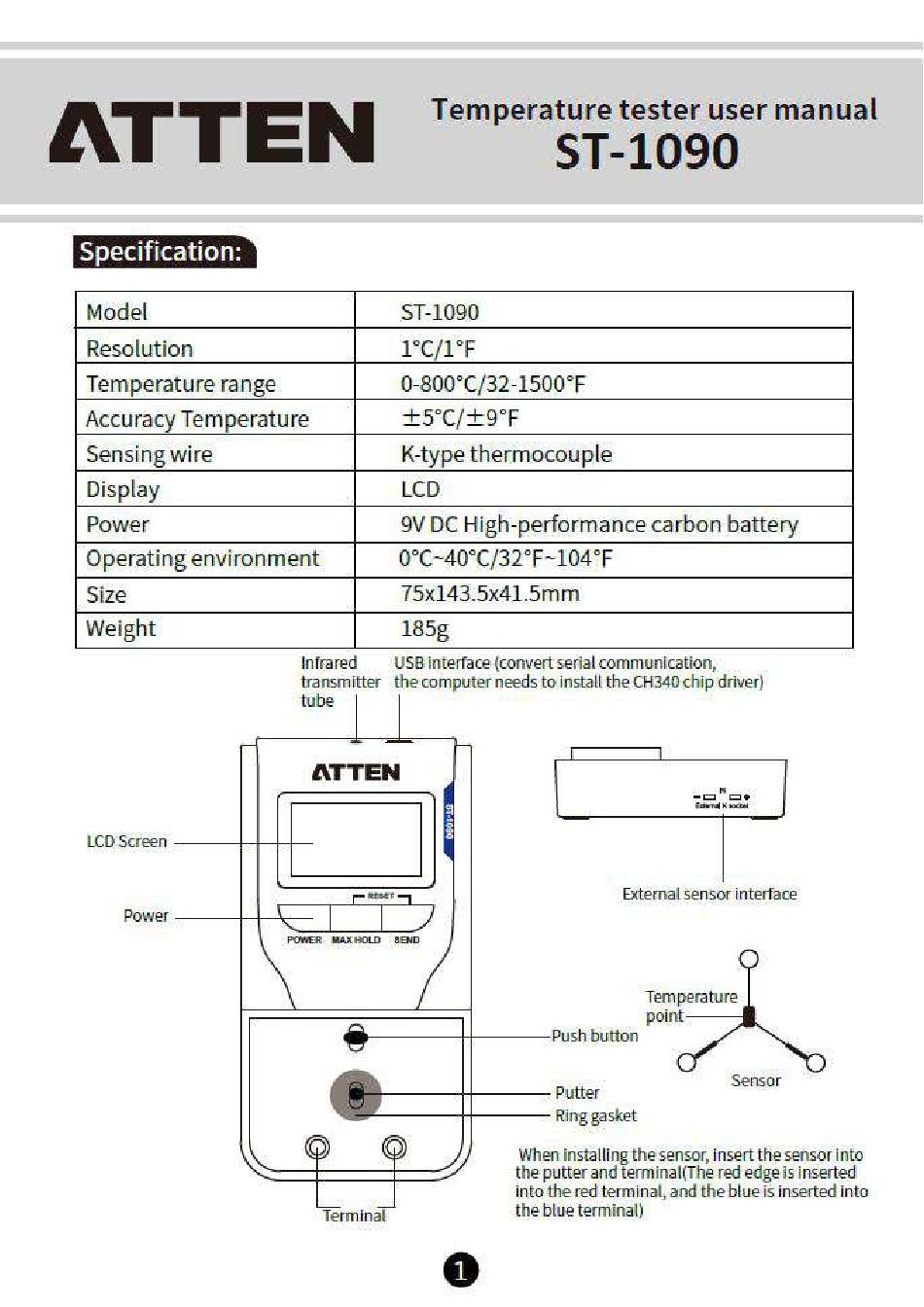

ATTEN
Temperature tester user manual
ST-1090
Specification:
Model ST-1090
Resolution
1°C/1°F
Temperature range
0-800°C/32-1500°F
Accuracy Temperature
+5°C/+9°F
Sensing wire
K-type thermocouple
Display
LCD
Power
QV
DC
High-performance carbon battery
Operating environment
0°C~40°C/32°F~104°F
Size 15x143.5x41.5mm
Weight 185g
Infrared
USB interface (convert serial communication,
transmitter the computer needs to install the CH340 chip driver)
tube
ATTEN
LCD Screen
External sensor interface
Power
Temperature
point
Push button
Putter
Sensor
Ring gasket
Ne
©
©
y,
When installing the sensor, insert the sensor into
the putter and terminal(The
red edge is inserted
into the
red
terminal, and the blue
is
inserted Into
Termina
the blue terminal)
