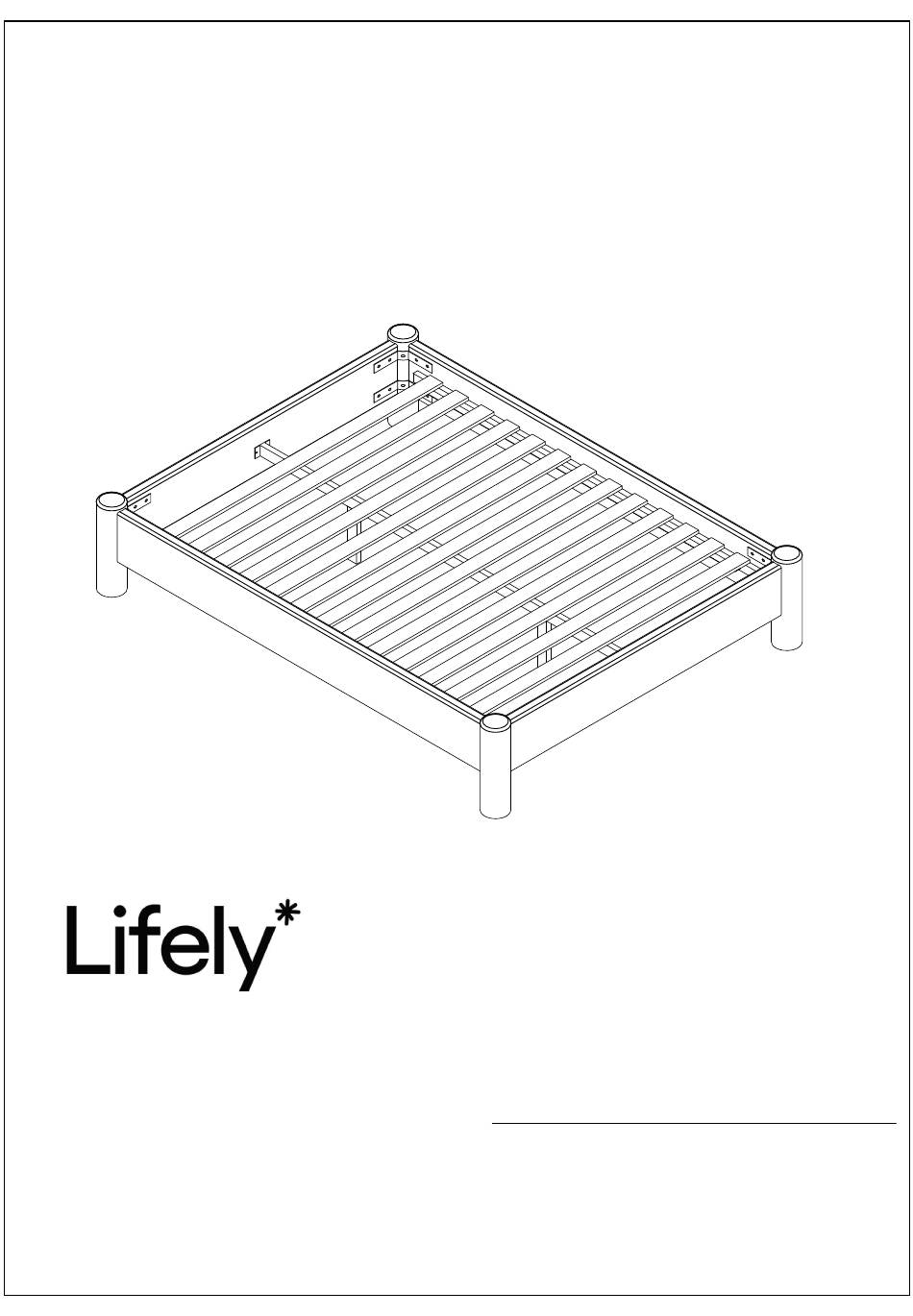

Assembly Instructions
Zach Series
Product Code
ZACH-BB-D Zach Boucle Bed Base - Double
ZACH-BB-Q Zach Boucle Bed Base - Queen
ZACH-BB-K Zach Boucle Bed Base - King
Dimensions
W x D x H
(
1370 x 1880 x 380mm
1520 x 2030 x 380mm
1830 x 2030 x 380mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Zach ZACH-BB-D
Summary of Contents for Lifely Zach ZACH-BB-D
- Page 1 Please read through instruction carefully Dimensions W x D x H Before assembly and keep for future reference. 1370 x 1880 x 380mm For our full catalogue of assembly instructions, 1520 x 2030 x 380mm Visit: lifely.com.au/assembly. 1830 x 2030 x 380mm...
- Page 2 Important Tips and Maintenance Never use ammonia based Never place liquids or anything Keep children and animals To avoid fading, keep furniture away from working area as damp upon furniture as it cleaning products as it will out of direct sunlight. will mark.
- Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly sressful. We recommend meditating quietly, pouring yourself a herbal tea(or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on, try a compliment instead.E.g.
-
Page 4: Component Hardware
Component Hardware 1/3 Please check you have all the fittings part or tools are listed in below. No. A No. C No. B No. E No. D Quantity:48 Pcs Quantity:48Pcs Quantity:26Pcs Quantity:1 Pc Quantity:8Pcs Screw Washer Screw Allen Key Metal Plate M8*30mm φ22 4*30mm... - Page 5 Component Panels & part List Please check you have all the panels are listed below. CTN 1/3 SIDE RAIL CTN 1/3 BED END CTN 3/3 BED LEG CTN 2/3 BED SLATS CTN 1/3 MIDDLE SUPPORT TUBE CTN 1/3 MIDDLE SUPPORT LEG ZACH-BB-...
- Page 6 STEP 1 Please screw Part A&B first and tighten it to 60% No. A No. C No. B No. D Quantity:32 Pcs Quantity:32Pcs Quantity:1 Pc Quantity:8Pcs Screw Screw Allen Key Metal Plate M8*30mm φ22 STEP 2 Please ensure all the holes are aligned then tighten all the screw No.
- Page 7 STEP 3 No. A No. C No. B Quantity:4 Pcs Quantity:4Pcs Quantity:1 Pc Screw Screw Allen Key M8*30mm φ22 STEP 4 No. A No. B No. C Quantity:4 Pcs Quantity:4Pcs Quantity:1 Pc Screw Screw Allen Key M8*30mm φ22 ZACH-BB-...
- Page 8 STEP 5 No. E Quantity:26Pcs Screw 4*30mm ZACH-BB-...
- Page 9 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome#homewithlifely!
