Assembly Instructions
Ballico Series
Product Code
BLC-BT-WNT Ballico Bedside Table
Dimensions
W x D x H
(
500x398x525mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Ballico Series
Summary of Contents for Lifely Ballico Series

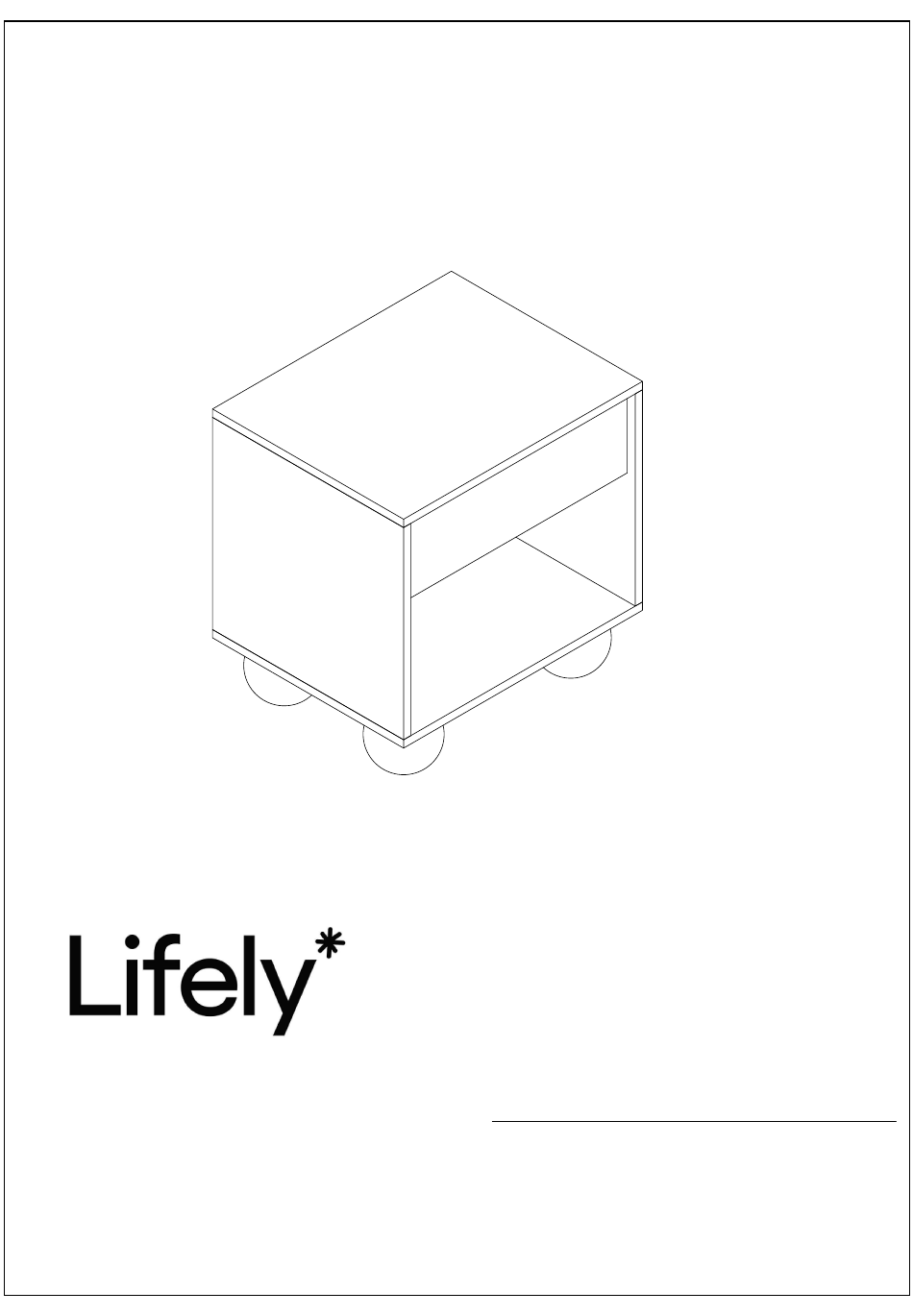

- Page 1 Assembly Instructions Ballico Series Product Code Important BLC-BT-WNT Ballico Bedside Table Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 500x398x525mm Visit: lifely.com.au/assembly.
- Page 2 Important Tips and Maintenance Never use ammonia based Never place liquids or anything Keep children and animals To avoid fading, keep furniture away from working area as damp upon furniture as it cleaning products as it will out of direct sunlight. will mark.
- Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly stressful. We recommend meditating quietly, pouring yourself a herbal tea(or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on, try a compliment instead.E.g.
-
Page 4: Before Assembly
Before Assembly Tips Before Your Start: - Remove all wrapping material, including staples & packing straps before you start to assemble. - DO NOT tighten all screws and bolts until completely assembled. - Keep all hardware parts out of reach of children. QUICKFIT Shoulder Panel... -
Page 5: Component Hardware
Component Hardware Please check you have all the fittings part or tools are listed in below. No. D No. A No. B No. E No. C Quantity:28Pcs Quantity:14Pcs Quantity:8Pcs Quantity:14Pcs Quantity:1Sets Screw Cam Lock Dowel Dowel Drawer Slider 8*28mm 8*30mm φ15 3.5*15mm 10"... - Page 6 Component Panels & part List Please check you have all the panels are listed below. TOP PANEL DRAWER FRONT 7L. DRAWER SIDE_LEFT SIDE PANEL_LEFT 2R. SIDE PANEL_RIGHT 7R. DRAWER SIDE_RIGHT BOTTOM PANEL DRAWER BACK BACK PANEL DRAWER BOTTOM BLC-BT-WNT...
- Page 7 STEP 1 No. D No. A No. E Quantity:6Pcs Quantity:4Pcs Quantity:1Sets Screw Cam Lock Dowel Drawer Slider 8*28mm 3.5*15mm 10" STEP 2 No. A Quantity:6Pcs Cam Lock Dowel 8*28mm BLC-BT-WNT...
- Page 8 STEP 3 No. C Quantity:4Pcs φ15 STEP 4 No. B No. C Quantity:4Pcs Quantity:6Pcs Dowel 8*30mm φ15 BLC-BT-WNT...
- Page 9 STEP 5 No. H No. B No. G Quantity:1 Pcs Quantity:4Pcs Quantity:4Pcs Dowel Screw Allen Key 8*30mm M6*50 STEP 6 No. D No. J No. I Quantity:16Pcs Quantity:4Pcs Quantity:4 Pcs Screw Foot Plate Full Thread Screw 3.5*15mm 70*70mm M8*35mm BLC-BT-WNT...
- Page 10 STEP 7 No. K Quantity:4 Pcs Foot Pad φ25 STEP 8 No. A Quantity:4Pcs Cam Lock Dowel 8*28mm BLC-BT-WNT...
- Page 11 STEP 9 No. F Quantity:4 Pcs Screw 4*35mm STEP 10 No. C Quantity:4Pcs φ15 BLC-BT-WNT...
- Page 12 STEP 11 No. D No. E Quantity:4Pcs Quantity:1Sets Screw Drawer Slider 3.5*15mm 10" STEP 12 No. L Quantity:14Pcs Sticker BLC-BT-WNT...
- Page 13 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome#homewithlifely!
