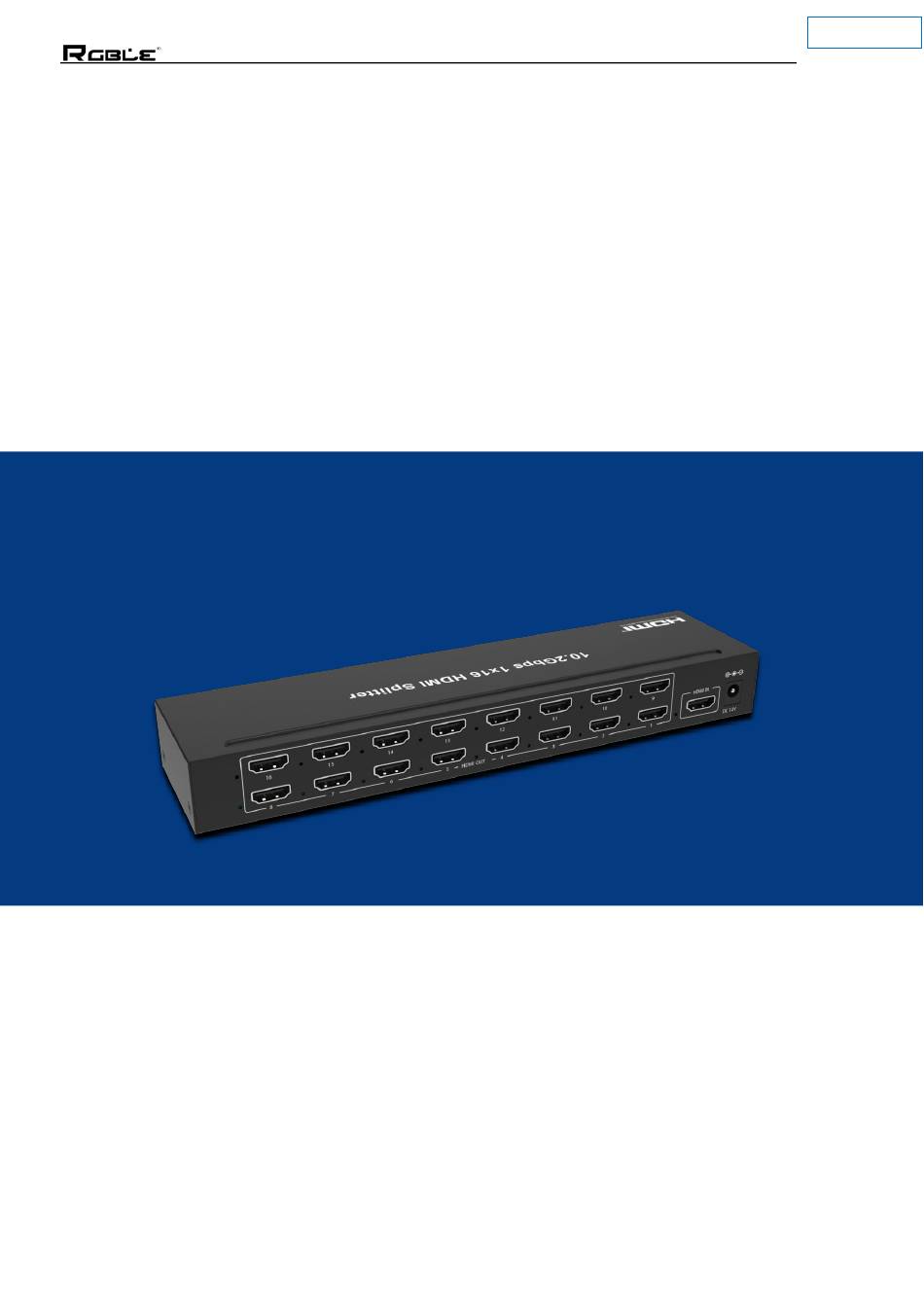

- Page 1 P/N: D00501 10.2Gbps 1×16 -HDMI- Splitter with EDID Management DH-16 User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 2: Package Contents
1. Introduction The RGBLE DH-16 high performance 10.2Gbps 1×16 -HDMI- Splitter distributes one -HDMI- source signal to sixteen displays simultaneously. Supported input/output video resolution is up to 4K×2K@50/60Hz YCbCr 4:2:0. HDR and Dolby Vision function are available. In addition, this splitter supports four modes EDID setting. -
Page 3: Specifications
Power Consumption 8W (max) Operating Temperature 0° C ~ 40° C / 32° F ~ 104° F Storage Temperature -20° C ~ 60° C / -4° F ~ 140° F Relative Humidity 20~90% RH (non-condensing) Stock Code 873117 en.rgble.com 400-1661-021... -
Page 4: Operation Controls And Functions
-HDMI- outputs for display 1 to 16. Green LED indicates that the -HDMI- IN port is connected to an active -HDMI- IN LED source device. -HDMI- IN -HDMI- source input. DC 12V DC 12V input for 12V 1A power adapter. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 5: Connection Diagram
P/N: D00501 6. Connection Diagram Stock Code 873117 en.rgble.com 400-1661-021...
