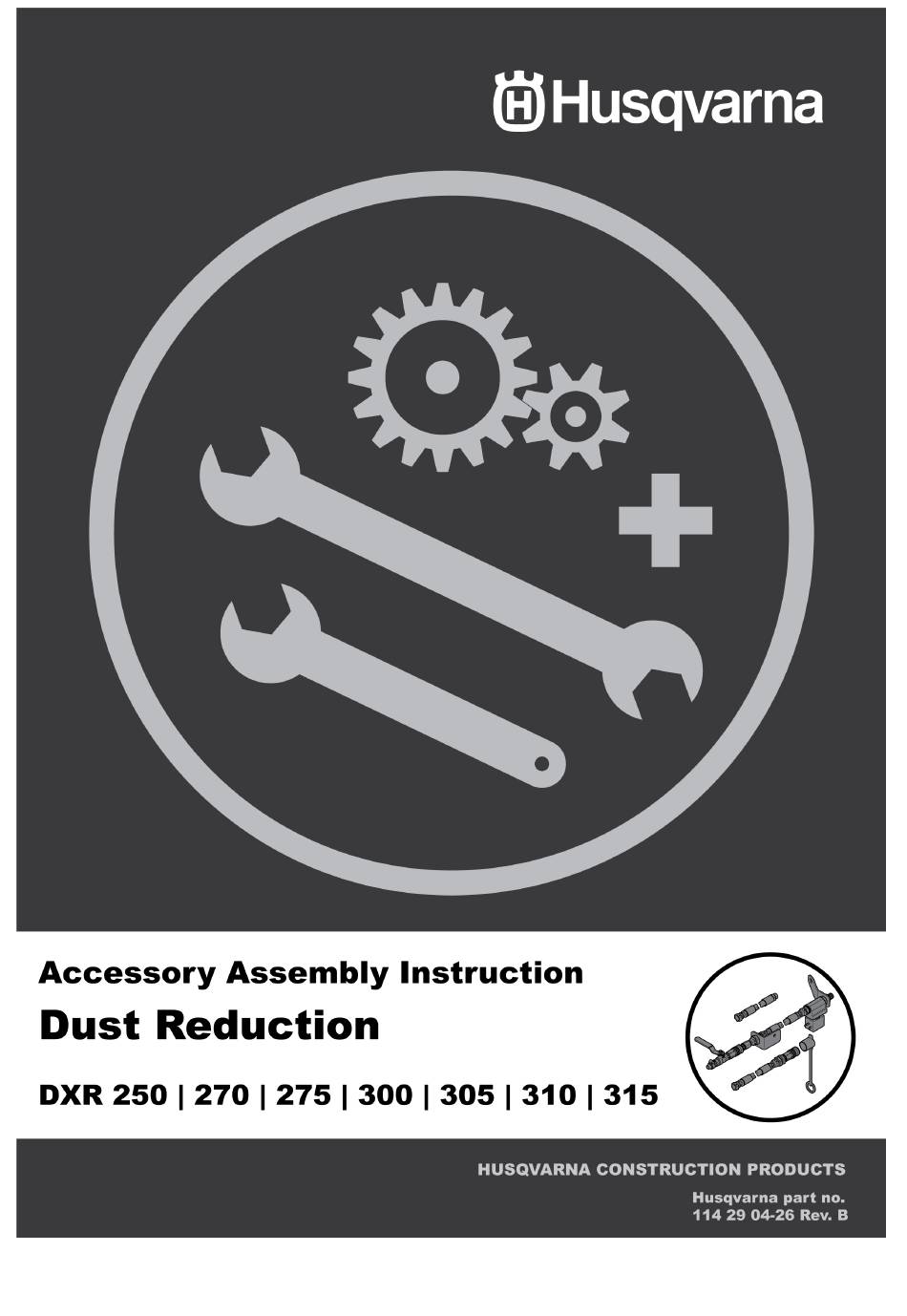

Husqvarna DXR 250 Assembly Instruction Manual

Husqvarna DXR 250 Assembly Instruction Manual

Dust reduction
Hide thumbs Also See for DXR 250:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DXR 250 and is the answer not in the manual?

Questions and answers

Related Manuals for Husqvarna DXR 250

Summary of Contents for Husqvarna DXR 250

  • Page 3 Table of contents Dust Reduction Ingoing Parts ............................................................Installation DXR 250/270/300/310 ............................Installation DXR 275/305/315...
  • Page 4 1  DUST REDUCTION 1.1 Ingoing Parts Table 1. Ingoing Parts in Dust Reduction Kit 536 11 20-02 for DXR250/270/275, 536 11 20-03 for DXR300/305, 536 11 20-04 for DXR310/315 Part Name Variants Dust cover Hydralic coupling Washer 3/8" Adapter Hose assy DXR250 &...
  • Page 5 1  DUST REDUCTION 1.2 Installation DXR 250/270/300/310 To position the machine in a safe way before start of maintenance is important to prevent accidents. Always take precautions to reduce the risk of heavy pieces collapsing or tipping due to lack of hydraulic pressure. Make sure that the machine is positioned in such a way that the machine cannot tip and that the Boom-stick is mechanically locked or forming a stable self-carrying structure.
  • Page 6 1  DUST REDUCTION 7. Pre assemble J + K +L = R tightly. 8. Pre assemble R + I + H = T tightly. 9. Pre assemble B + 2 x C + D = U tightly. 10. Pre assemble U + A. 11.
  • Page 7 1  DUST REDUCTION 15. Remove the nut. 16. Install the pre assembled part T with the nut tightly. 17. Install the hose N. 18. Connect the hose to the pre assembled part T. 19. Loosen the bolt (1). 20. Install the hose N to the pre assembled part S (2). 21.
  • Page 8 1  DUST REDUCTION 24. Connect hose Q to the pre assembled part S (1) and hose E (2). 25. Open the fasteners (1), two for DXR250-270, three for DXR300-310. 26. Place the hose (2) in the inner position of the fasteners and loosely close the fasteners (1).
  • Page 9 1  DUST REDUCTION 33. Retract the Boom (1) to the end position and make sure the installation is not in collision. NOTE! Refer to the Operator's manual for instructions on how to activate the water function. 1.3 Installation DXR 275/305/315 To position the machine in a safe way before start of maintenance is important to prevent accidents. Always take precautions to reduce the risk of heavy pieces collapsing or tipping due to lack of hydraulic pressure.
  • Page 10 1  DUST REDUCTION 5. Install the cable from the kit, the brown wire in X1 connector slot 20, and the blue wire in connector slot 37 in component Slave Control Module Tower (KE3). (2) – Push the wire pin into the connector house until a quiet click is felt.
  • Page 11 1  DUST REDUCTION 15. Pre assemble P + D + C + F + C + O = S tightly. 16. Remove the original screw. 17. Install the pre assembled part T with the new screw (R) tightly. 18. Install the hose N. 19.
  • Page 12 1  DUST REDUCTION 24. Install the hose Q through the left front cover, the male end of the hose towards the boom. Pull out as much of the hose as possible. 25. Connect hose Q to the pre assembled part S (1) and hose E (2).
  • Page 13 1  DUST REDUCTION 29. Install the hose E to the pre assembled part U (1). 30. Extend the hose E towards the turret (2). 31. Tighten the upper hose fasteners tightly (3), one for DXR275, two for DXR305-315. 32. Pull the hoses outwards from the machine to prevent wear (4). 33.

This manual is also suitable for:

Dxr 270Dxr 275Dxr 300Dxr 305Dxr 310Dxr 315
