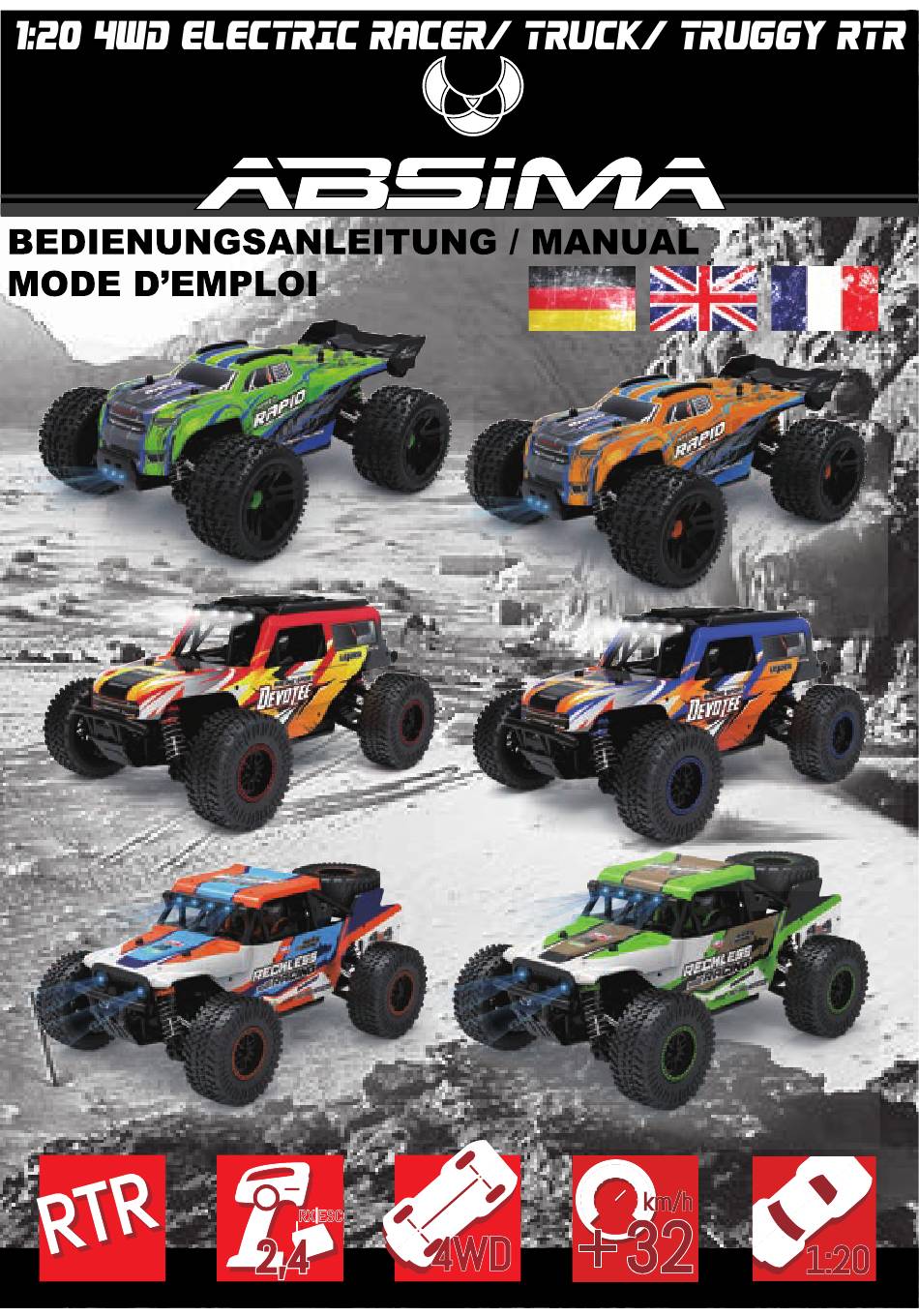

Absima Rapid Manual

1:20 4wd rtr electric racer, truggy, truck

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rapid and is the answer not in the manual?

Questions and answers

Summary of Contents for Absima Rapid

  • Page 2: Ready To Run

    Kraft frei. Klein, Fein und Gemein-Schnell - mach den „First Step“ in die RC Modellsport Welt mit diesem RTR Set. Discover RC model sport with the "First Step Performance" from Absima. More than 32 KM/H and power to the max you will get with this awesome model. Of course you will be supported by real RC model technique.
  • Page 3 Item no.: 10035 Item no.: 10034 Item no.: 10031 Item no.: 10030 Sender Item no.: 10032 Item no.: 10033 USB-Ladegerät 7.4V 600mAh Li-ion Akku...
  • Page 4 (1) Schließen Sie das USB-Ladegerät an eine Steckdose an (Abb. 4). (2) Lösen Sie das Klettband des Akkus am Gehäuse und Die rote LED leuchtet auf. Verbinden Sie nun den Akku mit dem nehmen Sie den Akku heraus (Abb. 6). USB-Ladegerät (Abb.
  • Page 5 1. Die Fernsteuerung einschalten. Die grüne LED leuchtet und die rote LED blinkt. 2. Wenn die Verbindung zwischen Fahrzeug und Fernsteuerung hergestellt ist, leuchtet die rote LED dauerhaft. Blinkt die grüne LED während des Betriebs, ist die Batterie leer. Bitte austauschen. on/off Bei der ersten Kopplung müssen sowohl das Fahrzeug als auch der Sender innerhalb von 3 Sekunden eingeschaltet werden, um die Frequenz zu koppeln.
  • Page 7 Da die Einhaltung der Bedienungsanleitung, sowie der Betrieb und die Bedingungen zur Verwendung des Produktes zu keiner Zeit von der Absima GmbH überwacht werden kann, übernimmt die Absima GmbH keinerlei Haftung für Schäden, Kosten, Verluste, die sich aus falscher Handhabung und/oder fehlerhaften Betrieb ergeben oder in irgendeiner Weise damit zusammenhängen.
  • Page 8 Batterie Sicherheitsmaßnahmen VOR DEM GEBRAUCH UNBEDINGT LESEN LADEN Verwenden Sie Ladegeräte und Einstellungen, die mit dem Akku, den Sie laden kompatibel sind (NiMH, LiPo...). Bei LiPo Akkus unbedingt Ladegerät mit Balancer-Funktion verwenden Wir empfehlen für alle Akkus einen Ladestrom von maximal 1C (z.B.
  • Page 9 Item no.: 10035 Item no.: 10034 Manual Item no.: 10031 Item no.: 10030 Radio Item no.: 10032 Item no.: 10033 USB-Charging Cable 7.4V 600mAh Li-ion Battery...
  • Page 10: Transmitter Instructions

    (1) Connect the USB charger to a power socket (Fig. 4). The red LED (2) Loosen the Velcro strap of the battery on the lights up. Now connect the battery to the USB charger (Fig. 5). The housing and remove the battery (Fig. 6) green and red LEDs start to flash.
  • Page 11 (2) Red LED (1) Green LED 1. switch on the remote control. The green LED lights up and the red LED flashes. 2. when the connection between the vehicle and the remote control is established, the red LED lights up continuously.
  • Page 13 Disclaimer Since Absima GmbH cannot at any time monitor the observance of the operating instructions as well as the operation and conditions of use of the product, Absima GmbH does not assume any liability for damages, costs, losses resulting from incorrect handling and/or incorrect operation or in any way related thereto.
  • Page 14: Battery Warning

    Battery Warning READ CAREFULLY BEFORE USE STORE Use chargers and settings that are compatible with the battery you are charging (NiMH, LiPo ...). Always use a charger with balancer function for LiPo batteries. We recommend a maximum charge current of 1C for all batteries (e.g.
  • Page 15 Item no.: 10035 Item no.: 10034 Item no.: 10031 Item no.: 10030 Item no.: 10032 Item no.: 10033 7.4V 600mAh Batterie...
  • Page 16 (figure 4) (figure 6) (figure 8) (figure 7) Instructions de l'émetteur...
  • Page 17 (2) LED rouge (1) LED verte A. Interrupteur d'alimentation on/off B. Garniture de direction C. Réglages de l'accélérateur (Vitesse maximale) (Vitesse inférieure)
  • Page 19 à la valeur de la facture du produit Absima impliqué dans l'événement. Ceci ne s'applique pas dans la mesure où nous devons assumer une responsabilité illimitée en raison de dispositions légales obligatoires ou de négligence grave.
  • Page 20 Mesures de sécurité pour la batterie LIRE ATTENTIVEMENT AVANT L'UTILISATION STORE Utilisez des chargeurs et des réglages compatibles avec la batterie que vous chargez (NiMH, LiPo ...). Utilisez toujours un chargeur avec fonction d'équilibrage pour les batteries LiPo Nous recommandons un courant de charge maximum de 1C pour toutes les batteries (par exemple, un courant de charge de 4A pour une batterie de 4000mAh) DEMANDE La batterie doit être bien protégée contre les influences extérieures et les...
  • Page 21 5.8*25 Steering Column (2) Hex Wheel Hubs (4) Shock Absorber (4) Metal Chassis Plate M2.5 Nut (4) Front Upper Differential Cover Front Lower Differential Cover Rear Lower Transmission Cover Rear Upper Transmission Cover Differential (f/r) Front CVDs (2) Rear Dog Bones & Axles (2) Aluminum Upper Deck...
  • Page 22 380 Brushed Motor Front Wishbone Unit 7.4V USB Charger Rear Wishbone Unit Remote Control Unit Main Drive Shaft ESC / Receiver Unit 7.4V Li-Ion Battery 600mAh Spare Wheel (2) (Reckless Socket Wrench Cross Screwdriver Body Pins (2) /Devotee) Tail Light & Wheelie Bar Front Bumper (Reckless) Front Body Mount (Reckless) Rear Body Mount (Reckless)
  • Page 23 J-028-2 J-028-3 J-028-4 J-028-1 Rear Body Mount (Rapid) Spare Wheel (Rapid) Front Body Mount (Rapid) Wheel Hub Adapter (4) (Rapid) J-028-5 J-028-6 Green J-028-6 Orange J-028-7 Front Bumper/LEDs (Rapid) Orange Car Body (Rapid) Green Car Body (Rapid) Tail Wing (Rapid)
  • Page 30 Absima GmbH Gibitzenhofstr. 127a RG 90443 Nürnberg Germany Web: www.absima.com...
