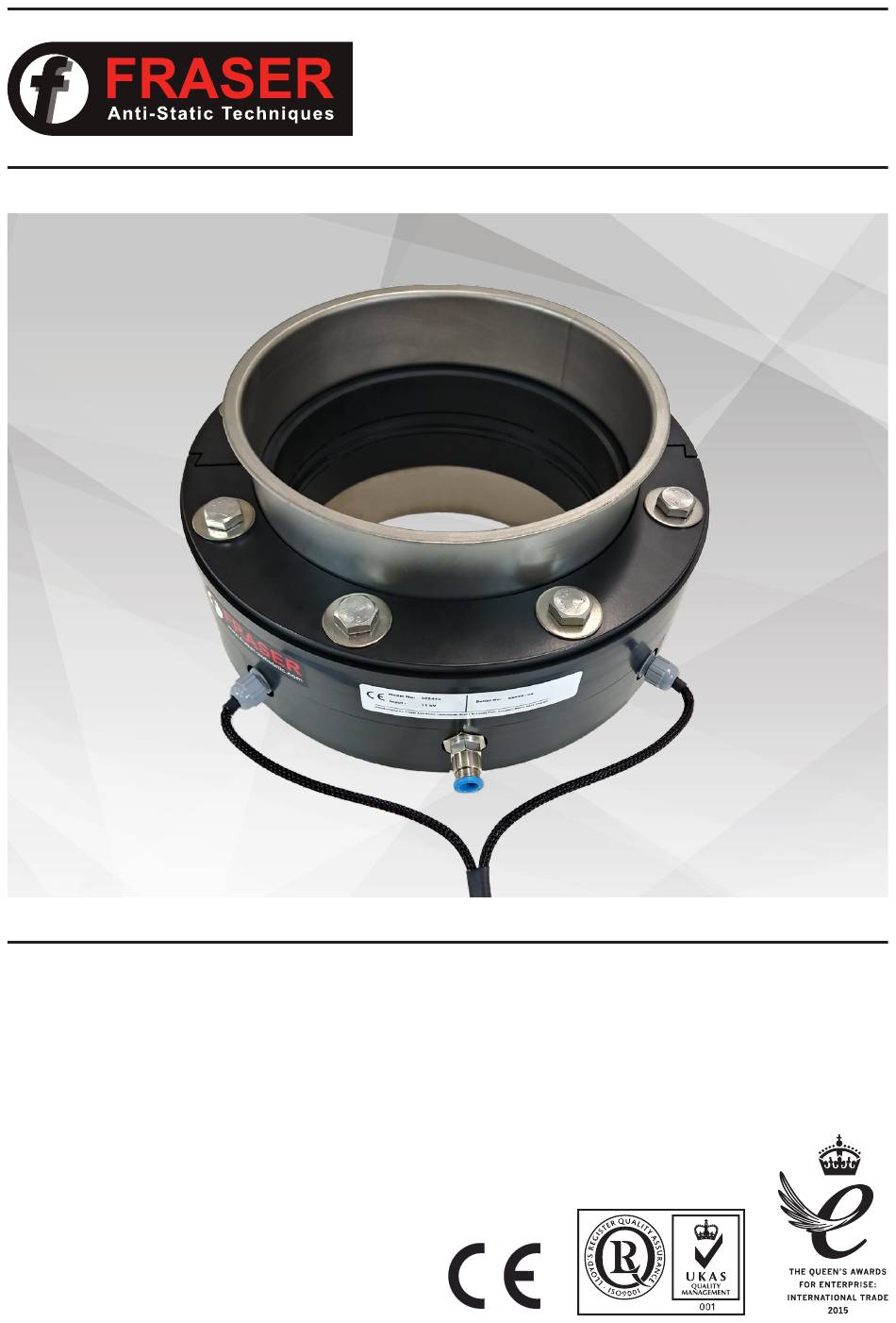

- Page 1 OPERATING INSTRUCTIONS 3024 DC RING IONISER...
-
Page 3: Table Of Contents
Contents Fraser static control equipment has been designed to give you many years of productive service. However, the science of static control has unique rules which must be followed to allow the equipment to give a good return on your investment. -
Page 4: Introduction
An external Power Unit converts 24 V DC input voltage to high voltage which is transmitted to the 3024 DC Ring Ioniser by HV cable. The electrodes in the Ring Ioniser use the high voltage to produce a thick cloud of ionised air, dense with positive and negative ions to neutralise static charges. -
Page 5: Checking On Delivered Equipment
If there is visible damage, contact the factory or one of our distributors immediately, before carrying out any installation. Check that the parts which have been delivered are the same as you ordered. 3024 DC Ring Ioniser OI - Iss.2a - EN... -
Page 6: Safety
Only intended for internal factory applications. Must only be used with a suitable Fraser Power Unit. Not certified for use in hazardous areas. For these areas see Fraser EX certified products. Designed exclusively for operation with oil-free, dry and filtered compressed air conforming to the minimum standard specified by ISO 8573-1:2010 Class 1.4.2. - Page 7 This is not dangerous, but may be uncomfortable and cause surprise. 3024 DC Ring Ioniser OI - Iss.2a - EN...
-
Page 8: Technical Specification And Dimensions
4. Technical Specification and Dimensions 4.1. 3024 DC Ring Ioniser Dimensions 3024 DC Ring Ioniser Top View © Fraser Anti-Static Techniques Ltd 2020... - Page 9 4. Technical Specification and Dimensions 4.1. 3024 DC Ring Ioniser Dimensions 3024 DC Ring Ioniser Side View 3024 DC Ring Ioniser OI - Iss.2a - EN...
- Page 10 HV Safety High voltage resistors between high voltage electrode and HV make the emitters shockless to touch 0 C to 60 Ambient Conditions Maximum humidity 70 % RH, non-condensing Safety Standard EN 62368-1:2014+A11:2017 Safety Certification © Fraser Anti-Static Techniques Ltd 2020...
- Page 11 4. Technical Specification and Dimensions 4.2. 3024 DC Ring Ioniser Power Unit Dimensions 3024 DC Ring Ioniser OI - Iss.2a - EN...
- Page 12 HV Output Cable Length 5 m maximum Status Indication Top mounted LED. Green = OK. Red = fault. Protection Rating IP61 (Dust Proof) Operating Temperature 0 C to 60 Safety Standard EN 62368-1:2014+A11:2017 Safety Certification © Fraser Anti-Static Techniques Ltd 2020...
-
Page 13: Mounting And Installation
Compressed air hoses should be kept as short as possible. Kinks and bends less than 3x hose diameter should be avoided. Unnecessary quick-lock couplings in the air hose should be avoided to minimise pressure loss. 3024 DC Ring Ioniser OI - Iss.2a - EN... - Page 14 5. DC Power Use the optional Fraser AC-DC power supply: Fraser Part No. 31101 M8 3-pin 24 V PSU Using an existing 24 V DC supply: The 3024 DC ring ioniser Power Unit is powered by 24 V DC.
- Page 15 The 24 V output must be fitted with a 1 Amp fuse e.g. Type: 1 A, T, 250 V. Fuse +24 V 1 Amp — 0 V 0 V of existing supply must be connected to installation ground. 3024 DC Ring Ioniser OI - Iss.2a - EN...
- Page 16 The ionised air corona produced by the emission of high voltage from the high voltage electrodes will neutralise static charge that passes through it. This is a powerful and safe process. The emission can produce a soft buzzing sound which is not usually audible in a factory. © Fraser Anti-Static Techniques Ltd 2020...
-
Page 17: Maintenance
PVC, epoxy resin and aluminium. Soapy water can also be used. Important: Do not turn on power until the Ring Ioniser is dry. Take care - the emitter pins are sharp! 2. Power Unit No maintenance required. 3024 DC Ring Ioniser OI - Iss.2a - EN... -
Page 18: Troubleshooting
The product has not been altered or tampered with • The complete unit is sent back to the factory by the customer. The customer is responsible for these carriage costs, Fraser is responsible for returning the product repaired or replaced under warranty. © Fraser Anti-Static Techniques Ltd 2020... -
Page 19: Certification And Declaration Of Conformity
Low Voltage Directive: 2014/35/EU • EMC Directive: 2014/30/EU • RoHS Directive: 2011/65/EU Therefore, CE Marking applied. For further instructions, information or advice, please contact Fraser or your distributor. 10. Spare Parts and Accessories Item Photo Description Part No. Universal AC-DC power supply: 90 - 250 V AC input. - Page 20 For more information about static and to view the full range of our products, please visit www.fraser-antistatic.com Scotts Business Park, Bampton, Devon EX16 9DN UK T + 44 (0) 1398 331114 F + 44 (0) 1398 331411 E sales@fraser-antistatic.co.uk W www.fraser-antistatic.com 3024 DC Ring Ioniser OI - Iss.2a - EN...
