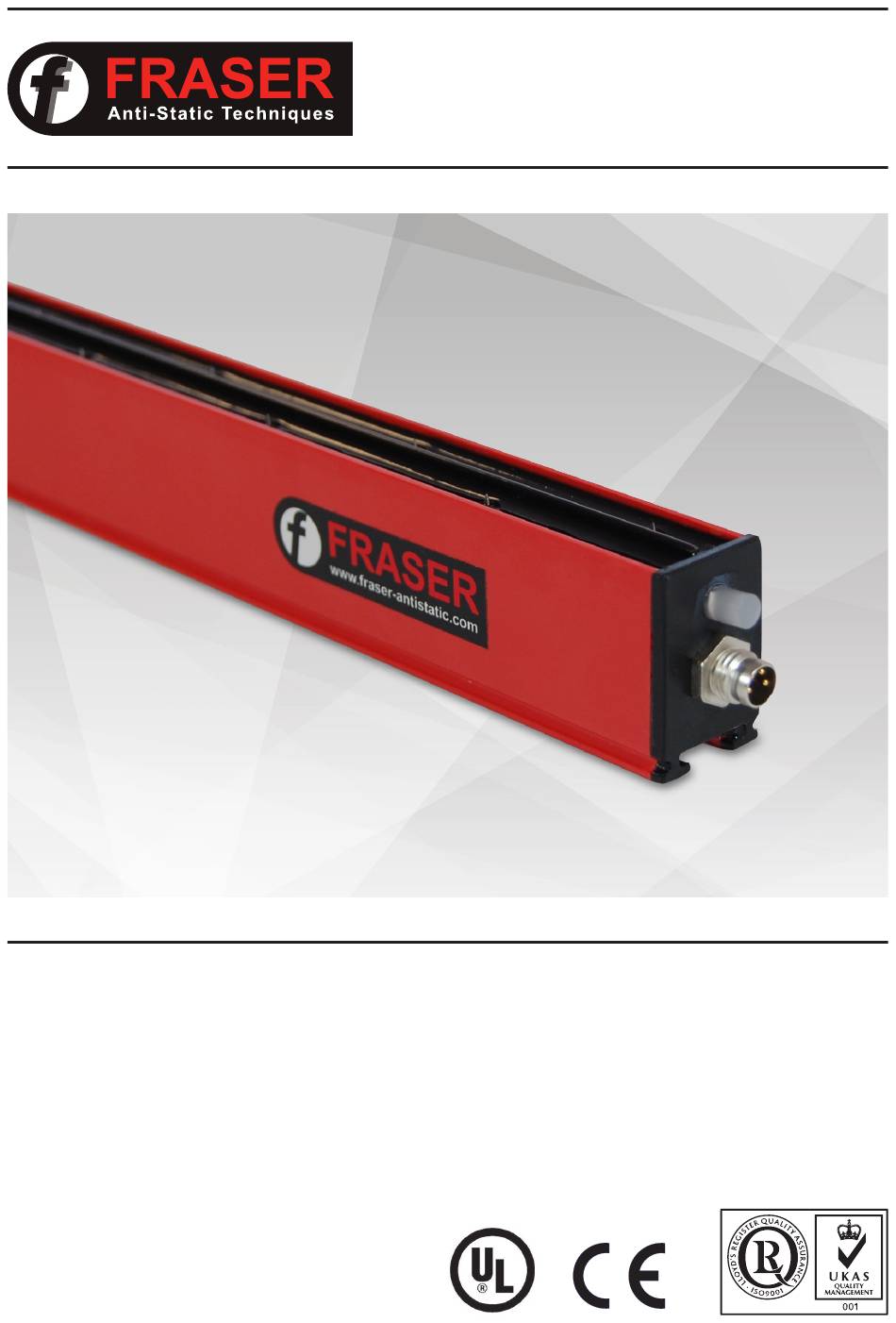

- Page 1 OPERATING INSTRUCTIONS 3014 COMPACT STATIC ELIMINATOR BAR WITH INTEGRATED REMOTE MONITOR...
-
Page 3: Table Of Contents
Contents Fraser static control equipment has been designed to give you many years of productive service. However, the science of static control has unique rules which must be followed to allow the equipment to give a good return on your investment. -
Page 4: Introduction
1. Introduction The 3014 static eliminator is one of the range of high performance DC static eliminators from Fraser Anti-Static. These products are used by leading manufacturers throughout the world to increase safety and productivity. It is essential that you read and understand the complete manual before installing and using this equipment. - Page 5 1. Introduction 1.2. Checking on Delivered Equipment Before starting the installation please check that the 3014 bar has not been damaged in transit. If the packaging material is damaged please report this immediately to the vendor. Check that the additional items are present with the bar: ‘T’...
-
Page 6: Safety
2. Safety The Fraser 3014 static eliminator bar has been designed in accordance with the safety requirements of the EU Low Voltage Directive. • The emitter pins are resistively coupled to the high voltage supplies. The emitters are a Class 1 electrical energy source. Contact with the emitters is not painful and will not result in electrically-caused injury, but may cause a detectable sensation due to the small current which will flow. -
Page 7: Positioning And Installation
• The 3014 bar should be mounted in a clean, dry and oil-free location. • A static meter such as the Fraser 715 is useful in determining the best location for the bar. - Page 8 Good location Free air opposite the bar allows good neutralisation. 20 – 150 mm (20 – 50 mm for best performance). Larger than A to avoid ion loss to rollers or parts of machine. © Fraser Anti-Static Techniques Ltd 2020...
-
Page 9: Electrical Connections
4. Electrical Connections WARNING: The 0 V (negative) output of the 24 V DC supply to the 3014 bar must be earthed. If this is not done, the bar and Power Supply will be damaged and all warranties will be voided. - Page 10 VIEW MALE FEMALE ON 24 V CABLE The pin assignment and typical wire colours are given in the table below. This refers to cables supplied by Fraser. Other cables may have different colour schemes. Wire Colour Function Details Brown +24 V 21 –...
- Page 11 CAUTION: If the 0 V output of the DC power supply is not grounded, damage may occur to the power supply and/or the bar. CAUTION: If the 0 V output of the DC power supply is not grounded the residual voltage (balance) level of the bar cannot be guaranteed. 3014 OI - Iss.3a - EN...
-
Page 12: Monitoring: Led And Remote
Bar not powered. Inactive The 3014 bar is equipped with a remote monitoring interface which allows the operating status of the bar to be fed into a PLC system or checked remotely. Please see Appendix II for wiring instructions and examples for the remote monitoring interface. -
Page 13: Commissioning And Operation
To ensure best performance, the bar should be visually inspected on a regular basis and cleaned whenever convenient. A cleaning kit is available from Fraser, Part No. 81220. This is the ideal solution for regular bar cleaning. Alternatively a toothbrush or soft nailbrush can be used. Do not use a wire brush as this may cause damage to the bar. -
Page 14: Troubleshooting
Bar installed too far from • Review installation, move bar closer material to be neutralised. to material if possible. Bar installed opposite • Review installation, move bar opposite roller/machine parts. material in free air if possible. © Fraser Anti-Static Techniques Ltd 2020... -
Page 15: Accessories
9. Accessories A range of accessories to assist with installation and maintenance of the bar are available from Fraser Anti-Static Techniques. Please contact your local distributor to enquire regarding pricing and delivery of these items. Item Picture Description Part No. - Page 16 (Available in 2 m lengths) ‘T’ fixing (40 mm), 30248 including flanged nut. Fraser Ioniser Cleaning Kit containing: • 500 ml of Cleaning Fluid. 81220 • Soft bristle hand brush. • Instructions for use. © Fraser Anti-Static Techniques Ltd 2020...
-
Page 17: Appendix I: Technical Specification
0.15 kg + 0.51 kg/m e.g. 1 m bar: 0.66 kg. Materials: FR-ABS, epoxy resin, tungsten emitters, steel fixings. Standards CE, CB and UL. CE Marking EU LVD (2014/35/EU) Emissions: EN 61000-6-3:2007. EU EMCD (2014/30/EU) Immunity: EN 61000-6-2:2005. 3014 OI - Iss.3a - EN... -
Page 18: Appendix Ii: Remote Interface And Wiring Examples
IMPORTANT: The OK output always directly indicates the ionisation state of the bar. IMPORTANT: Because the outputs are implemented using an electronic switch rather than a relay, when the bar is not powered, the outputs will not sink current. © Fraser Anti-Static Techniques Ltd 2020... - Page 19 Connected internally to 0 V by voltage, open-circuit low-impedance switching device. Output impedance, <50 Ω low-level Maximum output 20 mA Protected by internal self-resetting fuse. current, low-level (sinking) Maximum externally 28 V Signal output is also protected against applied voltage transient over-voltage. 3014 OI - Iss.3a - EN...
- Page 20 PLC digital input module as shown below. PLC SYSTEM ATTENTION DIGITAL INPUT 1 BLACK WHITE DIGITAL INPUT 2 FUSE BLUE BROWN 1 A 3014 bar M8 connector 24 V power supply 24 V DIGITAL I/O © Fraser Anti-Static Techniques Ltd 2020...
- Page 21 The recommended wiring scheme for external indicators is shown below. Note that the connections for the OK and ATTENTION signals are different. ATTENTION BLACK WHITE FUSE BLUE BROWN ATTENTION 1 A 3014 bar M8 connector 24 V power supply 24 V 3014 OI - Iss.3a - EN...
- Page 22 • Phoenix Contact PLC-RSC series. • Finder 38 series. • Wieland FLARE-24DC series. • Omron G2RV series. IMPORTANT: Relay coil drive current at 24 V should not exceed 20 mA. IMPORTANT: External relays should be fitted with coil suppressors. © Fraser Anti-Static Techniques Ltd 2020...
- Page 23 Bar not powered OPEN (COM OPEN (COM IMPORTANT: Due to the use of electronic switches within the bar, it is not possible to determine remotely that the bar is not powered when using external relays. 3014 OI - Iss.3a - EN...
- Page 24 For more information about static and to view the full range of our products, please visit www.fraser-antistatic.com Scotts Business Park, Bampton, Devon, EX16 9DN, UK T + 44 (0) 1398 331114 F + 44 (0) 1398 331411 E sales@fraser-antistatic.co.uk W www.fraser-antistatic.com 3014 OI - Iss.3a - EN...
