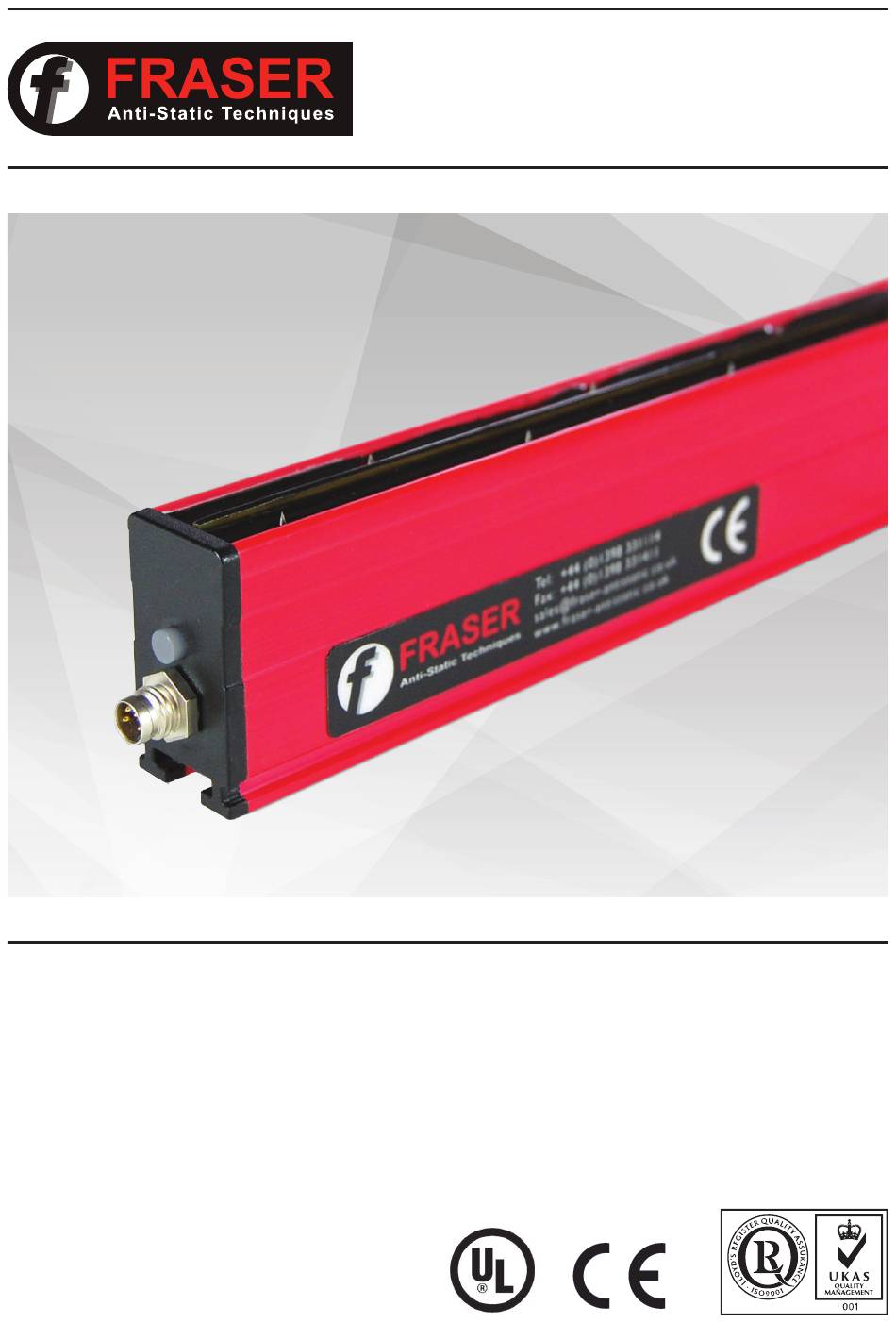

  • Page 1 OPERATING INSTRUCTIONS 3024 F 3024 L WITH INTEGRATED REMOTE MONITOR...

  • Page 3: Table Of Contents

    Contents Fraser static control equipment has been designed to give you many years of productive service. However, the science of static control has unique rules which must be followed to allow the equipment to give a good return on your investment.

  • Page 4: Introduction

    1. Introduction This manual applies to the 3024 F and 3024 L Static Eliminator Bars. It is essential that you read and understand the complete manual before installing and using this equipment. This is important for safety and for warranty cover.

  • Page 5: Safety

    2. Safety Warnings: The Anti-Static Bar is only designed for neutralising surfaces with an electrostatic charge. Electrical installation must only be carried out by a qualified electrical engineer. Adequate installation earth/ground is required to ensure safe and proper operation. The 0 V output of the 24 V DC electrical supply must be earthed. Disconnect the power supply before cleaning or handling the Bar.

  • Page 6: Use

    3. Use The 3024 F and 3024 L are high performance Static Eliminator Bars. Powered by 24 V DC, they have an integrated HV supply and feature remote monitoring to check bar function remotely. They are designed for internal factory use.

  • Page 7: General Specification And Dimensions

    5. General Specification and Dimensions Voltage: 24 V DC (21 - 28 V). Power Supply: Current: 0.5 A DC max when used without the Remote Monitor. Up to 1 A DC max when using the Remote Monitor. High Voltage: 11 kV integrated into Bar. Supply cable: Low voltage, industry standard M8 connector 4-pin.

  • Page 8: Positioning

    Bar and the metal object. If more than one Bar is used, they should not be positioned directly opposite each other, but should be offset by at least 50 mm. © Fraser Anti-Static Techniques Ltd 2020...
  • Page 9 6. Positioning Emitters facing material. Bar >50 mm from rollers or machine parts. Material in free air (optimum). Distance ‘A’: depends on Bar type. Closer is better. Distance ‘B’: if there are two Bars, offset them >50 mm 3024 OI - Iss.3 - EN...
  • Page 10 Do not position the 3024 F closer than 25 mm to the material. Material should be in free air. With a plastic DC Bar like the 3024 F the nearest earth should be more than the distance of the product. If there is an earthed body closer to the Bar than the material to be neutralised it will attract the ions from the Bar.

  • Page 11: Operation And Control

    OVERALL LENGTH = ACTIVE LENGTH 7. Operation and Control Warning: Failure to follow the installation requirements may result in injury or damage to equipment. 22.0 OVERALL LENGTH = ACTIVE LENGTH Status LED M8 Connector Emitters 1. Electrical Using an existing 24 V DC supply: The 24 V output must be fitted with a 1 Amp fuse e.g.
  • Page 12 BROWN = +24 V DC BLUE = 0 V + GROUND BLACK = RM Signal WHITE = GROUND If remote monitor function is not needed insulate black wire and do not connect anything to it. © Fraser Anti-Static Techniques Ltd 2020...
  • Page 13 7. Operation and Control M8 Connector 3024 Internal BROWN 24 V WHITE GROUND RELAY BLACK REMOTE MONITOR BLUE 0 V + GROUND Remote Monitor signal is valid 4 seconds after power is applied. BLACK = 24 V when 3024 status signal OK BLACK = 0 V when 3024 status signal FAULT Example Application Use of Remote Monitor EXTERNAL LAMP/INDICATOR...
  • Page 14 1) Mounting Brackets Versatile mounting ‘T’ pieces slide into slot at the bottom of the Bar. Two mounting blocks for Bars up to 1 m, plus extra mounting brackets for each additional 500 mm. © Fraser Anti-Static Techniques Ltd 2020...

  • Page 15: Maintenance

    8. Maintenance Turn off electricity to the Power Unit before doing any installation or maintenance work. Cleaning is the only maintenance required. Dirt around the emitters will reduce efficiency and result in unsatisfactory performance. A toothbrush or nail brush is ideal for cleaning Bars.

  • Page 16: Troubleshooting

    If the status LED is RED, then this indicates overload or other fault: Turn the power off and clean the bar. Check the electrical supply. Check the installation location is as described in this manual. © Fraser Anti-Static Techniques Ltd 2020...

  • Page 17: Spare Parts And Accessories

    12. Spare Parts and Accessories Item Picture Description Part No. 3 m cable M8 female, bare ends. 80892 Straight socket. 5 m cable M8 female, bare ends. 80930 Straight socket. 7.5 m cable M8 female, bare ends. 80931 Straight socket. 10 m cable M8 female, bare ends.
  • Page 18 (available in 2 m lengths). Mounting ‘T’ Bracket, including 30248 flanged nut. Fraser Ioniser Cleaning Kit: - 500 ml of Cleaning Fluid 81220 - Soft bristle hand brush - Instructions for use © Fraser Anti-Static Techniques Ltd 2020...
  • Page 19 This page intentionally blank 3024 OI - Iss.3 - EN...
  • Page 20 For more information about static and to view the full range of our products, please visit www.fraser-antistatic.com Scotts Business Park, Bampton, Devon, EX16 9DN, UK T + 44 (0) 1398 331114 F + 44 (0) 1398 331411 E sales@fraser-antistatic.co.uk W www.fraser-antistatic.com...
