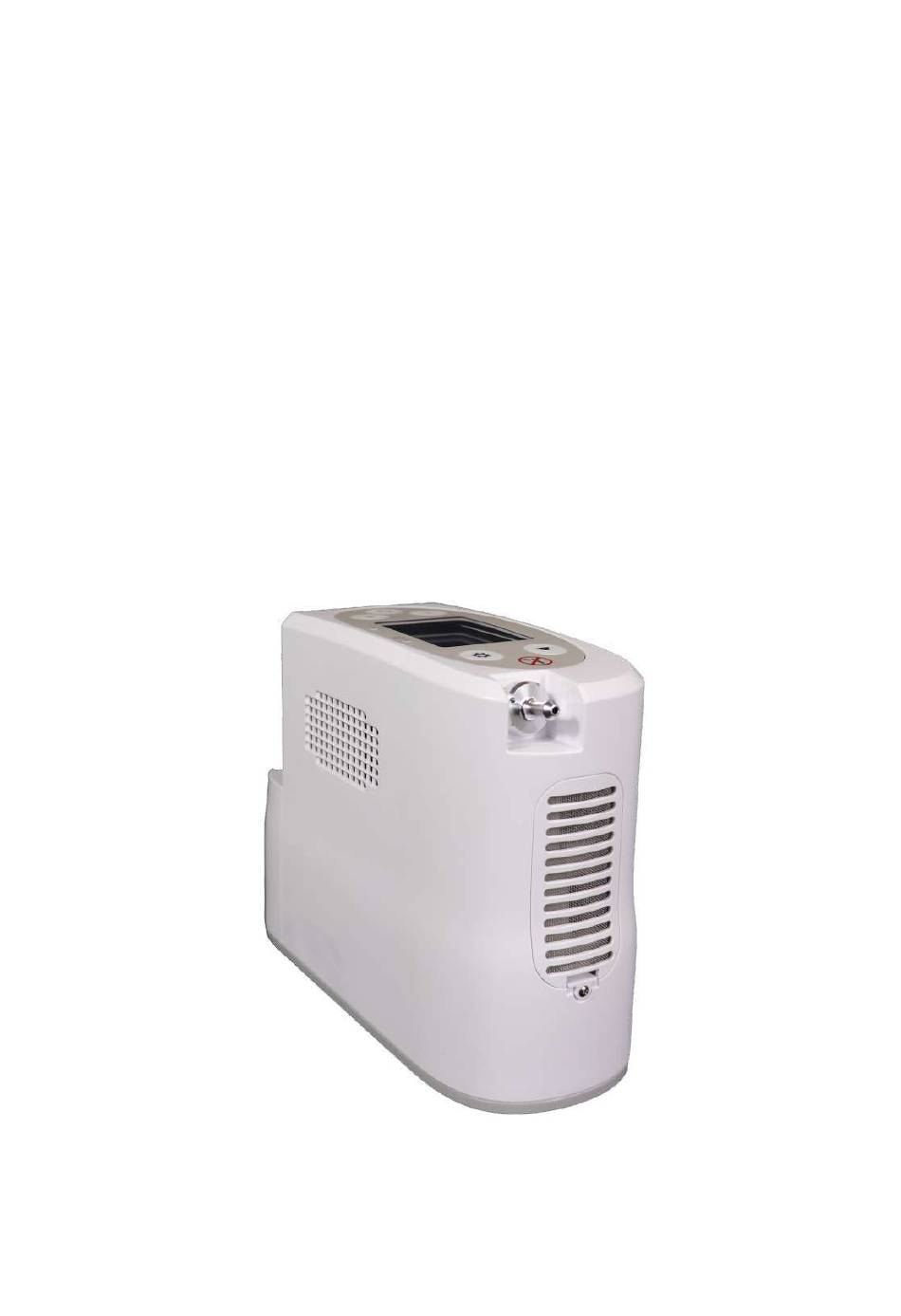

- Page 1 Kingon User Manual P2 Portable Oxygen Concentrator...
-
Page 2: Table Of Contents
I. Use Intention, Contraindications and General Precautions Intended Use Contraindications General Precautions General Precautions - Continued General Precautions - Continued II. Description of the Kingon P2 Oxygen Concentrator Parts Diagram User Interface Buttons and Display Symbols User Interface Buttons and Display Symbols Alerts Alerts Accessories III. - Page 3 Symbol Meaning A warning indicates that the personal safety of the patient may be involved. WARNING Disregarding a warning could result in significant injury. A caution indicates that a precaution or service procedure must be followed. CAUTION Disregarding a caution could lead to minor injury or damage to the equipment. See user manual for instructions AC power DC power...
- Page 4 Symbol Meaning This side up Fragile Storage humidity (non-condensing) Storage temperature Magnetic resonance unsafe The manufacturer of this POC has determined this device conforms to all applicable FAA requirements for POC carriage and use on board aircraft...
-
Page 5: Use Intention, Contraindications And General Precautions
The Kingon P2 is a small and portable device that may be used at the home and can be taken with you while per- forming your daily activities. -
Page 6: Contraindications
CAUTION Never leave the Kingon P2 in high temperatures/high humidity such as in a car in high heat or a bathroom with high humidity. This can damage the device. -
Page 7: General Precautions - Continued
Only use the parts and accessories that are provided by oxygen concentrator manufacturer. WARNING The settings of the Kingon P2 might not correspond with continuous flow oxygen. WARNING The settings of other models or brands of oxygen therapy equipment do not correspond with the settings of the Kingon P2. -
Page 8: General Precautions - Continued
Use only approved Kingon P2 accessories WARNING Remove the battery from the device if Kingon P2 will not be used for an extended period of time WARNING Device operation exceeding the voltage, breath rate, temperature, humidity and/or altitude values specified may decrease oxygen concentration levels. -
Page 9: Description Of The Kingon P2 Oxygen Concentrator
Description of the Kingon P2 Oxygen Concentrator II. Description of the Kingon P2 Oxygen Concentrator Parts Diagram... -
Page 10: User Interface Buttons And Display Symbols
Description of the Kingon P2 Oxygen Concentrator User Interface Buttons and Display Symbols Display Panel Symbol Item Description Press once to turn ON. ON / OFF Button Press and hold for one second to turn OFF. Press once to toggle between audible and silent mode. -
Page 11: User Interface Buttons And Display Symbols
Description of the Kingon P2 Oxygen Concentrator User Interface Buttons and Display Symbols Home Screen Symbol Description Current flow setting Range is from 1 to 5 Battery charge level • Battery percentage • Battery time remaining Device runtime since powered on... - Page 12 Description of the Kingon P2 Oxygen Concentrator Symbol Description Powered by AC or DC only. 1. Powered by battery only (not plugged in and not charging) 2. Battery level percentage and time remaining 3. Device is ON 1. Battery is charging 2.
- Page 13 Description of the Kingon P2 Oxygen Concentrator Alerts in Audible Mode: The following shows the device has detected an active alarm while in audible mode. Example below shows “Absence of Breath”. Alerts in Silent Mode: The following shows the device has detected an active alarm while in silent mode.
-
Page 14: Alerts
Description of the Kingon P2 Oxygen Concentrator Alerts Adapter plug / unplug: An adapter icon displays when adapter is plugged in and disappears when unplugged. An audible alarm (if enabled) will also sound. Battery plug / unplug: A battery icon displays when battery is connected and disappears when disconnected. -
Page 15: Alerts
Description of the Kingon P2 Oxygen Concentrator Alerts Alarm item Alarm condition System process Display of screen Battery Exhausted Battery cycle >500 Or Alarm only Battery Exhausted health <50% Replace Sieve Bed Sieve bed expired or Sieve Alarm only Replace Sieve Bed... -
Page 16: Power Supply
AC power sources, the power supply automatically adapts to input voltages from 100V to 240V (50-60HZ), permitting use with most power sources throughout the world. Connect A plug to nearest AC power outlet → connect C plug to D port → connect B plug to Kingon P2 DC Power Supply The DC power supply is designed to power the Kingon P2 Oxygen Concentrator from a DC power supply such as a car cigarette lighter or auxiliary DC power supply. -
Page 17: Accessories
Description of the Kingon P2 Oxygen Concentrator Accessories Nasal Cannula The Kingon P2 must use a single lumen nasal cannula to provide oxygen to the patient. WARNING Nasal cannulas should not be used by more than one person. DO NOT use a cannula length exceeding 7.6m. -
Page 18: Operating Instructions
General Operation 1. Find a well ventilated location to place the Kingon P2. Ensure the unit is turned off. Ensure the intake and exhaust has clear access. The Kingon P2 should be operated in a place where alarms can be heard. - Page 19 Slide the battery into place until the latch returns to the upper position along with an audible sound. 4. Connect the AC or DC power to the Kingon P2. The green LED on the power adapter will be on and the concentrator will beep.
- Page 20 7. Set the setting to the flow rate prescribed by your provider. Press the + or – setting buttons to adjust the Kingon P2 to the desired flow rate. The current setting can be viewed on the display from 1 to 5.
- Page 21 CAUTION The Kingon P2 will alert with audible and visual signals such as “Absence Of Breath”. When this alert is en- abled and no breath has been detected for 15 seconds, the device will enter auto pulse mode. Once breath is detected, the device will exit auto pulse mode and resume normal delivery of oxygen.
-
Page 22: Troubleshooting
Troubleshooting IV. Troubleshooting The table below lists some common problems and solutions. If you can’t resolve a problem, please contact your equipment provider. Problem Possible Cause Recommended Solution Battery is not installed correctly Remove the battery and re-install it correctly. Use the AC or DC power adapter to operate the de- vice (with battery inserted) to recharge the battery. -
Page 23: Maintenance And Cleaning Of Kingon P2
Nasal cannula should be rated for 5 litres per minute to ensure proper patient usage and oxygen delivery. Filter Cleaning and Replacement Filters are designed to adequate air flow through the device at the front of the Kingon P2. Pre-Filter This particle screen must be cleaned on a weekly basis to ensure adequate air flow through the device. -
Page 24: Battery Care And Maintenance
It is suggested to replace the cotton intake filters once a month. Depending on use, you may not need to replace as often if it is not dirty. Battery Care and Maintenance The Kingon P2 Lithium Ion Battery requires special care to ensure proper performance and long life. Only use Kingon P2 batteries #BA-P200 with your concentrator. CAUTION Keep liquids away from batteries. -
Page 25: Disposal Of Equipment And Accessories
Kingon suggests that the room temperature should not exceed 24°C when batteries are being charged. Battery Time Remaining Clock The Kingon P2 continuously displays battery time remaining. This displayed time is only an estimate and the actual time remaining may vary from this value. -
Page 26: System Specifications
System Specifications VI. System Specifications Concentrator Specification Dimensions 22.1L x 16H x 8.5W cm Weight 1.98kg with battery installed Sound Level 42 dB (A) at setting 2 User Interface 2.8 inch LCD colour display screen Warm-Up Time 2 minutes Oxygen 90% -3% / +6% at all settings Concentration Settings... -
Page 27: Concentrator Specification - Continued
System Specifications Concentrator Specification - Continued Power: AC input: 100 to 240V | 50 to 60 Hz AC Power Supply DC input: 11-16V | DC output: 19V 6.3A DC Power Supply Voltage: 14.4V Setting 1: 5h Setting 2: 3h 50min Battery Duration Setting 3: 3h Setting 4: 2h... -
Page 28: Standards Compliance
System Specifications Standards Compliance The device is designed to conform to the following standards: - IEC 60601-1-2, 2014, Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests - IEC 60601 - 1: Medical Electrical Equipment - part 1: General Requirements for Basic safety &... -
Page 29: Emc Information
System Specifications EMC Information The device has been designed to meet EMC standards throughout its service life. Guidance and Manufacturer’s Declaration – Electromagnetic Immunity: The concentrator is intended for use in the electromagnetic environment specified below. The user of the concen- trator should make sure it is used in such an environment. -
Page 30: Emc Information - Continued
System Specifications EMC Information - Continued Conducted RF 3 Vrms 3 Vrms Portable and mobile RF communications IEC 61000-4-6 150 kHz to 150 kHz to equipment should be used no closer 80 MHz 80 MHz to any part of the device, including ca- bles, than the recommended 30 cm 6 Vrms Amateur Radio &... -
Page 31: Warranty
This warranty does not cover damage or injury whether to Kingon P2 or to personal property or persons caused by accident, misuse, abuse, negligence, failure to install in accordance with Kingon’s installation instructions, failure to... - Page 32 WellKang Ltd (www.CE-marking.eu) Enterprise Hub, NW Business Complex, 1 Beraghmore Road, Derry, BT48 8SE, Northern Ireland, UK. Qingdao Kingon Medical Science and Technology Co., Ltd. Manufacturer Address: Room 301-302, No. 15 Hancheng Road, Qingdao Free Trade Zone, Shandong, China, 266555 Factory Address: 24th Factory Building, No.
