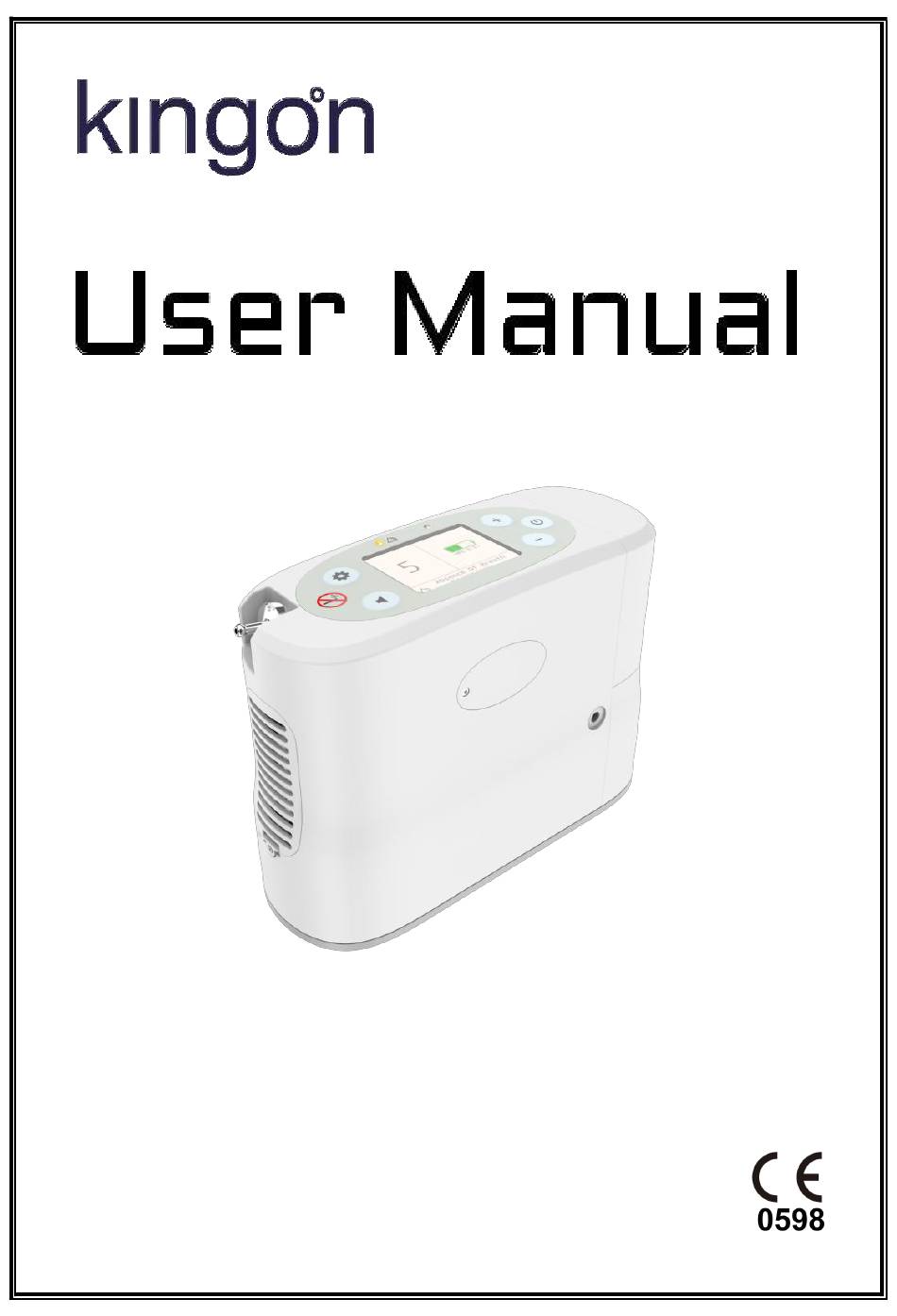

- Page 1 PORTABLE OXYGEN CONCENTRATOR # P2 No: DO-P2-01 Version No:A/0,software version:KNMed_P2_18_08_v3.1.01...
-
Page 3: Table Of Contents
General Precaution---Continued..................4 General Precaution---Continued..................5 General Precaution---Continued..................6 Ⅱ.DESCRIPTION OF THE KINGON P2 OXYGEN CONCENTRATOR......7 Important Parts of the Kingon P2..................7 User Interface Instruction and Symbols used on Kingon P2........8 Alerts........................... 12 Power Supply........................14 Accessories........................15 Accessories List.........................16 Ⅲ.OPERATING INSTRUCTIONS.................. - Page 4 Symbol Meaning A warning indicates that the personal safety of the patient may be WARNING involved. Disregarding a warning could result in significant injury. A caution indicates that a precaution or service procedure must CAUTION be followed. Disregarding a caution could lead to a minor injury or damage to equipment.
-
Page 5: Ⅰ.use Intention ,Contraindications And General Precaution
It supplies a high concentration of oxygen and is used with a nasal cannula to channel oxygen from the concentrator to the patient. The Kingon P2 is small, portable and may be used in home, institution and various mobile environments. -
Page 6: Contraindications
In certain circumstances, oxygen therapy can be hazardous. CAUTION Please seek medical advice before using this device. The Kingon P2 is not designed or specified to be used in conjunction with a humidifier, nebulizer or connected with any other equipment. Do not modify the Kingon P2 CAUTION Concentrator. -
Page 7: General Precaution
● only use the parts and accessories that are provided by oxygen concentrator manufacturer Kingon . The settings of the Kingon P2 might not correspond with WARNING continuous flow oxygen The settings of other models or brands of oxygen therapy... -
Page 8: General Precaution
To ensure receiving the therapeutic amount of oxygen delivery according to your medical condition Kingon P2 must — be used only after one or more settings have been individually determined or prescribed for you at your WARNING specific activity levels. -
Page 9: General Precaution
● Use only with Kingon P2 AC power supply ● Use only with Kingon P2 batteries ● Use only approved Kingon P2 accessories Remove the battery from the device if Kingon P2 will not be WARNING used for a long period of time... -
Page 10: Ⅱ.description Of The Kingon P2 Oxygen Concentrator

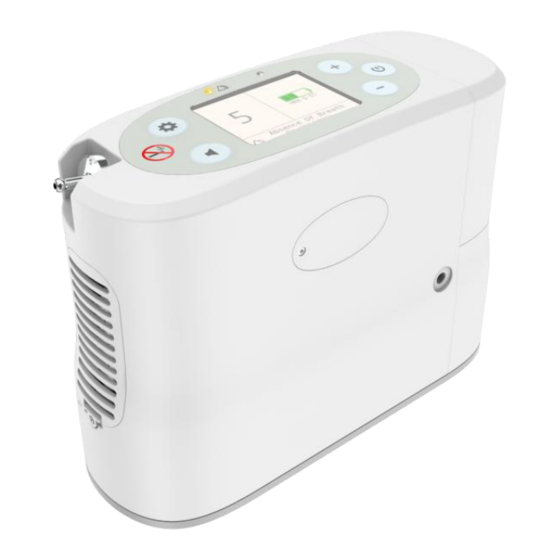

Description of the Kingon P2 Oxygen Concentrator Ⅱ.DESCRIPTION OF THE KINGON P2 OXYGEN CONCENTRATOR Important Parts of the Kingon P2... -
Page 11: User Interface Instruction And Symbols Used On Kingon P2
Description of the Kingon P2 Oxygen Concentrator User Interface Instruction and Symbols used on Kingon P2 User control: Symbol Item Description ON / OFF Press once to turn “ON”; Button Press and hold for one second to turn “OFF” Pressing the button will toggle the Kingon P2’s audible alert on and off. - Page 12 Description of the Kingon P2 Oxygen Concentrator Home Screen Home screen will show the icon as: The icons mean: Icon Description Flow Setting(from 1 to 5) Battery charge level: ●Battery percentage ●Battery remaining time to use Device runtime (H:Min) ( single time )
- Page 13 Description of the Kingon P2 Oxygen Concentrator ICON DESCRIPTION Powered by AC /DC only 1. Powered by battery only ,without AC & DC charge 2. Battery level and remaining time to use 3. Device ON 1. battery installed and with AC or DC charge 2.
- Page 14 Description of the Kingon P2 Oxygen Concentrator Audible Mode: the device has detected an active alarm under unmute mode Mute Mode: Alarm Silence the device has detected an active alarm under mute mode...
-
Page 15: Alerts
Description of the Kingon P2 Oxygen Concentrator Alerts Message Display Explanation and Action Battery Exhausted Battery health condition is less than 50% Pls contact provider 1. molecular sieve is out of date ,remind users to contact equipment provider to change the sieve bed Replace Sieve Bed 2. - Page 16 Description of the Kingon P2 Oxygen Concentrator Alerts-Continued Abnormity of the tank pressure ,Concentrator will shut Tank Pressure Fail down after 30 seconds.Pls contact equipment provider Pls Contact Provider for maintenance Sieve bed does not work or become invalid, SieveBed Fail Concentrator will shut down after 10 seconds.
-
Page 17: Power Supply
Power Supply Standard Lithium Ion Battery # BA-P200 The Kingon P2 will be powered by standard lithium ion battery. When full charged, the battery can serve for up to 3.5 hours of operation. Recharge the battery by AC or DC power when installed in the P2. -
Page 18: Accessories
Disposable usage for the cannula. Choose the CE marked nasal cannula ( e.g. Runmai CAUTION NOC-DAW0721) Carry bag # CB-P200 Kingon P2 carry bag allows you to go out for daily activities with the Kingon P2 concentrator. The bag is convenient to the patient. -
Page 19: Accessories List
Description of the Kingon P2 Oxygen Concentrator Accessories List Item Nasal Cannula 1 pc NOC-DAW0721 Carry Bag 1 pc CB-P200 AC power supply 1 pc EM11012E Intake Filter 5 pc FI-P201 Battery 1 pc BA-P200... -
Page 20: Ⅲ.operating Instructions
Find a well ventilated location to place the Kingon P2, make sure it’s turned off. Be Sure to keep the Intake and exhaust with clear access. Try to locate the Kingon P2 in a suitable place where any auditory alarms may be heard. - Page 21 Flat slide the battery into place until the latch returns to the upper position along with a audible sound . Connect the AC power to Kingon P2 . The green LED on the power adapter will be on and the concentrator will generate a sound of beep.
- Page 22 . During this period the oxygen concentration is building to but may not have reached specification. Under special conditions ,longer warm up time may be necessary ,such as a extremely cold temperature of storage or operation of Kingon P2. CAUTION Oxygen concentration may not reach specification during the one-minute warm up time.
- Page 23 Change the Kingon P2 Concentrator setting to the flow rate prescribed by your physician or clinician. Press the + or – setting buttons to adjust the Kingon P2 to the desired setting. The current setting can be viewed on the display from 1 to 5.
- Page 24 Operation Instructions General To remove power, disconnect the input cord from AC or DC power source (like AC wall outlet) and disconnect it from the Kingon `P2.
-
Page 25: Ⅳ.troubleshooting
Troubleshooting Ⅳ.TROUBLESHOOTING The table below lists some common problems and actions you can take. If you can’t resolve a problem, please contact your equipment provider. Problem Possible Cause Recommended Solution Remove the battery and re-install it Battery is not installed correctly correctly. -
Page 26: Ⅴ.maintenance And Cleaning Of Kingon P2
CAUTION ensure proper patient usage and oxygen delivery. Filter Cleaning and Replacement Filters are designed to adequate air flow through the device at the front of the Kingon Pre Filter # FI-P200 This particle screen must be cleaned on a weekly basis to ensure adequate air flow through the device. -
Page 27: Battery Care And Maintenance
If batteries become wet, stop use immediately and dispose of battery properly. Battery Replacement 1.Press down the latch ,and flat slide the battery off 2.Insert the Kingon P2 battery by sliding battery into place until the latch returns to the upper position. - Page 28 75°F (24°C) when batteries are charged. Battery Time Remaining Clock The Kingon P2 continuously displays battery time remaining. This displayed time is only an estimate and the actual time remaining may vary from this value. Store battery in a cool, dry place. Store with a charge of CAUTION 40-50%.
-
Page 29: Disposal Of Equipment And Accessories
Maintenance and Cleaning of Kingon P2 Disposal of Equipment and Accessories Follow your local governing ordinances for disposal and recycling of the Kingon P2 accessories. The battery contains lithium ion cells and should be recycled and must not be incinerated. -
Page 30: Ⅵ.system Specifications
System Specifications Ⅵ.SYSTEM SPECIFICATIONS Concentrator Specification Dimensions L/W/H:8.70in.(22.1cm.)/3.35in.(8.5cm.)/6.30in.(16.0cm.) Weight 4.34 pounds 1.97Kg ( with battery.) User Interface 2.8 inch large LCD color display screen Sound Level 49 dB ( A ) ( on setting 2 ) Warm-Up time 2 minutes Oxygen 90% - 3% /+ 6% at all settings Concentration... -
Page 31: Classifications
System Specifications Concentrator Specification--Continued Power: AC Power supply AC Input: 100 to 240VAC 50 to 60 Hz Rechargeable Battery Voltage: 14.4VDC Rated capacity:6.8Ah Battery Duration Up to 3.5hours Battery Charging Time About 5 hours Environmental Temperature: 41 to 104˚F (5 to 40˚C) Ranges Humidity: 10% to 90%, non-condensing Intended for Operation... -
Page 32: Standards Compliance
System Specifications Standards Compliance The device is designed to conform to the following standards: - IEC 60601-1-2, 2014, Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests - IEC 60601 - 1: Medical Electrical Equipment - part 1: General Requirements for Basic safety &... -
Page 33: Emc Information
System Specifications EMC Information The device has been designed to meet EMC standards throughout its Service Life. Guidance and Manufacturer’s Declaration –Electromagnetic Immunity: The Concentrator is intended for use in the electromagnetic environment specified below. The user of the Concentrator should make sure it is used in such an environment. Compliance Electromagnetic Immunity Test... -
Page 34: Emc Information-Continued
System Specifications EMC Information-Continued Conducted RF 3 Vrms 3 Vrms Portable and mobile RF IEC 61000-4-6 150 kHz to 150 kHz to communications equipment 80 MHz 80 MHz should be used no closer to any part of the Device, Radiated RF 6 Vrms 6 Vrms including cables, than the... -
Page 35: Ⅶ.warranty
This warranty does not cover damage or injury whether to Kingon P2 or to personal property or persons caused by accident, misuse, abuse, negligence, failure to install in accordance with Kingon Medical’s installation instructions, failure to operate under...
