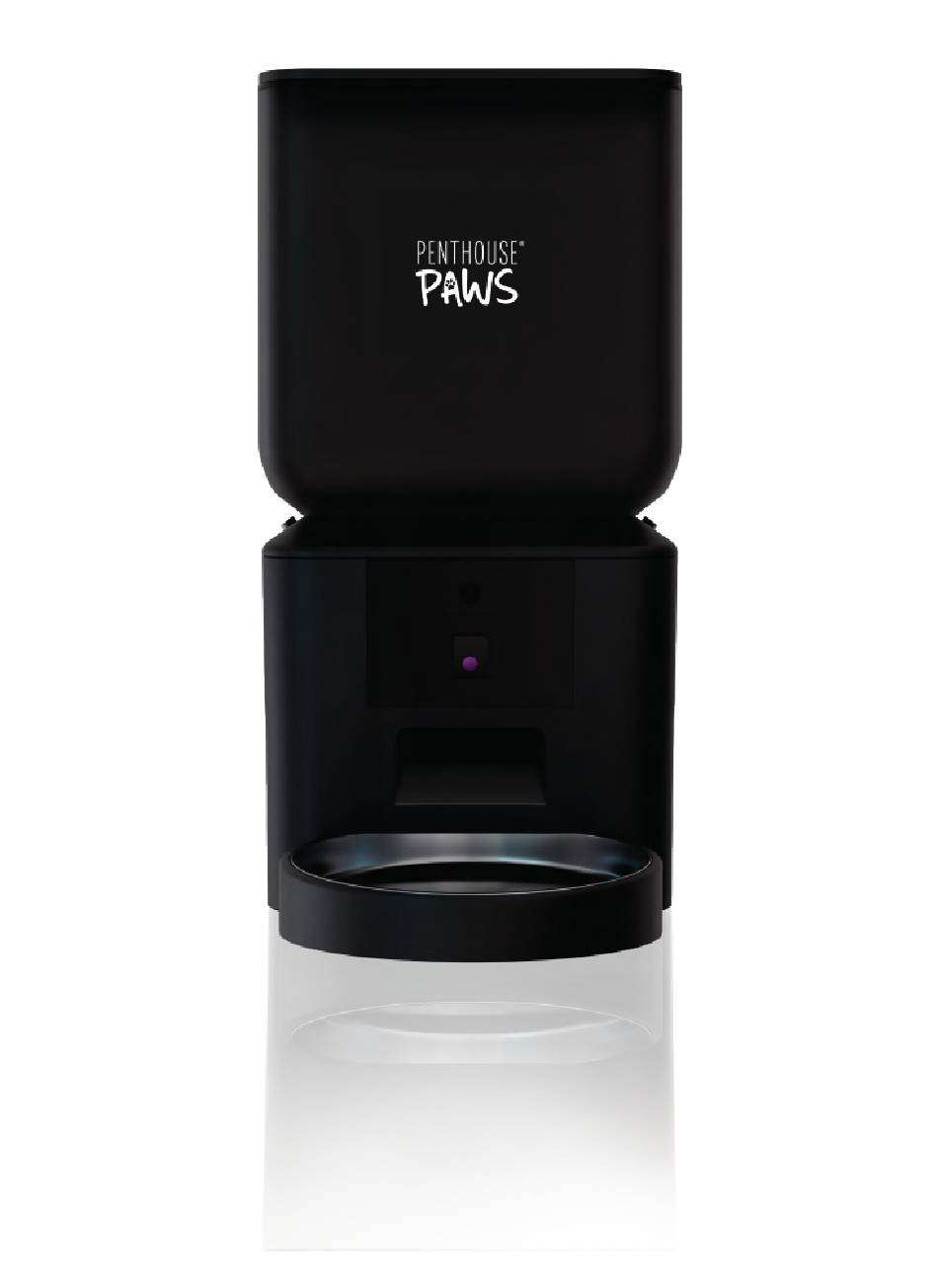

- Page 1 Smart Maxx HD Feeder PHP-001-B V2.0 EN...
-
Page 3: Table Of Contents
Contents Hardware Installation and Introduction ........Software Installation ................Add Pet Feeder Via Bluetooth Mode ........Add Pet Feeder Via QR Code Mode .......... Add Pet Feeder Via Access Point Mode ......... Feeding Options ..................Manual Feeding ..................Timed Feeding ..................Feeding Voice Recording ............... -
Page 4: Hardware Installation And Introduction
Hardware Installation And Introduction Insert the type-C USB power cord into the connector on the bottom of the feeder. Open the battery compartment, insert 4 AA batteries, so that the feeder can still work automatically even without external power supply. Battery The back-up battery is designed for short-term alternative when the external power is cut. - Page 5 lock Switch the to unlock the food bucket to the feeder’s main body. Rotate the hood to clean the food dispenser. Operation Panel Introduction: WIFI Button Light Sensor Microphone Indicator HD Camera...
-
Page 6: Software Installation
Software Installation Add Pet Feeder Via Bluetooth Mode 1. Before App operation, please enable the mobile phone’s Bluetooth function. 2. Search the App Store or scan the QR code below to download and install Penthouse Paws App. - Page 7 3. Launch the App, register a new account or login to a registered account. When you register, please choose the correct country. 4. Power on the feeder, wait for about 1 minute for it to boot up. Then check whether the indicator is flashing in RED.
- Page 8 camera lens, please long press the Wi-Fi button for 5 seconds until you hear a chime. After 30 seconds, the RED. Long Press WIFI Button Color Indicator Indicator Status: Solid BLUE Feeder is booting. Feeder is waiting for Wi-Fi network Flashing in RED(No matter rapidly or slowly) and trying to connect.
-
Page 9: Important Notice
6. The name of your Wi-Fi network will then appear in a textbox automatically. please double check the Wi-Fi Name and Password are entered correctly. If so click Next, Both 2.4GHz and 5GHz Wi-Fi networks are supported. WIFI Name WIFI Password Important Notice: A. - Page 10 7. The feeder will then try to connect to the Wi-Fi network. When connected, click Done to complete the adding process. If the feeder fails to connect, please check the important notice above on the previous page. 8. App will then direct you to the live video feed interface for the pet feeder.
-
Page 11: Add Pet Feeder Via Qr Code Mode
Add Pet Feeder Via QR Code Mode 1. Power on the feeder, wait for about 1 minute for it to boot up. RED. If not, Smart Maxx HD Feeder in add device page. Then click next the Wi-Fi network information as same as in Bluetooth mode. 2. -
Page 12: Add Pet Feeder Via Access Point Mode
Add Pet Feeder Via Access Point Mode 1. Choose AP Mode manually in the add device process when choosing modes. Or choose Smart Maxx HD Feeder – AP mode in the list directly. Please check the name of the Wi-Fi network and enter the password. -
Page 13: Feeding Options
4. Please go to Wi-Fi settings on the mobile phone connect to the Wi-Fi which starts with SmartLife- . password is necessary. Return to the App after the Wi-Fi is connected. The adding process is the same as in QR code mode covered above. -
Page 14: Timed Feeding
2. You can also click the Wi-Fi Button twice to feed 1 portion manually. Double Click Timed Feeding 1. The Smart Maxx HD Feeder supports the scheduled feeding of exact portions at exact times. Click the Schedule button, click Add, choose... -
Page 15: Feeding Voice Recording
2. The feeder supports up to 15 feeding schedules. If you need to disable a schedule, you can disable it by disabling its switch. You can also delete the timed feeding by swiping left and a " Delete Timer " option will be clickable to remove scheduled feed. - Page 16 Microphone 3. After voice recording is completed, the feeder will play a preview of the recorded audio. If you need to change the recording, please re-record it. When feeding is in process your voice recording will play 3 times. 4. If you do not wish to have any audio recording, after you have already created a voice recording, just double click feeding audio &...
-
Page 17: Feeding Records And Alarm
Feeding Records And Alarm 1. After feeding, there will be feeding records in the App. Click Feeding record to check the feeding records. In the snapshot below, there is a feeding record that 11 portions were fed between 10:00 to 11:15 of March 3rd, 2024. 2. -
Page 18: Features
3. When a malfunction occurs, a message will pushed in the mobile phone. You can also check messages in the message center inside the app. Make sure that prompt Features Advanced Settings Click the three dots icon to access the advanced settings page Device information: Check feeder information. - Page 19 Basic Function Settings: In basic function settings, you can turn indicators on/off. Notice that when feeder is feeding, the on/off the timestamp shown in the live video. You can also switch talk mode to 2-way audio communication. IR Night Vision: Turn on/off/auto the IR night LED Share Device: If you want to add the feeder to another mobile phone, register a new account on the new mobile phone, then share the device with the new account.
-
Page 20: Battery
Remove Device: network and restore the feeder to factory default settings with this option. Battery The back-up battery is designed as a short-term alternative for when the external power supply is cut. With battery supply only, when the feeder reaches the time set for timed feeding, the feeder will feed as normal. -
Page 21: Faq
Q1: Why did the feeder fail to connect to my Wi-Fi network? A: Please check the important notice on Page 5 for help. You can try to add the feeder via AP mode instead of QR code mode and auto scan mode. Q2: Why does the feeder feed at the wrong time? A: Please check that the time zone of the feeder is correct.
