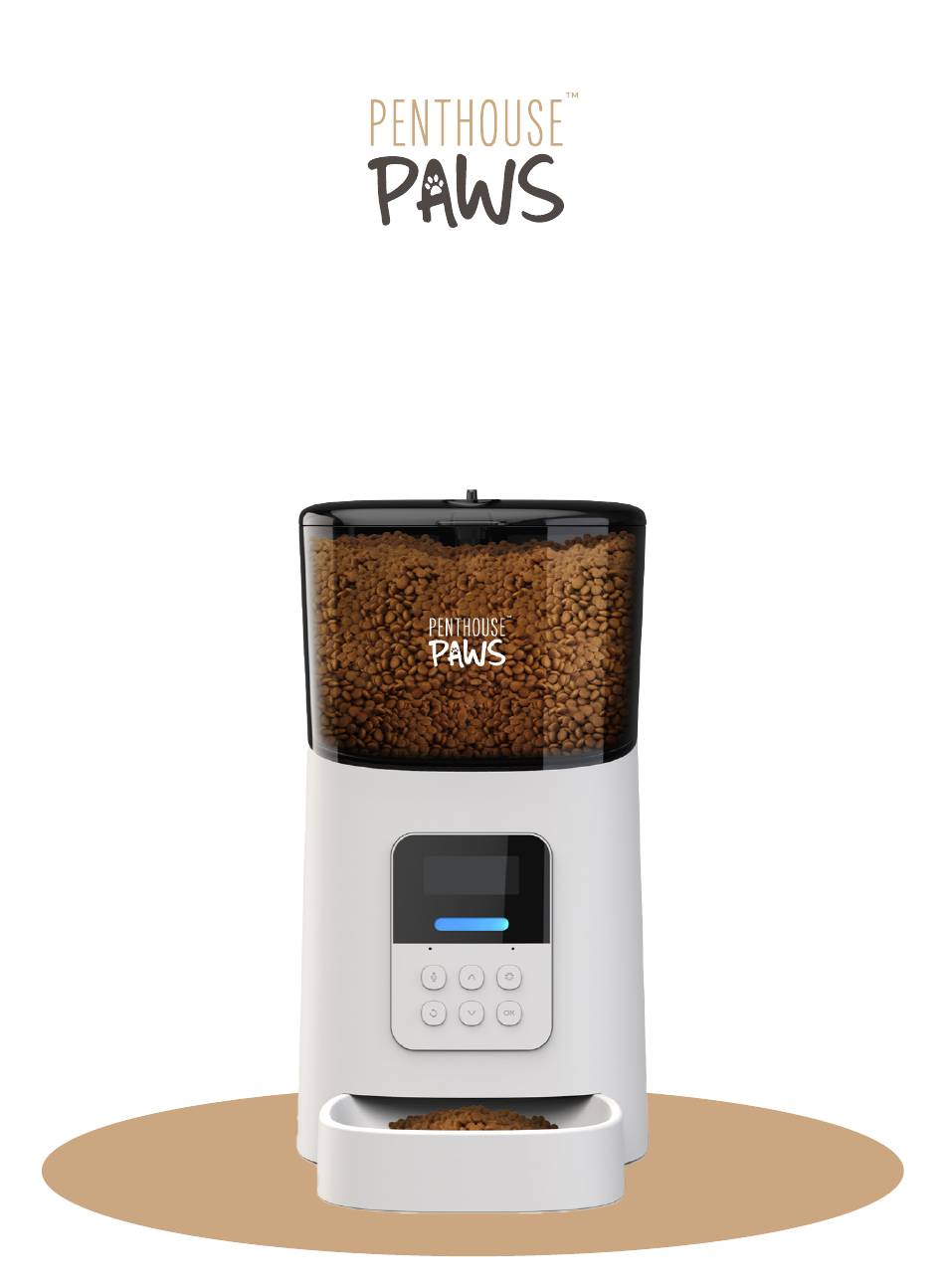

- Page 1 PHP-004 V1.0 EN Automatic Feeder User Manual...
-
Page 2: Table Of Contents
Contents Hardware Installation and Introduction ............. 1 Time settings ........................3 Manual feeding ......................4 Scheduled feeding ..................... 5 Feeding voice recording ..................6 Turn on/off blue LED ....................8 Feeder Alarm ........................8 Others ..........................9 Reset to factory default ..................9 Warranty ...........................10... -
Page 3: Hardware Installation And Introduction
Hardware Installation and Introduction Open the battery compartment at the bottom of the feeder, insert the Micro USB power cord into the connector on the bottom, and extend the power cord out along the designed wire guide. You could also put in 3 pieces of D cell batteries, so that the feeder can still work automatically according to your scheduled feeding plan even without external power supply. - Page 4 For your pet's health, please wash the grain bucket and feeding tray a wring-able wet cloth to wipe. Attention the following operation panel introduction: LCD screen Indicator Microphone Buzzer Settings Recording Return/Cancel Down...
-
Page 5: Time Settings
Note: Due to the wide variety of pet foods on the market, the mechanical structure of the feeder can not guarantee a 100% fit of all types of pet food. Time settings The automatic feeding depends on the correct clock settings in the pet feeder. -
Page 6: Manual Feeding
Tips: via the The signs/numbers shown in screenshots enclosed by the dotted line represent the actual icon/number in the operation screen. Manual feeding The feeder supports fast manual feeding and a scheduled number of manual feeding functions. In the standby state, you can quickly feed 1 portion by quickly pressing down button twice within 1 second. -
Page 7: Scheduled Feeding
Scheduled feeding The pet feeder support the scheduled feeding exact portions at exact time. The feeder supports up to 6 meals per day. Fig8. Fig9 and Fig10. set portions as shown in Fig11 and Fig12, auto feeding icon will show at standby state, as shown in Fig13. -
Page 8: Feeding Voice Recording
If you need a automatic feeding for multiple meals, please repeat the above steps and select the corresponding Digital number icon according to the meals in the setting interface as shown in Fig14. To cancel a certain automatic feeding, you can set the feeding portions to be 0. - Page 9 please re-record it. The closer to the microphone, the louder voice can be recorded. The default of voice recording playback is 3 times. It can be customized 5 times max at the setting: 2 seconds to enter the setting mode. button as shown in Fig18.
-
Page 10: Turn On/Off Blue Led
Turn on/off blue LED When the feeder is turned LED on in blue, you could press for 6 feeder is powered by USB cord and the feeder’s LED is not in red at this time, the operation can be operated normally. Feeder Alarm When the battery is low, the screen will be displayed low battery sign as shown in... -
Page 11: Others
Others Whenever the pet feeder released any of red indicator light, it the screen signs remind and cope with them in time according to manual book illustrated. The back-up battery is designed for short-term alternative when works with battery back-up, it will go to sleep mode and some of functions will be limited: There will be up to 60 seconds delay for the screen display and scheduled time feeding. -
Page 12: Warranty
12 month warranty Life-time support Please contact help@penthousepaws.com for warranty issues or questions.
