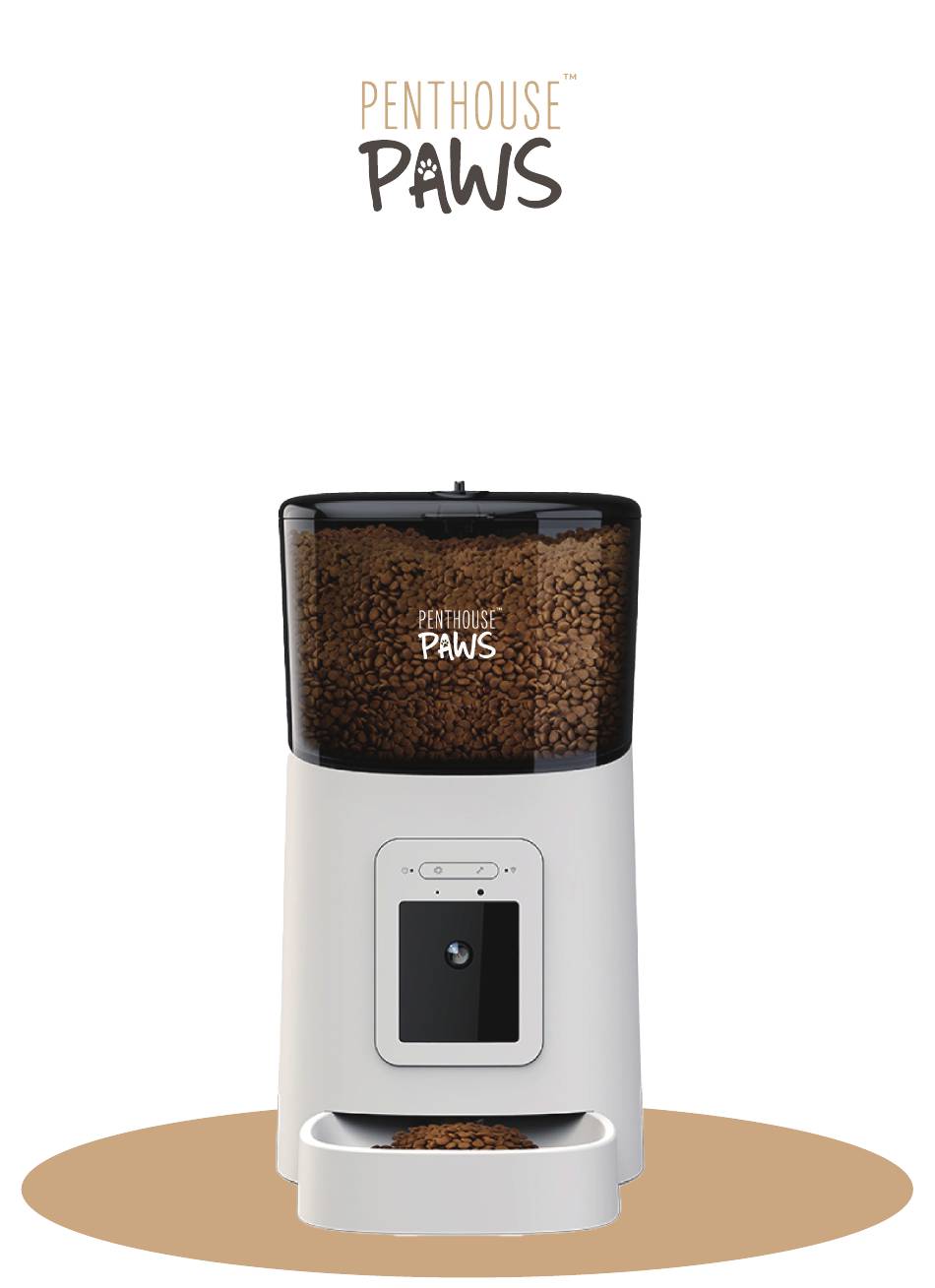

- Page 1 PHP-003 V1.0 EN Smart HD Feeder User Manual...
-
Page 2: Table Of Contents
Contents Hardware Installation and Introduction ............. 1 Software Installation ....................3 Add Pet Feeder Via QR Code Mode ............3 Add Pet Feeder Via AP Mode ................8 Feeding ..........................10 Manual Feeding ..................... 10 Timed Feeding ......................11 Feeding Voice Recording ................. 12 Feeding Records And Alarm ................ -
Page 3: Hardware Installation And Introduction
Hardware Installation and Introduction Open the battery compartment at the bottom of the feeder, insert the Micro USB power cord into the connector at the bottom; and extend the power cord out along the designed wire guide. You can also insert 3 pieces of D cell batteries which will enable the feeder to work automatically according to your scheduled feeding plan even without an external power supply. - Page 4 Note: Due to the wide variety of pet foods on the market, it cannot be guaranteed 100% that the mechanical structure of the feeder will 5-15 being placed in the feeder. wipe it with a wring-able wet cloth. Pet Feeder introduction 1.
-
Page 5: Software Installation
You can push the camera to turn down to observe the feeding tray. The feeder supports up to 4 levels of angle adjustment. It supports Micro-SD card recording, and the SD card slot is visible when the camera is turned to the bottom. SD card slot Software Installation Add Pet Feeder Via QR Code Mode... - Page 6 Run the App, read and agree to the privacy policy, and register a or login to the account, please choose the correct country or area. Add Device Click to add a new pet feeder. Choose the Manually tab and select PH Paws Smart HD Feeder.
- Page 7 After turning the feeder on, wait for about 1 minute for it to boot times per second. If yes, then click next step to go to the next step. Wi-Fi If not, please long press the button for 5 seconds until you Long press Flashing RED rapidly Wi-Fi Indicator status:...
- Page 8 If the App asks for the location permission of your mobile phone, the textbox automatically. Please note that the feeder does not support 5 but only 2.4 name of a 2.4 Important Notice: Please choose a 2.4 5Ghz signal. The feeder does not support 5 2 encryption is turned off on the wireless router.
- Page 9 The App will then ask you to scan a QR code that contains your Continue, then phone about 20 to 30 centimeters in front of the camera and wait I Heard a Prompt. a few seconds until you hear a tone. Then click Done connected, click to complete the adding process.
-
Page 10: Add Pet Feeder Via Ap Mode
The App will be then directed to the video interface for the pet feeder. Advanced settings Listen to feeder Full screen Switch video resolution Record to phone Take snapshot to phone Speak to pet feeder Play videos back in SD card Manual feed, feeding Set up feeding plan audio &... - Page 11 Please check the name of the 2.4 password in the same way as in QR code mode. Click to a new network broadcast by the feeder. Wi-Fi settings on the mobile phone Please go to and connect to SmartLife- . No password is necessary. is the same as in QR code mode covered above.
-
Page 12: Feeding
Feeding Manual Feeding Click Feed in live video page. Choose the feeding portions and click Feed. The feeder will feed immediately. -
Page 13: Timed Feeding
You can also click the Manual feed button on the feeder to feed manually. Double click Timed Feeding The pet feeder supports the scheduled feeding of exact portions Feeding Schedule at exact times. Click the button , click schedule, choose Feeding time, Repeat rules for each day of the... -
Page 14: Feeding Voice Recording
The feeder supports up to 12 feeding schedules. If you need to You can also delete it by long pressing the feeding schedule to access the delete option. Swipe Left Feeding Voice Recording To develop good feeding habits for pets, the feeder supports pre- recording a maximum of 10 seconds of audio, which is played during feeding. -
Page 15: Feeding Records And Alarm
Microphone After recording is complete, the feeder will play a preview of the recorded audio. If you need to change the recording, please re- record it. The default voice recording playback is 3 times. Notice: the pet feeder recording will be played during feeding. If pet food blocks the food tray, the pet feeder will stop feeding and wait for 10 minutes. - Page 16 records. In the snapshot below, there is a feeding record that 2 portions were fed between 08:00 am to 10:00 am of September 14 2023. Machine malfunctions include low food storage, low battery and food jammed in the feeding bucket or feeding tray. can check error messages in the message center.
-
Page 17: Others
Others Advanced Settings Click to access the advanced settings page. Device information: Check feeder information. Please make sure that the time zone of the feeder is correct. It should be same as incorrect, the feeder may feed at incorrect times, so please remove the feeder and add it again. - Page 18 Storage Settings: the feeder on, it will be shown in the settings. You can turn SD card recording on/off. There are 2 recording modes; the feeder will Event recording record 5 minutes after feeding in mode, and the feeder will record all the time in Non-stop mode.
-
Page 19: Battery
Battery The back-up battery is designed as a short-term alternative for when the feeder reaches the time set for timed feeding, the feeder it will go into sleep mode and some functions will be limited: will not be played. camera on the feeder will be unavailable. will be disconnected. -
Page 20: Reset
Reset turn on the feeder with external power and wait for it to boot up. 5 seconds until you hear a prompt voice. Then the feeder will reset to factory default settings Q1: Why did the feeder fail to connect to my Wi-Fi network? A: Please check the important notice on Page for help. -
Page 21: Warranty
12 month warranty Life-time support Please contact help@penthousepaws.com for warranty issues or questions.
