BOULDER COUNTY FIREFIGHTERS ASSN.

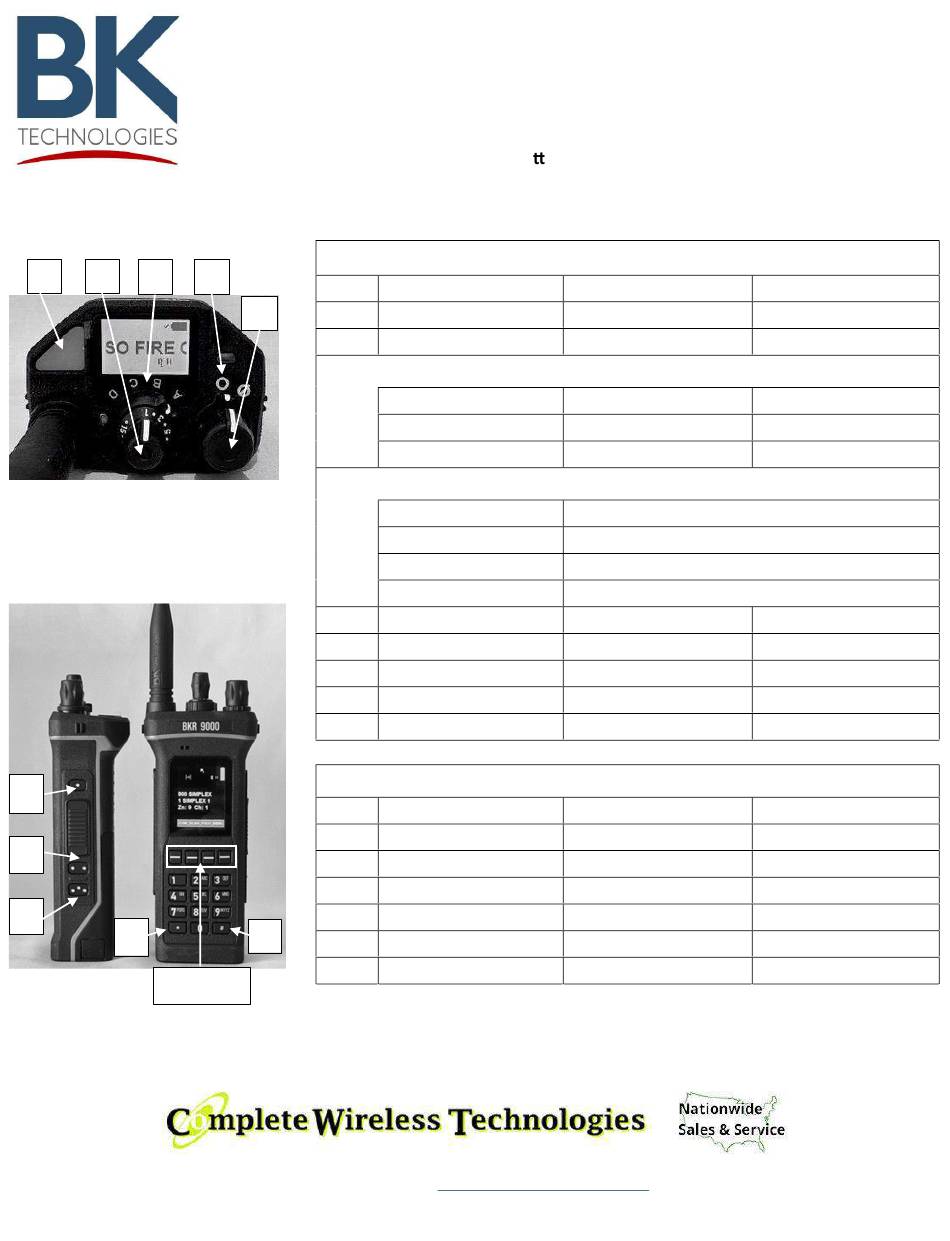

BKR 9000 RADIO HANDOUT
(Please note your agency may change bu on assignments to meet different agency needs)
Buttons and Controls
2
1
Index
1
2
3
4
5
6
7
8
Keypad Soft Keys
A
B
C
D
F
E
F
NOTE: Pressing any channel key brings up the channel list in your selected zone
(970) 686-7530 /
Description
Two-Position Concentric Switch
Position A
Position B
Four-Position Toggle
Position A
Position B
Position C
Position D
Channel Knob
Top Button (Orange)
Side Top Button
Side Middle Button
Side Bottom Button
Position
Left
Left Middle
Right Middle
Right
*
#
sales@compwiretech.com
Conventional
Power/ Volume
Control Lock
On
Off
AGENCY PRIMARY ZONE
VHF SO FIRE
800 BC FIRE
BOCO PLAN 1
Channel Select
Unprogrammed
Channel Scan On/Off
Priority Scan On/Off
Channel Add/Del
Conventional
Zone Select
Backlight
Priority Chan Select
Menu
Home Channel
Zone Select
Trunking
Power/ Volume
Control Lock
On
Off
Channel Select
Unprogrammed
Priority Scan On/Off
Site Search
Channel Add/Del
Trunking
Zone Select
Backlight
Priority Scan List Edit
Menu
Home Channel
Zone Select
Advertisement
Related Manuals for BK TECHNOLOGIES KNG Series
Summary of Contents for BK TECHNOLOGIES KNG Series
- Page 1 BOULDER COUNTY FIREFIGHTERS ASSN. BKR 9000 RADIO HANDOUT (Please note your agency may change bu on assignments to meet different agency needs) Buttons and Controls Index Description Conventional Trunking Power/ Volume Power/ Volume Two-Position Concentric Switch Control Lock Control Lock Position A Position B Four-Position Toggle...
-
Page 2: Basic Operations
BK KNG & BKR SERIES CONVENTIONAL RADIO OPERATIONS QUICK START GUIDE VERSION 02042025 BASIC OPERATIONS Button and Controls Please refer to your radio’s Radio Handout or screen printout for a map of button assignments. All button functions are activated with a single press of the button (except Channel Scan –... - Page 3 Activate Priority Scan Push the PRI switch towards the back of the radio or select the PSCN key or the assigned button (BKR). Nuisance Delete a Scanned Channel If your radio has a key or button programmed for this function, when your radio stops on a scanned channel that you do not wish to monitor, press the DEL key or the assigned button to remove the channel from the scan list for that session only.
- Page 4 To activate or deactivate Priority Scanning, press the programmed key (PSCN) or assigned button to toggle Priority Scan ON or Off. Radio displays confirming message. Your Priority One (P ) channel is programmed to be your currently selected channel (known as “Use Main” in the menu) and P1 will move as you change your channel. This setting can be edited by the user (read below).
- Page 5 (menu) and presses ENT to remove that channel from the Command Zone. This opens that channel slot up to be assigned a different channel. Zone Scanning Allows the users to build a radio-wide scan list of any conventional channels programmed into the radio. Enable ZONE SCAN then select ZONE SCAN EDIT within the Menu.
- Page 6 o If you chose Standard, you must add at least one channel to that zone or it won’t accept an incoming clone! o Now, go back to Keypad Prog and press ENT, highlight Keypad and press ENT, then highlight Channel and press ENT, then highlight Add Channel and press ENT.
- Page 7 CHANNEL ADD/DELETE (Chan Add/Del) – Allows user to build a COMMAND ZONE (usually the last zone in the radio) by adding channels from any other zone in the radio to build an incident-specific zone. Select desired channel(s) in the order you want them to appear, press MENU, then CHANNEL ADD/DELETE, select the COMMAND ZONE and then assign that channel to a position (1 or higher).
- Page 8 TX SECURE – If the radio is programmed for P25 Digital operations and has an encryption key assigned to the channel, the user may be able to choose Secure or Clear operations if the channel they are operating on is so programmed in the radio software. USER RX TONES –...
- Page 9 BK KNG & BKR TRUNKED RADIO OPERATIONS QUICK START GUIDE VERSION 02042025 Keypad Menu Operation Press the programmed MENU button Scroll to the desired menu item with the UP/DOWN BUTTONS Press the button marked ENT to open the item Button/Menu Item Selection There is only one place for each function, either preprogrammed to a button or in the list of items in the MENU.
- Page 10 o You can select Priority 1 (P1) and P2 in either System or Zone modes. System means these channels will be your priority channels regardless of which zone you are operating on in the radio. This is highly discouraged on an incident unless the incident is has multiple zones in play.
- Page 11 CHANNEL ADD/DELETE – Allows user to build a COMMAND ZONE (usually the last zone in the radio) by adding channels from any other zone in the radio to build an incident-specific zone. Select desired channel(s) in the order you want them to appear, press MENU, then CHANNEL ADD/DELETE, select the COMMAND ZONE and then assign that channel to a position (1 or higher).
- Page 12 TX POWER – Default is HIGH. Allows user to adjust output power on the radio to meet current needs. Higher power equals better distance over terrain. RADIO INFO – Displays radio name, network ID (P25 only), etc. VERSION – Displays current software and firmware versions on the radio, manufacture date, etc.
- Page 13 BK DPH, KNG-S, KNG/KNG2-P, KNG-M & BKR Pocket Card When in doubt visit the Communications Unit!! To SEND a clone to the DESTINATION clone radio: VERSION 02042025 FROM a legacy GPH/DPH (always retract any pen tip with legacy radios): To RECEIVE a clone from the SOURCE clone radio: 1.
- Page 14 4. Select Zone press ENT. Keypad Programming (There are some differences in menu options on P150S) 5. Select Add Zone press ENT. 1. Turn on the radio and access the Programming mode. 6. Select Command press ENT. • Press MENU key, highlight Keypad Prog and press the ENT key. 7.
