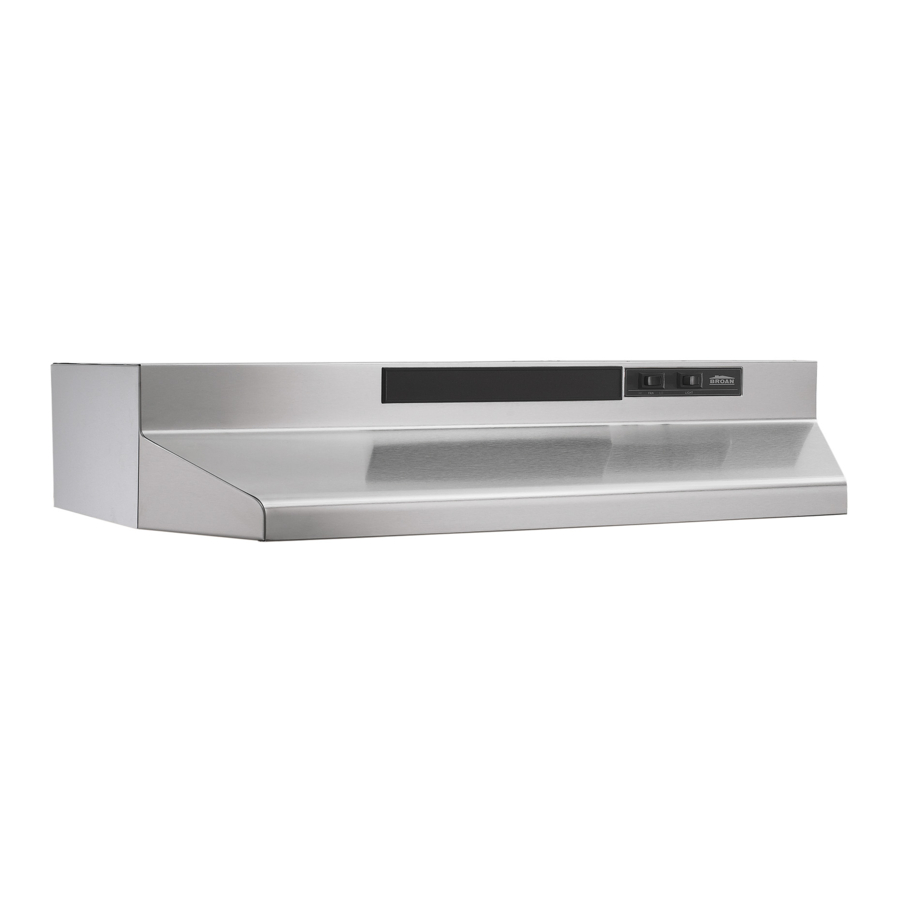

Broan F40000 Series, F403602 Manual
![]()
TOOLS
- Drill, electric or ratchet drive
- 1-1/4" Spade bit
- Common head and phillips head screwdriver
- Pliers
- Tape measure or ruler and pencil
For Ducted Installations ONLY:
- Saber saw or drywall saw
- Metal snips
MATERIALS
- Electrical wiring and supplies of type to comply with local codes
- Roof or wall cap
- Roof cement or caulk
- Duct and duct tape
For Installation on Kitchen Cabinets with Recessed Bottoms Only:
- Two 1" x 2" x 12" (approximate length) wood strips (purchase locally)
- Four 1-1/4" long flat head wood screws (purchase locally) to fasten strips to cabinet bottom
PLANNING DUCTWORK INSTALLATION
Begin planning ductwork by deciding where the duct will run between the range hood and the outside. For best performance, use the shortest possible duct run and a minimum number of elbows. There are several choices shown - FIGS. 1A - 1E.
In more complex ducting situations, a 3-1/4" rectangular ducting range hood can be converted to a round duct by means of a transition.
![]()
FIG. 1A. Ducting directly through the wall (for range hoods mounted on an exterior wall). Shown are two ways to duct through an outside wall. If a wall cap is used directly off the back of the hood, special care must be taken to make sure that the damper in the damper/duct connector on the hood and damper in the wall cap do not interfere with each other when the hood is operating. This could result in either inadequate air delivery or back drafts. If this condition does exist, remove the hood damper flap. Sometimes when using a wall cap it is easier to duct vertically and then use an elbow as shown in FIG. 1B.
![]()
FIG. 1C. Ducting straight up through the roof using 3-1/4" x 10" rectangular duct. (For single story installations.)
![]()
FIG. 1D. Ducting between the ceiling joists (for multistory installations) or through the soffit space above the cabinets (where the soffit connects to an outside wall).
![]()
FIG. 1E. Straight up through the roof using 3-1/4" x 10" to 6" round duct transition and 6" round duct (for single-story installations).
![]()
FIG. 1F. Straight up through the roof using 7" round duct (for single-story installations).
PREPARING THE UNIT
- Unpack hood and check contents. You should receive:
(FIG. 2)
1 - Aluminum Filter
1 - 3-1/4" x 10" Damper/Duct Connector (mounted inside of hood for shipping only) (Save screws for mounting.)
1 - 7" Round Duct Plate (mounted on top of hood) (not shown) (Save screws for mounting.)
![]()
- Remove 7" round duct plate from top of hood. Set duct plate aside - with mounting screws.
- Remove wiring box cover. Under cover find:
1 - Plastic Bag containing loose mounting hardware
For Ductfree Installations Only:
- For ductfree installation, remove louver cover from front (or inside) of hood. (FIG. 3)
![]()
NOTE
Louvers on front of hood must be open and visible for hood to function in ductfree mode.
- Remove either top or rear electrical knockout depending upon whether wiring will enter hood from wall or cabinet. (FIG. 4)
![]()
DUCTED INSTALLATION ONLY
NOTE
Louver cover must be installed as shown in Figure 3 to function in ducted mode
- Remove appropriate duct knockout on hood by inserting screwdriver into edge of knockout and breaking tabs holding knockout to hood. You may have to tap screwdriver with hammer to break tabs. Peel knockout back with pliers. (FIG. 5)
- Fit damper/duct connector over opening and secure in place with black sheet metal screws. (FIG. 6) Hinge pins and damper/duct connector should be toward top of hood for ducting through wall or toward back of hood for ducting through cabinet above hood. Seal joint between damper/duct connector and hood with duct tape.
- 7" round ducted discharge only: Re-install 7" round duct plate removed in Step #2 under "PREPARING THE UNIT" section. For best performance, line up the 7" round duct plate with the 7" round opening on hood. Mount duct plate to hood with 2 screws from duct plate and 2 screws from 3'A"x 10" damper. Install a 7" round damper (purchase separately). Damper flap must open freely in direction of air flow (away from range hood)
PREPARING THE INSTALLATION LOCATION
NOTE
MOUNT HOOD SO THAT BOTTOM OF HOOD IS 18"-24" ABOVE COOKING SURFACE. TOP FRONT EDGE OF HOOD SHOULD BE FLUSH WITH FRONT OF CABINET FRAME. IF DISTANCE BETWEEN WALL AND FRONT OF CABINET FRAME IS MORE THAN 12" THERE WILL BE A SPACE BETWEEN BACK OF HOOD AND WALL. THIS IS NORMAL.
OMIT STEP 9 if range hood will be installed under cabinets with flush bottom.
- (For installation on recessed bottom cabinets only) Attach a wood filler strip at each side of recessed area under cabinet. (Use two 1" x 2" strips cut to length.) If recess is more than 1" use thicker strips. Attach strips with 1-1/4" screws about 3" from each end. See FIG. 7.
- Measure and mark the following (FIGS. 7 & 8):
- Electrical line opening
- Duct opening
- Drill four pilot holes in corners of marked duct opening as shown and cut opening with saber saw or keyhole saw.
- Use 1-1/4" drill bit to drill opening for electrical connection in wall or cabinet.
- Hold hood up against cabinet bottom and trace keyhole slots onto cabinet bottom of filler strips.
- Screw the four supplied 7/8" wood screws for mounting the hood into the exact center of the narrow end of the keyhole slots marked underneath the cabinet. Allow 3/8" of the screws to project, so the hood can be fitted into place.
INSTALLING THE DUCTWORK
NOTE
THESE INSTRUCTIONS WILL FOLLOW THE PLANS MADE IN "PLANNING DUCTWORK INSTALLATION" SECTION. START AT THE EXTERIOR AND RUN THE DUCT BACK TO THE RANGE HOOD.
FOR BEST PERFORMANCE OF YOUR RANGE HOOD, USE THE SHORTEST POSSIBLE DUCT RUN AND A MINIMUM NUMBER OF ELBOWS.
NEVER VENT A RANGE HOOD INTO AN ATTIC SPACE BECAUSE A BUILDUP OF GREASE WILL BECOME A FIRE HAZARD.
USE ONLY METAL DUCTWORK (DO NOT USE PLASTIC DUCT). ASSEMBLE SECURELY SO THAT IN CASE OF A GREASE FIRE ON THE RANGE, THE FIRE WILL BE CONTAINED INSIDE METAL DUCT WORK.
IT IS A GOOD PRACTICE TO TAPE ALL DUCT CONNECTIONS, MAKING THEM BOTH SECURE AND AIR TIGHT.
- Follow appropriate directions below for type of duct work you are installing:
WALL CAPS (FIG. 9)
Use a saber saw to cut a hole slightly larger than duct so duct will line up easily with hood. Install casing strips on outside walls finished in siding. Assemble the duct work and tape all joints. Run duct work back to hood. Fasten wall cap to last section of duct and nail or screw cap to wall. Seal all around flange on wall cap with caulking compound. Make sure that enough duct runs into the room so that the duct will overlap the damper/duct connector by 3/4" when the hood is installed.
ROOF CAPS
Cut hole in roof slightly larger than duct so duct will line up easily with hood. Trim shingles around hole so that they will fit snugly around hood of cap when cap is installed. Assemble the duct work and tape all joints. Run the duct work down to hood. Trim duct parallel to roof pitch, leaving 3/4" of duct projecting above roof. Seal all around duct with roof cement.
Install roof cap, inserting back edge of cap under shingles. Seal around cap with roof cement and seal all nail heads and shingles which were cut or lifted. Make sure that enough duct runs into the room so that the duct will overlap the damper/duct connector by 3/4" when the hood is put into place.
![Broan - F40000 Series - INSTALLING THE DUCTWORK INSTALLING THE DUCTWORK]()
INSTALLING THE UNIT
- Bring electrical cable through access hole drilled in wall or bottom of cabinet. Provide 6" wire leads and install proper connector for type of cable being used. Remove lock nut from connector and let prepared cable project through cabinet or wall opening so it is ready for installation into range hood. (FIG. 10)
![]()
- Position hood in place so that:
- Electrical line is routed through appropriate knockout opening. This step will have to be accomplished while positioning hood. (FIG. 13)
- Large part of keyhole mounting slots on hood fit onto hood mounting screws projecting from bottom of cabinet. (FIG. 11)
- Damper/duct connector slides into duct work in wall or cabinet.
- Adjust hood so the front of hood is flush with cabinet front.
- Tighten the four hood mounting screws securely.
- Install Iocknut on electrical connector and tighten securely.
- Make electrical connection using wire nuts to connect white wire to white, black wire to black. Ground hood to prepared hole using green ground screw provided. (FIG. 12)
- Replace wiring box cover and screw. Make sure that all wiring is safely contained inside.
NOTE
For Ductfree Installations Only:
Install both filters. Make sure that ductfree filter (purchase separately) is next to fan assembly with blue side next to blade. Aluminum filter should be facing out.
USE AND CARE
SWITCHES
The fan and light are each controlled by a rocker switch. The light switch has two positions, "ON" and "OFF." The fan switch has three positions - "HIGH;' "LOW" and "OFF." ("OFF" is the middle position.)
CLEANING
Finish Keep your range hood clean using a mild detergent suitable for painted surfaces.
Aluminum Filters should be cleaned frequently with a detergent solution to avoid grease build up. They are also dishwasher safe.
FILTER REMOVAL
Filters on the F40000 series hood are removed by turning filter clip to the side and lifting filter or filters out. In ducted version, turn filter retaining clip to one side and place aluminum filter under embossed retaining tabs on back of fan housing. Turn filter clip so that the low end of clip holds single filter firmly in place. (FIG. 13)
In ductfree version, place both aluminum and ductfree filter under tabs on back of fan housing. Turn filter retaining clip so that high end holds both filters firmly in place. Make sure ductfree filter is next to fan assembly, with blue side next to fan blade, and aluminum filter is facing out.
NOTE: Make sure that arrows on filter retaining clip point toward back and front of hood.
LIGHT BULB REPLACEMENT
Light bulb (not supplied with hood) should be 75 watts maximum. The lens covering bulb is removed by pressing the two extending tabs together until they release from the retaining slots. (FIG. 14)
![Broan - F40000 Series - USE AND CARE - LIGHT BULB REPLACEMENT USE AND CARE - LIGHT BULB REPLACEMENT]()
FAN ASSEMBLY REMOVAL
![Broan - F40000 Series - USE AND CARE - FAN ASSEMBLY REMOVAL USE AND CARE - FAN ASSEMBLY REMOVAL]()
Be sure power is disconnected. Remove filters. Remove the two screws holding the motor bracket to the range hood and unplug the fan assembly. Be careful not to allow fan assembly to drop when the screws are removed. (FIG. 15).
HOW TO AVOID A COMMON RANGE-TOP GREASE FIRE
- Your range hood provides a protective barrier between the cooking surface and the cabinets.
- Keep fan, filters and grease laden surfaces CLEAN according to instructions.
- Always turn hood ON when cooking at high heat to keep the cooking area and the hood cooler.
- Use high heat settings only when necessary.
- Never leave cooking surface unattended. Boilover causes smoking and greasy spillovers that may ignite.
- Always use adequate-sized utensils.
If preparing flaming foods, such as Cherries Jubilee, always turn hood ON to HIGH to prevent a high heat situation which can cause damage or fire.
HOW TO EXTINGUISH A COMMON RANGE-TOP GREASE FIRE
- Never pick up a flaming pan. If dropped, flames can spread quickly.
- DO NOT USE WATER! A violent steam explosion may result. Wet dishcloths or towels are also dangerous.
- Smother flames with a close fitting lid, cookie sheet or metal tray.
- Flaming grease can also be extinguished with baking soda or a multi-purpose dry chemical extinguisher.
- Turn off surface units - if you can do so without getting burned.
SERVICE PARTS
![Broan - F40000 Series - SERVICE PARTS SERVICE PARTS]()
F40000 SERIES RANGE HOOD
KEY NO. | PART NO. | DESCRIPTION |
1 | 98006621 | Outlet Box Cover |
2 | 99170245 | #8 x 3/8 Sheet Metal Screw* |
3 | 99270987 | Bulb Holder with Wires |
4 | 99110437 | Light Lens |
5 | 97011217 | Screw/Nut Kit (Includes 2 - #10-16 x.500 screws and 2 - #10-16 sheet metal nuts) |
6 | 99020272 | Fan Blade |
7 | 99260428 | #6-32 Locking Nuts* (2 Required) |
8 | 98005568 | Motor Mounting Bracket |
9 | 97012248 | Motor Assembly (Includes Key Nos. 6, 7, and 8) |
10 | 97006931 | Aluminum Filter |
97007696 | Non-Ducted Filter (purchase separately) |
11 | 99420472 | Filter Retainer |
12 | 99150415 | #SB x 1/4 Hex Head Sheet Metal Screws* (2 Req.) |
13 | 98005221 | Damper Flap |
14 | 99100379 | Damper Bushing |
15 | 97005544 | Damper Assembly (Includes Key Nos. 13 and 14) |
16 | 97010709 | Nameplate (Black) |
99090881 | Nameplate (White) |
99091077 | Nameplate (Biscuit) |
17 | 97016970 | 2-Speed Motor Switch (Black) (Includes Key No. 18) |
97016971 | 2-Speed Motor Switch (White) (Includes Key No. 18) |
97016973 | 2-Speed Motor Switch (Biscuit) (Includes Key No. 18) |
18 | 97016970 | Light Switch (Black) (Includes Key No. 17) |
97016971 | Light Switch (White) (Includes Key No. 17) |
97016973 | Light Switch (Biscuit) (Includes Key No. 17) |
19 | 97005678 | Motor Receptacle with Wires |
20 | 99091022 | Louver Cover (Black) |
99091020 | Louver Cover (White) |
99091021 | Louver Cover (Almond) |
99091027 | Louver Cover (Biscuit) |
21 | R680508 | 7" Round Duct Plate |
Order service parts by "PART NO." - NOT by "KEY NO."
* Standard Hardware. May be purchased locally.
IMPORTANT SAFETY INSTRUCTIONS
![]()
For Non-ducted (Ductfree) Installation:
- Purchase non-ducted filter separately.
- Remove and discard damper/duct connector and louver cover (See Step 4) in "Prepare the Unit".
- Follow all steps except steps inside dotted lines.
For Ducted Installation:
Follow all steps, including steps inside dotted lines.
INTENDED FOR DOMESTIC COOKING ONLY.
![burn hazard]()
![]()
![burn hazard]()
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
- Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
- Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Ducted fans must always be vented to the outdoors.
- Do not use this unit with any solid-state speed control device.
To reduce the risk of fire, use only metal ductwork. - Use with approved cord-connection kit only.
- This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
- Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
- Always turn hood ON when cooking at high heat or when cooking flaming foods.
- Clean ventilation fans frequently. Grease should not be allowed to accumulate on fan or filter.
- Use proper pan size. Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*
![]()
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. ![]()
NEVER PICK UP A FLAMING PAN - You may be burned. - DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
- Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher and you already know how to operate it.
- The fire is small and contained in the area where it started.
- The fire department is being called.
- You can fight the fire with your back to an exit.
*Based on "Kitchen Fire Safety Tips" published by NFPA.
![]()
- For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
- To avoid motor bearing damage and noisy and/ or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
- For best capture of cooking impurities, your range hood should be mounted 18-24" above the cooking surface.
- Please read specification label on product for further information and requirements.
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
To qualify for warranty service, you must:
- notify Broan-NuTene at the address stated below or telephone: 1-800-637-1453,
- give the model number and part identification and
- describe the nature of any defect in the product or part.
At tile time of requesting warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC
926 West State Street,
Hartford, Wl 53027
To register this product visit www.broan.com
