Broan F40000 Series Specification Sheet

Broan F40000 Series Specification Sheet

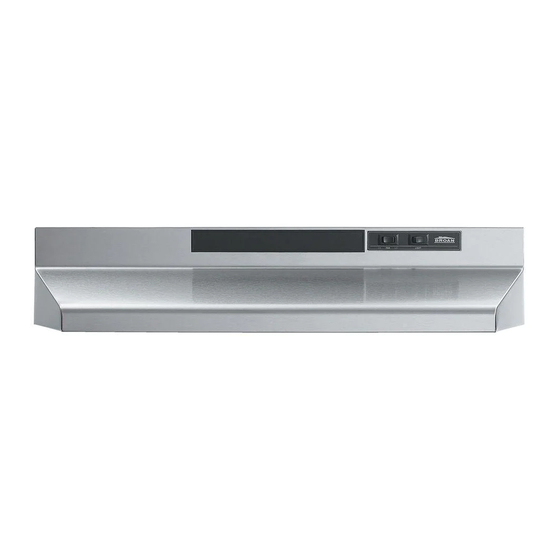

Two-speed 4-way convertible range hood
Hide thumbs Also See for F40000 Series:

Advertisement

Quick Links

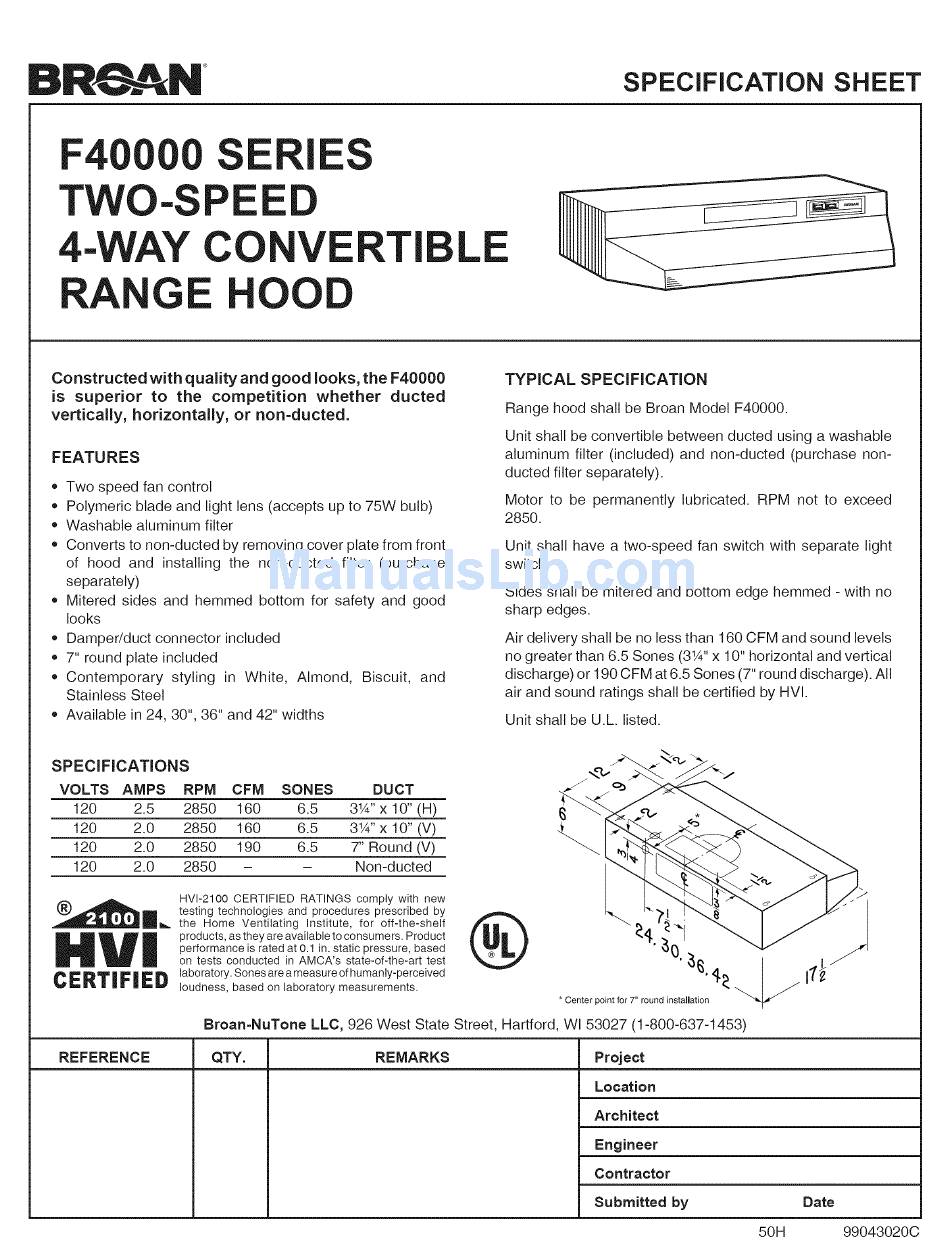

SPECiFiCATiON
SHEET
F40000 SERIES
TWO-SPEED
4-WAY CONVERTIBLE
RANGE HOOD
Constructed with quality and good looks, the F40000
is superior
to the
competition
whether
ducted
vertically,
horizontally,
or non=ducted.
FEATURES
• Two speed fan control
Polymeric blade and light lens (accepts up to 75W bulb)
Washable aluminum filter
Converts to non-ducted by removing cover plate from front
of hood and installing
the non-ducted
filter (purchase
separately)
Mitered sides and hemmed bottom for safety and good
looks
Damper/duct connector included
7" round plate included
Contemporary
styling
in White,
Almond,
Biscuit, and
Stainless Steel
Available in 24, 30", 36" and 42" widths
TYPICAL SPECIFICATION
Range hood shall be Broan Model F40000.
Unit shall be convertible between ducted using a washable
aluminum filter (included) and non-ducted
(purchase non-
ducted filter separately).
Motor to be permanently
lubricated.
RPM not to exceed
2850.
Unit shall have a two-speed fan switch with separate light
switch.
Sides shall be mitered and bottom edge hemmed - with no
sharp edges.
Air delivery shall be no less than 160 CFM and sound levels
no greater than 6.5 Sones (3t/_'' x 10" horizontal and vertical
discharge) or 190 CFM at 6.5 Sones (7" round discharge). All
air and sound ratings shall be certified by HVl.
Unit shall be U.L listed.
SPECIFICATIONS
VOLTS
AMPS
RPM
CFM
SONES
DUCT
120
2.5
2850
160
6.5
3t/4'' x 10" (H)
120
2.0
2850
160
6.5
3W' x 10" (V)
120
2.0
2850
190
6.5
7" Round (V)
120
2.0
2850
-
-
Non-ducted
_l
HVl-2100
CERTiFiED
RATINGS
comply with new
testing technologies
and procedures
prescribed
by
the
Home
Ventilating
institute,
for off-the-shelf
_m
"_
H_I
products, as they are available to consumers.
Product
performance
is rated at 0.1 in. static pressure, based
on tests conducted
in AMCA's
state-of-the-art
test
laboratory. Sones are a measure of humanly-perceived
CERT|F|ED
loudness,
based on laboratory
measurements.
'
%.
* Center
point
for 7" round
installation
_
_'///
Broan=NuTone
LLC, 926 West State Street, Hartford, Wl 53027 (1-800-637-1453)
REFERENCE
QTY.
REMARKS
Project
Location
Architect
Engineer
Contractor
Submitted by
Date
50H
99043020C
