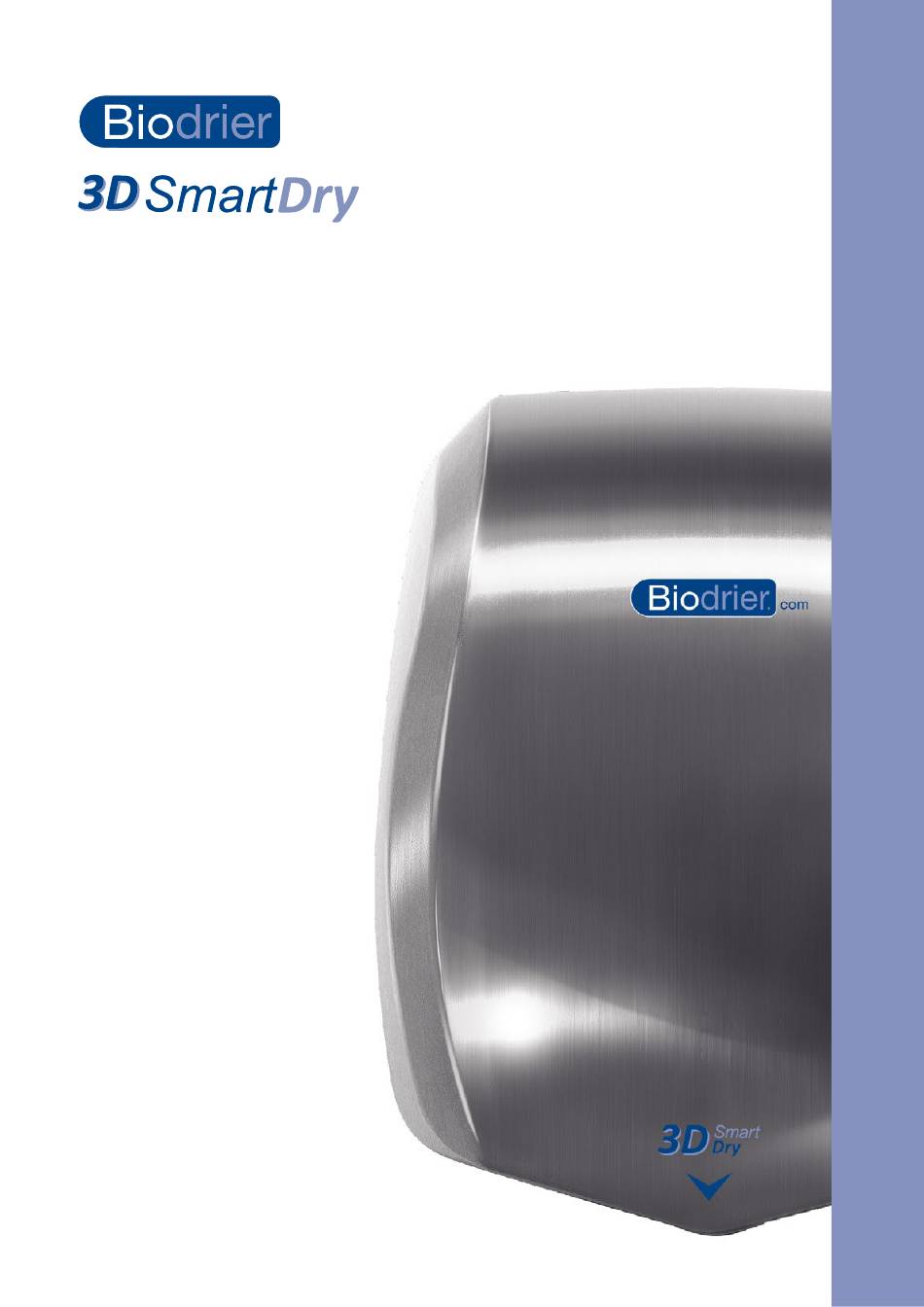

- Page 1 Hand Dryer Automatic High Speed Intelligent USER MANUAL...
-
Page 2: Technical Specifications
Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) 228 mm 154 mm 278 mm Technical Specifications Item Category Performance Data Operating Voltage 220 - 240Vac, 50Hz, 200 - 800 WATTS Air Speed Output 75m/s, 85 m³/h Air Output Temperature Intelligent - based on room temperature Motor Type... - Page 3 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Introduction This manual provides detailed instructions for the installation of a hand dryer. Please read all instructions carefully before beginning the installation process. General Safety Information WARNING This product is designed to be installed by a qualified NOT INTENDED FOR RESIDENTIAL USE.
- Page 4 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Standard Installation 1. Use the template 2. Loosen the base provided to mark the holding screw and take 4 fixing holes on the off the plug & play wall hand dryer base, then bracket.
- Page 5 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Plug and Play Installation 1. Use the template 2. Loosen the base provided to identify the holding screw to remove fixing holes on the wall the plug & play wall bracket, then drill holes bracket.
- Page 6 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Installation Continued 2. Fix the hand dryer backplane to the wall using appropriate fixings for the wall type. • Before connecting to the main power install a secondary switch with a contact distance of > 3 mm. •...
- Page 7 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Recommended Mounting Heights From floor to bottom of dryer. Men’s Ladies Children, ages 11-17 Children, ages 3-10 Disabled 43” 41” 39” 33” 35” 109 cm 104 cm 99 cm 84 cm 89 cm Intelligent Heating...
- Page 8 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Parts List Key Description Part No. Cover HDS-BSD03-3159-1 Screws HDS-BSD03-3159-2 Filter cover HDS-BSD03-3159-3 Sensor house HDS-BSD03-3159-4 Sensor HDS-BSD03-3159-5 HDS-BSD03-3159-6 Air outlet baffle HDS-BSD03-3159-7 Air outlet seal HDS-BSD03-3159-8 Terminal block HDS-BSD03-3159-9 Blower housing HDS-BSD03-3159-10...
- Page 9 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Diagram...
- Page 10 What is covered by the Warranty? The repair or replacement of your Biodrier hand dryer, if it is found to be defective due to faulty materials, work- manship or function within the Warranty period. Please note that the decision to repair or replace your machine is at the sole discretion of FW3 Ltd.
- Page 11 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Notes...
- Page 12 FW3 LTD, Biodrier Unit 3, Woodlands Business Park, Burlescombe, Devon, EX16 7LL tel: +44 (0) 800 328 5708 • email: sales@biodrier.com...
