Summary of Contents for Biodrier 3D SmartDry

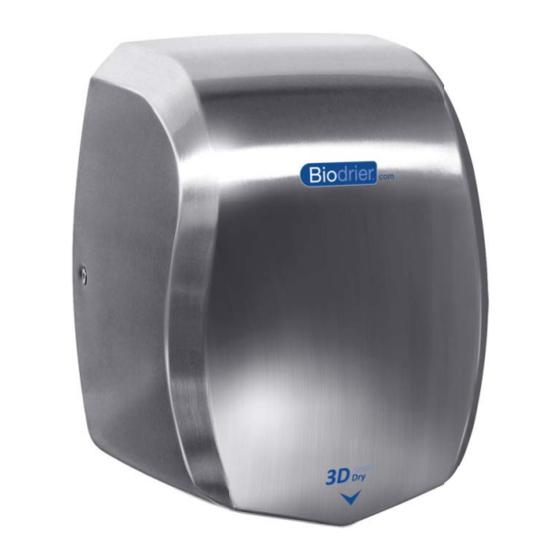

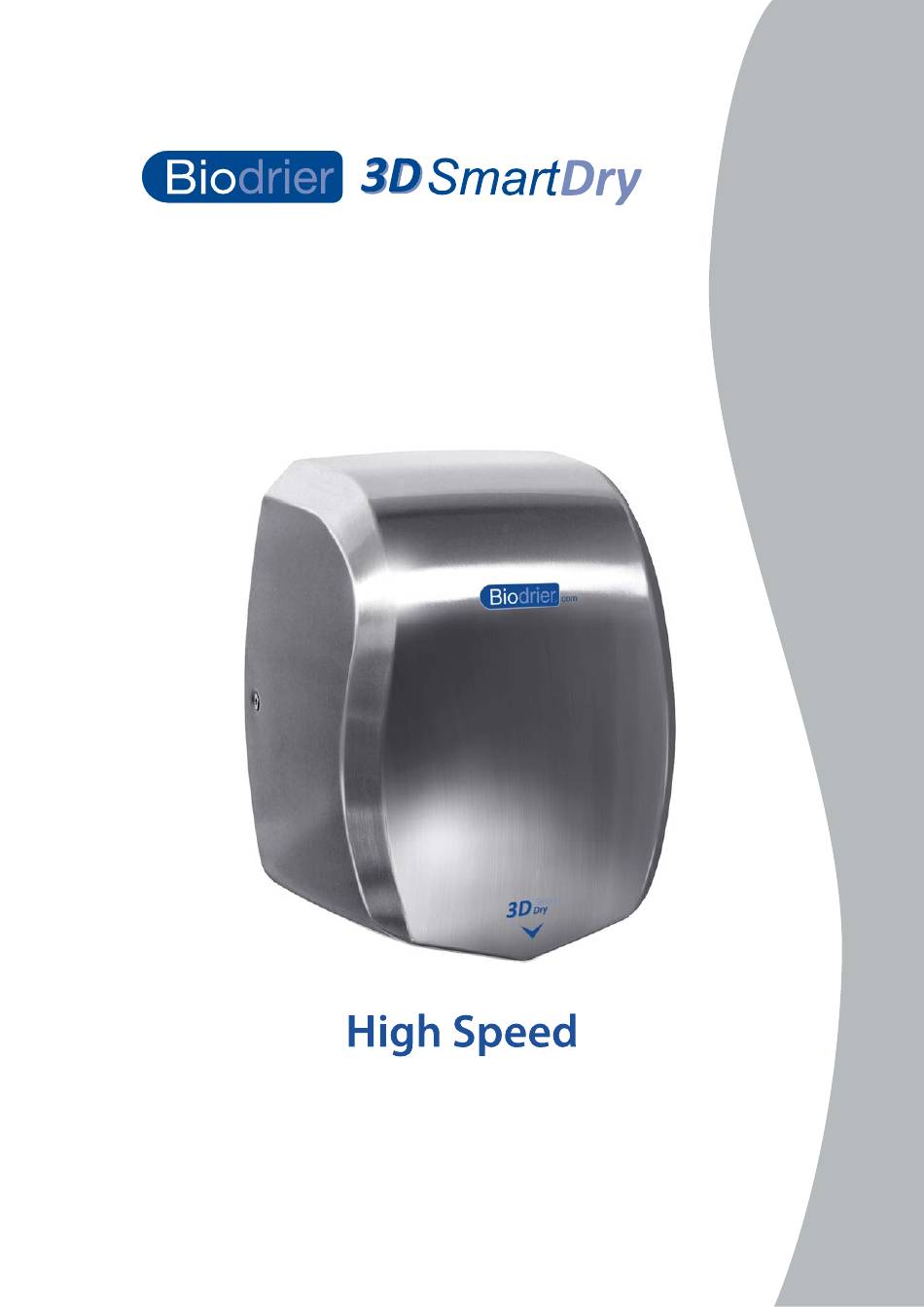

- Page 1 Hand dryer Automatic High Speed...
- Page 2 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) 228 mm 154 mm 278 mm Technical Specifi cations T h i fi ti Item Category Performance Data Operating Voltage 220 - 240Vac, 50Hz, 200 - 800 WATTS Air Speed Output 75m/s, 85 m³/h Air Output Temperature...
- Page 3 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) General Safety Information NOTE: Do not install dryer over wash basin. WARNING Type Y attachment This product is intended for installation by a qualifi ed service person. Use AWAG No.16 solid If the power supply cord is damaged, it must be conductor for wiring.
- Page 4 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Installation Continued 2. Fix the hand dryer backplane to the wall using appropriate fi xings for the wall type. • Before connecting to the main power install a secondary switch with a contact distance of >...
- Page 5 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Recommended Mounting Heights From fl oor to bottom of dryer. Men’s Ladies Children, ages 11-17 Children, ages 3-10 Disabled 43” 41” 39” 33” 35” 109 cm 104 cm 99 cm 84 cm 89 cm...
- Page 6 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Parts List Key Description Part No. Cover HDS-BSD03-3159-1 Screws HDS-BSD03-3159-2 Filter cover HDS-BSD03-3159-3 Sensor house HDS-BSD03-3159-4 Sensor HDS-BSD03-3159-5 HDS-BSD03-3159-6 Air outlet baffl e HDS-BSD03-3159-7 Air outlet seal HDS-BSD03-3159-8 Terminal block HDS-BSD03-3159-9 Blower housing...
- Page 7 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Diagram...
- Page 8 FW3 LTD, Biodrier Unit 3, Woodlands Business Park, Burlescombe, Devon, EX16 7LL tel: +44(0)1823 672 970 • email: sales@biodrier.com...
