Summary of Contents for Lenovo Moto g30

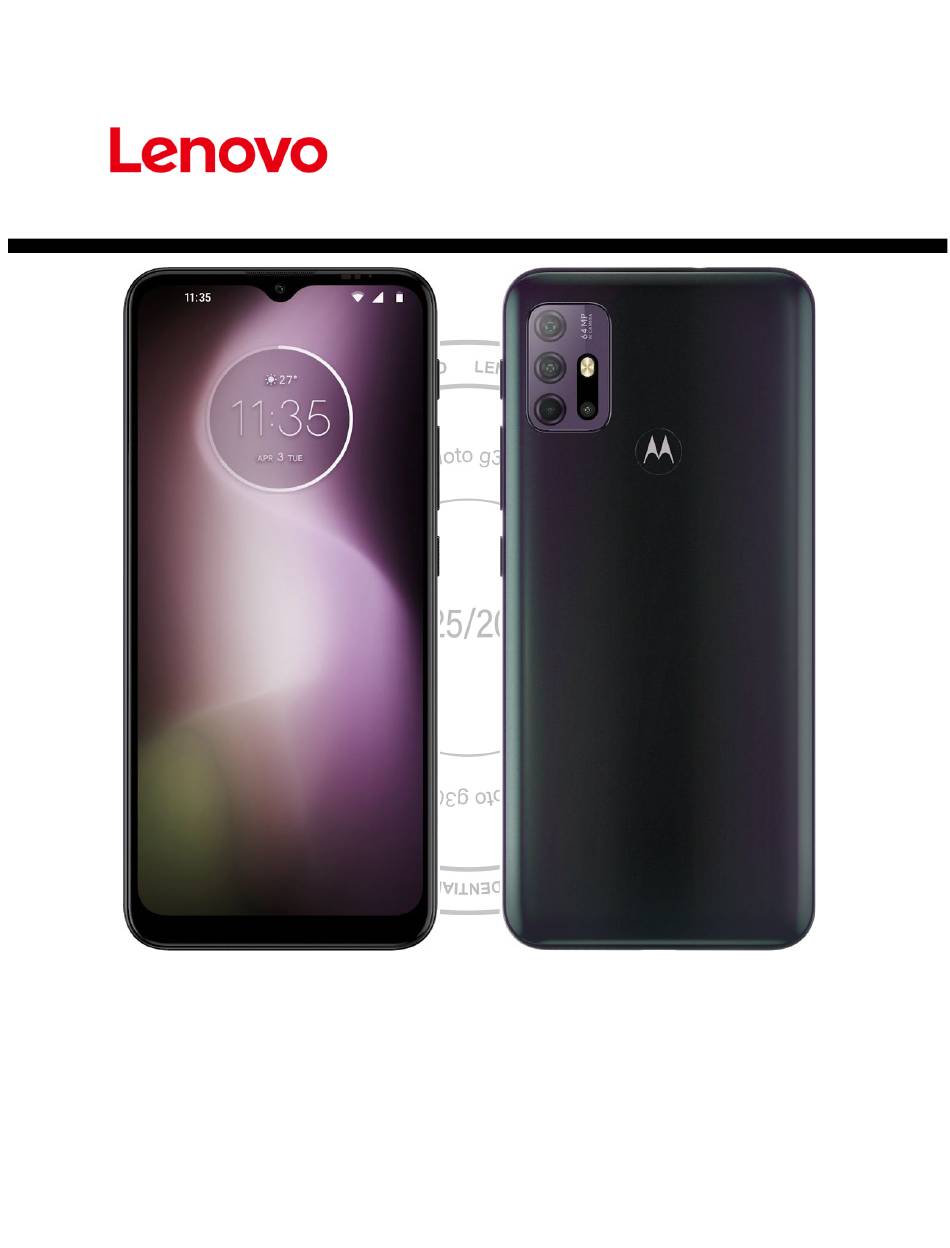

- Page 1 Moto g30 Lenovo Moto g30 Level 2 – Service and Repair Manual...
-
Page 2: Revision History
Lenovo Moto g30 Level 2 – Service and Repair Manual EVISION ISTORY Revision Date Notes 01/25/2021 Initial Release. Lenovo Confidential Restricted: PAGE 2 Do not share without consent from Lenovo... -
Page 3: Table Of Contents
2M Macro Rear-Facing Camera Copper Foil Removal..............40 2M Depth Rear-Facing Camera Conductive Cloth Removal ............41 Main PCB Removal ........................... 42 Water Detection Label Inspection ..................... 44 Lenovo Confidential Restricted: PAGE 3 Do not share without consent from Lenovo... - Page 4 Silicone Light Guide Assembly ......................79 Proximity Sensor Grommet Assembly ....................80 Receiver Sealed Foam Assembly ..................... 81 Receiver Insulated Tape Assembly ....................82 Receiver Assembly ........................... 83 Lenovo Confidential Restricted: PAGE 4 Do not share without consent from Lenovo...
- Page 5 Secondary MIC Foam Assembly..................... 120 Top Bracket Waterproof Film Assembly ..................121 Primary MIC Foam Assembly ......................122 Speaker Dust Net Assembly ......................123 Speaker Box Waterproof Film Assembly ..................124 Lenovo Confidential Restricted: PAGE 5 Do not share without consent from Lenovo...
- Page 6 Sim Tray Assembly ......................... 129 Assembly Quality check ........................ 130 Battery Quality Check ........................130 Grommet and Connectors Quality Check ..................131 Screws Graphite Quality Check ...................... 132 Lenovo Confidential Restricted: PAGE 6 Do not share without consent from Lenovo...
-
Page 7: List Of Tables
Table 2. Assembly Exploded View Parts List ..................11 ABLE OF IGURES Figure 1. External Views ........................9 9 B F igure 2. Assembly Exploded View ....................11 Lenovo Confidential Restricted: PAGE 7 Do not share without consent from Lenovo... -
Page 8: Safety Information
Ensure screws and screwdrivers do not contact the Battery. Failure to adhere to Safety Critical Note(s) may increase risk of rupture, burning, or failure to function safely when used by the customer. Lenovo Confidential Restricted: PAGE 8 Do not share without consent from Lenovo... -
Page 9: Introduction
Lenovo Moto g30 Level 2 – Service and Repair Manual NTRODUCTION External Views Figure 1. External Views Lenovo Confidential Restricted: PAGE 9 Do not share without consent from Lenovo... -
Page 10: Table 1. External Views Parts List
Reference # Description Receiver Mesh Google Key Volume Key Power Key Camera Lens Camera Deco Flash Lens Speaker Mesh USB Port Main Lens Sim Door Front-Housing Battery Cover Lenovo Confidential Restricted: PAGE 10 Do not share without consent from Lenovo... -
Page 11: Main Exploded Views
XT2129-2 MB_4+128G DS&F00BVU3-000-002CS XT2129-2 MB_4+128G SS&F00BVU3-000-003CS XT2129-2 MB_4+64G_DS&F00BVU3-000-004CS XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNM716-BVJ000-005+EAR silicone sleeve_DX TNM709-BVJ001-023+flash cover seal Foam_ TNM223-BVJ000-000+Flash COV_TRA_rear/HG TNM715-BVJ001-007+flash cover Adhesive_A Lenovo Confidential Restricted: PAGE 11 Do not share without consent from Lenovo... - Page 12 Capri+ etching_UK_PB&S101-BVU13I-300CS Capri+ etching_UK_PS&S101-BVU05I-300CS Capri+ etching_APEM_PB&S101-BVU13E-300CS Capri+ etching_APEM_PS&S101-BVU05E-300CS XT2129-3 etching_PB&S101-BVU13G-300CS XT2129-3 etching_PS&S101-BVU05G-300CS MDL,CAMR,8M,rear,;C08F31;Q Tech,AF:capri MDL,CAMR,64M,after,;L64BA10;O-FILM,AF:Ki MDL,CAMR,2M,rear,;L02BF40;O-FILM:Capri/C TNN703-BVJ003-020+2M Camera Module LH TNM715-BVJ002-009+conductive adhesive TNM715-BVJ002-014+Posterior adhesive_APL TNM701-BVJ001-002+Waterproof membrane/AP TNN802-BVJ000-000+SIDEKEY_FPC FIN part_Z Lenovo Confidential Restricted: PAGE 12 Do not share without consent from Lenovo...
- Page 13 TNM501-211105-006+round head screw_LJT TNM716-BVJ000-010+LED silicone sleeve_DX TNP316-096000-100+Water label TNM716-BVJ000-009+P-S silicone sleeve_DX TNM709-BVJ000-001+FP Conductive sponge1 TNM709-BVJ003-026+LCD FPC foam_APLT TNM715-BVJ001-004+decoration Adhesive_AP TNM715-BVJ001-005+FP seal adhesive_AP TNM715-BVJ001-008+FPS adhesive_AP TNM721-BVU001-001+Graphite Sheet/LS TNM721-BVU000-002+Graphite Sheet/SQ Lenovo Confidential Restricted: PAGE 13 Do not share without consent from Lenovo...
-
Page 14: Disassembly And Recovery
Front-Facing Audio Camera Front-Facing Heat Camera Jack Conductive Camera Copper Foil Spreader Grommet Cloth Main PCB Speaker Box Waterproof Sub Board Film Water Detection Grommet Label Speaker Box Lenovo Confidential Restricted: PAGE 14 Do not share without consent from Lenovo... -
Page 15: Tools Required For Disassembly
Lenovo Moto g30 Level 2 – Service and Repair Manual Tools Required for Disassembly The following tools are required to disassemble the Moto g30 phone. Description Part # Picture/Drawing Thin Plastic Spudger 0-00-00-40826 SIM/SD Tray Removal Tool Hot Plate Black Stick... - Page 16 Lenovo Moto g30 Level 2 – Service and Repair Manual Description Part # Picture/Drawing PH00 Bit Plastic Tweezers ESD Mat Wrist Strap Gloves Lenovo Confidential Restricted: PAGE 16 Do not share without consent from Lenovo...
-
Page 17: Sim Tray Removal
Use the SIM Tray Removal pin to push into the SIM Tray hole. Press the SIM Tray removal tool to make it pop- out as shown. Use fingers to take out the SIM Tray. Lenovo Confidential Restricted: PAGE 17 Do not share without consent from Lenovo... -
Page 18: Water Detection Label Inspection
If the Water Detection Label (WDL) has been activated, the phone’s warranty no longer applies. Inspect the WDL inside the SIM Tray Slot for signs of activation. Use external light if needed. Lenovo Confidential Restricted: PAGE 18 Do not share without consent from Lenovo... -
Page 19: Imei Label Removal
Remove the IMEI Label only if necessary. After you remove it, you cannot reuse it. Use the Plastic Tweezer to remove the IMEI Label from the SIM tray. Lenovo Confidential Restricted: PAGE 19 Do not share without consent from Lenovo... -
Page 20: Battery Cover Removal
Use the Shim to create a gap between the Battery Cover and the Front-Housing. Use the Shim to create a gap between the Battery Cover and the Front-Housing. Lenovo Confidential Restricted: PAGE 20 Do not share without consent from Lenovo... - Page 21 Use fingers to push out the Fingerprint Sensor from the location as shown. /// WARNING /// Use care not to disconnect the Fingerprint Sensor (FPS) Flex from the Battery Cover when removing the Front Housing. Lenovo Confidential Restricted: PAGE 21 Do not share without consent from Lenovo...
- Page 22 Lenovo Moto g30 Level 2 – Service and Repair Manual Split the Battery Cover from the Front-Housing as shown. Lenovo Confidential Restricted: PAGE 22 Do not share without consent from Lenovo...
-
Page 23: Side Key Waterproof Film 1 Removal
After you remove the Side key Waterproof Film 1, you cannot reuse it. Use the Plastic Tweezer to remove the Side key Waterproof Film 1 from the location as shown. Lenovo Confidential Restricted: PAGE 23 Do not share without consent from Lenovo... -
Page 24: Side Key Waterproof Film 2 Removal
After you remove the Side key Waterproof Film 2, you cannot reuse it. Use the Plastic Tweezer to remove the Side key Waterproof Film 2 from the location as shown. Lenovo Confidential Restricted: PAGE 24 Do not share without consent from Lenovo... -
Page 25: Top Bracket Waterproof Film Removal
After you remove the Top Bracket Waterproof Film, you cannot reuse it. Use the Plastic Tweezer to remove the Top Bracket Waterproof Film from the location as shown. Lenovo Confidential Restricted: PAGE 25 Do not share without consent from Lenovo... -
Page 26: Secondary Mic Foam Removal
Secondary MIC Foam Removal NOTE After you remove the Secondary MIC Foam, you cannot reuse it. Use the Plastic Tweezer to remove the Secondary MIC Foam from the location as shown. Lenovo Confidential Restricted: PAGE 26 Do not share without consent from Lenovo... -
Page 27: Top Bracket Removal
/// WARNING /// The screws cannot be reused after removal. Use the flat end of the Black Stick to lift the Top Bracket from the location as shown. Lenovo Confidential Restricted: PAGE 27 Do not share without consent from Lenovo... -
Page 28: Water Detection Label Inspection
If the Water Detection Label (WDL) has been activated, the phone’s warranty no longer applies. Inspect the WDL, which is visible on the Main PCB. Examine it for signs of activation. Lenovo Confidential Restricted: PAGE 28 Do not share without consent from Lenovo... -
Page 29: Speaker Box Waterproof Film Removal
After you remove the Speaker Box Waterproof Film, you cannot reuse it. Use the Plastic Tweezer to remove the Speaker Box Waterproof Film from the location as shown. Lenovo Confidential Restricted: PAGE 29 Do not share without consent from Lenovo... -
Page 30: Primary Mic Foam Removal
Primary MIC Foam Removal NOTE After you remove the Primary MIC Foam, you cannot reuse it. Use the Plastic Tweezer to remove the Primary MIC Foam from the location as shown. Lenovo Confidential Restricted: PAGE 30 Do not share without consent from Lenovo... -
Page 31: Speaker Dust Net Foam Removal
After you remove the Speaker Dust Net Foam, you cannot reuse it. Use the Plastic Tweezer to remove the Speaker Dust Net Foam from the location as shown. Lenovo Confidential Restricted: PAGE 31 Do not share without consent from Lenovo... -
Page 32: Speaker Box Removal
/// WARNING /// The screws cannot be reused after removal. Use the flat end of the Black Stick to lift the Speaker Box as shown. Lenovo Confidential Restricted: PAGE 32 Do not share without consent from Lenovo... -
Page 33: Water Detection Label Inspection
If the Water Detection Label (WDL) has been activated, the phone’s warranty no longer applies. Inspect the WDL, which is visible on the Sub Board. Examine it for signs of activation. Lenovo Confidential Restricted: PAGE 33 Do not share without consent from Lenovo... -
Page 34: Fingerprint Sensor Flex Removal
Fingerprint Sensor Flex Removal NOTE The Fingerprint Sensor Flex can be recovered and reused after removal. Use the BtB tool to remove the Fingerprint Sensor Flex from the location as shown. Lenovo Confidential Restricted: PAGE 34 Do not share without consent from Lenovo... -
Page 35: Front-Facing Camera Copper Foil Removal
After you remove the Front-Facing Camera Copper Foil, you cannot reuse it. Use the Plastic Tweezer to remove the Front-Facing Camera Copper Foil from the location as shown. Lenovo Confidential Restricted: PAGE 35 Do not share without consent from Lenovo... -
Page 36: Front-Facing Camera Removal
Front-Facing Camera Removal NOTE The Front-Facing Camera can be recovered and reused after removal. Use the BtB tool to remove the Front-Facing Camera from the Main PCB as shown. Lenovo Confidential Restricted: PAGE 36 Do not share without consent from Lenovo... -
Page 37: Front-Facing Camera Grommet Removal
Front-Facing Camera Grommet Removal NOTE The Front-Facing Camera Grommet can be recovered and reused after removal. Use the Plastic Tweezer to remove the Front-Facing Camera Grommet from the location as shown. Lenovo Confidential Restricted: PAGE 37 Do not share without consent from Lenovo... -
Page 38: 2M Macro Rear-Facing Camera Removal
Use the BtB tool to disengage the 2M Macro Rear-Facing Camera Flex from the location as shown. Use the Plastic Tweezer to remove the 2M Macro Rear-Facing Camera from the location as shown. Lenovo Confidential Restricted: PAGE 38 Do not share without consent from Lenovo... -
Page 39: 2M Depth Rear-Facing Camera Removal
Use the BtB tool to disengage the 2M Depth Rear-Facing Camera Flex from the location as shown. Use the Plastic Tweezer to remove the 2M Depth Rear-Facing Camera from the location as shown. Lenovo Confidential Restricted: PAGE 39 Do not share without consent from Lenovo... -
Page 40: 2M Macro Rear-Facing Camera Copper Foil Removal
After you remove the 2M Macro Rear- Facing Camera Copper Foil, you cannot reuse it. Use the Plastic Tweezer to remove the 2M Macro Rear- Facing Camera Copper Foil from the location as shown. Lenovo Confidential Restricted: PAGE 40 Do not share without consent from Lenovo... -
Page 41: 2M Depth Rear-Facing Camera Conductive Cloth Removal
After you remove the 2M Depth Rear- Facing Camera Conductive Cloth, you cannot reuse it. Use the Plastic Tweezer to remove the 2M Depth Rear-Facing Camera Conductive Cloth from the location as shown. Lenovo Confidential Restricted: PAGE 41 Do not share without consent from Lenovo... -
Page 42: Main Pcb Removal
Use the BtB tool to disengage Battery Flex BtB Connector from the location as shown. Use the BtB tool to disengage Display Flex BtB Connector from the location as shown. Lenovo Confidential Restricted: PAGE 42 Do not share without consent from Lenovo... - Page 43 /// WARNING /// The screw cannot be reused after removal. Use the pointed end of the Black Stick to lift the Main PCB from the location as shown. Lenovo Confidential Restricted: PAGE 43 Do not share without consent from Lenovo...
-
Page 44: Water Detection Label Inspection
If the Water Detection Label (WDL) has been activated, the phone’s warranty no longer applies. Inspect the WDL, which is visible on the Front- Housing. Examine it for signs of activation. Lenovo Confidential Restricted: PAGE 44 Do not share without consent from Lenovo... -
Page 45: 64M Rear-Facing Camera Removal
64M Rear-Facing Camera Removal NOTE The 64M Rear-Facing Camera can be recovered and reused after removal. Use the BtB tool to remove the 64M Rear-Facing Camera from the location as shown. Lenovo Confidential Restricted: PAGE 45 Do not share without consent from Lenovo... -
Page 46: Rear-Facing Camera Removal
8M Rear-Facing Camera Removal NOTE The 8M Rear-Facing Camera can be recovered and reused after removal. Use the BtB tool to remove the 8M Rear-Facing Camera from the location as shown. Lenovo Confidential Restricted: PAGE 46 Do not share without consent from Lenovo... -
Page 47: Audio Jack Grommet Removal
Audio Jack Grommet Removal NOTE The Audio Jack Grommet can be recovered and reused after removal. Use the Plastic Tweezer to remove the Audio Jack Grommet from the location as shown. Lenovo Confidential Restricted: PAGE 47 Do not share without consent from Lenovo... -
Page 48: Rf Heat Spreader Removal
RF Heat Spreader Removal NOTE After you remove the RF Heat Spreader, you cannot reuse it. Use the Plastic Tweezer to remove the RF Heat Spreader from the location as shown. Lenovo Confidential Restricted: PAGE 48 Do not share without consent from Lenovo... -
Page 49: Bb Heat Spreader Removal
BB Heat Spreader Removal NOTE After you remove the BB Heat Spreader, you cannot reuse it. Use the Plastic Tweezer to remove the BB Heat Spreader from the location as shown. Lenovo Confidential Restricted: PAGE 49 Do not share without consent from Lenovo... -
Page 50: Receiver Removal
The Receiver can be recovered and reused after removal. Use the flat end of the Black Stick to lift the Receiver from the location as shown. Remove the Receiver from the phone. Lenovo Confidential Restricted: PAGE 50 Do not share without consent from Lenovo... -
Page 51: Receiver Insulated Tape Removal
Receiver Insulated Tape Removal NOTE After you remove the Receiver Insulated Tape, you cannot reuse it. Use the Plastic Tweezer to remove the Receiver Insulated Tape from the location as shown. Lenovo Confidential Restricted: PAGE 51 Do not share without consent from Lenovo... -
Page 52: Sub Board Removal
BtB Connector from the location on the Sub Board as shown. Use the Torque Driver with PH00 Bit to remove the screw as shown. /// WARNING /// The screw cannot be reused after removal. Lenovo Confidential Restricted: PAGE 52 Do not share without consent from Lenovo... - Page 53 Lenovo Moto g30 Level 2 – Service and Repair Manual Use the flat end of the Black Stick to gently lift the Sub Board from the location as shown. Lenovo Confidential Restricted: PAGE 53 Do not share without consent from Lenovo...
-
Page 54: Usb Grommet Removal
USB Grommet Removal NOTE The USB Grommet can be recovered and reused after removal. Use the Plastic Tweezer to remove the USB Grommet from the location as shown. Lenovo Confidential Restricted: PAGE 54 Do not share without consent from Lenovo... -
Page 55: Vibrator Removal
Remove the Vibrator only if necessary. After you remove it, you cannot reuse it. Use the pointed end of the Black Stick to gently disengage the Vibrator from the location as shown. Lenovo Confidential Restricted: PAGE 55 Do not share without consent from Lenovo... -
Page 56: Battery Removal
Place the phone on the Hot Plate, with the Display side down. Wait 10 minutes for the adhesive to warm up. Lenovo Confidential Restricted: PAGE 56 Do not share without consent from Lenovo... - Page 57 Battery. Use the thin Plastic Spudger to cut adhesive from the bottom of the Battery. Use fingers to remove the Battery from the location as shown. Lenovo Confidential Restricted: PAGE 57 Do not share without consent from Lenovo...
-
Page 58: Coax Cable Removal
Coax Cable Removal NOTE The Coax Cable can be recovered and reused after removal. Use the Plastic Tweezer to remove the Coax Cable from the location as shown. Lenovo Confidential Restricted: PAGE 58 Do not share without consent from Lenovo... -
Page 59: Side Key Fpc Removal
After you remove the Side Key FPC, you cannot reuse it. Use the pointed end of the Black Stick to disengage the Side Key FPC from the location as shown. Lenovo Confidential Restricted: PAGE 59 Do not share without consent from Lenovo... -
Page 60: Proximity Sensor Grommet Removal
Proximity Sensor Grommet Removal NOTE The Proximity Sensor Grommet can be recovered and reused after removal. Use the Plastic Tweezer to remove the Proximity Sensor Grommet from the location as shown. Lenovo Confidential Restricted: PAGE 60 Do not share without consent from Lenovo... -
Page 61: Silicone Light Guide Removal
Silicone Light Guide Removal NOTE The Silicone Light Guide can be recovered and reused after removal. Use the Plastic Tweezer to remove the Silicone Light Guide from the location as shown. Lenovo Confidential Restricted: PAGE 61 Do not share without consent from Lenovo... -
Page 62: Rf Thermal Silica Removal
RF Thermal Silica Removal NOTE After you remove the RF Thermal Silica, you cannot reuse it. Use the Plastic Tweezer to remove the RF Thermal Silica from the location as shown. Lenovo Confidential Restricted: PAGE 62 Do not share without consent from Lenovo... -
Page 63: Power Thermal Silica Removal
Power Thermal Silica Removal NOTE After you remove the Power Thermal Silica, you cannot reuse it. Use the Plastic Tweezer to remove the Power Thermal Silica from the location as shown. Lenovo Confidential Restricted: PAGE 63 Do not share without consent from Lenovo... -
Page 64: Lcd Fpc Foam Removal
LCD FPC Foam Removal NOTE After you remove the LCD FPC Foam, you cannot reuse it. Use the Plastic Tweezer to remove the LCD FPC Foam from the location as shown. Lenovo Confidential Restricted: PAGE 64 Do not share without consent from Lenovo... -
Page 65: Fingerprint Sensor Conductive Sponge Removal
After you remove the Fingerprint Sensor Conductive Sponge, you cannot reuse it. Use the Plastic Tweezer to remove the Fingerprint Sensor Conductive Sponge from the location as shown. Lenovo Confidential Restricted: PAGE 65 Do not share without consent from Lenovo... -
Page 66: Rear-Facing Camera Lens Removal
Use the pointed end of the Black Stick to carefully disengage and push out the Rear-Facing Camera Lens from the location as shown. Lenovo Confidential Restricted: PAGE 66 Do not share without consent from Lenovo... -
Page 67: Flash Lens Removal
The Flash Lens can be recovered and reused after removal. Use the pointed end of the Black stick to gently push out the Flash Lens from the location as shown. Lenovo Confidential Restricted: PAGE 67 Do not share without consent from Lenovo... -
Page 68: Flash Lens Foam Removal
Flash Lens Foam Removal NOTE After you remove the Flash Lens Foam, you cannot reuse it. Use the Plastic Tweezer to remove the Flash Lens Foam from the location as shown. Lenovo Confidential Restricted: PAGE 68 Do not share without consent from Lenovo... -
Page 69: Parts Refresh
Lenovo Moto g30 Level 2 – Service and Repair Manual ARTS EFRESH Tools Required for Parts Refresh The following tools are required for parts refresh of the Moto g30 phone. Description Part # Image Plastic Tweezers Black Stick ESD Mat... -
Page 70: Battery Cover Cleaning
Use the ISP Alcohol and Cotton Swabs to remove all the adhesives on the Battery Cover as shown. /// CAUTION /// Remove the adhesive carefully to avoid damage to the Battery Cover. Lenovo Confidential Restricted: PAGE 70 Do not share without consent from Lenovo... -
Page 71: Front Housing Cleaning
Lenovo Moto g30 Level 2 – Service and Repair Manual Front Housing Cleaning Use the Cotton Swabs with ISP Alcohol to remove all the adhesives from the location as shown. Lenovo Confidential Restricted: PAGE 71 Do not share without consent from Lenovo... -
Page 72: Top Bracket Cleaning
Lenovo Moto g30 Level 2 – Service and Repair Manual Top Bracket Cleaning Use the Cotton Swabs with ISP Alcohol to remove all the adhesives from the location as shown. Lenovo Confidential Restricted: PAGE 72 Do not share without consent from Lenovo... -
Page 73: Assembly
Thermal Dust Net Waterproof Vibrator Top Bracket MIC Foam Cable Light Guide Grommet Sealed Foam Cover Foam Label Label Silica Foam Film2 Front Housing IMEI Label Sim Tray Lenovo Confidential Restricted: PAGE 73 Do not share without consent from Lenovo... -
Page 74: Tools Required For Assembly
Lenovo Moto g30 Level 2 – Service and Repair Manual Tools Required for Assembly The following tools are required to assemble the Moto g30 phone. Description Part # Picture/Drawing Black Stick Torque Driver PH00 Bit Manual Roller Plastic Tweezers Tweezers... -
Page 75: Power Thermal Silica Assembly
Description Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM716-BVJ000-003+Thermal silica_LD Use the Plastic Tweezer to place and secure the Power Thermal Silica on the location as shown. Lenovo Confidential Restricted: PAGE 75 Do not share without consent from Lenovo... -
Page 76: Rf Thermal Silica Assembly
Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM716-BVJ000-004+RF Thermal silica_LD Use the Plastic Tweezer to place and secure the RF Thermal Silica on the location as shown. Lenovo Confidential Restricted: PAGE 76 Do not share without consent from Lenovo... -
Page 77: Water Detection Label Assembly
Use the Plastic Tweezer to place the Water Detection Label (WDL) on the Front-Housing as shown. Use the Plastic Tweezer to place the Water Detection Label (WDL) on the Front-Housing as shown. Lenovo Confidential Restricted: PAGE 77 Do not share without consent from Lenovo... -
Page 78: Vibrator Assembly
Vibrator Assembly Description Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNN901-BVU000-000+Flat motor_JX Use the Plastic Tweezer to place and secure the Vibrator on the location as shown. Lenovo Confidential Restricted: PAGE 78 Do not share without consent from Lenovo... -
Page 79: Silicone Light Guide Assembly
TNM716-BVJ000-010+LED silicone sleeve_DX Inspect the Silicone Light Guide for any damage. Use the Plastic Tweezer to place and secure the Silicone Light Guide on the location as shown. Lenovo Confidential Restricted: PAGE 79 Do not share without consent from Lenovo... -
Page 80: Proximity Sensor Grommet Assembly
Use the point end of the Black Stick to press the area which is marked in red to secure the Proximity Sensor Grommet installed in place. Do not press the other area of the Proximity Sensor Grommet. Lenovo Confidential Restricted: PAGE 80 Do not share without consent from Lenovo... -
Page 81: Receiver Sealed Foam Assembly
XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM709-BVJ000-009+SPK seal Foam_KY Use the Plastic Tweezer to place the Receiver Sealed Foam on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 81 Do not share without consent from Lenovo... -
Page 82: Receiver Insulated Tape Assembly
Level 2 – Service and Repair Manual Receiver Insulated Tape Assembly Description Reference # TNN502-BQF000-010+Receive_DS TNM701-BVJ002-004+earpiece insulating gl Use the Plastic Tweezer to place the Receiver Insulated Tape on the location as shown. Lenovo Confidential Restricted: PAGE 82 Do not share without consent from Lenovo... -
Page 83: Receiver Assembly
Use the Plastic Tweezer to place the Receiver on the location as shown. NOTE Make sure the Receiver should be in correct direction with the contact on the bottom. Lenovo Confidential Restricted: PAGE 83 Do not share without consent from Lenovo... -
Page 84: Water Detection Label Assembly
XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNP316-096000-100+Water label Use the Plastic Tweezer to place the Water Detection Label (WDL) on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 84 Do not share without consent from Lenovo... -
Page 85: Bb Heat Spreader Assembly
Use the Plastic Tweezer to place the BB Heat Spreader on the Main PCB as shown. NOTE Make sure to assemble the BB Heat Spreader along the red lines as marked. Lenovo Confidential Restricted: PAGE 85 Do not share without consent from Lenovo... -
Page 86: Rf Heat Spreader Assembly
Use the Plastic Tweezer to place the RF Heat Spreader on the Main PCB as shown. NOTE Make sure to assemble the RF Heat Spreader along the red lines as marked. Lenovo Confidential Restricted: PAGE 86 Do not share without consent from Lenovo... -
Page 87: 8M Rear-Facing Camera Assembly
XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR MDL,CAMR,8M,rear,;C08F31;Q Tech,AF:capri Use fingers to place and secure the 8M Rear- Facing Camera on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 87 Do not share without consent from Lenovo... -
Page 88: Rear-Facing Camera Assembly
XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR MDL,CAMR,64M,after,;L64BA10;O-FILM,AF:Ki Use fingers to place and secure the 64M Rear- Facing Camera on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 88 Do not share without consent from Lenovo... -
Page 89: Audio Jack Grommet Assembly
XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNM716-BVJ000-005+EAR silicone sleeve_DX Use the Plastic Tweezer to place the Audio Jack Grommet on the location as shown. Lenovo Confidential Restricted: PAGE 89 Do not share without consent from Lenovo... -
Page 90: Main Pcb Assembly
Use fingers to place the Main PCB on the location as shown. Use the Torque Driver with PH00 Bit to tighten the two screws as shown (0.75 ± 0.1 kgf.cm). Lenovo Confidential Restricted: PAGE 90 Do not share without consent from Lenovo... -
Page 91: 2M Depth Rear-Facing Camera Conductive Cloth Assembly
XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNM715-BVJ002-009+conductive adhesive Use the Plastic Tweezer to place the 2M Depth Rear-Facing Camera Conductive Cloth on the location as shown. Lenovo Confidential Restricted: PAGE 91 Do not share without consent from Lenovo... -
Page 92: 2M Macro Rear-Facing Camera Copper Foil Assembly
XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNM715-BVJ002-014+Posterior adhesive_APL Use the Plastic Tweezer to place the 2M Macro Rear-Facing Camera Copper Foil on the location as shown. Lenovo Confidential Restricted: PAGE 92 Do not share without consent from Lenovo... -
Page 93: 2M Macro Rear-Facing Camera Assembly
XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR TNN703-BVJ003-020+2M Camera Module LH, Use fingers to place and secure the 2M Macro Rear-Facing Camera on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 93 Do not share without consent from Lenovo... -
Page 94: 2M Depth Rear-Facing Camera Assembly
XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR MDL,CAMR,2M,rear,;L02BF40;O-FILM:Capri/C Use fingers to place and secure the 2M Depth Rear-Facing Camera on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 94 Do not share without consent from Lenovo... -
Page 95: Front-Facing Camera Grommet Assembly
Reference # TNM716-BVU000-001+Silicone sleeve/DX MDL,CAMR,13M,front;C0DF03;Kunshan,FF:Cap Use the Plastic Tweezer to place the Front- Facing Camera Grommet on the location as shown. Exact position for Front-Facing Camera Grommet as shown. Lenovo Confidential Restricted: PAGE 95 Do not share without consent from Lenovo... -
Page 96: Front-Facing Camera Assembly
XT2129-2 MB_4+64G_DS&F00BVU3-000-004CS XT2129-2 MB_6+128G_DS&F00BVU3-000-005CS XT2129-3 MB_6+128G_DS&F00BVU3-000-006CS ASSY,BD KIT,Capri Plus 4+128 DS BR MDL,CAMR,13M,front;C0DF03;Kunshan,FF:Cap Use fingers to place and secure the Front-Facing Camera on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 96 Do not share without consent from Lenovo... -
Page 97: Front-Facing Camera Copper Foil Assembly
Front-Facing Camera Copper Foil on the location as shown and peel off the liner. NOTE Assemble the Front-Facing Camera Copper Foil along the top left corner of the Front- Facing Camera. Lenovo Confidential Restricted: PAGE 97 Do not share without consent from Lenovo... -
Page 98: Side Key Fpc Assembly
FPC on the location as shown. Use fingers to place and secure the Side Key FPC on the location as shown. NOTE Press firmly for seconds 3 times to activate the adhesive. Lenovo Confidential Restricted: PAGE 98 Do not share without consent from Lenovo... - Page 99 Use the Plastic Tweezer to lock the Side Key FPC on the location as shown. Use fingers to place and secure the Display Flex BtB connector on the Main PCB as shown. Lenovo Confidential Restricted: PAGE 99 Do not share without consent from Lenovo...
-
Page 100: Lcd Fpc Foam Assembly
Care the top of the sponge must not exceed the surface of the Sub Board, and the both left and right sides should not be attached to the Front Housing. Lenovo Confidential Restricted: PAGE 100 Do not share without consent from Lenovo... -
Page 101: Water Detection Label Assembly
XT2129-1 Sub Baord&S102-BVU000-000CS XT2129-2 Sub Board&S102-BVU000-001CS ASSY,DTR BRD,Capri Plus BR TNP316-096000-100+Water label Use the Plastic Tweezer to place the Water Detection Label (WDL) on the Sub Board as shown. Lenovo Confidential Restricted: PAGE 101 Do not share without consent from Lenovo... -
Page 102: Usb Grommet Assembly
Reference # XT2129-1 Sub Baord&S102-BVU000-000CS XT2129-2 Sub Board&S102-BVU000-001CS ASSY,DTR BRD,Capri Plus BR TNM716-BVJ000-007+T-C silicone sleeve_DX Use the Plastic Tweezer to place the USB Grommet on the location as shown. Lenovo Confidential Restricted: PAGE 102 Do not share without consent from Lenovo... -
Page 103: Sub Board Assembly
Use the Torque Driver with PH00 Bit to tighten the screw as shown (0.75 ± 0.1 kgf.cm). Use fingers to place and secure the LCM BtB Connector on the location as shown. Lenovo Confidential Restricted: PAGE 103 Do not share without consent from Lenovo... -
Page 104: Coax Cable Assembly
Use the Plastic Tweezer to place the Coax Cable on the Main PCB as shown. Use the Plastic Tweezer to place the Coax Cable on the Sub Board as shown. Lenovo Confidential Restricted: PAGE 104 Do not share without consent from Lenovo... -
Page 105: Battery Adhesive Assembly
Battery Adhesive on the location as shown and peel off the liner. NOTE Make sure to assemble the Battery Adhesive according to the silk print lines as marked in red. Lenovo Confidential Restricted: PAGE 105 Do not share without consent from Lenovo... -
Page 106: Battery Assembly
Battery. Use fingers to place the Battery on the Front Housing as shown. NOTE Make sure to assemble the Battery using the bottom left corner marked as red. Lenovo Confidential Restricted: PAGE 106 Do not share without consent from Lenovo... - Page 107 10 cycles to secure the Battery as shown. NOTE For each cycle roll the Manual Roller from top to bottom of the Battery and vice versa. NOTE Each cycle should last for 3 seconds. Lenovo Confidential Restricted: PAGE 107 Do not share without consent from Lenovo...
-
Page 108: Fps Flex Assembly
ASSY,BD KIT,Capri Plus 4+128 DS BR FINGERPRT SCANNER,Phantom Black,FPC1520 FINGERPRT SCANNER,Pastel sky,FPC1520 FINGERPRT SCANNER,Phantom Black,FPC1520, FINGERPRT SCANNER,Pastel Sky,FPC1520,no Use fingers to place the FPS Flex on the location as shown. Lenovo Confidential Restricted: PAGE 108 Do not share without consent from Lenovo... -
Page 109: Flash Lens Foam Assembly
Flash Lens Foam Assembly Description Reference # TNM709-BVJ001-023+flash cover seal Foam_ TNM223-BVJ000-000+Flash COV_TRA_rear/HG Use the Plastic Tweezer to place the Flash Lens Foam on the location as shown. Lenovo Confidential Restricted: PAGE 109 Do not share without consent from Lenovo... -
Page 110: Flash Lens Adhesive Assembly
Description Reference # TNM223-BVJ000-000+Flash COV_TRA_rear/HG TNM715-BVJ001-007+flash cover Adhesive_A Use the Plastic Tweezer to place the Flash Lens Adhesive on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 110 Do not share without consent from Lenovo... -
Page 111: Flash Lens Assembly
XT2129-2 UP Frame_PS&S101-BVU056-200CS Use the Plastic Tweezer to place the Flash Lens on the location as shown. NOTE Press firmly for seconds 3 times to activate the adhesive. Lenovo Confidential Restricted: PAGE 111 Do not share without consent from Lenovo... -
Page 112: Rear-Facing Camera Lens Adhesive Assembly
TNM715-BVJ001-000+Camera Lens Adhesive TNM205-BVU130-000+rear lens/black/DT TNM205-BVU050-000+rear lens/white/DT Use the Plastic Tweezer to place and secure the Rear-Facing Camera Lens Adhesive on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 112 Do not share without consent from Lenovo... -
Page 113: Rear-Facing Camera Lens Assembly
TNM205-BVU050-000+rear lens/white/DT Use the Plastic Tweezer to place the Rear-Facing Camera Lens on the location as shown. NOTE Press firmly for seconds 3 times to activate the adhesive. Lenovo Confidential Restricted: PAGE 113 Do not share without consent from Lenovo... -
Page 114: Top Bracket Assembly
Use fingers to place the Top Bracket on the location as shown. Use the Torque Driver with PH00 Bit to tighten the nine white screws as shown (0.8 ± 0.1 kgf.cm). Lenovo Confidential Restricted: PAGE 114 Do not share without consent from Lenovo... -
Page 115: Fps Adhesive Assembly
XT2129-2 UP Frame_PB&S101-BVU136-200CS XT2129-2 UP Frame_PS&S101-BVU056-200CS TNM715-BVJ001-008+FPS adhesive_AP Use the Plastic Tweezer to place and secure the FPS Adhesive on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 115 Do not share without consent from Lenovo... -
Page 116: Fps Conductive Sponge Assembly
Conductive Sponge on the location as shown. Use fingers to place the Fingerprint sensor on the location aligning with pins as shown. NOTE Press firmly for seconds 3 times to activate the adhesive. Lenovo Confidential Restricted: PAGE 116 Do not share without consent from Lenovo... -
Page 117: Speaker Box Assembly
Use fingers to place the Speaker Box on the location as shown. Use Torque Driver with PH00 Bit to tighten the seven black screws as shown (0.8 ± 0.1 kgf.cm). Lenovo Confidential Restricted: PAGE 117 Do not share without consent from Lenovo... -
Page 118: Side Key Waterproof Film 1 Assembly
Use the Plastic Tweezer to place the Side Key Waterproof Film 1 on the location as shown and peel off the liner. NOTE Assemble the Side Key Waterproof Film 1 according to aligning keys. Lenovo Confidential Restricted: PAGE 118 Do not share without consent from Lenovo... -
Page 119: Side Key Waterproof Film 2 Assembly
XT2129-2 UP Frame_PB&S101-BVU136-200CS XT2129-2 UP Frame_PS&S101-BVU056-200CS TNM701-BVJ002-006+LCMSide WaterproofFilm Use the Plastic Tweezer to place the Side Key Waterproof Film 2 on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 119 Do not share without consent from Lenovo... -
Page 120: Secondary Mic Foam Assembly
Description Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM709-BVJ001-011+MIC dust net Foam_AP Use the Plastic Tweezer to place the Secondary MIC Foam on the location as shown. Lenovo Confidential Restricted: PAGE 120 Do not share without consent from Lenovo... -
Page 121: Top Bracket Waterproof Film Assembly
Use the Plastic Tweezer to place the Top Bracket Waterproof Film on the location as shown and peel off the liner. NOTE Assemble the Top Bracket Waterproof Film along the positioning line marked in red. Lenovo Confidential Restricted: PAGE 121 Do not share without consent from Lenovo... -
Page 122: Primary Mic Foam Assembly
Description Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM709-BVJ001-011+MIC dust net Foam_AP Use the Plastic Tweezer to place the Primary MIC Foam on the location as shown. Lenovo Confidential Restricted: PAGE 122 Do not share without consent from Lenovo... -
Page 123: Speaker Dust Net Assembly
Speaker Dust Net Assembly Description Reference # XT2129 TP LCM&S101-BVU130-000CS XT2129 TP LCM_IN&S101-BVU131-000CS TNM711-BVJ001-000+Speaker dust net_AP Use the Plastic Tweezer to place the Speaker Dust Net on the location as shown. Lenovo Confidential Restricted: PAGE 123 Do not share without consent from Lenovo... -
Page 124: Speaker Box Waterproof Film Assembly
XT2129 TP LCM_IN&S101-BVU131-000CS TNM701-BVJ001-001+Waterproof membrane/AP Use the Plastic Tweezer to place and secure the Speaker Box Waterproof Film on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 124 Do not share without consent from Lenovo... -
Page 125: Rear-Facing Camera Decoration Adhesive Assembly
Capri+ etching_APEM_PS&S101-BVU05E-300CS XT2129-3 etching_PB&S101-BVU13G-300CS XT2129-3 etching_PS&S101-BVU05G-300CS TNM715-BVJ001-004+decoration Adhesive_AP Use the Plastic Tweezer to place the Rear-Facing Camera Decoration Adhesive on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 125 Do not share without consent from Lenovo... -
Page 126: Fps Sealed Foam Adhesive Assembly
XT2129-3 etching_PS&S101-BVU05G-300CS TNM715-BVJ001-005+FP seal adhesive_AP Use the Plastic Tweezer to place and secure the FPS Sealed Foam Adhesive on the location as shown and peel off the liner. Lenovo Confidential Restricted: PAGE 126 Do not share without consent from Lenovo... -
Page 127: Battery Cover Assembly
Use fingers to place the Battery Cover on the Front-Housing and press it on all sides as shown. NOTE Press firmly for seconds 3 times to activate the adhesive. Lenovo Confidential Restricted: PAGE 127 Do not share without consent from Lenovo... -
Page 128: Imei Label Assembly
TNEI30-BVJ130-000+sim card tray_black_JH TNEI30-BVJ131-000+sim card tray_black_JH TNEI30-BVJ050-000+sim card tray_white_JH TNEI30-BVJ051-000+sim CAR TRA_PAS WHI_JH Use the Plastic Tweezer to place and secure the IMEI Label on the location as shown. Lenovo Confidential Restricted: PAGE 128 Do not share without consent from Lenovo... -
Page 129: Sim Tray Assembly
Capri+ etching_APEM_PS&S101-BVU05E-300CS XT2129-3 etching_PB&S101-BVU13G-300CS XT2129-3 etching_PS&S101-BVU05G-300CS Insert the SIM Tray in the transceiver as shown. Use finger to press the SIM Tray until it secures into the transceiver. Lenovo Confidential Restricted: PAGE 129 Do not share without consent from Lenovo... -
Page 130: Assembly Quality Check
Lenovo Moto g30 Level 2 – Service and Repair Manual SSEMBLY UALITY CHECK Battery Quality Check Check the quality of battery make sure no deform or defect on it Lenovo Confidential Restricted: PAGE 130 Do not share without consent from Lenovo... -
Page 131: Grommet And Connectors Quality Check
Lenovo Moto g30 Level 2 – Service and Repair Manual Grommet and Connectors Quality Check Lenovo Confidential Restricted: PAGE 131 Do not share without consent from Lenovo... -
Page 132: Screws Graphite Quality Check
Level 2 – Service and Repair Manual Screws Graphite Quality Check Check if any missing/misaligned waterproof. Check if any missing/unseated screws. Check if any missing/unseated screws. Check if any missing/misaligned waterproof. Lenovo Confidential Restricted: PAGE 132 Do not share without consent from Lenovo...
