This quick guide provides installation operations. For safety precautions and detailed product information, refer to the
Website www.saj-electric.com. You can scan the below QR code to access all the product documentation.
NOTICE
⚫
Before installation, operation, and maintenance, read the product documentation carefully.
⚫
ONLY qualified and trained electricians who have read and fully understood all safety regulations contained in this manual can install,
maintain, and repair the equipment. The operation personnel should understand the system, its working principles, and relevant national
and regional standards.
⚫
During operations, wear protective equipment and use dedicated tools.
1. Check the outer packing
1.
Check the outer packing package for any damage, such as holes and cracks.
2.
Check the equipment model.
If any serious damage is found or the model is not what you requested, do not unpack the product, and contact your dealer as soon as
possible.

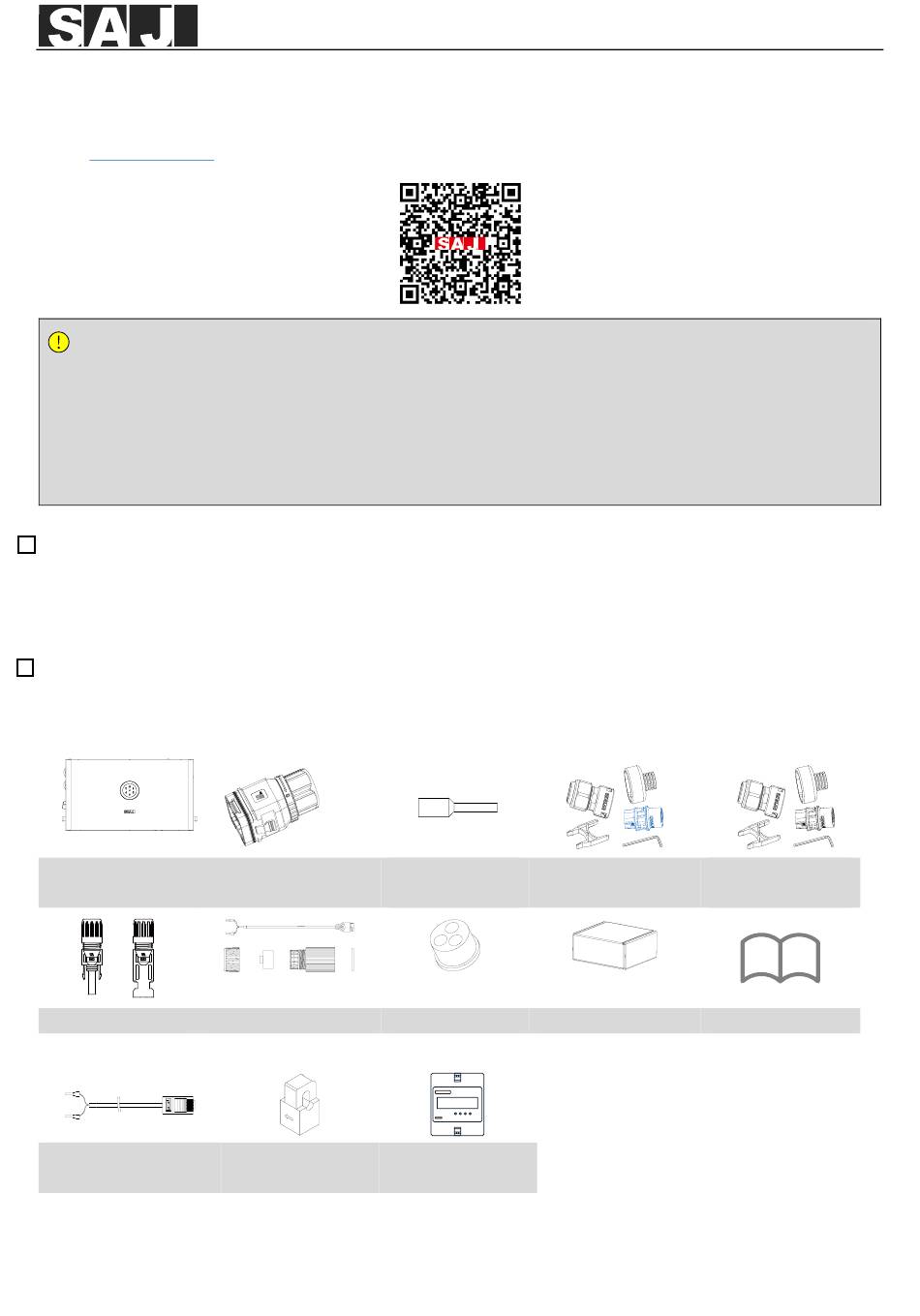

2. Check the product packages
Contents in your shipment are order-dependent. Not all packages listed below may be in your shipment.
Place the connectors separately after unpacking to avoid confusion for connection of cables.
HS3 inverter
Inverter
PV connector x4
1
The waterproof cover is only available in some configurations.
2
The meter kit contains the following items:
Communication cable with
an RJ45 connector
3
The printed documents include a warranty card, a
V0.4
HS3-(3K-6K)-S2-(W, G)- (B, P)
24-pin communication
cable connector
Communication cable kit
Current transformer
Quick Guide
X
Insulated terminals
1
Grid connector kit (blue)
x22
Rubber plug x2
Smart meter
Configuration Instructions
, and a
1
Quick Guide
User Manual
1
Backup load
connector kit (black)
2
3
Meter kit
Printed documents
.
