GoPro HERO3 WHITE EDITION Manual

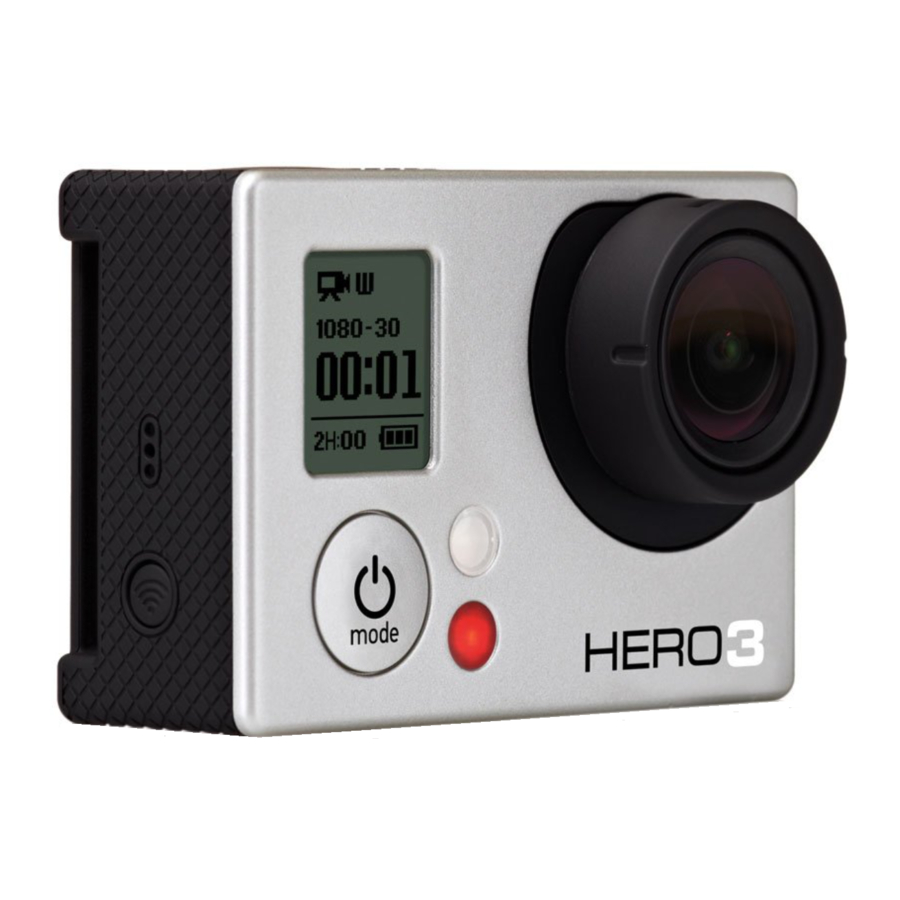

Hero3 Features

Hero3 Features - Part 1

  1. Status Indicator Lights (Red)
  2. SHUTTER/SELECT Button
  3. LCD Status Screen
  4. Wi-Fi Indicator Light (Blue )
  5. POWER/MODE Button
  6. Micro HDMI Port (Cable not included)
  7. microSD Card Slot (SD card not included)
  8. mini-USB Port (Supports Composite A/V cable/3.5mm stereo mic adapter, not included)

Hero3 Features - Part 2

  1. HERO Port
  2. Battery Door
  3. Wi-Fi ON/OFF Button
  4. Audio Alert

Camera LCD Status Screen

The LCD screen displays the following information about HERO3 modes and settings:
Camera LCD Status Screen

  1. Camera modes/FoV (Field of View)
  2. Capture setting modes (not shown)
  3. resolution/FPs (Frames Per second)
  4. time interval settings: (not shown)
  5. Counter
  6. time/storage/Files
  7. Battery Life

warning Note: The icons displayed above will vary depending on what mode your camera is in.

Camera User Interface Flow Chart

Camera user interface flow cHart

*warning Note: Playback only appears if Playback is activated.

Software Updates

warning GoPro releases product updates through software updates. Check to see if any updates are available for your camera or other GoPro products. Visit: gopro.com/update.

Using Your Hero3: Basics

GETTING STARTED

Before using your hero3 for the first time:

  1. insert a microsD, microsDhC™ or microsDXC™ card into the card slot with label facing forward, narrowest part of the card first. Speed Class 4 or higher cards are recommended. When using 0.5 second time Lapse, a Speed Class Rating 10 is required.
  2. Place battery into the camera.
  3. Charge battery. The included lithium-ion battery comes partially charged. To charge, connect the included USB cable to camera and connect the other end of the cable to a power source such as a computer, GoPro Wall Charger or GoPro Auto Charger. No damage will occur to the camera or battery if used prior to a full charge.

information Pro TIP:
Status Indicator Lights when camera is OFF and charging, show:

  • Status indicator Lights are on when charging.
  • Status indicator Lights are OFF when charging is complete.
    *See BATTERY LIFE for more information.

CAMERA DEFAULT SETTINGS

The HERO3 White Edition camera powers up with the following default settings:

Video resolution 1080p30fps
Photo resolution 5 Megapixels (MP)
Photo Burst 3 photos in 1 second
time Lapse 0.5 seconds
Wi-Fi OFF

information Pro TIP:
Want to change your VIDEO and PHOTO settings?
* See SETTINGS menu to make changes.

POWERING ON AND OFF

Using Your Hero3: Basics - POWERING ON AND OFF

To power on:
Press and release . The red Status Indicator Lights flash three times and the Sound Indicator emits three beeps.

To power OFF:
Press for two seconds, then release. The red Status Indicator Lights flash several times and the Sound Indicator emits seven beeps.

information Pro TIP:
Want to turn your HERO3 into a "one-button" camera that automatically starts recording PHOTOS or VIDEOS once it turns ON? Set the camera to ONE BUTTON mode.
* See one ONE BUTTON for more information.

Using Your Hero3: Camera Modes

OVERVIEW

The HERO3 features several camera modes. To cycle through the modes, press .
The modes will appear in the following order:

VIDEO Record Video
PHOTO Capture single Photo
PHOTO BURST Capture Burst photos
TIME LAPSE Capture Time Lapse photos
PLAYBACK Appears only if the camera is plugged into a TV/HDTV. Playback allows you to play Photos and Videos on a TV/HDTV (via optional Micro HDMI cable or A/V composite cable).

information Pro TIP:
Use PHOTO BURST to capture fast moving subjects.
* See PLAYBACK for more information.

VIDEO

To record Video, verify the camera is in Video mode. If the Video icon on your camera's LCD screen is not showing, press repeatedly until it appears.

To start recording:

Press and release . The camera will emit one beep and the red Status Indicator Lights will flash while recording.

To stop recording:

Press and release . The red Status Indicator Lights flash three times and the camera emits three beeps to indicate recording has stopped.

The HERO3 automatically stops recording when the memory card is full or the battery is out of power. Your video will be saved before the camera powers off.

*See VIDEO mode for instructions on how to change resolution settings.


To capture a Photo, verify the camera is in Photo mode. If the Photo icon on your camera's LCD is not showing, press repeatedly until it appears.

To take a photo:
Press and release . The camera beeps two times and the red Status Indicator Lights flash.

* See PHOTO modes for instructions on how to change resolution settings and other PHOTO features.

PHOTO BURST

In Photo Burst mode, your camera takes multiple photos in short time intervals— 3 photos/1 second.

To capture a Photo Burst series, verify the camera is in Photo Burst mode. If the Photo Burst icon on your camera's LCD screen is not showing, press repeatedly until it appears.

To take a Photo Burst series:
Press and release . The red Status Indicator Lights flash and the camera beeps multiple times.

TIME LAPSE

Time Lapse mode captures a series of photos at 0.5, 1, 2, 5, 10, 30 or 60 second intervals. When using the 0.5 seconds setting, an SD card with a Speed Class 10 Rating is required.

To capture a Time Lapse series, verify the camera is in Time Lapse mode. If the Time Lapse icon is not showing on your camera's LCD screen, press repeatedly until it appears.

To take Time Lapse:
Press and release . The camera initiates countdown and the red Status Indicator Lights flash each time a Photo is taken.

To stop Time Lapse:
Press and release . The red Status Indicator Lights flash three times and the camera emits three beeps to indicate that Time Lapse has stopped.

*See TIME LAPSE for instructions on how to change the interval settings.

SETTINGS

The Settings menu allows you to adjust a variety of camera settings including:

Video Resolution

Photo Resolution

Time Lapse

Photo Burst

• and more

* See SETTINGS menu to make changes, learn how to navigate menu options and read more details on each setting.

PLAYBACK

You can playback your GoPro Photos and Videos on a TV/HDTV or with the LCD Touch BacPac (optional accessory). Playback appears as a camera mode when camera is powered ON and plugged into a TV/HDTV.

*See PLAYBACK for more information on viewing your VIDEOS and PHOTOS.

Camera Settings

SETTINGS

To enter the Settings menu:

  1. Verify the camera is in the Settings menu. If the Setting icon on your camera's LCD screen is not showing, press repeatedly until it appears.
  2. Press to enter menu.
  3. Use to cycle through the various Settings options.
  4. Press to select desired option.
  5. To exit, hold down for two seconds or cycle through to and press .

information PRO TIP:
If at any time you wish to exit from the SETTINGS menu, press and hold
for two seconds.

VIDEO RESOLUTION/FPS/FOV MODES

The hero3 White edition offers the following Video Capture modes:

Video Resolution NTSC fps PAL fps Field of View (FOV) Screen Resolution Best Use
1080p 30fps 25fps Medium 1920x1080
16:9
Use this mode when camera is mounted on a vehicle, tripod or other stable object.
960p 30fps 25fps Ultra Wide 1280x960
4:3
High-quality 4:3 video. Good when shooting in low light conditions. Use for body-mounted shots.
720p 60fps 50fps Ultra Wide 1280x720
16:9
Best resolution frame rate for handheld shots and when slow motion is desired.
720p 30fps 25fps Ultra Wide 1280x720
16:9
Best resolution for handheld shots and low light conditions. Choose this mode when camera is mounted on vehicle, tripod or other stable object.
WVGA 60fps 50fps Ultra Wide 848x480 Good when standard definition is acceptable.

TIME LAPSE

Several time interval options are available for Time Lapse mode, including 0.5, 1, 2, 5, 10, 30 and 60 seconds.

UPSIDE DOWN

Mounting your HERO3 Upside Down but wish the files to appear upright when viewing or editing? This setting eliminates the NEEDto flip your video or photos after recording.


Camera right side up (Default)


Camera upside down

SPOT METER

Turn on Spot Meter when filming from within a dark space pointing the camera into a brighter setting, such as filming the outdoors from within a car.
When Spot Meter is set to ON, appears in the LCD window.

OFF (Default)
ON

LOOPING VIDEO

Looping Video mode allows you to record a continuously looping video that overwrites itself until you press the button to stop it.

Looping Video options inlclude:

OFF (Default)
Max video Camera records until memory card is full, then overwrites with a new video.
5 min video Camera records for 5 minutes, then begins a new video, progressively overwriting the previous 5 minute video.
20 min video Camera records for 20 minutes, then begins a new video, progressively overwriting the previous 20 minute video.
60 min video Camera records for 60 minutes, then begins a new video, progressively overwriting the previous 60 minute video.
120 min video Camera records for 120 minutes, then begins a new video, progressively overwriting the previous 120 minute video.

information PRO TIP:
Multiple chapter files are written to your memory card. This allows for small segments of content to be overwritten during loop recording. When viewing on a computer screen you will see separate files for each time segment. Use video editing software if you wish to combine files into a longer video.

SET UP MENU

The Set up menu allows you to adjust the following camera settings:

Default mode at Power up

One Button Mode

NTSC/PAL

On screen Display

Status indicator Lights

Sound Indicator

Month/Day/Year/time

*See SET UP menu section for a complete list of set up options.

WIRELESS CONTROLS

The HERO3 camera's built-in Wi-Fi allows you to connect to the Wi-Fi Remote or smartphone/tablet via the GoPro App. When Wi-Fi is ON, your Wi-Fi Status Indicator Light will blink blue.

To turn Wi-Fi ON/OFF:
Press to turn Wi-Fi ON/OFF. The most recently used Wi-Fi mode will be active when Wi-Fi is ON.

* See WIRELESS CONTROLS section for a complete list of wireless functions

DELETE

Delete the last file or all files and format the memory card. During delete LAST or ALL, the Status Indicator Lights blink until operation is complete.

CANCEL (Default)
LAST
ALL

To delete LAST or ALL:

  1. Verify the camera is in Settings mode. If the Settings icon on your camera's LCD screen is not showing, press repeatedly until it appears.
  2. Press to enter Settings menu.
  3. Use to cycle through Settings to locate .
  4. Press to enter Delete.
  5. Use to cycle through options.
  6. Select highlighted option by pressing .
  7. To exit, hold down for two seconds or cycle through to and press .

information PRO TIP:
Use caution — by selecting ALL, the memory card will be formatted, deleting every file on your SD card.

EXIT

From the screen, press to exit the Settings menu.

information PRO TIP:
If at any time you wish to exit from the SETTINGS menu, press and hold
for two seconds.

Set Up

SET UP

To enter the Set Up menu:

  1. Verify the camera is in Settings mode. If the Settings icon on your camera's LCD screen is not showing, press repeatedly until it appears.
  2. Press to enter .
  3. Use to cycle through Settings to locate .
  4. Press to enter Set Up.
  5. Use to locate the desired option to change.
  6. Press to select the desired option.
  7. To exit, hold down for two seconds or cycle through to and press .

DEFAULT MODE AT POWER UP

You can set the camera's Default mode at power up to any of the following modes:

(factory default)

ONE BUTTON

With One Button mode selected, the camera automatically begins recording when powering the camera ON. One Button mode can be configured to start in Video or Time Lapse.

OFF (Default)
ON

To turn one Button mode on:

  1. Verify the camera is in Settings mode. If the Settings icon on your camera's LCD screen is not showing, press repeatedly until it appears.
  2. Press to enter menu.
  3. Use to cycle through Settings to locate .
  4. Press to enter Set Up.
  5. Use to cycle through to locate .
  6. Press to enter One Button menu.
  7. Use to cycle through options.
  8. Press to select a highlighted option.
  9. To exit, hold down for two seconds or cycle through to and press .

Next time you power your camera ON, it will begin recording in its Default Power Up Mode. To stop recording, push and hold for two seconds.

To exit One Button mode:

  1. Power camera ON.
  2. Press and hold until shows in the LCD window.
  3. Press to enter.
  4. Use to highlight OFF.
  5. Press to select.
  6. To exit, hold down for two seconds or cycle through to and press .

information PRO TIP:
To stop the capture process (VIDEO or TIME LAPSE) when in ONE BUTTON, press and hold for two seconds. You will return to the ONE BUTTON menu where you can turn ONE BUTTON mode OFF.

warning Note: One Button mode is disabled when connected to Wi-Fi Remote or GoPro App.

NTSC / PAL

The NTSC and PAL settings govern Video recording frame rate and playback when viewing Video on a TV/HDTV. Select NTSC when viewing a TV/HDTV in North America. Select PAL if viewing on a PAL TV/HDTV (most televisions outside of North America) or if viewing on a PAL TV/HDTV in any region.

NTSC (Default) PAL
1080p/30fps 1080p/25fps
960p/30fps 960p/25fps
720p/60fps 720p/50fps
720p/30fps 720p/25fps
WVGA/60fps WVGA/50fps

ONSCREEN DISPLAY

To display or hide the recording icons and file information on video or the viewing screen during playback, turn Onscreen Display (OSD) OFF or ON.

OFF
ON (Default)

STATUS INDICATOR LIGHTS

Keep all four Status Indicator Lights active, only two active (front and back) or turn OFF all lights.

4 (Default)
2
OFF

SOUND INDICATOR

You can adjust volume or turn OFF the Sound Indicator.

100% (Default)
70%
OFF

MANUAL POWER OFF

The HERO3 can be configured to automatically power OFF after a specific period of inactivity (when no Videos or Photos are being taken and no buttons have been pressed).

MANUAL (Default)
60sec
120sec
300sec

MONTH / DAY / YEAR / TIME

Set the HERO3 clock to ensure Video and Photo files are saved with the correct date and time.

To change Month/Day/Year/Time:

  1. Verify the camera is in Settings mode. If the Settings icon on your camera's LCD screen is not showing, press repeatedly until it appears.
  2. Press to enter menu.
  3. Use to cycle through Settings to locate .
  4. Press to enter Set Up.
  5. Use to locate .
  6. Press to enter Month/Day/Year/Time sub-menu; Month (MM) will be highlighted.
  7. Press to access the list of months (1 to 12).
  8. Use to cycle through list until desired selection is highlighted.
  9. Press to sele ct.
  10. To advance to the next option, press .
  11. Repeat steps 7, 8 and 9 to make selections for day (DD), year (YY), hour (HH) and minutes (MM).
  12. To exit, hold down for two seconds or cycle through to and press .

warning Note: If the battery is removed from the camera for an extended period of time Month/Day/Year/Time will need to be set again.

EXIT

From the EXIT screen, press to exit the Set Up menu.

information PRO TIP:
If at any time you wish to exit from the SET UP menu, press and hold
for two seconds.

Wireless Controls

WIRELESS CONTROLS

The built-in Wi-Fi allows your HERO3 camera to connect to the Wi-Fi Remote and smartphone/tablet via the GoPro App.

To turn Wi-Fi ON/OFF via the Wi-Fi button:
Press and hold until blue lights flash. When turning Wi-Fi ON the Wi-Fi mode will be set to the most recently used mode.

USING HERO3 WITH THE WI-FI REMOTE (OPTIONAL ACCESSORY)
Connect your HERO3 with the Wi-Fi Remote to control your camera remotely. The Wi-Fi Remote can control up to 50 cameras at a time at distances of up to 600'/180m in optimal conditions.

  1. Power ON the HERO3 and turn Wi-Fi on.
  2. Press to cycle through to the Settings menu.
  3. Press to enter .
  4. Use to cycle through to locate .
  5. Press to enter Wireless Controls .
  6. You will see .
  7. Press again to enter the sub-menu.
  8. Use to select Wi-Fi rC.
  9. Press to select it.
  10. Use to select Current or NEW.
  11. Press to select desired option.

On your Wi-Fi remote:

  1. Press to turn ON the GoPro Wi-Fi Remote.
  2. While holding , press and release .
  3. Once you see , you can release .
  4. A check will appear once the Wi-Fi Remote and camera have successfully paired.

The Wi-Fi Remote's LCD screen will now mirror the HERO3 LCD screen.

USING THE HERO3 WITH THE GOPRO APP
The GoPro App lets you control your camera remotely using a smartphone or tablet. Features include full camera control of all settings, live video preview to your smartphone or tablet for easy shot framing and more.

The GoPro App is available for free at the Apple App Store and is coming soon to Google Play.

information PRO TIP:
Before you hit , see what your HERO3 camera sees by viewing it on your smartphone or tablet's screen.
*See gopro.com for more information.

Storage/Microsd Cards

The HERO3 camera is compatible with 2GB, 4GB, 8GB, 16GB, 32GB and 64GB capacity microsD, microsDhC and microsDXC memory cards. While all speed class ratings are compatible, GoPro requires using an SD card with Speed Class Rating 10 or higher speed when using the 0.5 time Lapse setting. GoPro recommends using brand name memory cards for maximum reliability in high-vibration activities.

To insert SD card:

  1. Slide memory card into card slot with label facing front of camera.
  2. The card will click into place when fully inserted.

To remove sD card:

  1. Place fingernail against edge of memory card and lightly press further into camera.
  2. Card will spring out far enough to be removed.

information PRO TIP:
Use care when handling memory cards. Avoid liquids, dust and debris. As a precaution, turn off the camera before inserting or removing the card. Check manufacturer guidelines regarding use in acceptable temperature ranges.

System Requirements

The HERO3 camera is compatible with Microsoft® XP (Service Pack 2 or later) and Mac OS X 10.4.11 or later.

WINDOWS MAC
Windows XP (Service Pack 2 or later) or Vista Mac OS® X 10.4.11 or later
3.2GHz Pentium 4 or faster 2.0GHz Intel Core Duo or faster
DirectX 9.0c or later
Minimum 1GB of system RAM Minimum 1GB of system RAM
Video card with minimum 256MB of RAM Video card with minimum 128MB of RAM

information PRO TIP:
Want to see your footage and stills on the big screen? Plug your HERO3 directly into a TV/HDTV with GoPro's Micro HDMI cable or USB cable (optional accessories).

Transferring Files

TO TRANSFER VIDEO AND PHOTO FILES TO A COMPUTER

ON A PC:

  1. Connect the camera to the computer using included USB cable.
  2. Press to turn ON the camera.
  3. Double click "My Computer" and locate "Removable Disk".
  4. If "Removable Disk" is not showing, close "My Computer" folder and reopen it. The "Removable Disk" icon should appear.
  5. Double click "Removable Disk" icon.
  6. Double click "DCIM" folder icon.
  7. Double click "100GOPRO" icon to view all Photo and Video files.
  8. Copy/move files to the computer or external hard drive.

ON A MAC:

  1. Connect the camera to Mac using included USB cable.
  2. Press to turn on the camera.
  3. The Mac recognizes the camera as an external hard drive. Double click icon for external drive to access files.
  4. Copy/move files to computer or external hard drive.

IMPORTANT TIP FOR MAC USERS: When deleting files from the memory card, empty the trash before removing the memory card or unplugging the camera.

Playback

TO VIEW VIDEOS AND PHOTOS

Videos and Photos can be viewed on a TV/HDTV or the LCD Touch BacPac (optional accessory).

PLAYBACK on TV/HDTV

To browse Videos and Photos:

  1. Plug the camera into a TV/HDTV with a Micro HDMI or a mini-USB to a Composite Cable (optional accessories).
  2. Turn camera ON.
  3. On your camera press to cycle to . Press .
  4. HERO3 displays thumbnail previews of all Videos and Photos on the SD card. Photo sets taken in Photo Burst and time Lapse display the first Photo in a series.
  5. While in thumbnail preview use to cycle through thumbnails. Press to view.
  6. Use and to navigate backward and forward to see more media files on your memory card.
  7. Highlight desired file to view and press .
  8. Depending on whether you are viewing Videos or Photos, different control options will appear. Use the and buttons to navigate.

warning Note: Photo Burst and time Lapse files will display the first Photo in the series.
To view all Photos in a series, use to select VIEW and press .

PLAYBACK ON LCD TOUCH BACPAC

Playback using the LCD Touch BacPac follows a similar process/procedure as described with a few slight variations.

* See the LCD Touch BacPac User Manual for more information.

Battery Life

CHARGING BATTERY

The battery icon displayed in the camera's LCD will blink when the battery drops below 10%. If recording is occurring when battery reaches 0%, the camera will save the file and power OFF.

To charge the battery:
Battery Life - CHARGING BATTERY

  1. Connect the camera to a computer or USB power supply (such as the GoPro Wall Charger or GoPro Auto Charger).
  2. The red Status Indicator Light remains ON while the battery is charging.
  3. The red Status Indicator Light will turn OFF when the battery is fully charged.

The battery will charge to 80% in one hour and 100% in two hours when using GoPro's 1000mAh USB-compatible Wall or Auto Charger. Other chargers may charge at only half this rate.

No damage will occur to the camera or the battery if used together prior to full charge.
Spare batteries and additional charging accessories are available at gopro.com.

USING THE CAMERA WHILE CHARGING

You can charge the camera's battery while recording Video or taking Photos. Simply plug the camera into a GoPro-specific auto, wall or phone charger to charge the HERO3 camera while recording Video or Photos. It is best to use GoPro's 1AMP (1000mAh) Wall or Auto Charger for maximum charging performance while the camera is in use. Performance of non-GoPro chargers cannot be guaranteed.

REMOVING THE BATTERY FROM THE CAMERA

The HERO3 battery is designed to have a tight fit to maximize reliability in high-vibration activities.

To remove the battery:

  1. Remove the battery door by placing your thumb in the indentation in the battery door (on the back of the camera) and sliding it to the left.
  2. Allow the door to pop out. Grasp the battery pull-tab and remove from the camera.

Important Warning Messages

MICROSD CARD MESSAGES

NO SD No card present. The camera requires a microsD, microsDhC or microsDXC card to record Video or take Photos.
SD FULL Card is full. Delete files or swap card.
SD ERROR Camera unable to access card.

FILE REPAIR ICON ON THE LCD


If you see the File Repair icon on the LCD screen, your Video file was corrupted during recording. Press any button and the camera will repair the file.

TEMPERATURE WARNING ICON ON THE LCD


The Temperature Warning icon will appear on the LCD when the camera has become too hot and needs to cool down. Simply let it sit and cool before attempting to use it again. Your camera will not allow itself to overheat — do not worry, no damage has occurred.

Camera Assembly

ASSEMBLING THE CAMERA

The HERO3 camera housing is waterproof to 197'/60m and is constructed of polycarbonate and stainless steel for ultimate durability. The HERO3 has a new improved latch closure that offers one hand open-and-close functionality and locking.
ASSEMBLING THE CAMERA

To place the hero3 camera into the housing:

  1. Place camera in housing.
  2. Position the backdoor into place.
  3. Lift the latch arm into upright position allowing the hinged arm to hang downward.
  4. Hook grooved portion of hinged arm to grooved top of the backdoor.
  5. Use one finger to push down the latch arm to snap into place.

To remove the hero3 camera from the housing:

  1. Grip the housing with left hand.
  2. Using right hand, place thumb to left side of arrow and index finger just below latch arm.
  3. Pinch fingers together, sliding arrow to the right.
  4. Use fingertips to pull upward, allowing latch arm to swing to fully upright position.
  5. Lift hinged arm over the housing and remove the HERO3.

To close properly, be sure grooved sections of the latch arm and the backdoor are hooked.

The HERO3 housing comes with two types of back doors —Skeleton and Standard.

Skeleton Backdoor

The Skeleton Backdoor (non-waterproof) provides better sound quality by allowing more sound to reach the camera's microphone. It also reduces wind noise at speeds up to 100mph when mounted on helmets, motorcycles, bikes and other fast-moving vehicles. Use this backdoor only when sand, excessive dirt/dust and water damage is not a risk. This backdoor is also recommended for use inside vehicles.

Standard Backdoor

The Standard Backdoor makes the housing waterproof to 197'/60m. Use this door when you need to protect the camera from water and other environmental hazards.

information PRO TIP:
Apply RAIN-X or a similar anti-beading solution to the housing lens to prevent waterspots from forming when using your camera in rain or water. When RAIN-X is not available, periodically licking your lens is a good backup solution. Dunk your camera after licking. Trust us, this works.

SWAPPING HOUSING DOORS

Your HERO3 camera housing comes with two types of backdoors—Standard and Skeleton (non-waterproof).

To change backdoor:

  1. Open the backdoor of the housing so that it is hanging downwards.
  2. Pull downwards on the backdoor until it snaps free from the hinge.
  3. Line up replacement backdoor into the hinge opening.
  4. Push upwards on the backdoor until it clicks into place.

PREVENTING WATER DAMAGE TO YOUR CAMERA

The rubber seal that lines the camera housing forms a waterproof barrier that protects your HERO3 in wet and underwater conditions. Keep the camera housing's rubber seal clean; a single hair or grain of sand can cause a leak.

After every use in salt water you will need to rinse the outside of the housing with non-salt water and dry. Not doing this can eventually cause corrosion of the hinge pin and salt buildup in the seal, which can cause failure.

To clean the seal, rinse in fresh water and shake dry (drying with a cloth may cause lint to compromise the seal). Re-install the seal into the grooves in the backdoor of the housing.


Failure to follow these steps each time you use your HERO3 can result in leaks that may damage or destroy your camera. Your warranty does not cover water damage resulting from user error.

ATTACHING ADHESIVE MOUNTS

To attach your HERO3 camera to a mount, you will need an attachment buckle, thumb screw or other hardware depending on the mount you are using. For more information on mounts, visit gopro.com/support.
 ATTACHING ADHESIVE MOUNTS

USING CURVED OR FLAT ADHESIVE MOUNTS

The curved and flat adhesive mounts make it easy to attach the camera to curved and flat surfaces of helmets, vehicles and gear. With the attachment buckle the assembled camera housing can be clicked ON/OFF the secured adhesive mounts.

Flat Adhesive Mount

Curved Adhesive Mount

ATTACHING ADHESIVE MOUNTS

information PRO TIP:

  • Apply to clean surface only. Wax, oil, dirt or other debris will reduce adhesion, which can result in a weak bond and risk of losing camera should connection fail.
  • Attach mount in room temperature conditions. Mount's adhesive will not bond properly if applied in cold or damp environments to cold or damp surfaces, or if the surface is not room temperature.
  • Adhesive mounts should only be mounted to smooth surfaces; porous or textured surfaces will not enable a proper bond. When applying mount, firmly press into place and ensure full contact over entire surface.
  • For best results, attach the mount a minimum of 24 hours prior to use.
    * See gopro.com/support for more information on mounts.

Locking Plug


Using the HERO3 in high impact sports such as surfing or skiing where significant impact may occur? Use the special locking plug which securely locks the attachment buckle fingers into place--helping prevent accidental housing release from the mount. The circular ring fits over the thumbscrew and acts as a leash to prevent dropping or losing the locking plug.

Customer Support

GoPro is dedicated to providing the best possible service. To reach the GoPro Customer Support Team, visit gopro.com/support.

PREMIUM ACCESSORIES

HERO3 ACCESSORIES

HERO3 ACCESSORIES

MOUNTS + ACCESSORIES

MOUNTS + ACCESSORIES

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download GoPro HERO3 WHITE EDITION Manual

Advertisement

Need help?

Need help?

Do you have a question about the HERO3 WHITE EDITION and is the answer not in the manual?

Questions and answers

Table of Contents
