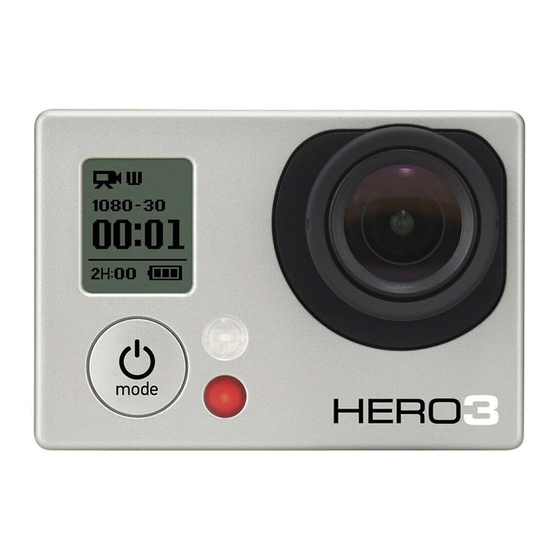

Go Pro Hero 3 Video out / Composite cable (original from GoPro, Independent from Ebay or Homemade) Go Pro Hero 3 Camera (I have only tested this with the Black edition, so I do not know if it will work with Silver or White editions ...
Page 2
Original) from Ebay Note: The two cables options listed below allow you to power the GoPro from a 5volt power source as well as get the video out, but you will need to make / solder connections to the power source and your TV display or FPV device...
Page 3
How to setup your connection between Camera and TV/Display 1. Switch on your Go Pro Hero 3 Camera and remove the protective side cover (where the memory card goes) 2. Connect your Go Pro Hero 3 Composite/Video out cable to the mini USB Port of your Camera (the lower socket!) 3.
Page 4
7. You should now see a grey arrow on a white background, similar to the image on the front of the Go Pro Camera 8. Press the Red Select button on top of the Go Pro Hero 3 9. You should now see a selection of images and videos from the video card on your camera...
Page 5
10. Press the Silver Power button on the front of your Camera several times until you have a yellow box around the X in the top corner of your screen. 11. Now press the Red Select button on Top of the Go Pro Hero 3 12. You should now see the video output from your Camera on your TV/Display.
Page 6
Note: If you are using video output cable that has a connector that allows you to power the camera from the USB port, then connect your 5 volt (DC) power source to the connector with the black and red cable, making sure that you observe the right polarity (connecting Positive to Positive and Negative to Negative –...
