Connections; Cap - Eclipse CH3083 - - CD Changer Owner's Manual

Mounting instruction
6 .
7
CAPS [x4]
1
CD CHANGER

Connections

Caution
To prevent electrical damage to audio unit, be sure to
ground chassis of external power amplifier to car's body.
• The chassis of an add-on amplifier must be properly
• If the amplifier's chassis is not grounded, the amp's
26

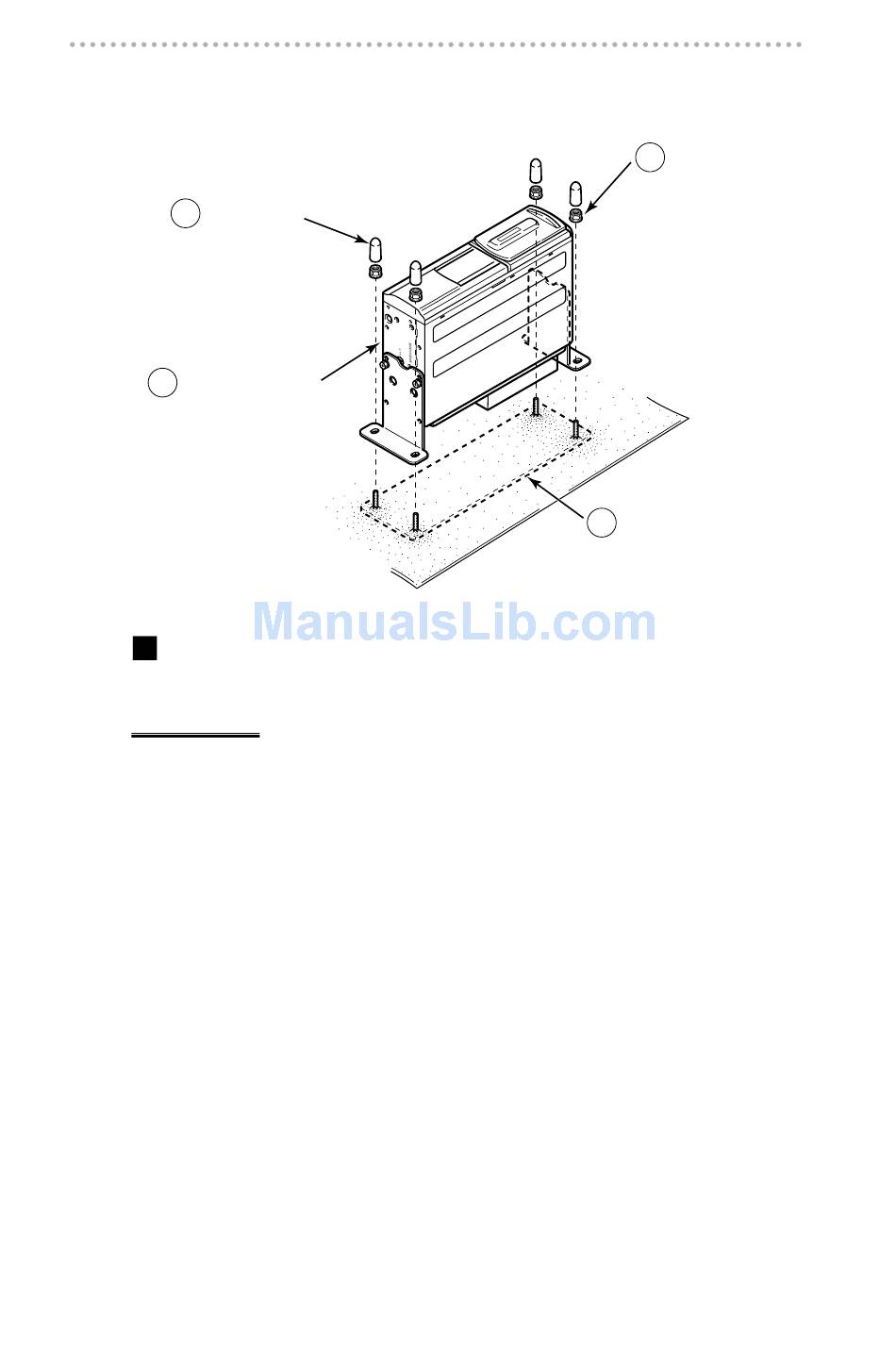

Install CD changer unit to the base bracket with 4 nuts
provided. Place caps over the mounting bolts.
grounded to a nearest metal part of the car's body.
chassis may possibly generate unwanted electric voltage
(in reference to the car body ground) as the user
operates the audio system. And eventually, this may
possibly lead to an internal damage (electric damage) of
the audio head unit.
5
NUTS [x4]
(5mm)
2
BASE BRACKET
Fig.13
