Lift the carpet, and choose the mounting location
by placing the base bracket in a safe location.
Remove the papers, then press the base bracket
on the floor panel securely.
2

BASE BRACKET

4 .

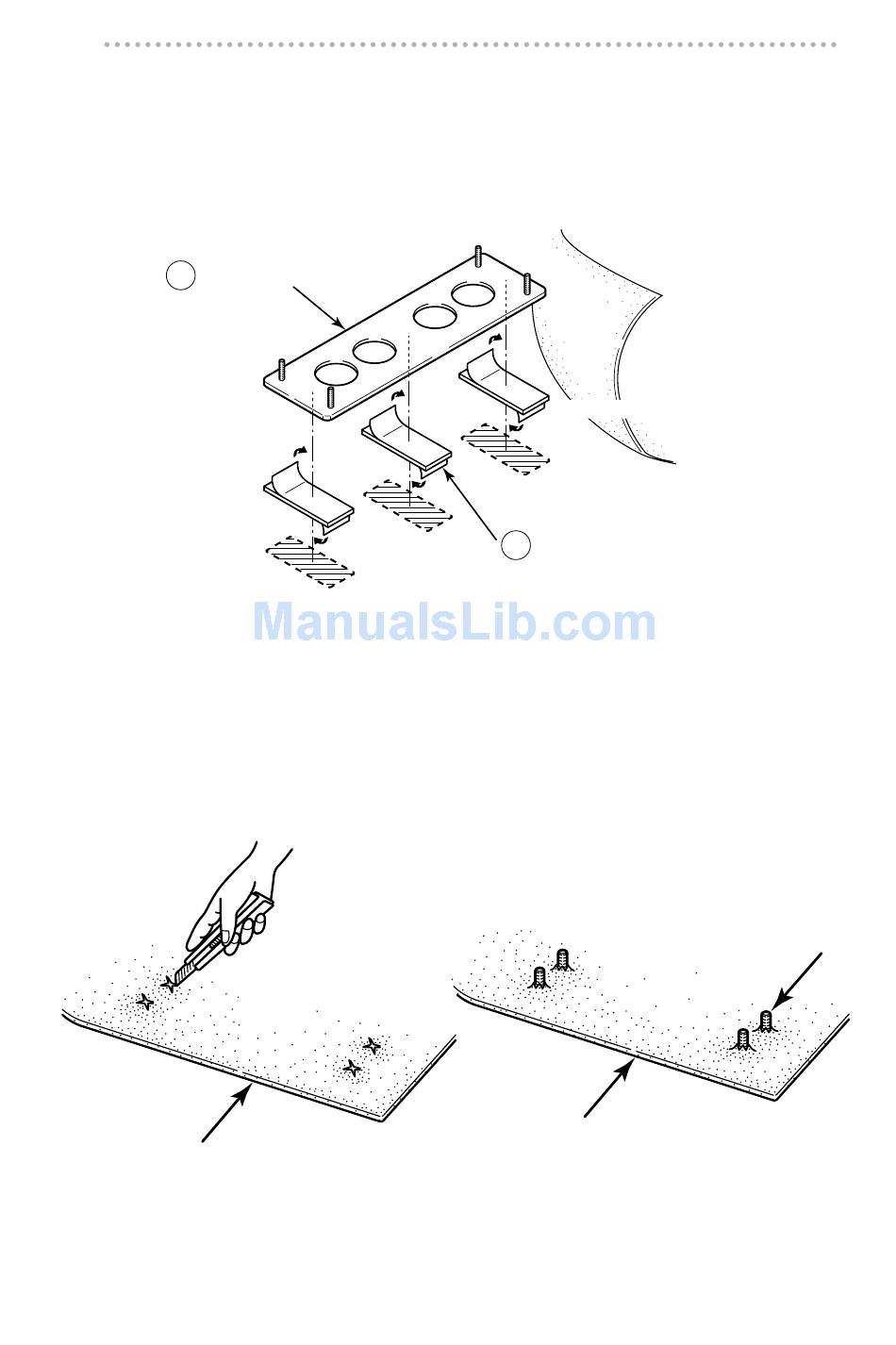

Replace the carpet and cut x pattern thru carpet
where the mounting bolts appear. (Fig.5)
5 .
Push mounting bolts through a carpet. (Fig.6)
CARPET
Fig.5
LIFT THE CARPET
REMOVE THE PAPER
6
SELF-ADHESIVE PAD
CARPET
Fig.6
Mounting instruction
Fig.4
SCREW
