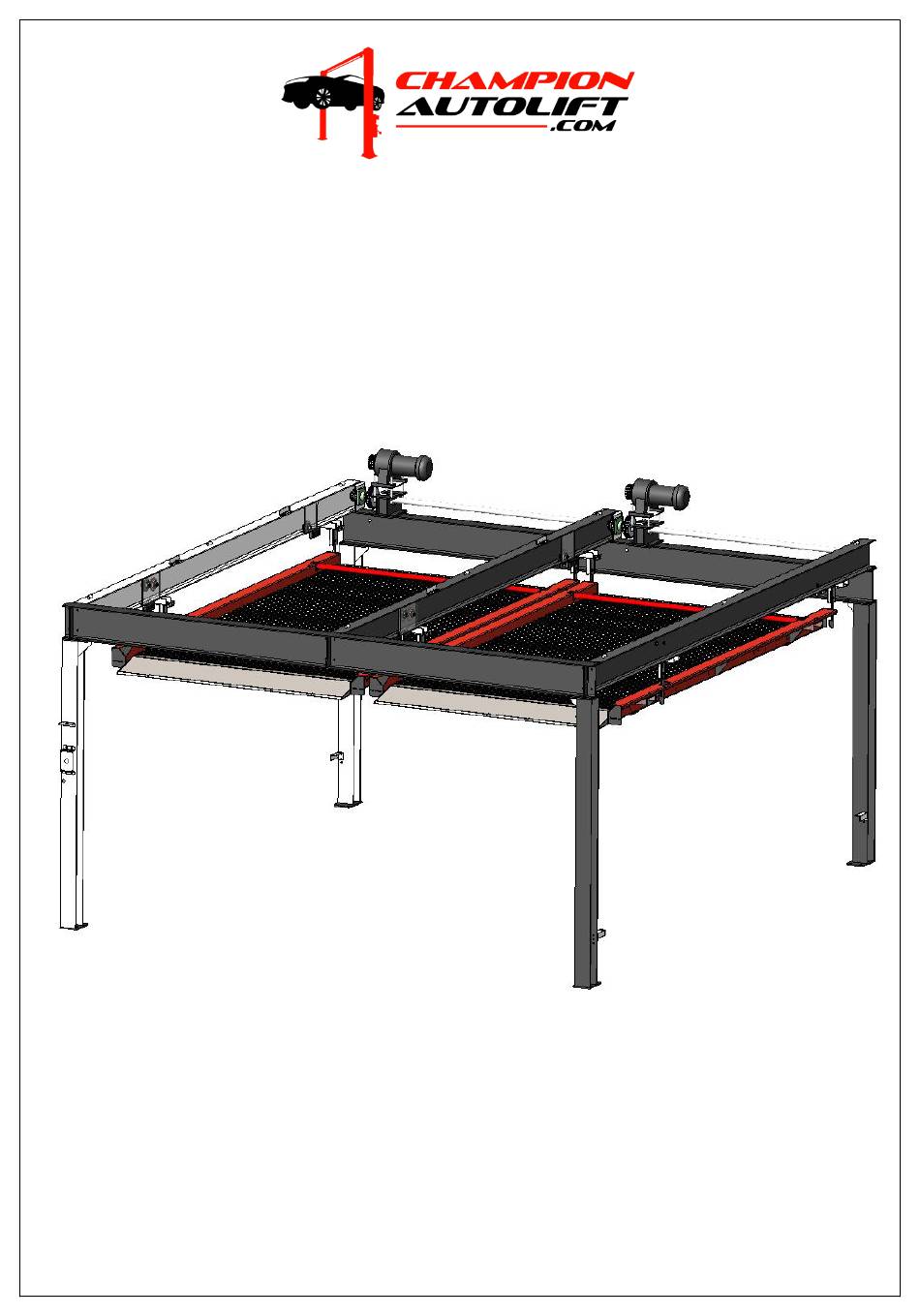

- Page 1 INSTALLATION MANUAL& OPERATION INSTRUCTIONS PUZZLE PARKING SYSTEM Document number: GG220810A Date: 10/09/2022...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: USER’S RECORD CHAPTER 2: INTRODUCTION CHAPTER 3: SAFETY INSTRUCTIONS CHAPTER 4: DESCRIPTION AND TECHNICAL DATA CHAPTER 5: INSTALLATION INSTRUCTIONS CHAPTER 6: INSTALLATION STEPS CHAPTER 7: ELECTRO INSTALLATION CHAPTER 8: ELECTRIC & HYDRAULIC DIAGRAMS CHAPTER 9: MAINTENANCE CHAPTER 10: TROUBLE SHOOTING... -
Page 3: Chapter 1: User's Record
CHAPTER 1: USER’S RECORD RECORD BELOW INFORMATION WHICH LOCATED ON THE NAME PLATE MODEL NO SERIAL NO CUSTOMER DATE OF INSTALLATION WE HEREBY DECLARED THAT THE ABOVE MENTIONED MACHINE HAS BEEN INSTALLED CORRECTLY. ALL FUNCTIONS HAVE BEEN CHECKED AS WELL AS CORRECT OPERATING OF ALL SAFETY DEVICES. -
Page 4: Working Principle
CHAPTER 2: INTRODUCTION This Manual has been made to supply the owner as well the user with the basic instructions for installation and a correct use of the PUZZLE PARKING SYSTEM. Read this guide carefully before using the lift and follow the instructions given by this guide to grant it a correct function, efficiency and a long service life. -
Page 5: Chapter 3: Safety Instructions
CHAPTER 3: SAFETY INSTRUCTIONS 1. Read and understand all safety warning procedures before operating the parking lift. 2. Do not install the parking lift on any asphalt surface. 3. This parking lift is designed for parking motor vehicles that weighs within its max lifting capacity. - Page 6 15. The vehicle must be centered and positioned in a stable correct way with respect to the platform and following the instructions given by manufacturer. 16. Make sure that the lift and its devices are working correctly, according to the specific instructions for maintenance.
- Page 7 1. Puzzle parking equipment manual In order to ensure safe operation of the parking equipment, before operating the equipment must read this section carefully. Parking equipment operation is controlled by the operator and the control box two parts. GGlifters parking equipment operators include touch screen and dedicated operator two main forms. Touch screen is mainly used for small parking equipment, parking equipment with more parking spaces dedicated operator.
- Page 8 Key switch: operator is on manual mode, individually control the platforms up or down. EMERGENCY: when the equipment meet emergency situation,press EMERGENCY will be stopped. Operation manual After turn on the power of control box,turn key switch to manual position. Under manual mode, only turn the key to achieve the parking space up or down.
-
Page 9: Chapter 4: Description And Technical Data
CHAPTER 4 DESCRIPTION AND TECHNICAL DATA 4.1 Technical Date Manufacturer Champion Distributors, LLC Machine Type 2 Cars Puzzle Parking System Lifting capacity 2500 kg / platform. Net lifting Height 2200 mm Unit External dimensions 5190*5756*3228mm Runway type Up /dowm Electric parts Original Chint Lock release type Electromagnetic lock release... -
Page 10: Chapter 5: Installation Instructions
4.3 Drawing CHAPTER 5: INSTALLATION INSTRUCTIONS GG Lifters Equipment, ensuring our customers’ safety is our primary concern. “PUZZLE PARKING SYSTEM were designed and built with safety in mind. However, safety relies on proper installation and training. Prepare for a successful installation by making sure your floor meets specific requirements. - Page 11 Open – End Metric Wrench set Metric Socket and Ratchet Set Torque Wrench, Screwdrivers, Needle Nose Pliers. Vise Grips, Teflon Tape and rubber Hammer. Step Ladder, 1.2 m Foot Bubble Leveler, Tape Measure 10 m.
-
Page 12: Chapter 6: Installation Steps
CHAPTER 6: INSTALLATION STEPS 3.7kw Motor Main Shaft Middle Carling Motor Base Back Girde Left Carling Right Girde Front Girde Upper Load Car Plate Left Back Post Right Back Post Right Front Left Front Post Post STEP 1(Selecting Site): before installing your new lift, check the following. 1. -
Page 13: Chapter 7: Electro Installation
ELECTRO INSTALLATION 1.limit switch installation Upper and lower limit switch devices: limit switches are set to protect the vehicle. There are upper limit and upper limit when ascending; lower limit and lower limit when descending Safety anti-fall device: adopt safety hook and electromagnet drive. The U-shaped ring is installed on the lifting vehicle plate, and the safety hook is hung in the U-shaped ring after ascending to the position, which plays a role of preventing falling. - Page 14 Wire rope anti-loosening device : the linkage of limit switch, arm and spring is adopted, so that when the chain breaks suddenly, the limit switch will be touched to prevent the device from continuing to operate.
-
Page 15: Motor Installation
4. Motor installation 5. Photo sensor installation Incoming detection of people and vehicles: Stop running when detected by the front and rear photoelectric sensors and send a warning by buzzer to prevent accidents. - Page 16 6. Warning system : warnings (warning light, buzzer) when the vehicle is running and an accident occurs. 7. Operation panel installation...
-
Page 17: Chapter 8: Electric & Hydraulic Diagrams
CHAPTER 8: ELECTRICAL AND HYDRAULIC DIAGRAMS... -
Page 20: Chapter 9: Maintenance
CHAPTER 9: Maintenance System maintenance In order to ensure the normal work of the system, the system must be maintained as necessary. The main contents of the maintenance are as follows: ① Regularly remove the dust accumulated in the electrical cabinet, ensure that the cabinet is clean and dry, and ensure that the system grounding wire is good. - Page 21 Platform can Limit switch not in right position Adjust the limit switcher position not be lift or slide to certain Foreign matter stop the platform Remove the foreign matter position The plat form lift Adjust the limit switcher position ;repair Limit switcher not in right or slide over the the limit switcher or replace the limit...
- Page 22 ⑷Bearing wear ⑴Power and motor Phase gap repair or replace the 5.Noise of Motor。 contactor ⑵AC contactor end wear. ⑴Voltage too low or not stable Waiting for the voltage 6.Platform stop in recover then reset. midair, can not lift ⑵Over load lift Reduce the load.
- Page 23 d. The electromagnet is firmly attracted when energized, and reset correctly when the power is turned off; within 2 minutes of continuous energization, it works normally, no abnormal sound, no heat phenomenon e. The linkage is correct and there is no misoperation or interference. If there is any abnormality, it should be adjusted in time.
- Page 24 8. Bearing All parts of the bearing should be well lubricated, and any form of damage is strictly prohibited, otherwise it should be stopped immediately, and the equipment can only be operated after replacing the qualified bearing. 9. Foundation a. The foundation has no sinking, cracking and other phenomena, and the concrete has no excessive defects and damage b.
- Page 25 15. Note a. All the transmission parts of the garage (such as motors, chains, wire ropes, bearings, etc.), safety anti- fall devices, sensors, limit devices, and main load-bearing parts are the keys to determine whether the garage can operate safely. b.
