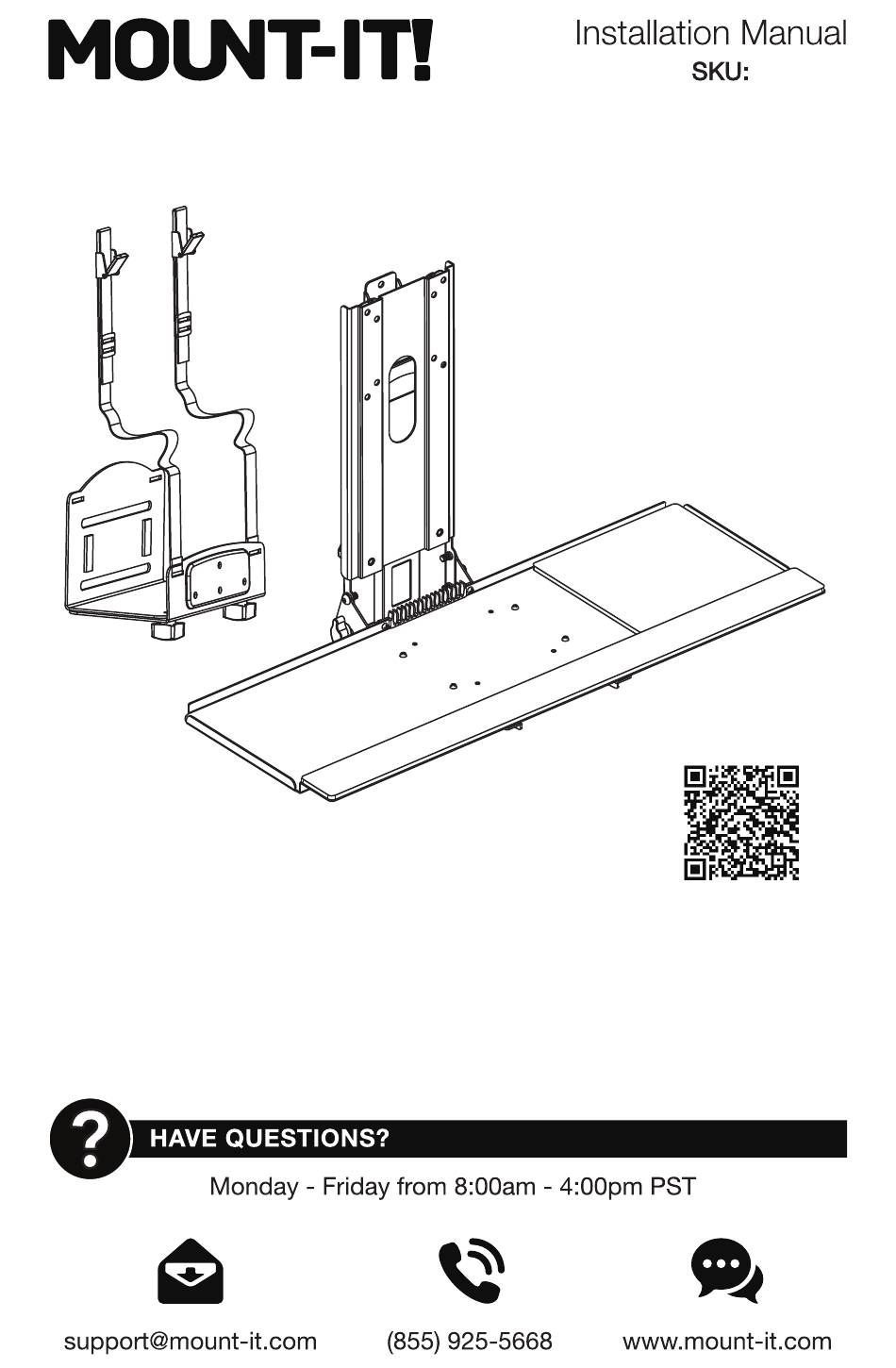

- Page 1 MI-7919 Scan this QR code for product information, videos, and assembly assistance. SIT-STAND WORKSTATION WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! VESA Mount Lower Bracket Monitor Keyboard Tray Keyboard Keyboard Bracket Arm – Left Arm – Right Mouse Pad Height Adjustment Spacers Keyboard Level Bolts Bolts Hex Wrench Hand Knobs Hand Knobs Mounting Hardware Wall Mounting Hardware Check carefully to make sure there are no missing or defective parts.
- Page 3 Step 1 Prepare the VESA Mount B. Concrete/Brick Mounting Option • Remove the bolt on the top of the VESA Mount (#A) and slide the VESA Plate off the wall bracket. • Using a bubble level to ensure straightness hold the wall bracket from the VESA Mount (#A) to the desired location on the wall and mark the center of the mounting holes with a pencil.
- Page 4 Step 3 Step 4 Assemble the Mount Body Attach the Monitor • Attach the Left and Right Keyboard Arms (#E, #F) to the bottom of the Lower Bracket (#B) in the • Select the appropriate size mounting bolt (Select one size #M-A, or #M-B) and washer (#M-C) for your orientation shown using the Bolts (#K) and Keyboard Level Hand Knobs (#J).
- Page 5 Step 6 Step 7 Attach the Keyboard Tray Final Adjustments • Attach the Keyboard Tray (#D) to the top of the Keyboard Arms using the Bolts (#L). • Place the Mouse pad (#G) on the keyboard tray. Note: The Keyboard Tray may be installed in either set of available holes depending on the desired position of the tray. •...
- Page 6 Step 9 PC Mount and Hardware A. Concrete/brick Installation Option • Hold the shorter side of the PC Mount to the wall in the location it will be mounted and mark the location for the 3 holes on the wall with a pencil. •...
- Page 7 Step 10 Adjusting the Width of the PC Mount B.Wall Stud Installation Option • Re-attach the two halves of the PC Mount, ensure the washers are still present on the threaded bolt • Use a stud finder to locate the center of the stud, then hold the shorter side of the PC Mount to the wall between the two halves before continuing, and secure them together using the Hand Knobs (#E) in in the location it will be mounted and mark the location for the 2 center holes on the wall with a pencil.
- Page 8 Step 11 Attaching the PC Mount to the PC • Insert the PC into the PC Mount and adjust the width of the PC mount to fit your device. To do so loosen the hand knobs on the underside of the mount and push or pull the halves to fit snugly against the sides of your PC.
