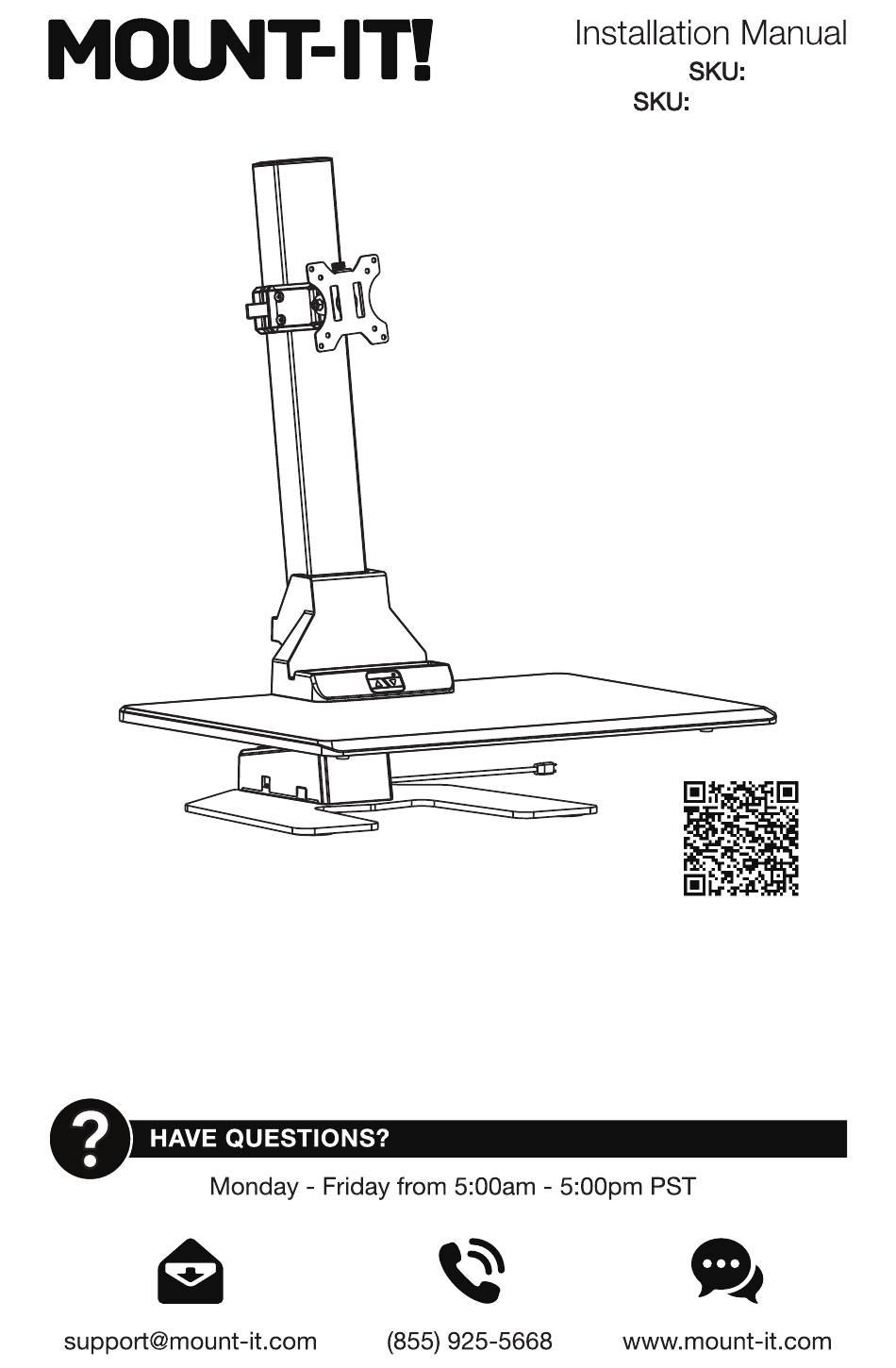

- Page 1 MI-7951 MI-7951WHT V1 07/24 Scan this QR code for product information, videos, and assembly assistance. ELECTRIC SIT-STAND WORKSTATION...
- Page 2 Workstation and Accessories Thank you for choosing Mount-It Mount-It! Base Control Panel Monitor Arm Keyboard Tray Wall Plug Mount-It! Lift Column Monitor Mounting Hardware Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
-
Page 3: Step 1 Assemble The Base
Step 1 Step 3 Assemble the Base Secure the Tray • Attach the Lift Column (#A) to the Base (#B) using the Bolts (#I). • Install the 2 Bolts (#H) to the lower bolt holes then fully tighten the upper 2 bolts. Step 4 Install the Control Panel •... - Page 4 Step 5 Step 7 Secure the Control Panel Install the Monitor Arm • Press the up-arrow button and raise the keyboard tray to a higher enough position to comfortably • Slide the Monitor Arm (#D) onto the column and tighten the 4 bolts on the Monitor Arm to secure the access the bottom of the tray.
-
Page 5: Step 11 Final Adjustments
Step 9 Step 11 Hang the Monitors on the Arm Final Adjustments • Slide the monitors into place on the end of the monitor arm brackets. Reinstall the bolts and knobs • The monitors can be tilted ±45° and swiveled ±30°. And Screen Rotation is ±180°. Store the Hex removed in Step 6 to secure the monitors in place.
