Page 1 Atmosphere line of products sets the new standard for the fixed architecture zone The user manual can also be found at the following based processing market. From all of us at AtlasIED, we once again thank you for your address: www.atlasied.com/atmosphere_manual purchase and look forward to working with you in the future.
Page 2 • Play high priority message Unbalanced Mono Summed RCA Inputs 10. Accessory ports for Atmosphere accessories Balanced Line Outputs 11. Network Port Amplifier Outputs 12. IEC Inlet 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 3: User Interface
Create event to simultaneously trigger a scene, Routines message, GPO, and/or bell schedule change 13. Full Screen Uses entire screen to display the user interface GPIO Configure GPIO port behavior 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 4 • The unit will now broadcast an SSID (AtlasIED_AZM/AZMP will be the default SSID) that can be found using Wi-Fi enabled devices • Select the now available network from the settings page on your device and connect (The default password is AtlasIED. This can be changed in the user interface) •...
Page 5: Connecting Accessories
• No limits exceeded • Too many audio inputs, max 1 per port • Too many devices on port, max 8 (without X-ZPS) or max 6 (with X-ZPS) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 6: Available Accessories
Mono summed unbalanced RCA / 3.5mm Mono summed commercial Bluetooth phantom power endpoint with NFC X-ANS / X-ANS-EU X-GEM Ambient noise compensation sensor Placard for printed virtual wall controller QR Code 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 7 équipements accessories specified by the électrique, n’exposez pas cet AtlasIED doit être faite par du Do not block any ventilation manufacturer. appareil à la pluie, à l’humidité, à personnel formé / qualifié et openings.
Page 8 Atmosphere ™ Next-Gen Expandable Zone DSP Controller User Manual 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 9: Table Of Contents
Ambient Noise Sensor - X-ANS ................................... 33 Ambient Noise Sensor Placement Guide ..............................33 Rule-1 ........................................34 Rule-2 ........................................34 Rule-3 ........................................35 Rule-4 ........................................35 Rule-5 ........................................36 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 2 –...
Page 10 Regulatory Information: AZM4 / AZM8 / A-BT ................................. 77 Compliance Certs/FCC Statement ..................................78 Limited Warranty, Customer Service Online Warranty Claim Process ........................79 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 3 –...
Page 11: Important Safety Instructions
AVERTISSEMENT: l’installation et la maintenance des équipements 7 . Do not block any ventilation openings. Install in accordance with the AtlasIED doit être faite par du personnel formé / qualifié et doivent être manufacturer’s instructions. conformes à toutes les réglementations locales en vigueur.

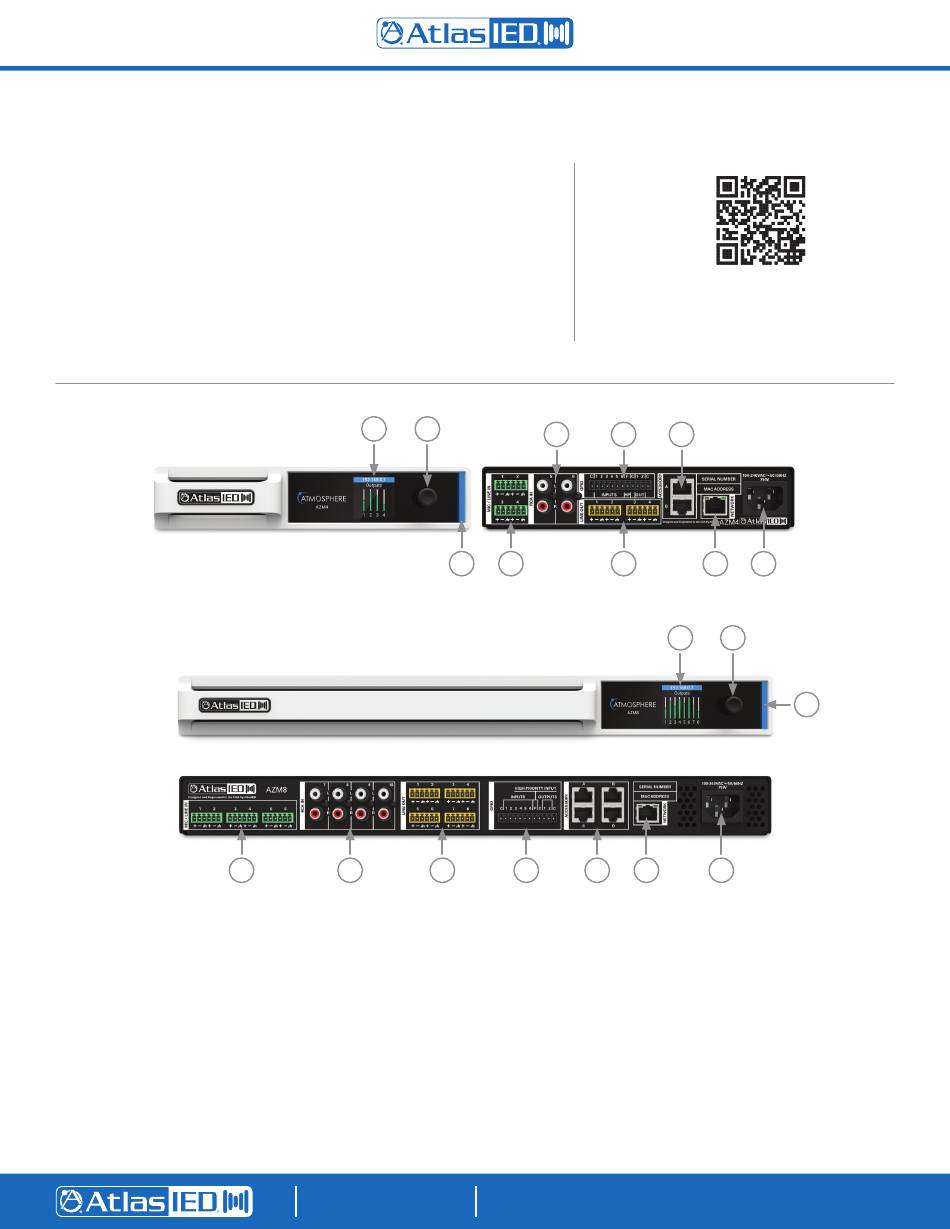

Page 12: Introduction
In our rapidly changing technology-rich world, providing customers with long-term stability, scalability, and flexibility are paramount. From all of us at AtlasIED, we once again thank you for your purchase and look forward to working with you in the future.
Page 13: Key Features And Applications
• Tilter-Filter Room EQ Adjustment Tool • Web UI – Designed for Optimal Use with Chrome or Safari Web Browsers • AtlasIED Speaker Presets • Plug and Play Intelligent Wall Plate Accessories • Mono, Mono + Sub, Stereo, Stereo + Sub support •...
Page 14: Package Contents
QR Code Placard IEC Power Cord AZM4 = QTY: 1-12wy QTY: 1 QTY: 1 Adapter & Screws & Screws AZM8 = QTY: 1-12wy AZM4 AZM8 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 7 –...
Page 15: Rack Installation Guide
To rack mount the AZM4, remove included rack ear and ½ rack adapter and fasteners from hardware box and attach to each side. Note: The AZM4 is a ½-RU device and can be mounted in a side-by-side configuration using the AtlasIED part # PA702-RMK rack kit. It can also be combined with the IP power strip AtlasIED AP-S15HRIP .
Page 16: Hardware Overview
Note: To save Settings prior to Factory Reset, go to Settings, Configurations and Save file to computer for upload after reset. When left undisturbed for 60 secs, the display will return to the default = Outputs. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 9 –...
Page 17: Azm4 & Azm8 Front Panel
Inputs 5-6 (AZM4) and 7-10 (AZM8) accept standard stereo RCA Line level source devices (media players or computers) and are summed to mono internally for assigning to zones. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 10 –...
Page 18 IP address on the front panel display. AC Power AC Power Input – IEC connector, 100-240VAC ~ 50-60 Hz, universal power supply. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 11 –...
Page 19: Connections
Note: When using an unbalanced source on the 3.5mm Euro Connector, connect the GND to – with a jumper wire. (see unbalanced image in connections guide). For the RCA inputs, pre-made RCA cables can be purchased from AtlasIED to simplify interconnection to external devices. https://www.atlasied.com/volume-controls-cables-audio-cables-unbalanced-audio For RJ45 connections, use CAT5e or CAT6 (non-shield) network cable with T-568B or A wiring.
Page 20: Network Connection Overview
Enter the password and then select the green checkmark to connect to the network. Note: The WiFi connection can be set up in the user interface if the AZM is connected via the ethernet port. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 13 –...
Page 21: Method 3 - Access Point Connection
The unit will now broadcast an SSID (AtlasIED_AZM will be the default SSID) that can be found using WiFi enabled devices. • Select the now available network from the settings page on your device and connect. (The default password is AtlasIED. This can be changed in the user interface).
Page 22: Sources
Select the input port or, if stereo, input ports (left/right) from the drop-down list of available inputs and select OK to add the source to the sources list. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 23: Source Settings-General - Mic/Line - Mono
When in the General Settings page, editing of the source name, color tag (click on color), and also delete source “X” , is available. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 16 –...
Page 24: General Settings-Rca Inputs - Mono
When in the General Settings page, editing of the source name, color tag (click on color), and also delete source “X” , is available. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 17 –...
Page 25: Rca Inputs - Stereo
The Gate can be adjusted to keep the mic muted until someone walks up and speaks directly into it, thereby reducing the PA system from amplifying the crowd chatter. Enable the Gate and Active indicator. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 18 –...
Page 26: De-Esser
The display can be used dynamically to move the curve while listening. This meter shows the activity of the Gain Reduction in real time to help adjust as necessary. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 19 –...
Page 27: Compressor
Display of compression curve with dynamic Threshold, Knee, and Gain Reduction that can be adjusted by mouse, or touch and see-hear changes in real-time. Shows the activity of the Gain Reduction in real time to help adjust the required amount. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 20 –...
Page 28: Equalizer - Presets
Flatten All – resets EQ filters to baseline 0dB from 20Hz to 20KHz. Preset Popup Window 4 spots, A, B, C, D to name Recall presets and save settings for your to this channel own Presets 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 21 –...
Page 29: Auto-Gain Control
AGC Input bar graph level with threshold setting and AGC Output level with target setting to manage settings range. Bar graph meter displays the applied boost/ cut gain (dB) to keep signal in range in real time. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 22 –...
Page 30: Audio Wall Plate Accessories (Sources)
Simply remove the faulty unit and plug in the new; the system will recognize it and update the settings exactly as it was before. No additional programming will be required. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 23 –...
Page 31: Audio Wall Plate (Add Source) Inputs
0dB to +60 dB of preamp gain available to fine tune input sensitivity for Mic or Line sources. Phantom Power Enable. Delete source “X” and Mute Source along with source (input) level fader. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 24 –...
Page 32: General Settings For A-Rca Page
0 - 30dB of gain available to fine tune input sensitivity. Delete source “X” and Mute Source along with source (input) level fader. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 25 –...
Page 33: General Settings For A-Bt Page
Note: It will NOT auto-pair again, you must press the pairing button (1) or, tap NFC (2) again to initiate a connection. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 26 –...
Page 34: Mixes Overview - Add Mix Setup
Mute – select to mute input channel. Set level of master mix (Mix 1) to output (each of the 4 Mix channels appear in the source list in zone outputs). 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 27 –...
Page 35: Signal Generator Input
Mute – select to mute output channel. Limiter Activity indicator, Yellow - limiting, Gray - no limiting . Link to settings navigates to the following pages: 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 28 –...
Page 36: Zone- Mono-General Settings Page
The General Settings page shows the port to wire connection to, and DSP settings pages for Priority, Crossover, Equalizer, Ambient Noise Compensa- tion (ANC) Control, and Limiter. Speaker Preset – select from a list of AtlasIED speakers and load output preset EQ tuning for that specific speaker. Gain Offset adjust with -20dB to + 20dB.
Page 37: Zone-Priority Page
Enable-Bypass for each filter, helps to audition the changes. Chose HP and LP presets by type (Butterworth or Linkwitz Riley) and Slope/Octave: BW6dB, BW12dB, BW18dB, BW24dB, LR12dB, LR24dB 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 30 –...
Page 38: Zone-Equalizer
Tilter Filter- allows a simple full spectrum “tilt” to adjust the overall brightness of the signal by “tilting” the entire 20Hz to 20KHz band up/down. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 31 –...
Page 39: Ambient Noise Compensation - Anc
Note: In a large Zone, multiple Ambient Noise Sensors can be assigned to a single zone. When multiple sensors are used, the SPL results are averaged to avoid over-reaction to local noise hotspots. (See X-ANS on Accessory Settings Page for dynamic levels) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 32 –...
Page 40: Anc - Auto Mode
Note: It is recommended to use Auto-Gain on the source audio feeding the ANC algorithm. This facilitates a more consistent output signal level to help ensure that customers can hear the source audio in the affected zone. Ambient Noise Sensor X-ANS (with included Decora trim plate) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 33 –...
Page 41: Rule-1
Placing the sensor in a location that allows it to be closer to the source of the noise than the adjacent speakers will prevent the masking effect from impairing the performance of the system. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 34 –...
Page 42: Rule-3
Placing the sensor in a centralized location within the zone will minimize the impact of audio from adjacent zones. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 35 –...
Page 43: Rule-5
12 and 18 feet above the floor. This allows the sensor to be placed at a point that will reduce the effects of noise sources that are located close to the sensor location. As in Rule 2, multiple sensors may also be used to help avoid overreaction to localized noise sources. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 36 –...
Page 44: Zones-Limiter
Too much limiter will destroy the dynamic range of music. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 37 –...
Page 45: Zones-Groups Overview
Mute – select to mute group channel. “>” icon links to settings page allows changing the zone selections, un-combine action, and delete group. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 38 –...
Page 46: Room Combine Active
Note: When activating a group, any existing active group with overlapping sources will un-combine and allow the new group action to take priority. i.e. the last action takes priority. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 39 –...
Page 47: Message Player Overview
Include zones and groups in the action when activated. Preview the message in the selected zones to check settings and that the message sounds acceptable. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 40 –...
Page 48: Audio Files
Note: The Priority page saves your settings when you exit the page. The priority list order is also saved to the “+ NEW MESSAGE” list on the mes- sages configuration page. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 41 –...
Page 49: Gpio Overview
Enable sets port number to accept input. When disabled, the action cannot be triggered. (below) Wiring port 1 with contact closure or voltage trigger connection. This can be a relay or latching switch. Example of contact closure: AtlasIED WPD-SWCC. 1601 JACK MCKAY BLVD.
Page 50: Gpio Outputs And Presets (Gpo's)
Set pulse time in .1 sec increments. “RECALL PRESET” will audition the action to confirm the setting is working. Status indicator will light when port is triggered. If timed, it will pulse on/off at the set pulse time. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 43 –...
Page 51: Gpio High Priority - Set Up Gpio To Play A Message
(below) Example of wiring Port F to common with contact closure connection and a voltage trigger. This can be connected to a relay activated by an alarm system. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 44 –...
Page 52: Scenes Overview
Note: Group settings will only apply if the group is currently combined. If the group is not combined, this section of the scene will be ignored. The total set-up scenes out of a max of 20. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 45 –...
Page 53: Routines Overview
Select scene to include in the routine. Select “>” navigates to the specific set up pages for each action. The total set-up routines out of a max of 20. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 46 –...
Page 54: Accessories Overview
Accessory Ports A-B (AZM4) or Ports A-B-C-D (AZM8) – All wall plate accessories are connected to the AZM accessory ports. These ports populate as you connect the wired accessories and the AZM detects them. Once detected, they appear on the port as shown below. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 47 –...
Page 55: Accessories Page
Selecting QR Code icon will pop-up a QR code to scan, or, select Print and print all configured QR codes, formatted for our GEM QR plaques. One is included with each AZM. Additional GEM plaques can be purchased in packs of five. See: https://www.atlasied.com/gem-5 Note: For QR control to work, mobile device must be connected to the same network as the AZM.
Page 56: Setting Up A Virtual Wall Controller, General Settings, Audio Control
Set an acceptable range of volume to adjust. Set mute to allow it to be available on the mobile device to toggle. Click “<” icon to return to Accessory page. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 49 –...
Page 57: Virtual Mobile Device-Audio Control, Messages, Actions, Mobile Device
Select from the list of pre-configured messages to be included to control on the mobile device. Press return link “<” to exit page, save settings, and return to accessories main page. Virtual Wall Controller Setup– Messages 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 50 –...
Page 58 If “Schedule Items” above in virtual actions Setup is “Enabled” , the daily bell schedule pre-configured exception schedules will be available as options. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 51 –...
Page 59: Print, Assemble, Place, And Scan
QR codes that have been configured. Print and cutout the zone QR codes you would like to put in zones to be scanned. Mount in GEM holder and place on wall. Additional GEM holders can be purchased in a pack of 5 at: https://www.atlasied.com/gem-5 Scan with mobile device and have instant control of the selections assigned.
Page 60: Setting Up Accessory Port Wall Controllers
QR codes: Copy Link, Open in New Window, or Print the QR code for display in the GEM mounting frame. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 53 –...
Page 61: Audio Control
QR code allowing a virtual controller to emulate the wall plate controller. Wall controllers automatically generate a QR code for a virtual controller. Select “<” icon to return to the Accessories page. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 54 –...
Page 62: Messages
30 minutes or will cancel when the controller encoder is used. If you see the QR code symbol and click on it, a QR code will display allowing a mobile virtual controller to emulate the wall plate controller. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 55 –...
Page 63: Screen Settings
30 minutes or will cancel when the controller encoder is used. If you see the QR code symbol and click on it, a QR code will display allowing a mobile virtual wall controller to emulate the wall plate controller. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 56 –...
Page 64: C-V General Settings
QR codes: Copy Link, Open in New Window, or Print the QR code for display in the GEM mounting frame. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 57 –...
Page 65: Audio Control
The locate icon can be clicked on or off causing the connected device to flash to physically identify its location. If left on, it will automatically shut off after 30 minutes or will cancel when the controller encoder is used. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 58 –...
Page 66: X-Ans General Settings
Up to 16 accessories can be connected to a single AZM. (see image rule 6) Up to 12 QR code virtual controllers can be used in addition to wired accessories. Image Rule 3 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 59 –...
Page 67 Atmosphere User Manual Image Rule 4 Image Rule 5 Image Rule 6 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 60 –...
Page 68: Scheduler, Steps To Create An Event
Event Enable – Note: time starts as soon as you enable. Select DONE to save settings, add to calendar, and see in dashboard as an upcoming event. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 61 –...
Page 69: Calendar-Bells
1. In-zone bell test ON. 2. Cancel bell test. 3. Select zone for this bell and adjust level. 4. Select done to save and exit pop-up. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 62 –...
Page 70: Calendar-Set Up Bells & Schedule Exceptions
To make a change to a specific day for an exception in the calendar, simply select the schedule directly and select the schedule change from the list of bell schedules. Note: See Settings > User Accounts – Planner Level. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 63 –...
Page 71: Diagrams - Connection Diagram And Block Diagram
GPIO settings. It can be printed as a system reference document for the project. Block Diagram The Block Diagram shows basic signal processing flow functions. It can be printed to go along with the connection diagram. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 64 –...
Page 72: Settings Page Overview
• Backup Copy– creates a backup file for import of this device’s green check marked settings, excluding Network Settings, Error Log, and Audio Files. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 65 –...
Page 73: Network, Firmware
The IP address is displayed at the top of the front panel display. Firmware To review the firmware version and update if needed. It is recommended to save a backup configuration file prior to updating. Visit atlasied.com to download the latest firmware. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com...
Page 74: Device Settings, Clock
5b) Automatic NTP – click NTP Sync Now to refresh sync. Indicates done with a green check mark. 5c) Select NTP Server – set up or change NTP server URL and confirm sync. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 67 –...
Page 75: Event Log, User Account
Installer: access to everything Manager: access to everything except for source/ zone DSP settings Planner: calendar only (events and bell scheduler) Associate: zone control only. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 68 –...
Page 76: Project Settings, Theme
Note: These notes will also populate the printable connection diagram notes. Theme Select Light/Dark background theme Note: This selection is also part of the initial log-in. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 69 –...
Page 77: Front Panel Display Menu Tree
Atmosphere User Manual Front Panel Display Menu Tree 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 70 –...
Page 78: Specifications
PEQ, Tilter Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct) Speaker Tuning EQ Presets Dynamics Ambient Noise Compression, Limiter Other Delay (500ms), Gain 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 71 –...
Page 79 Control Type: 24 Detents 360° Continuous Push Button Encoder Light Ring: RGB (Mute, Signal, Locate) C-ZSV Screen: 128 x 128 Color TFT Dimensions: 1.78" x 4.2" x 1.9" Minimum Box Depth: 2.25" 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 72 –...
Page 80 Data Returned to AZM: Non-audio Calibration: RMS, A-weighted, SPL Range: 30 - 110dBSPL X-ANS Indicator: Blue = Locate Dimensions: 1.78" x 4.2" x 1.4" Minimum Box Depth: 2.25" 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 73 –...
Page 81: Mechanical Line Drawings With Dimensions
Atmosphere User Manual Dimensional Drawings AZM4 8.5" (215.9mm) 1.7" (43.2mm) 11.78" (299.1mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 74 –...
Page 82 Atmosphere User Manual Dimensional Drawings AZM8 17" (431.8mm) 1.7" (43.2mm) 11.78" (299.1mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 75 –...
Page 83 C-V, C-ZSV, A-RCA, A-BT, and X-ANS share the same dimensions 2.75" 1.86" (69.9mm) (47.2mm) 4.5" (114.3mm) 1.15" (29.1mm) A-XLR 2.75" 2.06" (69.9mm) (52.4mm) 4.5" (114.3mm) 1.71" (43.4mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 76 –...
Page 84: Regulatory Information: Azm4 / Azm8 / A-Bt
équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établisse-ment d’une communication satisfaisante. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 77 –...
Page 85: Compliance Certs/Fcc Statement
These devices comply with technical specifications required under EN 55024, EN 55032, EN55035, EN55103-2 EN 62368 and EN 60950. Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 78 –...
Page 86: Limited Warranty, Customer Service Online Warranty Claim Process
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
Page 87 Atmosphere™ AZM4 / AZM8 Instruction Manual for Third Party Control 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
Page 88 3.4 Response when using “id” .................................... 4 4.0 Parameters with Special Handling ..................................4 5.0 Third Party Control Message Table ..................................5 6.0 Parameter Lists ........................................6 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 2 –...
Page 89: Introduction
{“jsonrpc”:”2.0” , ” method”:”getResp” , ” params”:[{“param”:”KeepAlive” , ” str”:”OK”}]} <- TCP Response {“jsonrpc”:”2.0” , ” method”:”getResp” , ” params”:[{“param”:”KeepAlive” , ” str”:”OK”}]} <- UDP Response 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 3 –...
Page 90: 3.0 Message Types And Syntax
“get” method can be used to find the current value of a parameter at the instance in time when the message is sent; however, it is recommended that parameters are subscribed in order to maintain synchronization. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 4 –...
Page 91: Multiple Parameters In A Single Message (Arrays)
Receiving an update after the initial subscription indicates the action has been triggered. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 5 –...
Page 92: 5.0 Third Party Control Message Table
{“jsonrpc”:”2.0” , ” method”:”set” , ” params”:{“param”:”SourceMute_2” , ” val”:1}}\n Note: The Third Party Message Table is dynamic and will update according to the current AZM4/AZM8 settings. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 6 –...
Page 93: Parameter Lists
SourceName) GroupActive MessageName PlayMessage RoutineName RecallRoutine SceneName RecallScene GpoPresetName RecallGpoPreset BellScheduleName TodaysBellSchedule Num Bell Schedules (use number after underscore in BellScheduleName) LoudNoise GpoState FirmwareVersion 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 7 –...
Page 94: General Description
• Accessory Data + Audio Digital Bus – RJ45-Unshielded to expect from AtlasIED. We believe you will find this platform highly flexible Cat 5e/6 Wire Runs up to 1000ft to address a variety of applications while being refreshingly simple to deploy.
Page 95 Maximum Output Current Maximum Output Voltage 100Vrms Protection Short, Thermal, HF , and DC * = 3dB down at 20Hz (24dB BW HPF implemented) and +/0.5dB up to 20kHz 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 96 26.75 lbs (12.1kg) Agency Approvals Conforms to: ANSI / UL 62368-1 Safety Certified to: CAN / CSA C22.2 #6236 FCC / ISED Part 15 (Class B) (US), ICES-003 (Canada) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 97 Frequency Response: 70Hz - 16kHz Dynamic Range: >90 dB Light Ring: RGB Dimensions: 3.33” x 3.78” x 8.53” Housing Type: Cast aluminum Mounting: Table top or snap in plate 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 98: Output Options
* = 15s continuous at 1kHz and rated THD% Time 4Ω 8Ω 100V ** = Recommended maximum power when used in CAF Max Power* masking applications Continuous Masking** 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 99: Dimensional Drawings
Dimensional Drawings AZM4 8.5" (215.9mm) 1.7" (43.2mm) 11.78" (299.1mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 100 Dimensional Drawings AZM8 17" (431.8mm) 1.7" (43.2mm) 11.78" (299.1mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 101 Dimensional Drawings AZMP4 17.00in 431.8mm 1.70in 43.2mm 15.03in 381.7mm 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 102 Dimensional Drawings AZMP8 17.00in 431.8mm 3.45in 87.6mm 15.03in 381.7mm 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 103 Dimensional Drawings C-V, C-ZSV, A-RCA, A-BT, and X-ANS share the same dimensions A-XLR 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 104 Dimensional Drawings C-V-EU, C-ZSV-EU, A-RCA-EU, A-BT-EU, and X-ANS-EU share the same dimensions A-XLR-EU 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 105 Dimensional Drawings 8.53in 216.6mm 3.78in 96.0mm X-ZPS 3.33in 84.6mm X-ZPS with desk mount installed 8.66in 219.9mm 3.78in 96.0mm 3.49in 88.6mm 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 106 Dimensional Drawings X-ZPS with 16" gooseneck mic installed [16 in] 406mm 18.13 460.6 3.78 8.53 96.0 216.6 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
Page 107: Architect And Engineer Specifications
The GUI shall have pages for GENERAL Settings that include Input Priority the assigned IP address and each of the Zone output levels (default). A setup; AtlasIED Speaker Preset select; output Delay adjust; and DSP Menu Navigation encoder control knob shall be available to configure and settings pages for Priority, Crossover, Equalizer, ANC (Ambient Noise interrogate settings and faults directly.
Page 108 Frequency response shall be: +/-.5dB 20Hz-20kHz > 110dB “A" weighted; S/N >108dB unweighted, >110dB “ A" weighted. Max Bal-Line Output Level = +20dBu (7 .75Vrms). The audio zone processor shall be an AtlasIED Atmosphere™ AZM4. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com...
Page 109 DSP pages. The GUI shall have pages for GENERAL Settings that include the assigned IP address and each of the Zone output levels (default). A Input Priority setup; AtlasIED Speaker Preset select; output Delay adjust; Menu Navigation encoder control knob shall be available to configure and and DSP settings pages for Priority, Crossover, Equalizer, ANC (Ambient interrogate settings and faults directly.
Page 110 (with Accessories) =256 BTU/hour; Frequency response shall be: +/-.5dB 20Hz-20kHz > 110dB “ A” weighted; S/N >108dB unweighted, >110dB “A” weighted. Max Bal-Line Output Level = +20dBu (7 .75Vrms). The audio zone processor shall be an AtlasIED Atmosphere™ AZM8 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com...
Page 111 DSP pages. The GUI shall have pages for GENERAL Settings that include bar that lights Solid Blue when in normal operation and Flashes Red when Input Priority setup; AtlasIED Speaker voicing Preset select; output Delay a Fault is detected. adjust; and DSP settings pages for Priority, Crossover, Equalizer, ANC The rear panel shall have four 3-way 3.5mm Euroblock balanced mic or...
Page 112 Frequency response for line outputs shall be: +/-.5dB 20Hz-20kHz > 110dB “ A” weighted; S/N >108dB unweighted, >110dB “ A” weighted. Max Bal-Line Output Level = +20dBu (7 .75Vrms). The audio zone system shall be an AtlasIED Atmosphere™ AZMP4. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com...
Page 113 The GUI shall have pages for GENERAL Settings that include Input Priority setup; AtlasIED Speaker voicing Preset select; output Delay The rear panel shall have six 3-way 3.5mm Euroblock balanced mic or adjust; and DSP settings pages for Priority, Crossover, Equalizer, ANC line level inputs and four RCA stereo summed inputs.
Page 114 280 BTU/ hour; Frequency response for line outputs shall be: +/-.5dB 20Hz-20kHz > 110dB “A” weighted; S/N >108dB unweighted, >110dB “A” weighted. Max Bal-Line Output Level = +20dBu (7 .75Vrms). The audio zone system shall be an AtlasIED Atmosphere™ AZMP8. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com...
