AtlasIED Atmosphere AZMP4 Quick Start Manual

Atmosphere AZM4 / AZM8 / AZMP4 / AZMP8

Welcome

Thank you for choosing AtlasIED and the Atmosphere line of signal processors for your
project. The Atmosphere family of products are designed to meet the highest standards
for design, quality, and value that our customers have come to expect from AtlasIED.
The flexibility and breadth of available accessories that the Atmosphere ecosystem
offers is unmatched in the industry and makes it the perfect solution for a wide variety
of applications. With a new approach to solving real world customer problems, the
Atmosphere line of products sets the new standard for the fixed architecture zone
based processing market. From all of us at AtlasIED, we once again thank you for your
purchase and look forward to working with you in the future.
AZM4
AZM8

Front and Back Panel Controls / Connections

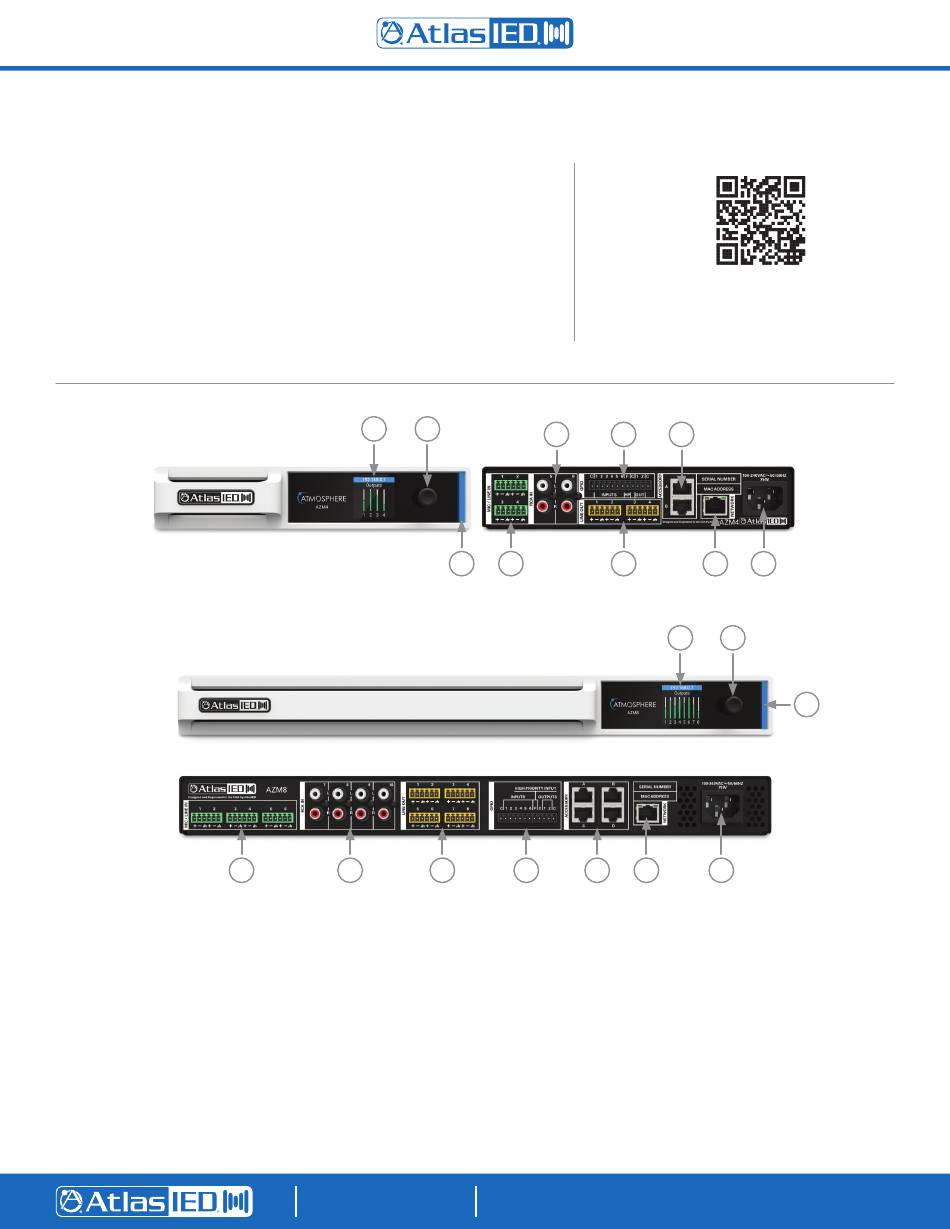

1. Color screen displays the IP address, shows system information,
and allows changes to network settings
2. Push button encoder for navigating front panel menu
3. Status Light Bar
• Blue – Unit is powered on and operating normally
• Flashing Red – Fault detected
4. Balanced Mic / Line inputs with phantom power
5. Unbalanced Mono Summed RCA Inputs
6. Balanced Line Outputs
Quick Start guide
1
4 5
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
2
5
3 4
6 7 8
7 . GPIO and High Priority Inputs
• Recall routines
• Recall scenes
• Trigger GPO preset
• Combine rooms
• Recall bell schedule
• Trigger messages
• Play high priority message
8. Accessory ports for Atmosphere accessories
9. Network port
10. IEC Inlet
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
Scan QR code to download the full user manual.
The user manual can also be found at the following
address: www.atlasied.com/atmosphere_manual
7 8
6 9 10
1 2
9 10
