Sony TA-3650 Service Manual
Sony TA-3650 Service Manual

Sony TA-3650 Service Manual

Integrated stereo amplifier
Hide thumbs Also See for TA-3650:

Advertisement

Quick Links

GENERAL
Power Requirements:
Power Consumption:
Dimensions:
Weight:
TA-3600
SPECIFICATIONS
110, 127, 220 or 240 V ac adjustable,
50/60 Hz
320 W (UK model)
540W
(AEP mode!)
Approx.
460 (w) x 170(h) x 325(d) mm
18 1/g (w) x 65/g (h) x 127/g (d) inches
Including projecting parts and controls
Approx. 12.0kg, 26 Ib 8 0z (net)
Approx. 14.5 kg, 32 lb (with shipping
carton)
POWER
AMPLIFIER
SECTION
Continous
RMS
Power Output:
(rated output)
(Less than
0.1%
harmonic distortion)
Dynamic Power Output:
({HF constant power
supply method)
Both channels driven simultaneously
At 20 — 20,000 Hz
55 +55
W (82)
At
1kHz
60+ 60W
(8 2)
70+ 7OW
(49) (AEP model)
According to DIN 45500
55+55W
(82)
170W
(82)
200W
(422) (AEP model)
Power Bandwidth:
Damping Factor:
Harmonic
Distortion:
IM Distortion:
(GOHz: 7kHz=4:
1)
Frequency Response:
(at 1W output)
S/N Ratio:
Residual
Noise:
Inputs:
Outputs:
5 — 40,000 Hz, IHF
35 (8, at 1 kHz)
Less than 0.1% at rated output
Less than 0.03% at
1W output
Less than 0.1% at rated output
Less than 0.03% at 1W output
3— 100,000
Hz *2dB
Greater than 110dB, short-circuited
input
Less than 0.008 uW (82)
POWER
IN
Sensitivity 1.0V (for rated output)
Impedance 47 kQ
SPEAKER
A,B
Accept speakers of 82 or more.
{UK model)
Accept speakers of 4— 1690
(AEP model)
HEADPHONES
Accepts !ow and high impedance
headphones
— continues to page 2—
®

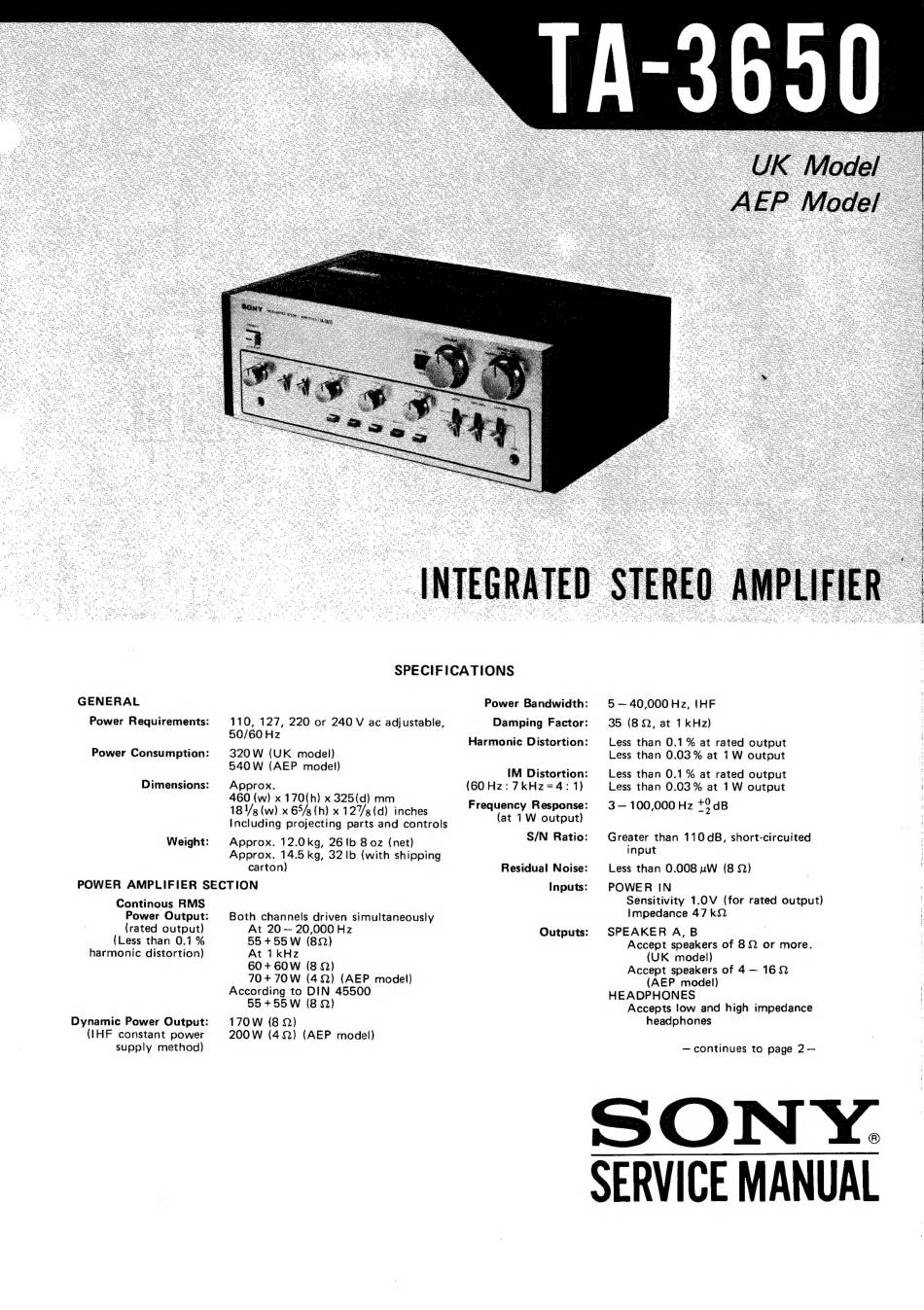

SERVICE MANUAL
