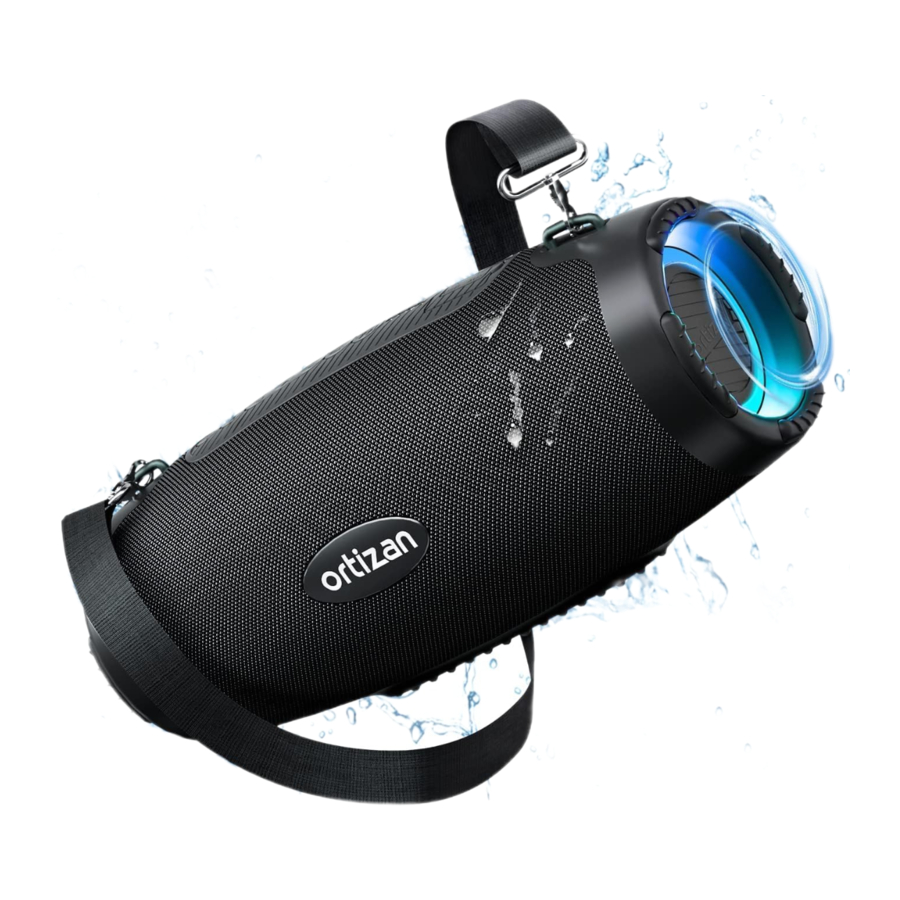

Ortizan M8 Manual

Package Included

  • M8 Bluetooth Speaker
  • User Manual
  • Type C line
  • Shoulder Strap
  • Audio Cable

Button And Function

Button And Function

  1. Power: Short press to switch light effects. Long press 3s to power on/off
  2. Mode: Short press to switch Bluetooth/TF/AUX/USB music play mode. Long press to disconnect Bluetooth
  3. +: Short press to volume up. Long press to choose the next track
  4. Pause: In music mode short press to pause
  5. —:Short press to volume down. Long press to choose the previous track
  6. BASS: Short press to Switch sound effects (Normal/Heavy bass). Long press to clear Bluetooth pairing information
  7. ECHO: Long press to turn on/off TWS mode
  8. Battery level indicator light
  9. Bluetooth indicator light
  10. TF card slot
  11. Type C port
  12. AUX port: Reset button build-in AUX port
  13. USB port

Battery

Built-in rechargeable lithium battery

Charging

A white LED light will be on when charging. Four white LED lights will be on when fully charged. If the product has not been used for more than 7 days, it is suggested that charge for 10 minutes before using the product, then use it after the charge.

Power ON/OFF

Power on: Long press the power button 3s to turn on the speaker, the Bluetooth indicator light will be on then you can connect the Bluetooth device.

Power off: Long press the power button 3s to turn off the speaker, and the Bluetooth indicator light will be off.

Connect The Speaker

Turn on the speaker, and it automatic into Bluetooth mode, turn on the Bluetooth device to search the "M8", and select the connection, there will have a voice prompt after the connection is successful. One speaker only supports connecting one Bluetooth device at the same time. If you need to connect other Bluetooth devices, please disconnect the current Bluetooth device first.

Disconnect The Bluetooth

After the Bluetooth connection, long press the "M" button 3s to disconnect the Bluetooth.

Reconnect The Speaker

After a speaker is paired with a device that automatically connects to Bluetooth, the speaker will automatically paring after the restart.

If the device without automatically connects to the Bluetooth function, the speaker can not automatic paring after the restart. When the Bluetooth can not connect, long press the "M" button 3s will automatically connect the last disconnected Bluetooth devices.

RGB Light

Short press the power button to switch the light effects.

Play Mode

Short press the" M" button to switch Bluetooth/TF/AUX/USB play mode.

Adjust The Volume And Switch Music

Volume up: Short press the" +" button.

Volume down: Short press the" —" button.

Next track: Long press the" +" button.

Previous track: Long press the" —" button.

Heavy Bass Mode

The speaker defaults to Normal mode, short press the" BASS" button to switch to Heavy Bass mode. Long press the" BASS" button to clear Bluetooth pairing information, after a beep sounds the speaker will restore default settings and auto power off.

SD Card Mode

Turn on the speaker, insert the SD card to play music.

AUX Mode

Turn on the speaker, using a 3.5mm audio cable to connect the speaker to your Bluetooth device, then the speaker plays music via the audio cable.

Pause Function

Press the" >I" button to start /pause music.

Reset Function

Using a long fine needle long press the reset button 6s in the AUX port, the speaker will have reset tone and auto power off.

Auto Power Off

The speaker will auto power off after 20 minutes if it does not pair with any Bluetooth device or does not play any sound after pairing. When in low battery, the speaker will auto power off as well.

T-W-S Mode

  1. Turn on the two speakers (disconnect the speaker from the other Bluetooth device).
  2. Short press the "ECHO" button 2s on one of the speakers, and it will have a voice prompt after the pairing is successful. After the pairing is successful, the blue indicator light will flash on the master speaker, and the slave speaker's blue indicator will be off.
  3. Release the "ECHO" button, T-W-S connection may take a few seconds.
  4. Turn on the Bluetooth device, and select the"M8" for Bluetooth pairing(Two speakers display one Bluetooth name)

Disconnect T-W-S

Long press the "ECHO" button 2s on one of the speakers.

Specification

Model: Ortizan M8

Input: 9V2A

Waterproof level: IPX7

Bluetooth: V5.0

Built-in rechargeable battery: 14400 mah

Format: MP3, WAV, WMA

information Note:

  1. Notice: If the battery is scrap, please use the same type of replacement. Otherwise, maybe an explosion.
  2. Lithium batteries may not be exposed to places such as flammable or overheating.

Fault and maintenance

  1. Bluetooth connection failure:
    Solution:
    1. Please make sure the white LED light is on. If the light is off, please turn on the speaker. If the light is still off, please recharge the speaker.
    2. If there are a lot of Bluetooth devices around, please turn off the other Bluetooth devices. It is difficult to search Bluetooth if there are a lot of Bluetooth devices.
    3. Restart the speaker to re-search Bluetooth.
  2. Music player's voice interrupted
    Solution:
    1. Check the distance between the music player and the speaker is not too far.
    2. Ensure that there is no obstacle between the music player and the speaker.
    3. Check whether the music player and the speaker are in a state of low power consumption.
  3. Unknown problems.
    Solution:
    Reset the speaker.
    Reset the speaker.

Before use

This product design fully pay attention to safety. In order to ensure safe operation, please follow the following rules:

  1. Please keep the product in a safe and stable position to avoid falling, which may cause damage or personal injury.
  2. Please do not drop, disassembly, open, extrusion, bending, piercing, burning the product.
  3. Please keep the product away from any heat source.(such as radiators, heating equipment, stoves, or other heat source)
  4. If there have any damage, please contact professional maintenance personnel for repair.
  5. Please unplug the power before use dry cloth to wipe the product.
  6. For your health, please adjust the volume to an appropriate level


Do not alter or modify the product without permission.

Troubleshooting Guide

Can not power on
Please recharge the speaker.

No Sound

  1. Adjust the volume.
  2. Please ensure that the Bluetooth device is within Bluetooth transmission range.
  3. Please ensure there are no obstacles blocking/interfering with the Bluetooth signal.
  4. Please ensure the speaker is connected to the Bluetooth device.

Poor sound quality

Keep the Bluetooth device closer to the speaker, or try to clear obstacles between the Bluetooth device and the speaker.

Can't connect to the Bluetooth device

Disconnect the speaker from other Bluetooth devices and re-connect( Disconnect from the Bluetooth device or long press the" M" button).

In order to avoid damage to the product performance, please charge it at least once every three months.

Safety instructions

Please read all instructions before use

  1. To avoid disabling the warranty and damaging the product, please do not disassemble the product.
  2. The rechargeable battery charging cycles are limited.
  3. Battery life and charging cycle owing to the different use and settings.
  4. Please do not place the product near the high-temperature heat source.
