Ortizan M7 Manual

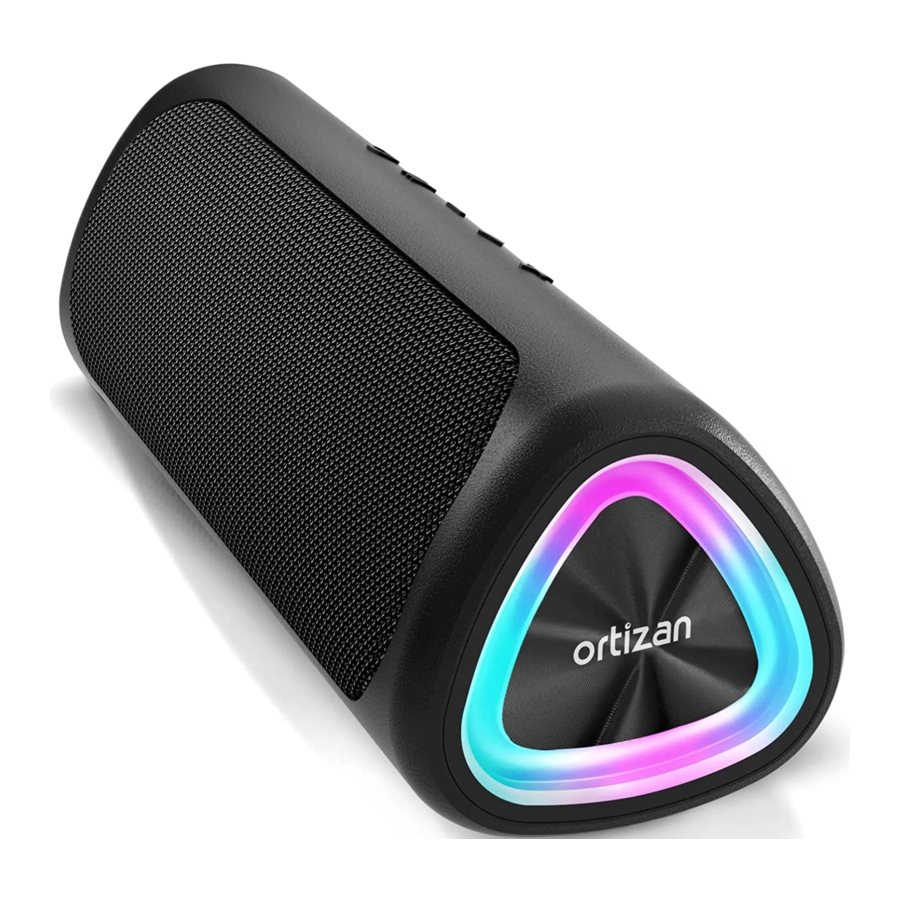

Thank you for purchasing the "M7" Bluetooth Speaker.

The "M7" is equipped with Bluetooth 5.3 for optimal connection and pairing with your Bluetooth enabled device. Please read the user manual before use and keep it handy for future reference. If you have any additional questions or comments, please contact us by email at: support@ortizan.com

+1 (213) 282-7166 (US)
+86 (0755) 23768945 (China).

Note: Calling is not recommended in non-emergency situations, as we may not be able to answer the call in time due to time zone reasons.

PACKAGE CONTENTS

FEATURES

• DSP algorithm patent technology, maximum 24W power output
• IPX7 water resistance.
• Dual passive radiators provide superior deep bass.
• True Wireless Stereo (TWS) for stereo surround sound.
• The built-in rechargeable lithium battery supports up to 30 hours of play time on a single charge.
• Bluetooth 5.3
• Rhythmic Light show
• Plug and Play music easily from a TF card.
• Supports voice assistant for music streaming, phone calls, weather inquiries and much more.

Note: Voice Assistant is supported by Siri, Google and other local Android voice assistants that run on Samsung, Huawei, Xiaomi and more devices.

SPECIFICATIONS

Model	M7
Bluetooth Version	5.3
Bluetooth profile	A2DP V 1.3, AVRCP Vl.4, HFP V 1.6
Bluetooth transmission	Up to 20m/66ft (open area)
Waterproof	IPX7
Output power	24W
Power supply	DC 5V
Frequency range	80HZ-18000HZ
Battery	3600mAh
Standby	About 24 months
Charging time	5 hours
Functions	Hands-free, Aux-in, TF/Micro SD card, Bluetooth
Dimension	195*70*70mm

BUTTON CONFIGURATION

Key	Operation	Functions
	Long press	Power on/off
	Double press quickly	Light on/off
	Short press	Mode Switch (TF/Aux/BT)
	Double press quickly	Activate Voice Assistant
	Long Press 3s	TWS pairing
	Short Press	Volume down
	Long Press	Choose previous track
	Short Press	Play/Pause (in music playing state)
		Answer/hang up the call
	Long Press 3s	disconnect Bluetooth
	Double press quickly	Redial
	Short Press	Volume up
	Long Press	Choose next track

NOTE:It has a physical reset key (hidden in the aux-in port): insert a hard stick to reset.

HOW TO USE

Bluetooth Mode

1. Turn on the "M7" speaker and automatically enter the Bluetooth mode (The blue light is flashing, waiting for pairing).
2. Turn on the Bluetooth of your phone. Find the "M7" in the available devices.
3. Click on" M7" for Bluetooth pairing

TWS Mode

What is TWS?
TWS is true wireless stereo, which means two Bluetooth speakers are able to be paired together to play music simultaneously to provide 3D stereo surround sound.

How to operate TWS in Bluetooth mode

1. Turn on the two speakers (disconnect the speaker from the other Bluetooth device).
2. Hold one of the speakers and press the "M" button 3s, hear the prompt tone and enter the TWS pairing mode; the blue indicator light will be on for master speaker, the blue indicator will be off for slave speaker when the connection is successful. Turn on the Bluetooth of the device (mobile phone), find the M7 in the available devices and Click on M7 for Bluetooth pairing.
3. In TWS mode, only the master speaker (left channel speaker) has hands-free function, while the right channel speaker is silent.

TF Card Mode

1. Insert the TF Card (User-supplied) into the speaker, the Bluetooth speaker automatically enter TF Card mode, automatically play the audio in the card.

Note: TF card supports WAV/FLAC/APE/MP3format, with capacity smaller than or equal to 32GB.

AUX-in Mode

Simply connect the speaker with your non-Bluetooth device via the 3.5 mm audio jack cable.

Note 1: After plugging in an audio cable, the speaker will automatically switch to Aux-in Mode

Note 2: The USB power supply of the most computers does not meet the standards of speakers. Please do not allow the computer to charge the speakers when the speaker is working in AUX-IN mode.

Auto Power Off

The speaker will power off automatically after 20 minutes if it does not pair with any device through Bluetooth or does not play any sound after pairing. When in low battery, the speaker will power off automatically as well.

Charging

Care & Maintenance

Do not use any form of detergents or cleaning material to clean the product as any type of chemical may make this device unusable. Do not disassemble this product.

It contains no user serviceable parts. Do not drop or jump on it and treat it with care for the best performance. Keep the product in a dry location. Dust, dirt & moisture from humidity can accumulate on the body of the product if kept at an unfriendly place. Do not dispose this product in fire or batteries may explode or leak.

Warranty Information

Your "M7" Bluetooth Speaker', is warranted to the original owner for 12 months from the date of purchase against defects in material and workmanship under normal use and service. Ortizanis not responsible for the accidental use of this product and its liability will not exceed the purchase price of the product. If you have any problems while using the product, please do not hesitate to contact our customer support team at www.ortizan.com
