Ortizan X8 Manual

PACKAGE CONTENTS

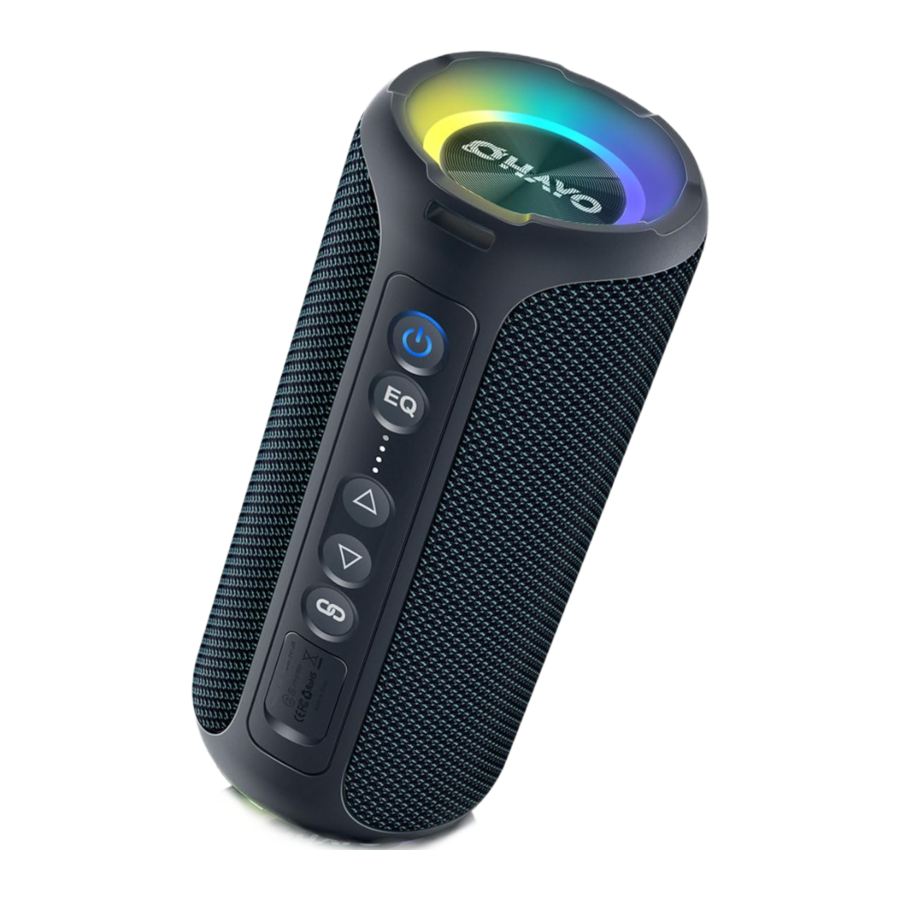

• 1 x X8 Bluetooth speaker
• 1 x 3.5mm audio cable
• 1 x Type-C charging cable
• 1 x User manual
• 1 x Lanyard

FEATURES

• DSP algorithm patent technology, maximum 40W power output
• IPX7 water resistance.
• Dual passive radiators provide superior deep bass.
• True Wireless Stereo (T-W-S) for stereo surround sound.
• Inbuilt rechargeable lithium battery supports up to 30 hours of play time on a single charge.
• EQ sound effects adjustment.
• Bluetooth 5.0
• Rhythmic Light show
• Plug and Play music easily from a TF card.
• Supports voice assistant for music streaming, phone calls, weather inquiries and much more.

Note: Voice Assistant is supported by Siri, Google and other local Android voice assistants that run on Samsung, Huawei, Xiaomi and more devices.

Note: Calling is not recommended in non-emergency situations, as we may not be able to answer the call in time due to time zone reasons.

SPECIFICATIONS

BUTTON CONGFIGURATION

1. Power On/Off, Mode Switch
2. EQ music effects, Voice assistant
3. Charging indicator light
4. Next track, Volume Up
5. Previous track, Volume down
6. T- W-S/Light Mode Switch
7. Charging interface
8. TF/Micro SD card slot
9. Aux-in port; Reset

10. Volume Up (Turn clockwise)
11. Volume Down (Turn anticlockwise)
12. Play/Pause/Disconnect/Bluetooth/Answer&hang up the call

Key	Operation	Functions
	Short press	Change the play mode
	Long press	Turn on/off: Long press for 3s
		Reset to factory default settings: Hold for about 8 seconds to reset if the speaker malfunctions.
	Short press	Volume up
	Long press	Choose next track
	Short press	Volume down
	Long press	Choose previous track
	Short press	Change the EQ
	Long press	Activate voice assistant: Long press for 3s
	Short press	T-W-S
	Press twice quickly	Light Mode Switch
	Short Press	Play/Pause
		Answer/hang up the call
	Double click	Redial
	Long Press	Disconnect Bluetooth
	Turn clockwise	Volume Up
	Turn anticlockwise	Volume Down

NOTE: It has physical reset key (hidden in the aux-in port): insert a hard stick to reset.

HOW TO USE

Bluetooth Mode

1. Turn on the "Ortizan X8" speaker and automatically enter the Bluetooth mode (The blue light is flashing, waiting for pairing).
2. Turn on the Bluetooth of your phone. Find the "Ortizan X8" in the available devices.
3. Click on "Ortizan X8" for Bluetooth pairing

T-W-S Mode

What is T-w-s?

T-W-S is true wireless stereo which means two Bluetooth speakers are able to be paired together to play music simultaneously to provide 3D stereo surround sound.

1. How to operate T-W-S in Bluetooth mode
   1. Turn on the two speakers (disconnect the speaker from the other Bluetooth device).
   2. Hold one of the speakers and press the button once, hear the prompt tone and enter the T-W-S pairing mode; the orange indicator I light will be on for button of both speakers when the connection is successful.
   3. Blue light (Power button) is flashing for the master speaker (left channel), the other indicator is off for slave speaker (right channel).
   4. Turn on the Bluetooth of the device (mobile phone), Find the "Ortizan X8" in the available devices and Click on "Ortizan X8" for Bluetooth pairing.
   5. After the connection is successful, press the button once to disconnect the connection.
   6. In T-W-Smode, only the master speaker (left channel speaker) has hands-free function, while the right channel speaker is silent.
2. How to operate T-W-S in Aux in mode Follow the step of A(from a-c) then connect the audio cable to master speaker to enjoy T-W-S function.

Note: It is only working via master speaker to connect the audio cable (the Bluetooth indicator is flashing for master speaker, it' s always off for slave speaker)

TF Card Mode

1. Insert the TF Card (User-supplied) into the speaker, the Bluetooth speaker automatically enter TF Card mode, automatically audio in the card.
   Note: TF card supports WAV/FLAC/APE/MP3 format, with capacity smaller than or equal to 32GB.

4.AUX-in Mode

1. Simply connect the speaker with your non-Bluetooth device via the 3.5 mm audio jack cable.

Note 1: After plugging in an audio cable, the speaker will automatically switch to Aux-in Mode

Note 2: The USB power supply of the most computers does not meet the standards of speakers. Please do not allow the computer to charge the speakers when the speaker is working in AUX-IN mode.

Auto Power Off

The speaker will power off automatically after 20 minutes if it does not pair with any device through Bluetooth or does not play any sound after pairing. When in low battery, the speaker will power off automatically as well.

Charging

Care & Maintenance

Do not use any form of detergents or cleaning material to clean the product as any type of chemical may make this device unusable. Do not disassemble this product. It contains no user serviceable parts. Do not drop or jump on it and treat it with care for the best performance. Keep the product in a dry location. Dust, dirt & moisture from humidity can accumulate on the body of the product if kept at an unfriendly place. Do not dispose this product in fire or batteries may explode or leak.

www.recyclethis

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Ortizan X8 Manual
