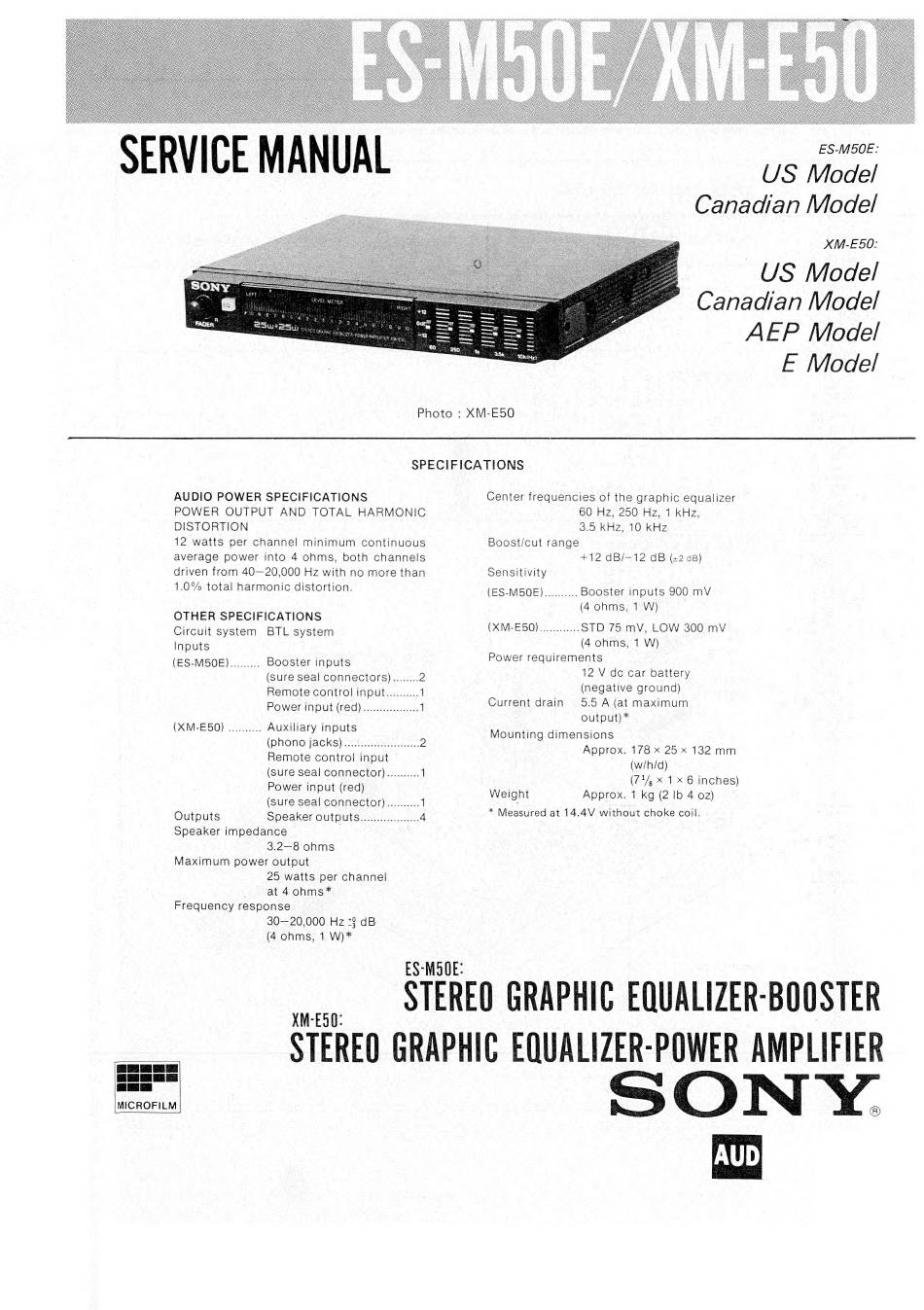

Sony ES-M50E Service Manual

SERVICE MANUAL
Photo : XM-E50
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
12 watts per channel minimum continuous
average power into 4 ohms, both channels
driven from 40—20,000 Hz with no more than
1.0% total harmonic distortion.
OTHER SPECIFICATIONS
Circuit system BTL system
Inputs
(ES-MB0E)......... Booster inputs
(sure seal connectors)........ 2
Remote control input.......... 1
Power input (red) ........... 1
(XM-E50) .00...2... Auxiliary inputs
(phono jacks) w08....8i a, 2
Remote control input
(Sure Seal connector).......... 1
Power input (red)
(sure seal connector).......... 1
Outputs SDGaKEr OULDUTS Fit scdscals 4
Speaker impedance
3.2-8 ohms
Maximum power output
25 watts per channel
w f vat-4 ohms*
Frequency response
30—20,000 Hz *? dB
(4 ohms, 1 W)*
ES-MOOE: STEREO GRAPHIC EQUALIZER-BOOSTER
STEREO GRAPHIC EQUALIZER-POWER AMPLIFIER
MICROFILM
ES-M50E:
US Model
Canadian Model
XM-E50:
US Model
Canadian Model
AEP Model
E Model
Center frequencies of the graphic equalizer
60:Hz; 250: Hz;: 1-KHz;
3.9 KHz,;.10: KHz
Boost/cut range
+12 dB/-12 dB (+2 a8)
Sensitivity
(ES-MGBOE be ce fuer' Booster inputs 900 mV
(4 ohms, 1 W)
(XM-E50).2.....0.... STD 75. mV, LOW 300 mV
(4 ohms, 1 W)
Power requirements
12 V de car battery
(negative ground)
9.5 A (at maximum
output) *
Mounting dimensions
Approx. 178 x 25 x 1
(w/h/d)
(77/,x 1x 6
Approx. 1 kg (2 Ib 4
Current drain
Weight
32 mm
inches)
OZ)
* Measured at 14.4V without choke coil.
