SERVICE MANUAL

MICROFILM
Amplifier section
DIN power output
40 W+40 W (8 ohms at 1 kHz)
Frequency response
PHONO (20 Hz-20 kHz): RIAA equalization
curve±0.5 dB
TUNER, CD, TAPE1/DAT, TAPE2/MD
+0
: 7 Hz-70 kHz dB
–3
S/N (network A)
PHONO: 80 dB
TUNER, CD, TAPE1/DAT, TAPE2/MD
: 105dB
Output voltage/impedance
REC OUT: 200 mV, 1 kilohm
PHONES: 5 mW (at 8 ohms)
Speakers impedance
8-16 ohms
World of free manuals
10/16/2012
TA-FE200
SPECIFICATIONS
General
System
Power amplifier: Pure-complementary SEPP
OCL power amplifier with all stages directly
coupled
Preamplifier: Low-noise, equalizer amplifier
Power requirements
220-230 V AC, 50/60 Hz
Power consumption
120 W
Dimensions (approx.) (w/h/d)
430×105×290 mm
incl. projecting parts and controls
Mass (approx.)
4.2 kg
Design and specifications are subject to change
without notice.

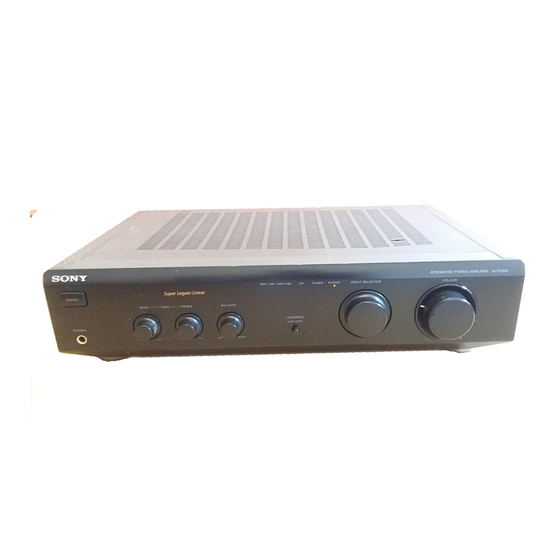

INTEGRATED STEREO AMPLIFIER
www.nostatech.nl
AEP Model
UK Model

Advertisement

Table of Contents

   Related Manuals for Sony TA-FE200

   Summary of Contents for Sony TA-FE200

  • Page 1: Service Manual

    10/16/2012 www.nostatech.nl TA-FE200 SERVICE MANUAL AEP Model UK Model SPECIFICATIONS Amplifier section General DIN power output System 40 W+40 W (8 ohms at 1 kHz) Power amplifier: Pure-complementary SEPP Frequency response OCL power amplifier with all stages directly PHONO (20 Hz-20 kHz): RIAA equalization coupled curve±0.5 dB...
  • Page 2 LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.
  • Page 3 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl SECTION 1 GENERAL • Location of Controls Front Panel Descriptions INPUT SELECTOR control POWER switch INPUT SELECTOR indicator VOLUME control PHONES jack TONE controls BALANCE control LOUDNESS switch (BASS/TREBLE) – 3 – World of free manuals...
  • Page 4 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl SECTION 2 DIAGRAMS • Circuit Boards Location CN DC board AC IN board MAIN board AC SW board HEADPHONE board CONTROL board – 4 – World of free manuals...
  • Page 5 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl • IC Block Diagrams IC101 NJM2068L-D IC103 LC7818 IC601 µPC1237HA – 5 – World of free manuals...
  • Page 6 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl World of free manuals...
  • Page 7 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl World of free manuals...
  • Page 8: Exploded Views

    1-659-953-11 HEADPHONE BOARD 4-980-204-01 KNOB (DIA. 24) * 10 4-980-777-41 CASE (409526) X-4946-799-3 PANEL ASSY, FRONT 3-704-366-01 SCREW (CASE)(M3X8) 4-963-404-21 EMBLEM (5-A), SONY * 12 A-4389-375-A CONTROL BOARD, COMPLETE 4-951-620-01 SCREW (2.6X8), +BVTP 4-980-189-01 KNOB (DIA. 6) 1-659-952-11 AC SW BOARD 1-773-154-11 WIRE (FLAT TYPE)(21 CORE) –...
  • Page 9 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl (2) CHASSIS SECTION not supplied (including r A) AEP, German not supplied The components identified by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number speci- fied. Ref. No. Part No.
  • Page 10: Electrical Parts List

    www.freeservicemanuals.info 10/16/2012 www.nostatech.nl AC IN AC SW SECTION 4 CN DC CONTROL ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • Items marked “*” are not stocked since they The components identified by mark are seldom required for routine service. parts list may be different from the parts speci- ! or dotted line with mark ! are criti- Some delay should be anticipated when order-...
  • Page 11 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl CONTROL HEADPHONE MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R203 1-249-427-11 CARBON 6.8K 1/4W C107 1-126-963-11 ELECT 4.7uF R204 1-249-415-11 CARBON 1/4W C108 1-124-903-11 ELECT R205 1-249-421-11 CARBON 2.2K 1/4W C151 1-162-286-31 CERAMIC 220PF C152...
  • Page 12 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > R106 1-249-417-11 CARBON 1/4W R107 1-249-417-11 CARBON 1/4W D301 8-719-987-63 DIODE 1N4148M R108 1-249-411-11 CARBON 1/4W D302 8-719-987-63 DIODE 1N4148M R109 1-249-437-11 CARBON 1/4W D351...
  • Page 13 10/16/2012 www.nostatech.nl TA-FE200 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R355 1-249-421-11 CARBON 2.2K 1/4W MISCELLANEOUS R356 1-260-103-11 CARBON 2.2K 1/2W ************** R362 1-249-419-11 CARBON 1.5K 1/4W R363 1-249-431-11 CARBON 1/4W 1-773-154-11 WIRE (FLAT TYPE)(21 CORE)
  • Page 14 www.freeservicemanuals.info 10/16/2012 www.nostatech.nl World of free manuals...
