Summary of Contents for Reliable Barracuda Fit 500BW

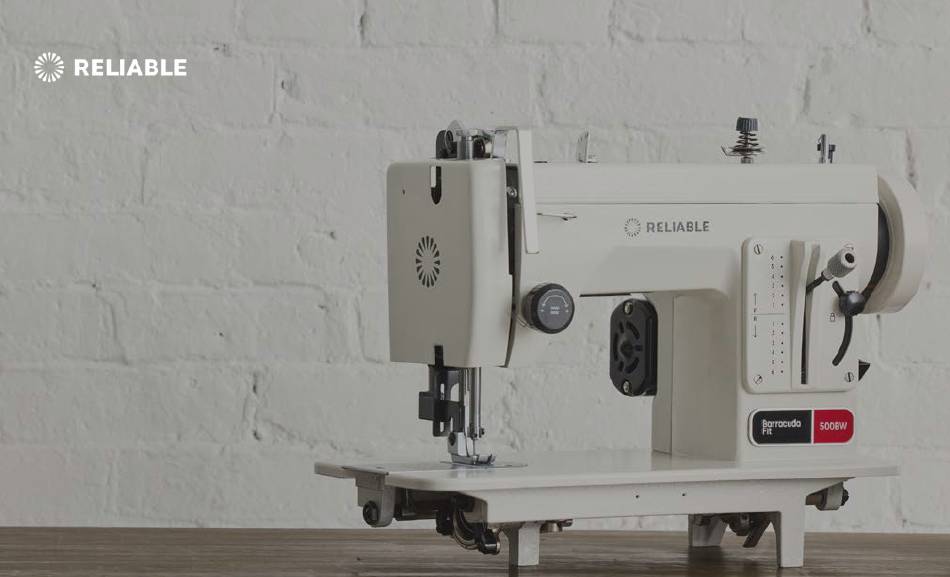

- Page 1 500BW Barracuda™ Fit Straight Stitch Walking Foot Sewing Machine...
- Page 2 Reliable. Getting it Right. For You. At Reliable, we do what we love, and we take pride in doing it right. You want what’s best for the people, places and things that matter in your life—from where you live to what you wear. So do we. That’s why we approach every product with a laser-focus on you.
-
Page 3: Table Of Contents
Table of Contents Getting Started Sewing Operations Meet Your Machine Adjusting Sewing Speed Specifications CudaStitch™ What’s In The Box? Changing the Presser Foot Stop! We’re Here to Help. How to Change Feed Dogs from Standard to Knurled Feed Dogs Video Library: Sewing Made Easy Adjusting the Needle Bar Height Attention Before Operation Pre-Oiled Machine... -
Page 4: Meet Your Machine
Meet Your Machine Meet the Barracuda™ Fit, the ultimate portable walking foot sewing machine. Built to handle tough materials like canvas and leather with power and precision. Please take a moment to familiarize yourself with key components of your machine. CudaStitch™... -
Page 5: Specifications
Specifications Operation Walking foot technology for smooth feeding of Built-in bobbin winder with dual thread stand. RPM 800 Electrical 110V/120V 60HZ medium to heavy-weight fabrics. Comes with two rechargeable LED CudaLights™. Stitch Length Up to 6mm Work Space 7” / 17.8 cm Includes a 340mm x 340mm clear extension table Constructed with a durable all-metal body and Needle System 135 x 17, Size 14 –... -
Page 6: What's In The Box
What’s In The Box? Barracuda™ Fit Straight Stitch Walking Foot Sewing Machine 500BW Barracuda™ Barracuda™ Leather Walking Right Zipper 500 Series 500 Series Feet Set Walking Foot Foot Pedal Extension Table 57WALEATHER 57ZARZIPPER 5APEDAL 5AEXT... - Page 7 What’s In The Box? 135 x 17 Barracuda™ Magnetic 2.5mm Allen Groz-Beckert® Accessories Sewing Key Wrench Sewing Machine Case Guide Needles (10 Pack) 5BA25WRENCH 57BAACCCASE 57AMAGGUIDE GB135X17SZXX Knurled Dual Thread Stand 3mm Allen Screwdriver Big Feed Dog for Barracuda™ Key Wrench 5BALARGESD 57WAKNURLED 57ADUALTHREAD...
-
Page 8: Stop! We're Here To Help
Having trouble with your Barracuda™? Don’t worry—we’ve got you covered! Before continuing, reach out to our expert support team for assistance. STOP We’re here to ensure you get the best experience with your machine. Whether it’s a question, troubleshooting, or guidance, we’re just a click away! Scan to contact our support team Prefer to Call? You can reach out to us at 1-800-268-1649... -
Page 9: Video Library: Sewing Made Easy
Scan to explore our full how-to video library Stay up to date with the latest tips, tricks, and tutorials! Subscribe to our channel so you never miss a new video. Scan to subscribe to the Reliable YouTube Channel Happy sewing! -
Page 10: Attention Before Operation
1. Before you put the machine into operation for the first time, inspect it thoroughly. 2. Though every machine is strictly inspected and tested before leaving Reliable, the components could have shifted in the transportation process. A thorough examination must be performed after cleaning the machine. -
Page 11: Pre-Oiled Machine
Pre-Oiled Machine This sewing machine has been pre-oiled to ensure optimal performance right out of the box. As a result, you may notice some oil on the machine or inside the packaging. Before using your machine: Wipe down the exterior of the machine with a clean, dry cloth to remove any excess oil. -
Page 12: Getting Ready To Sew
Your Barracuda™ Walking Foot Sewing Machine is a powerhouse designed to handle tough materials with ease. Follow these guidelines to ensure optimal performance and results. For assistance or further clarification, please reach out to Reliable at info@reliablecorporation.com or visit reliablecorporation.com. Needles... -
Page 13: Setting Up Your Machine
Setting Up Your Machine Foot Pedal Port 1. Plug in the Foot Pedal Plug in the foot pedal securely. Make note of the plug alignment, as it will only connect one way. Carefully plug in the electrical power plug. Your Barracuda™ is meant to operate on a standard 15A household plug. - Page 14 Scan to watch a CudaCase™ video on how the CudaCase™ works (Optional Accessory) Made with metal, the CudaCase™ is designed to make transportation easy. CudaCase™...
-
Page 15: Cudalight
Tap On/Off Easily control the light with a simple tap for hassle-free operation 1. Attach the supplied magnetic strips by removing the paper adhesive backing and pressing it firmly to the back of each CudaLight™. Magnetic Base The CudaLight™ will attach securely to most parts Attach securely to the of your Barracuda™. -
Page 16: Assembling The Dual Thread Stand
Scan to watch a video on how to assemble the extension table Assembling the Dual Thread Stand The Dual Thread Stand comes with removable Putting Together rods that hold your thread spools and thread guide in place. Fasten with the included 3mm the Extension Table Allen key to secure the set screws. -
Page 17: Threading The Machine
Threading the Machine For illustration only, your Barracuda™ model may look different, but note, all Barracuda™ models thread the same. -
Page 18: Threading The Needle
Threading the Needle 1. Guide the Thread 2. Thread the Uncurling 3. Thread the Triple 4. Tension Discs & 5. Thread the Take-up 6. Thread the Needle 7. Thread the Needle Through the Dual Device Eyelet Guide Checkspring Lever Now thread through Thread Stand Weave the thread Next we will go... -
Page 19: Winding The Bobbin
Winding the Bobbin A. Guide the Thread Through the Dual B. Thread the Tension Eyelet C. Thread the Tension Discs D. Thread the Bobbin Thread Stand Feed the thread through the tension Hold the thread securely with both Bring the thread through one of the holes Take a thread from the thread stand disc from the eyelet back to front, fingers and thread through the tension... -
Page 20: Loading A Bobbin Into The Bobbin Case
Loading a Bobbin into the Bobbin Case 1. Place the bobbin in the bobbin case. 2. Pinch the bobbin between your thumb and secure the thread within the slot of the bobbin case. 3. Bring the thread under the tension plate until you hear a “click”... -
Page 21: Needle Installation
When to Change Your Needle? Did you know that the #1 suggestion for solving sewing problems is to replace the needle? Over time, needles can become dull, bend from fabric tension, or get nicked when sewing over pins. When compromised, your needle affects stitch quality and can lead to: Broken Thread •... -
Page 22: How To Change The Needle On The Barracuda™ Sewing Machine
Needle Tips for the Barracuda™ Unlike home sewing machines, which use needles with flat shanks that fit in one direction, the Barracuda™ uses round-shank industrial needles. Correct orientation is key for proper operation. How to Change the Needle on the Barracuda™ Sewing Machine? 1. - Page 23 Adjusting Sewing Speed You can easily control the sewing speed to suit your project requirements: To start sewing, press on the foot pedal. The harder you press, the faster the machine speed will sew (Figure 1). Speed Range: 250 RPM to 1100 RPM, offering flexibility for a variety of tasks.
- Page 24 CudaStitch™ Maximum Stitch Length For precision and control, CudaStitch™ enables your reverse stitch to match the stitch length you’ve set, making back tacking lightning fast and remarkably accurate. Adjusting the Stitch Length Loosen the CudaStitch™ locking nut, then Medium Stitch Length move the CudaStitch™...
- Page 25 Forward Sewing Reverse Sewing The stitch length is controlled using the stitch The reverse stitch length is controlled using length lever. Follow these steps to adjust the stitch length lever and pulling the foward stitch length: down on the lever: 1.
-
Page 26: Changing The Presser Foot
Changing the Presser Foot Follow these simple steps to replace the presser feet on your Barracuda™ sewing machine. 1. Unplug the Machine For safety, unplug the sewing machine from the electrical outlet. 2. Raise the Presser Foot Lift the presser foot lever to create space for removing the foot. - Page 27 How to Change Feed Dogs from Standard to Knurled Feed Dogs Follow these steps to change the feed dog. 1. Unplug the Machine For safety, unplug the sewing machine from the electrical outlet. 2. Remove the Needle and Presser Foot Raise the needle to the highest position using the handwheel.
-
Page 28: Adjusting The Needle Bar Height
How to Sew Leather 1. Replace the foot with a Teflon foot 2. Adjust your tension and stitch length to suit the thickness of the leather. 3. Guide the leather with your hands. How to Sew Corners 1. With the needle still in the fabric, lift the presser foot. -
Page 29: Troubleshooting
Troubleshooting Needle System This unit is intended for use with the 135 x 17 needle system. Jamming Before operating the unit, inspect the needle and Confirm the unit is threaded correctly. Verify that the thread is not stuck in any of the moving verify it is not dull or damaged. - Page 30 Timing 1. Turn the handwheel until the needle is at its lowest position 2. Slowly turn the handwheel until the hook tip is intersecting 3. Additionally, observe the gap between the needle scarf and observe the space between the needle and shuttle with the needle.
- Page 31 For illustration only, your Barracuda™ model may Pro Tip: If your Barracuda™ starts sounding different—louder, rougher, Scan to watch a look different, but note, all Barracuda™ models or less smooth—it’s likely time to oil. However, don’t wait for the noise! video on how to have similar oiling points.
- Page 32 Scan to watch a video on how to oil the machine. Barracuda ™Oiling Tips • Go slowly – Apply oil in small amounts to avoid over-lubrication. • Target the right areas – Do not oil the needle, bobbin, presser foot, or plate, as oil can stain fabric. •...
- Page 33 Scan to watch a video on how to oil the machine. Side view of the machine Choosing the Right Oil for Your Barracuda™ • Use only sewing machine oil – Available at fabric shops, this oil is specially formulated for smooth operation. •...
-
Page 34: Frequently Asked Questions
Frequently Asked Questions What is the difference between a Zig-Zag (BZ) and a What do I do when my stitches are loose? Straight Stitch (BW) Barracuda™ sewing machine? Ensure there’s enough tension on the bobbin and the tension What type of needles does the Barracuda™ take? spring assembly. -
Page 35: How To Make A Warranty Claim
Third-party claims or products not purchased M6B 4K7 3. Get a Return Authorization (RA#) parts. from Reliable or an authorized dealer. We’ll provide instructions for sending ✅ Repair or Replace — If there’s an issue, we’ll fix it (Heads up: We can’t accept freight your machine in. - Page 36 Repaired parts or replacement products will be provided by Reliable on an the following address: Reliable Corporation, 5–100 Wingold Ave, Toronto, ON M6B 4K7. exchange basis, and will be either new or refurbished to be functionally equivalent to new. If Reliable is unable to repair or replace a Barracuda , it will refund the current value of that Barracuda Freight collect shipments will be refused.
- Page 37 Reliable Corporation 100 Wingold Avenue, Unit 5 Toronto, Ontario Canada M6B 4K7 www.reliablecorporation.com 1-800-268-1649...
