Garten- und Wegeleuchte
Garden and pathway luminaire
Luminaire de jardin et d'allée
Projekt · Project · Projet
Standort · Location · Lieu
Gebrauchsanweisung
Anwendung
Freistrahlende Garten- und Wegeleuchte mit
rotationssymmetrischer Lichtstärkeverteilung
für die wirkungsvolle Beleuchtung in privaten
Gartenanlagen.
Die Leuchte kann über eine geschaltete
Phase klassisch on/off sowie bei Dauerphase
entweder über die App BEGA Smart oder die
wibutler App gesteuert werden.
Für die wibutler-Einbindung ist zusätzlich der
wibutler pro (2. Gen.) erforderlich.
Leuchtmittel
Modul-Anschlussleistung
Leuchten-Anschlussleistung
Modul-Bezeichnung
LED-1559/83040
Farbwiedergabeindex
Bemessungstemperatur
Umgebungstemperatur
Die Farbtemperatur der Leuchte kann
wahlweise auf 3000 K oder 4000 K eingestellt
werden.
Betrieb bei Farbtemperatur
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Betrieb bei Farbtemperatur
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Einstellung der Farbtemperatur
Über die App BEGA Smart oder wibutler kann
wahlweise die Farbtemperatur auf 3000 K
oder 4000 K eingestellt und die Helligkeit der
Leuchte angepasst werden.
Im Auslieferungszustand sind 3000 K und
maximale Helligkeit voreingestellt.
Ø 140
Ø 140
Instructions for use
Application
Unshielded garden and path luminaire with
rotationally symmetrical light distribution for
effective illumination in private gardens.
The luminaire can be used with standard on/off
controls via a switched phase, or in continuous
phase using the apps BEGA Smart or wibutler.
A wibutler integration will additionally require
the installation of wibutler pro (2nd generation).
Lamp
8,2 W
Module connected wattage
9,4 W
Luminaire connected wattage
Module designation
CRI > 80
Colour rendering index
t
= 25 °C
Rated temperature
a
t
= 40 °C
Ambient temperature
a max
The colour temperature of the luminaire can be
set optionally to 3000 K and 4000 K.
Operation at colour temperature
3000 K
Module luminous flux
1385 lm
Luminaire luminous flux
810 lm
Luminaire luminous efficiency
86,2 lm / W
Operation at colour temperature
4000 K
Module luminous flux
1400 lm
Luminaire luminous flux
819 lm
Luminaire luminous efficiency
87,1 lm / W
Setting the colour temperature
The BEGA Smart or wibutler App can be
used to optionally set the color temperature to
either 3000 K or 4000 K and to adjust luminaire
brightness.
The factory settings are 3000 K and max.
brightness.
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
Ø 65
Ø 65
Fiche d'utilisation
Utilisation
Luminaire de jardin et d'allée à diffusion libre,
répartition lumineuse symétrique circulaire pour
un éclairage décoratif dans du jardin privé.
Le luminaire peut être commandé de manière
classique on/off via une phase commutée, mais
aussi en phase continue via l'application BEGA
Smart ou l'application wibutler.
Pour l'intégration de wibutler, il faut en plus
disposer de wibutler pro (2e génération).
Source lumineuse
8.2 W
Puissance de raccordement du module 8,2 W
9.4 W
Puissance de raccord. du luminaire
LED-1559/83040
Désignation du module
CRI > 80
Indice de rendu des couleurs
t
= 25 °C
Température de référence
a
t
= 40 °C
Température d'ambiance
a max
La température de couleur des luminaires est
réglable sur 3000 K ou 4000 K au choix.
3000 K
Fonctionnement avec temp. de couleur 3000 K
1385 lm
Flux lumineux du module
810 lm
Flux lumineux du luminaire
86,2 lm / W
Rendement lum. du luminaire
4000 K
Fonctionnement avec temp. de couleur 4000 K
1400 lm
Flux lumineux du module
819 lm
Flux lumineux du luminaire
87,1 lm / W
Rendement lum. du luminaire
Réglage de la température de couleur
Via l'application BEGA Smart ou wibutler
la température de couleur peut être réglée
au choix sur 3000 K ou 4000 K et l'intensité
lumineuse être ajustée à votre convenance.
Une température de 3000 K et une luminosité
maximale sont préréglées à l'usine.

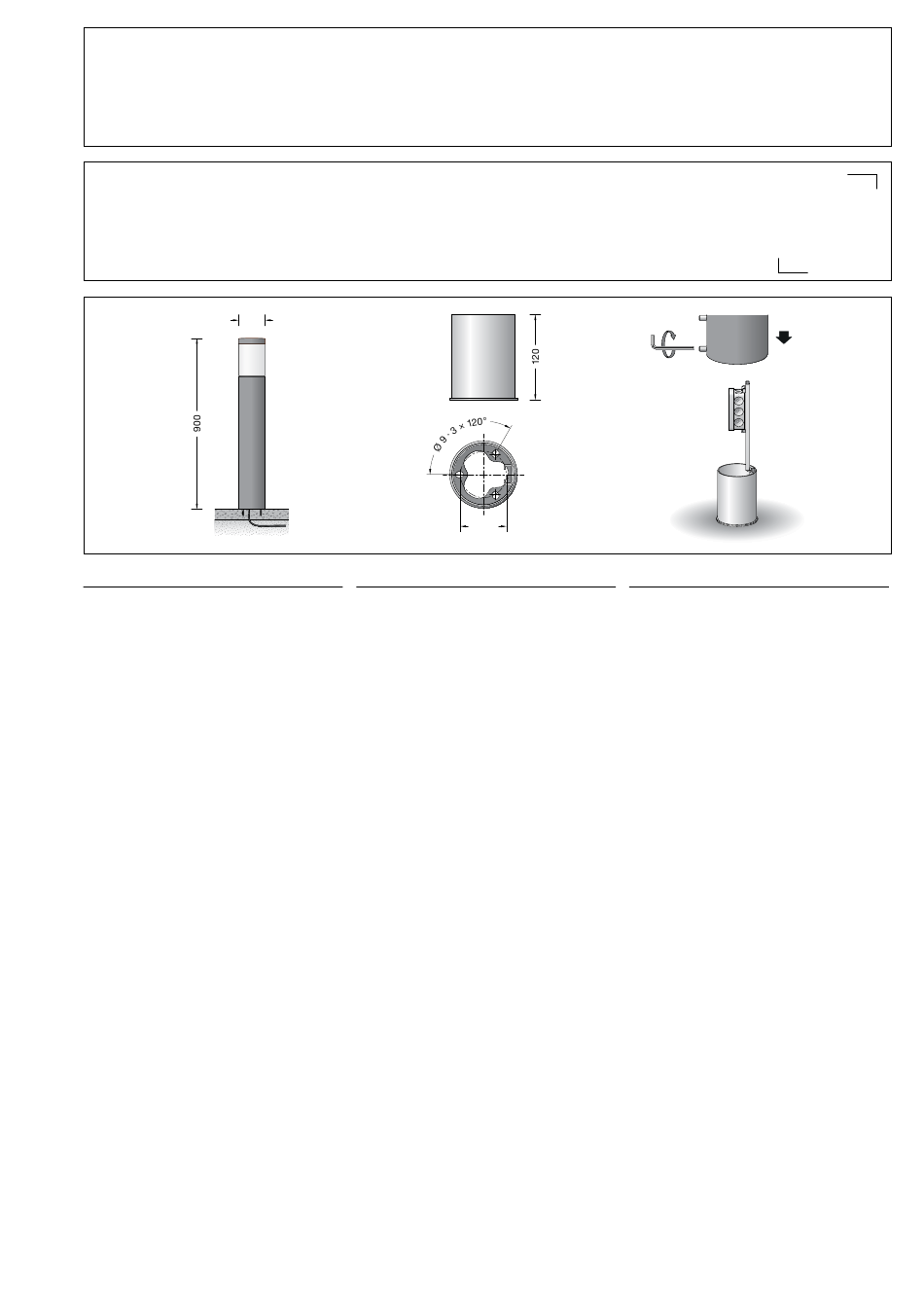

85 344
é
c
IP 65
DataMatrix
Code
9,4 W
LED-1559/83040
(IRC) > 80
t
= 25 °C
a
t
= 40 °C
a max
1385 lm
810 lm
86,2 lm / W
1400 lm
819 lm
87,1 lm / W
1 / 5
